Supercharged Express: Brad Ponci’s 1,000-hp Blown Cummins

When it comes to diesel performance, it’s easy to tread the same path as everyone else. Especially when it comes to 12-valve Cummins engines: It’s been pretty much proven that big turbochargers, plus big fueling, equals big horsepower. There are some, though, who take the road less traveled to achieve better performance. Brad Ponci is one of those guys. For more than 30 years, Brad has run a diesel performance and repair shop up in Fortuna, California, along the North Coast of the state. While Brad’s bread and butter has been repair, he does quite a few performance builds, too, and has engineered a 10-second truck, an 8-second Altered and has helped a few customers with 1,000+ horsepower builds.

LIFE CHANGES FAST

Brad has always been into drag racing, but after a scary incident a few years ago when he barrel-rolled his Altered in Sacramento, California, and had to be cut out of the car, he decided he needed a bit more tubing and body around him. Brad didn’t want to abandon drag racing though and went with a clean-sheet approach to building a Pro Stock truck. For this new venture, he acquired a 2012 D&D tube chassis S-10 with a ’03 body that was certified to 6.0-seconds in the quarter mile. The truck was light and long with a 125-inch wheelbase and extensive fiberglass work. Next, Brad needed an engine.

At 115psi of boost, drive pressure is only 56psi, which saves on pumping losses in the engine.

BEING DIFFERENT

Wanting fast speeds, Brad was still a little irked at the spooling time of the usual turbocharged combinations and decided to try something a bit different: a supercharger. See, many high-horsepower diesels can take forever to spool, even if they creep into the staging lights already up on boost. Since Brad wanted to race with the gas crowd at his local racetrack, he needed something that would spool nearly instantly yet still make good power. However, most superchargers aren’t designed for the type of boost levels found in diesel performance, so an air intermediary was needed to keep the pressure ratio down. That’s when Brad arrived at a supercharged-turbocharged combination, with the blower blowing into the turbocharger.

Before he started work on the induction though, Brad had to build an engine. Starting with a 5.9L Cummins block out of a ‘94 Dodge, Brad then added an internally-balanced crankshaft, Carillo rods and nearly indestructible Mahle Monotherm steel pistons that Brad modified himself to lower the compression to about 14:1. A Hamilton Cams billet camshaft was installed in the block and bumps the Hamilton HD pushrods, which then extends up to a Hamiton Cams 12-valve cylinder head that was fire-ringed and fitted with oversize valves and dual valve springs. From the main studs, to the rod bolts, to the head studs, all the fasteners throughout the engine are from ARP. Final assembly and machining for the power plant was performed by S&H Machine.

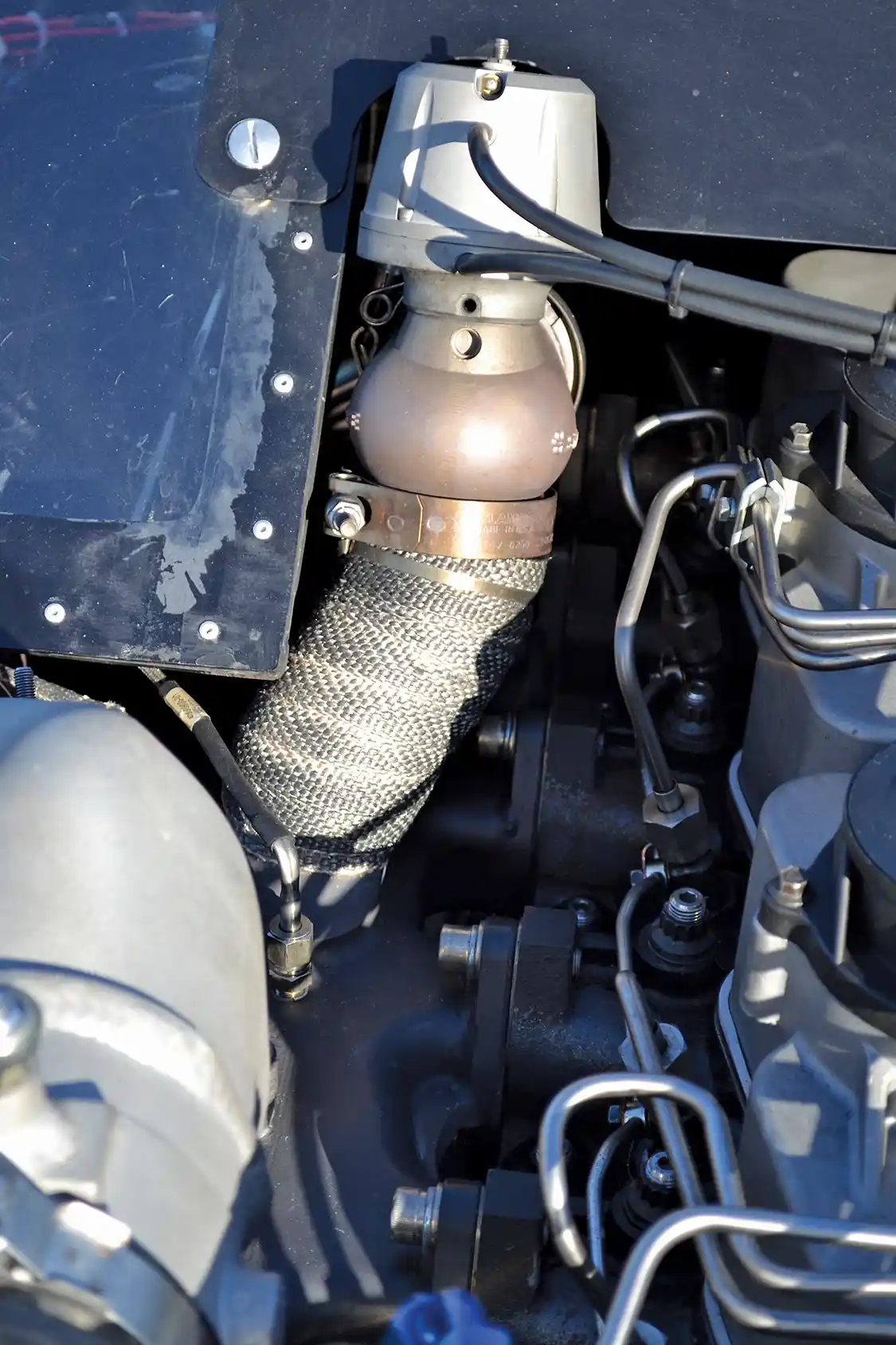

A Steed Speed exhaust manifold incorporates a Synapse 50mm wastegate to relieve drive pressure and keep the engine from overboosting. The supercharger turbocharger system is currently set up at 115psi of boost, with 56psi of drive pressure, which is virtually unheard of.
A Steed Speed exhaust manifold incorporates a Synapse 50mm wastegate to relieve drive pressure and keep the engine from overboosting. The supercharger turbocharger system is currently set up at 115psi of boost, with 56psi of drive pressure, which is virtually unheard of.

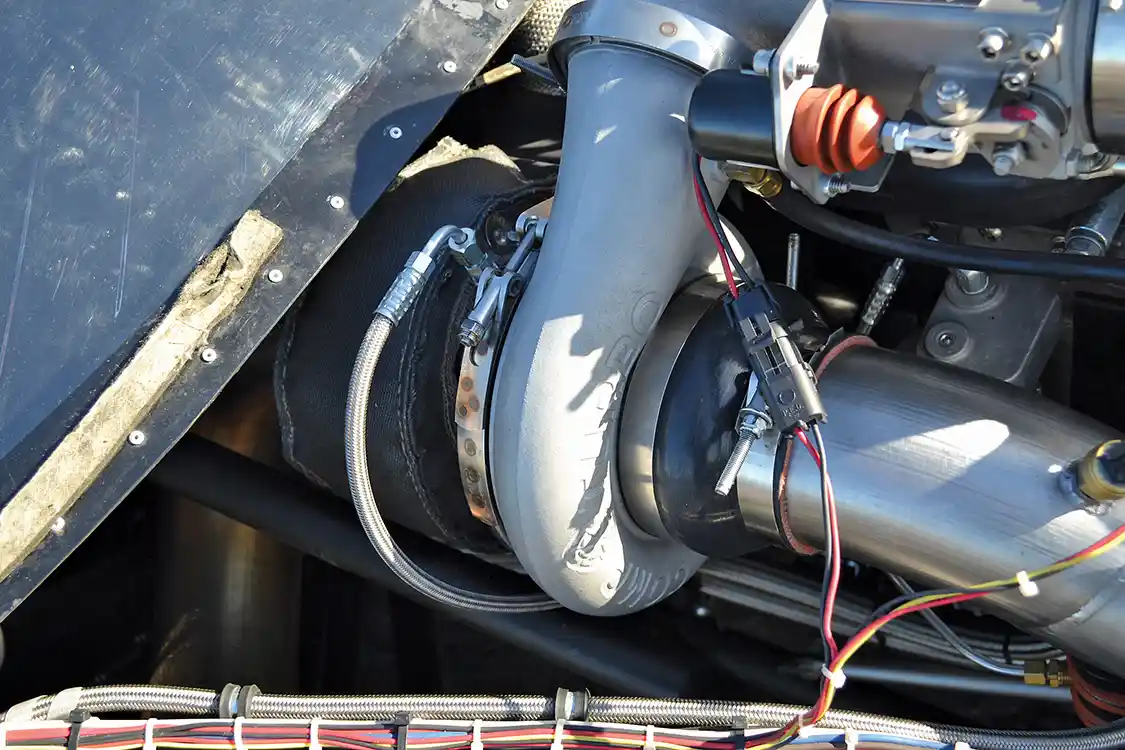

Brad's been through a few different turbos, as more than 100psi total boost isn't easy on compressors. When we took this shot, the truck had a billet 80mm turbo on it, but it has since been replaced with a 78mm turbo from Steve Gillett.
Brad’s been through a few different turbos, as more than 100psi total boost isn’t easy on compressors. When we took this shot, the truck had a billet 80mm turbo on it, but it has since been replaced with a 78mm turbo from Steve Gillett.

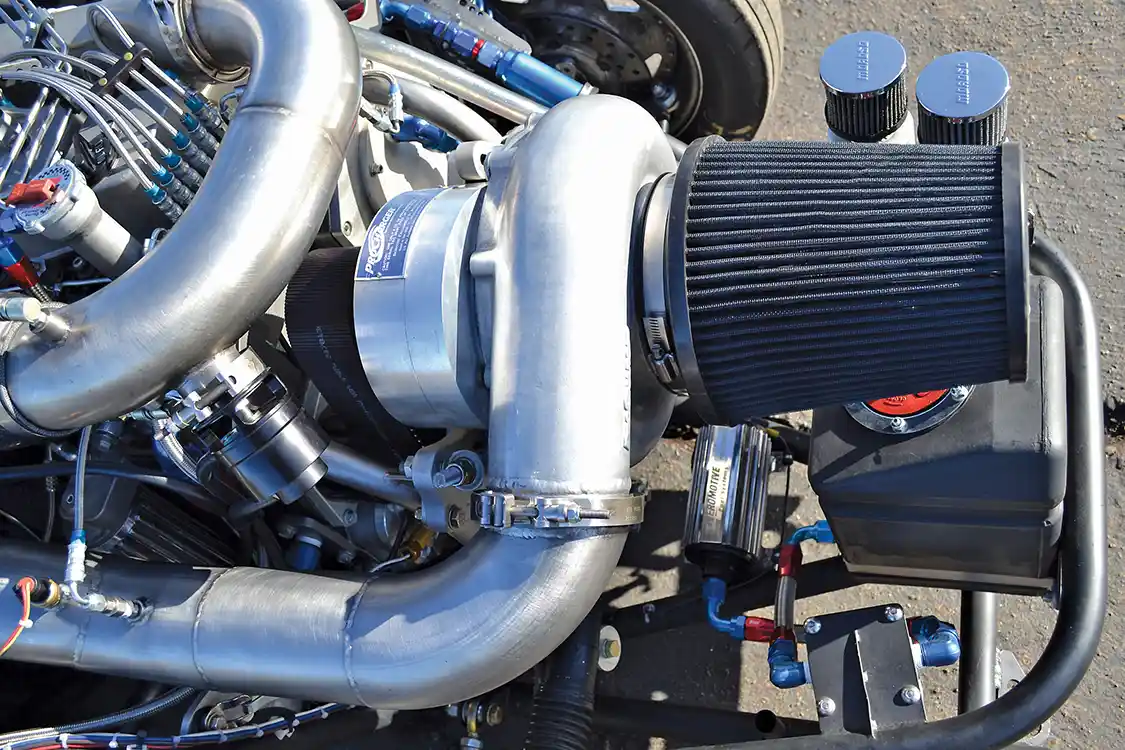

The heart of what makes this truck different is the enormous 139mm F3R Procharger. The reverse-rotation blower was mounted with a drive system of Brad's own creation that he fabricated in his shop, Ponci's Diesel.
The heart of what makes this truck different is the enormous 139mm F3R Procharger. The reverse-rotation blower was mounted with a drive system of Brad’s own creation that he fabricated in his shop, Ponci’s Diesel.

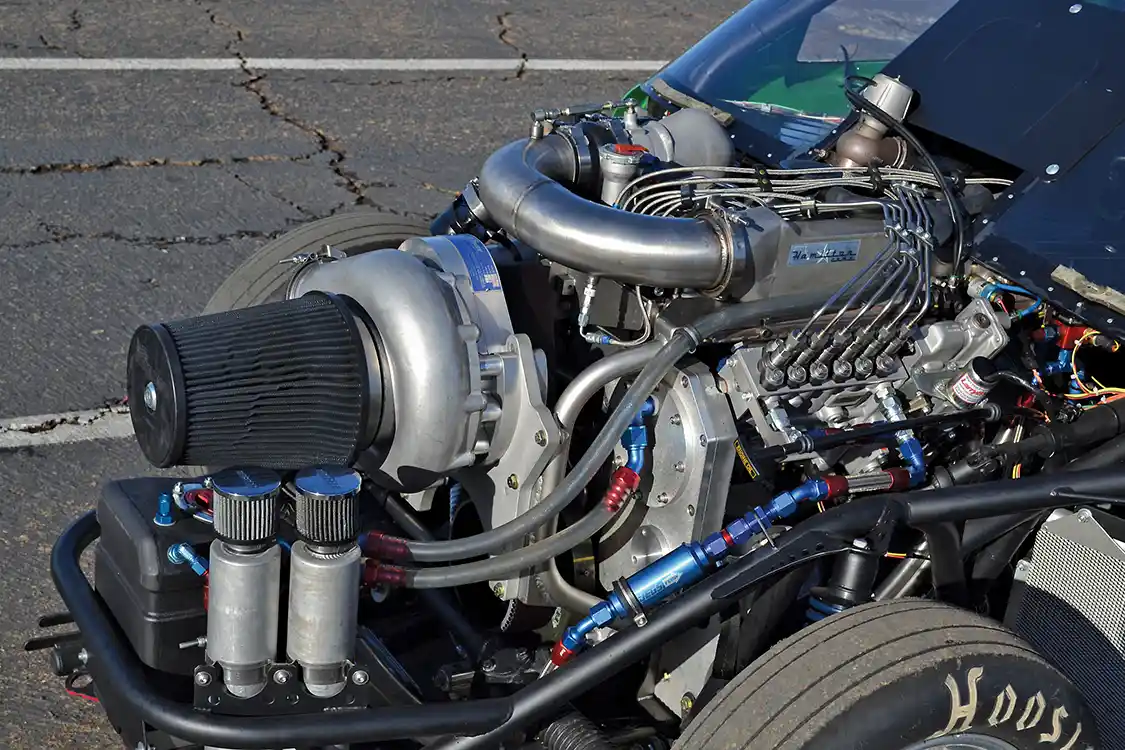

While we're used to seeing 5.9L Cummins engines in drag vehicles, Brad Ponci's creation is unlike anything else we've seen so far. Currently set up to make 800-1,000 rwhp, Brad probably has another 500 hp or more left in the combination once it's turned all the way up.
While we’re used to seeing 5.9L Cummins engines in drag vehicles, Brad Ponci’s creation is unlike anything else we’ve seen so far. Currently set up to make 800-1,000 rwhp, Brad probably has another 500 hp or more left in the combination once it’s turned all the way up.

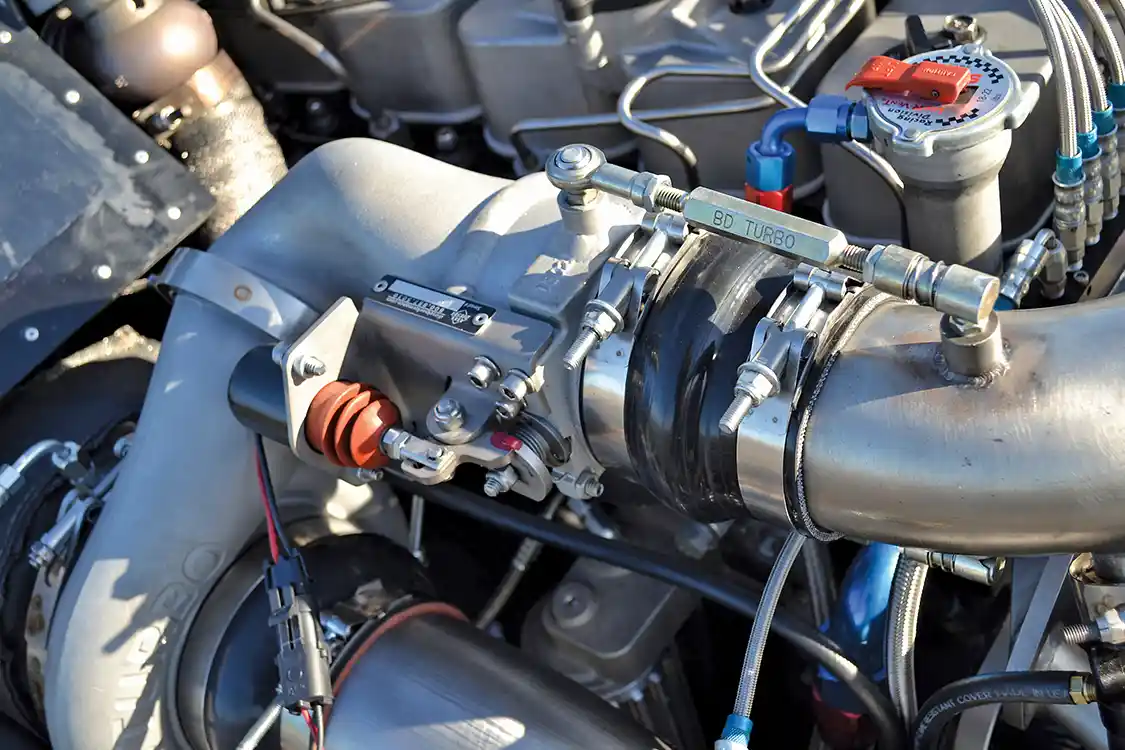

For the safety of the engine, high strength boots, clamps, straps, and an air shutoff are incorporated into the intake tract in case a failure should occur.
For the safety of the engine, high strength boots, clamps, straps, and an air shutoff are incorporated into the intake tract in case a failure should occur.

SUPER TURBO

The induction system was where things really got interesting. Brad didn’t want to sell himself short on blower capability, so he went with the biggest supercharger in the ProCharger line: the mammoth 139mm F3R. Blasting an incredible 4,000cfm of air into a turbocharger and then into the engine, the ProCharger would be more than enough to meet Brad’s power needs. Brad has tried a variety of turbochargers (and broke a few) but finally settled on a 78mm S400 with an 87mm turbine and a loose 1.25 A/R housing. With a tornado’s worth of airflow, Brad needed fuel to match his awesome boost levels. So, Brad started with an Aeromotive lift pump that’s regulated at 50psi and feeds a Northeast Diesel injection pump that has a quickfill cam and 13mm plungers. From there, fuel goes through Scheid .093 stainless steel lines and into a custom set of injectors from Dynomite Diesel Performance.

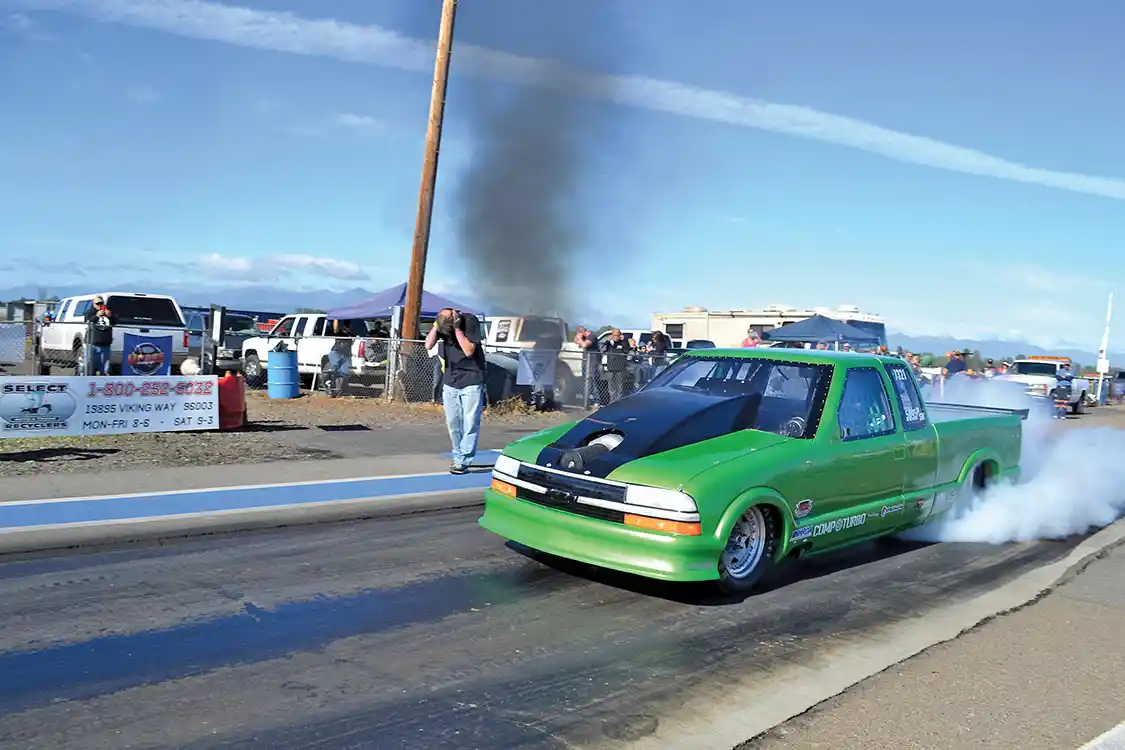

One aspect of Ponci's blown S10 that is different than any other diesel is its sound: With an immense amount of air from idle on up, the engine in Brad's drag truck is one of the loudest Cummins we have ever heard.
One aspect of Ponci’s blown S10 that is different than any other diesel is its sound: With an immense amount of air from idle on up, the engine in Brad’s drag truck is one of the loudest Cummins we have ever heard.

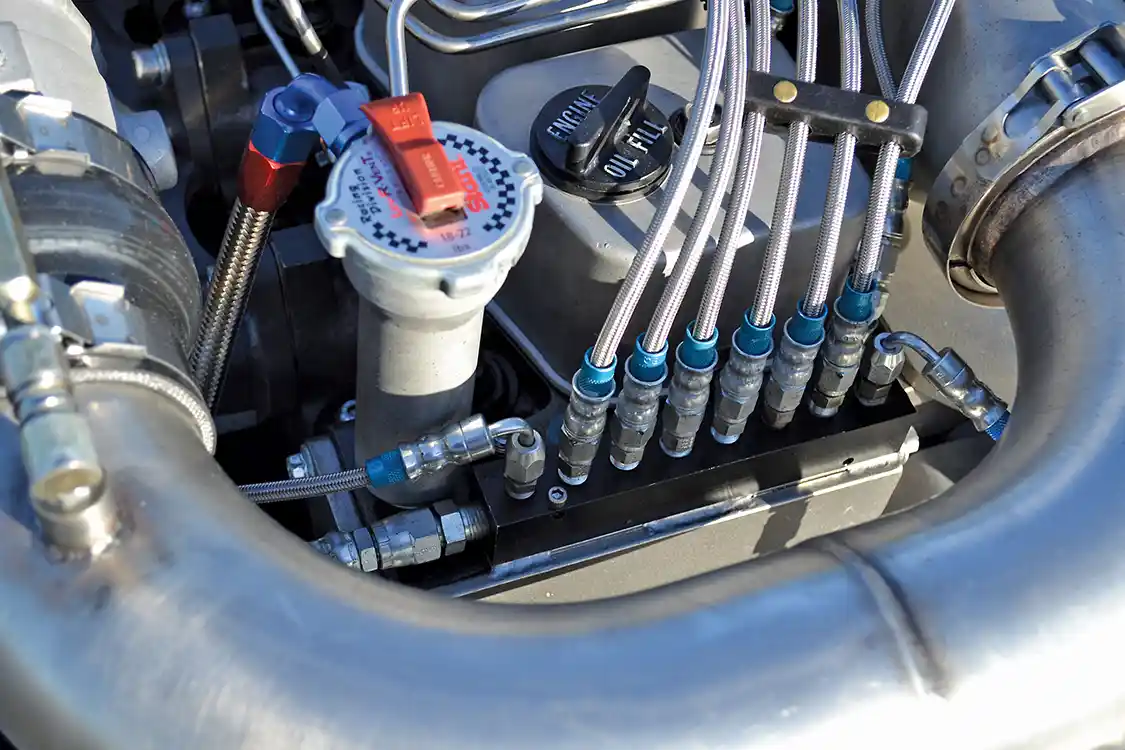

Multiple water injection nozzles are used to keep exhaust gas temperatures down, instead of an intercooler. For maximum power, EGT is limited to 1,700-1,800 degrees at the end of the quarter mile.
Multiple water injection nozzles are used to keep exhaust gas temperatures down, instead of an intercooler. For maximum power, EGT is limited to 1,700-1,800 degrees at the end of the quarter mile.

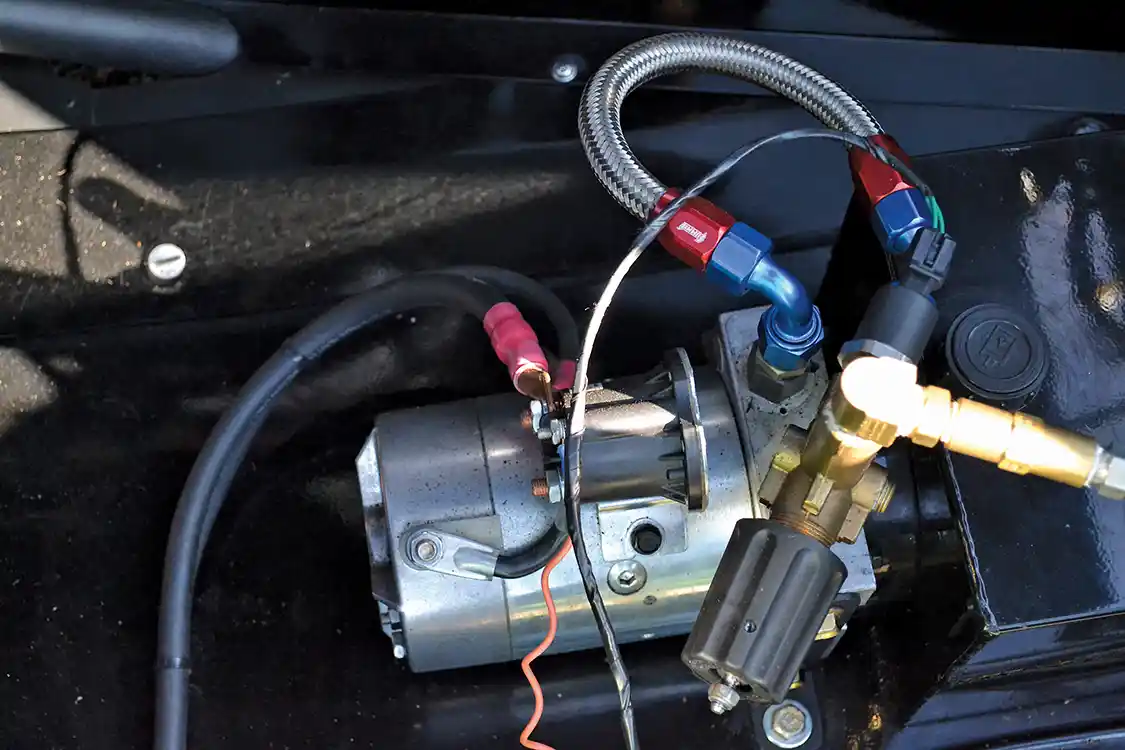

Like most of the rest of the truck, Brad designed and built the water injection system himself using a Haldex hydraulic pump, which provides 400psi of pressure to the nozzle bank.
Like most of the rest of the truck, Brad designed and built the water injection system himself using a Haldex hydraulic pump, which provides 400psi of pressure to the nozzle bank.

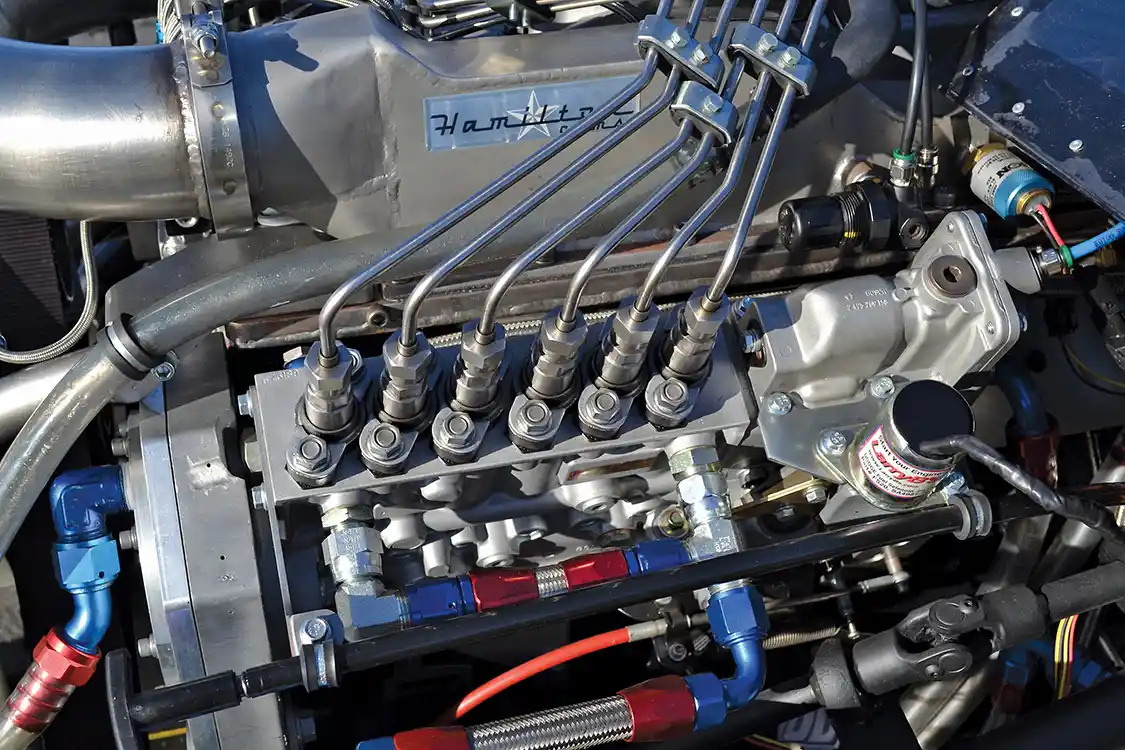

A P7100 injection pump built by Northeast diesel was installed on the 5.9L Cummins, and it incorporates such features as a quick-fill cam and 13mm plungers. Set at 660cc of fuel and 29 degrees of timing, the pump is capable of a whopping 992cc when Brad is ready to turn the truck up.
A P7100 injection pump built by Northeast diesel was installed on the 5.9L Cummins, and it incorporates such features as a quick-fill cam and 13mm plungers. Set at 660cc of fuel and 29 degrees of timing, the pump is capable of a whopping 992cc when Brad is ready to turn the truck up.

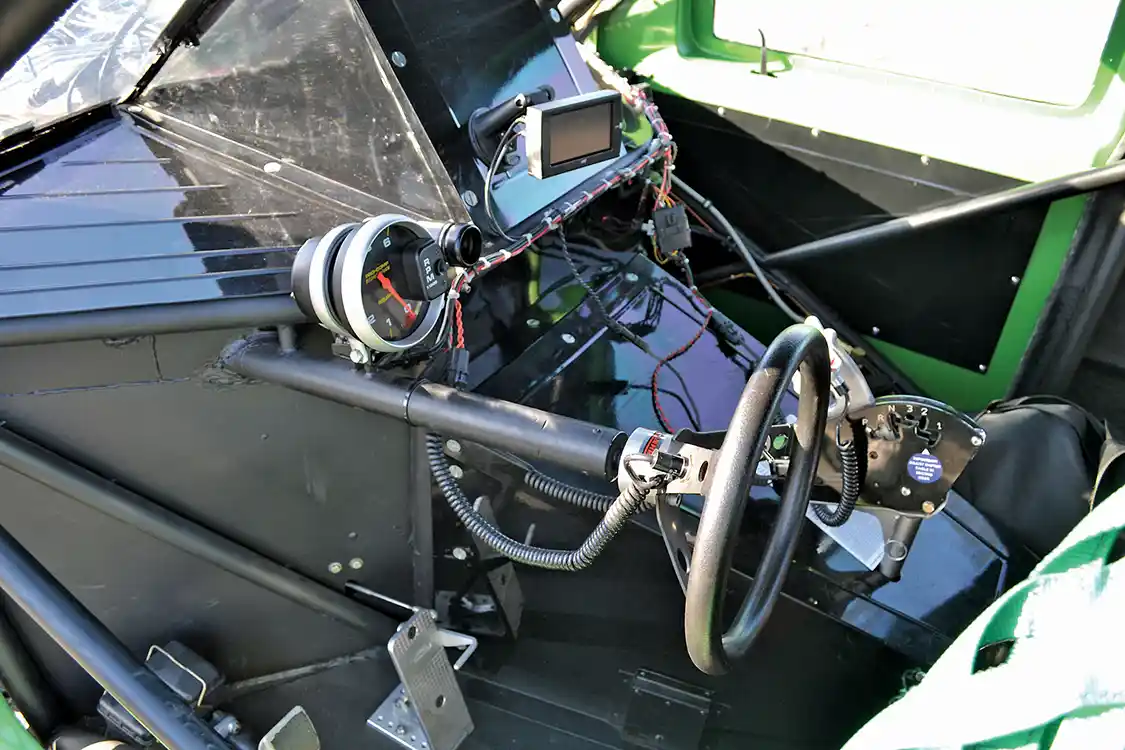

The interior of Brad's drag truck is all business: With a tubular steering column, driver setback, full rollcage and a bunch of safety gear, there's plenty of protection for the truck's 150mph trap speed.
The interior of Brad’s drag truck is all business: With a tubular steering column, driver setback, full rollcage and a bunch of safety gear, there’s plenty of protection for the truck’s 150mph trap speed.

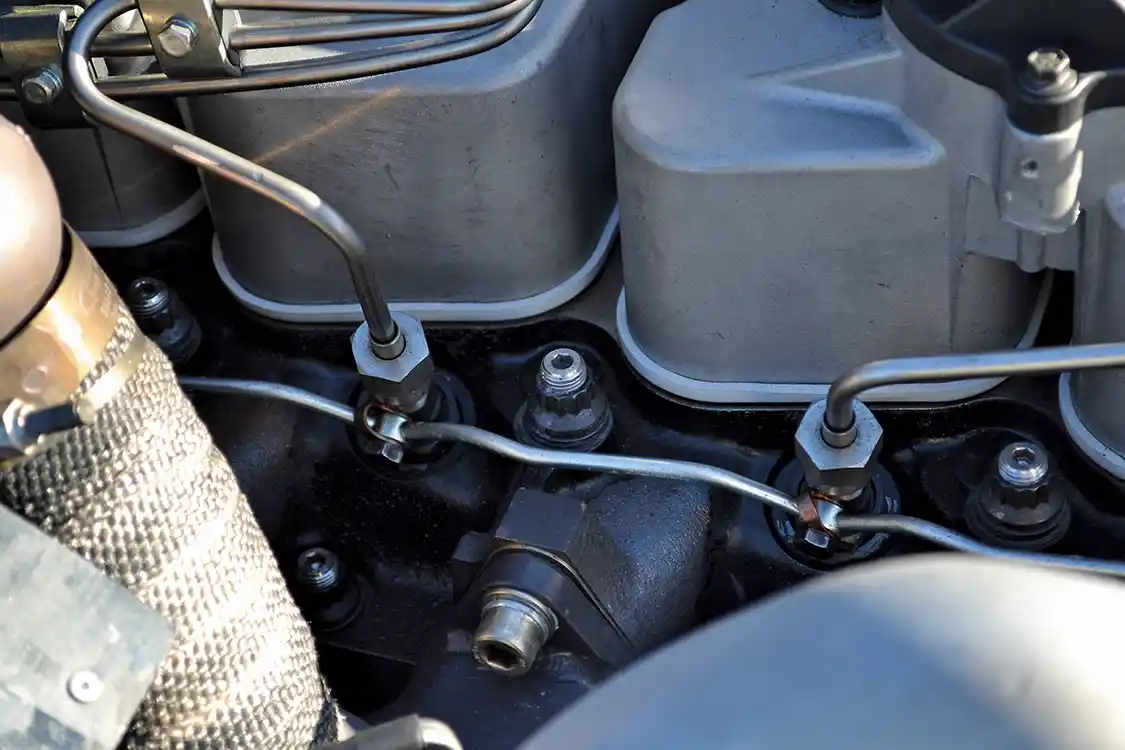

A set of custom competition injectors from Dynomite Diesel Performance completes the injection system. At the pump's current setting, the truck is able to make awesome power with these injectors, while producing very little smoke.
A set of custom competition injectors from Dynomite Diesel Performance completes the injection system. At the pump’s current setting, the truck is able to make awesome power with these injectors, while producing very little smoke.

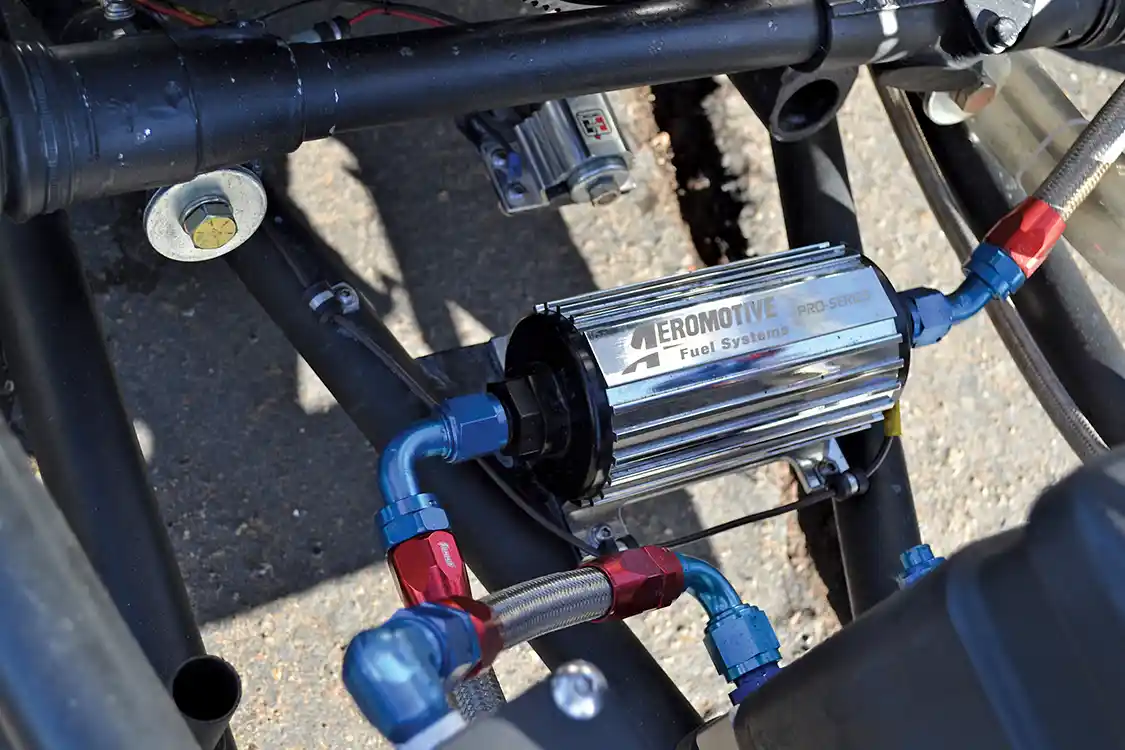

The fuel system that has to keep up with the supercharged/turbocharged engine combination starts off with an Aeromotive lift pump, which is regulated at 50psi of fuel pressure.
The fuel system that has to keep up with the supercharged/turbocharged engine combination starts off with an Aeromotive lift pump, which is regulated at 50psi of fuel pressure.

DW-1510-GMGREEN-22

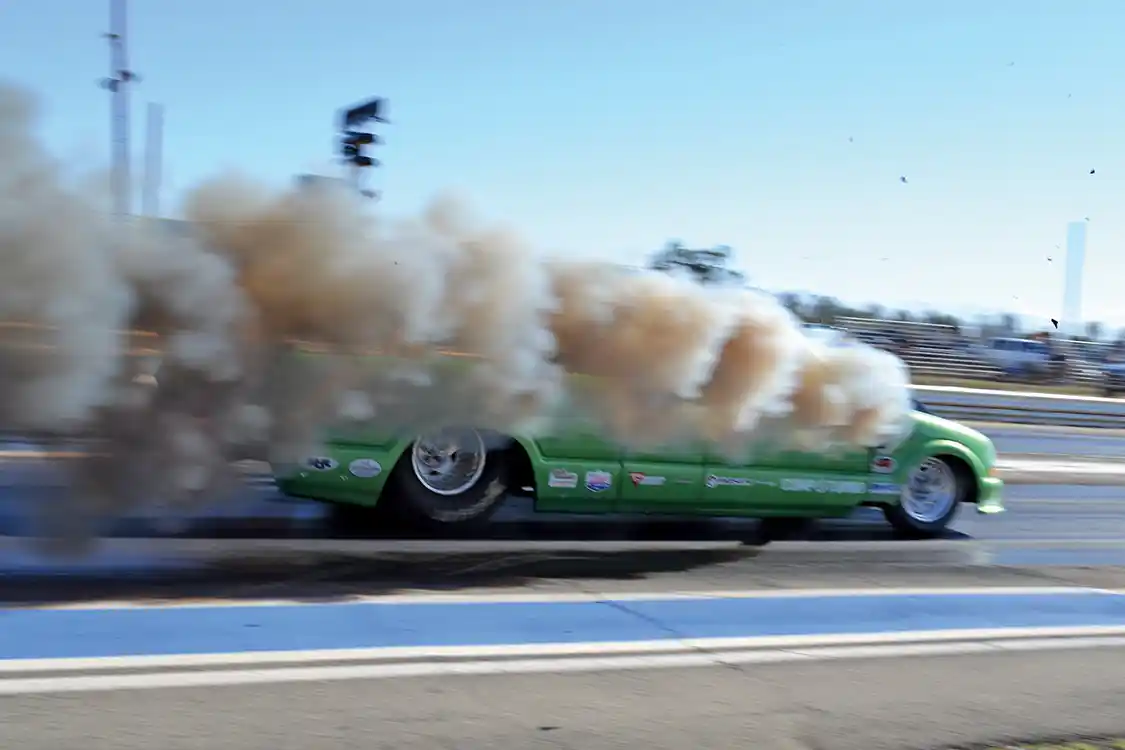

Remember when we told you the truck got a new turbo? Here's why: The multiple black spots on this photo are actually turbo parts flying out of the exhaust. That's what happens when you hit 130+psi almost instantly.
Remember when we told you the truck got a new turbo? Here’s why: The multiple black spots on this photo are actually turbo parts flying out of the exhaust. That’s what happens when you hit 130+psi almost instantly.

POWER TRANSMISSION

When it came to applying the unique engine combination’s power to the ground, Brad set out to build a drivetrain that would handle the diesel’s torque. A 47RH transmission was selected for its all-hydraulic control and was rebuilt by Brad himself using a Goerend torque converter, flexplate and billet input shaft. A full-manual valve body with a transbrake was selected from Suncoast for the build, as it would allow Brad to leave the line simply by letting go of a button, giving him full control over shift points. Topping it off was a ford 9-inch rear-end with 40 spline gun-drilled axles and surprisingly steep 3.89 gear rounds out the drivetrain combination.

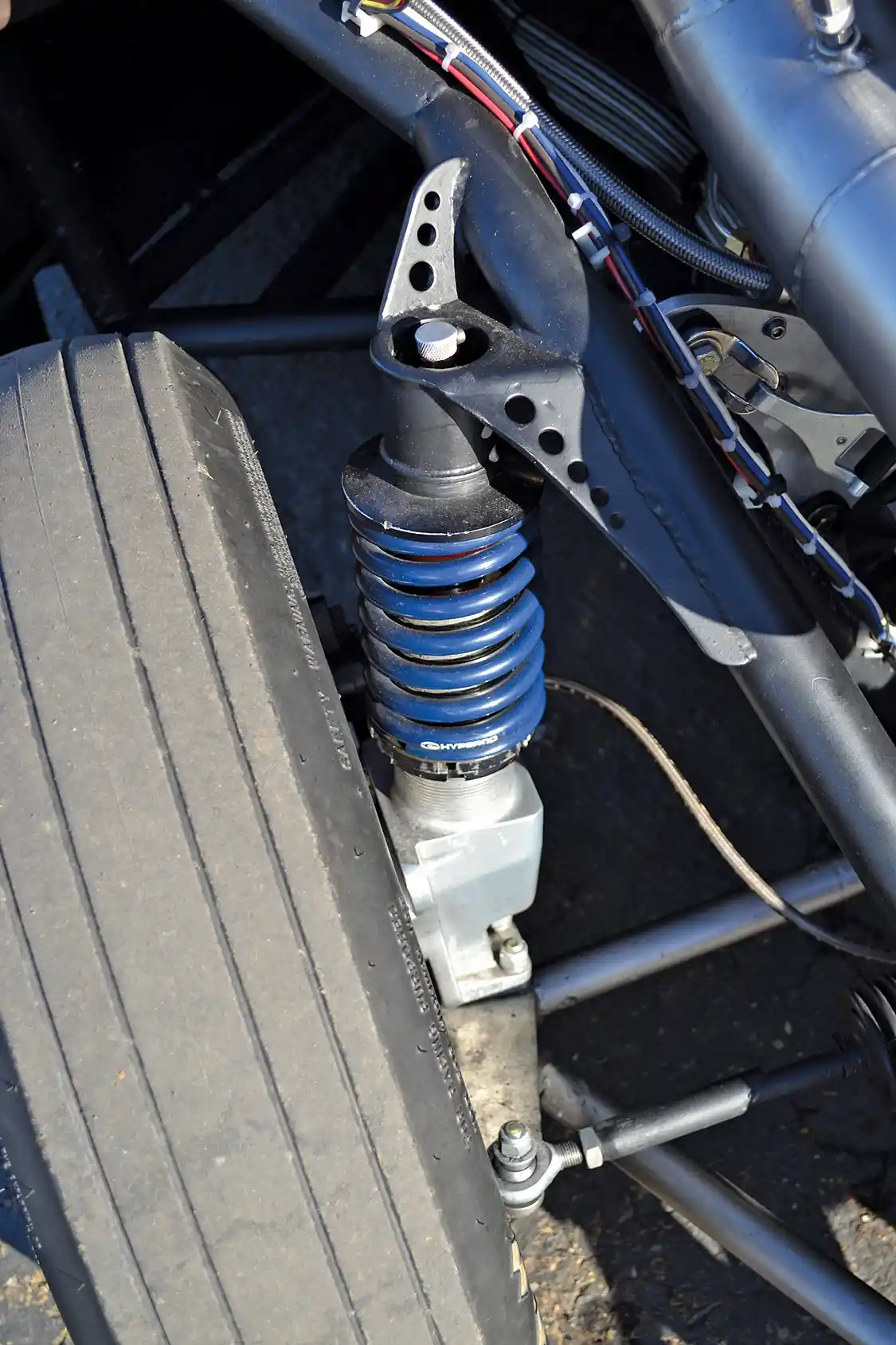

Since diesels have a fairly heavy front weight bias due to their robust engines, long travel heavy-duty struts are a vital part of the S10's front suspension.
Since diesels have a fairly heavy front weight bias due to their robust engines, long travel heavy-duty struts are a vital part of the S10’s front suspension.

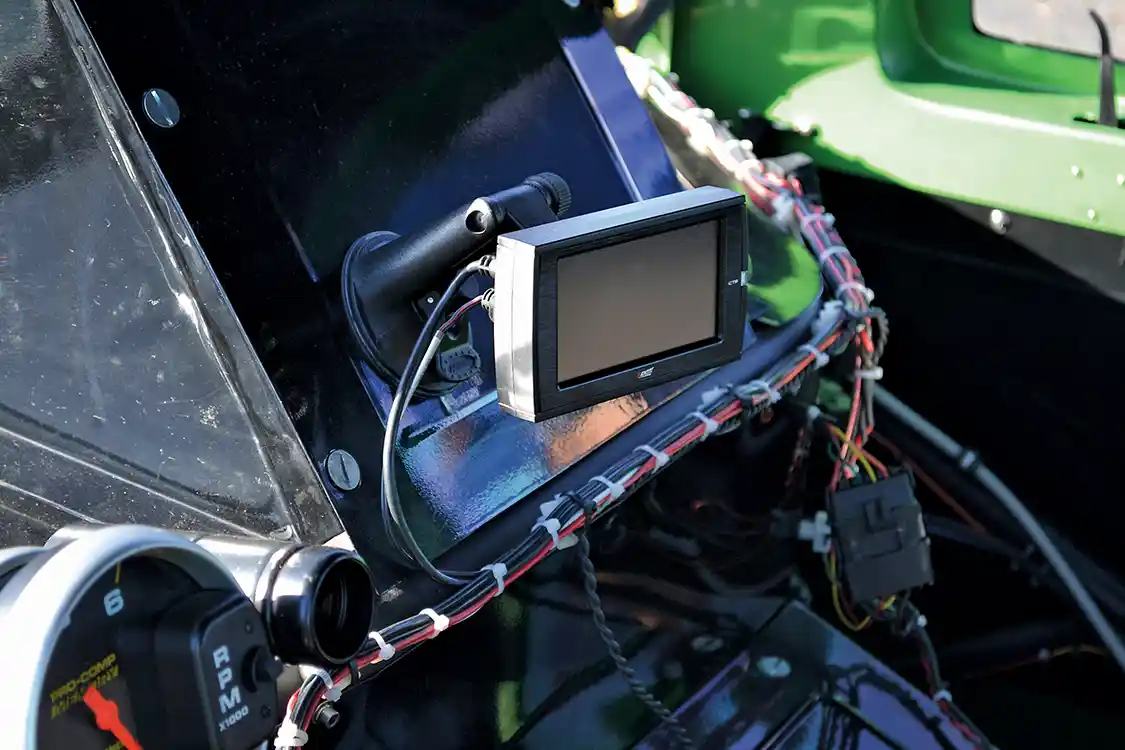

Brad kept on a tight budget whenever possible and incorporated an Edge Insight CTS into his engine's electronics. With it, he could monitor boost, drive pressure, exhaust gas temperature, engine and transmission temperatures and more.
Brad kept on a tight budget whenever possible and incorporated an Edge Insight CTS into his engine’s electronics. With it, he could monitor boost, drive pressure, exhaust gas temperature, engine and transmission temperatures and more.
Brad was quick to point out that he couldn't run his truck with the help of his crew, Bob Lewis, Jeremy Torgerson, his wife and numerous suppliers who helped him build the truck.
Brad was quick to point out that he couldn’t run his truck with the help of his crew, Bob Lewis, Jeremy Torgerson, his wife and numerous suppliers who helped him build the truck.

DRIVING THE BEAST

Since its completion, Brad has run into numerous problems with his unique combination, such as keeping the boost down. Brad’s blown up a few turbos trying to dial everything in and still sees more than 100psi of boost just during the burnout. Even with a 50mm Synapse wastegate, boost is still 115psi total, with about 31psi coming from the blower. He’s still trying to dial in the suspension for the truck’s instant power, and his 60-ft. times have dropped from the 1.40s to 1.30s to his current 1.29.

After much tuning and testing, the question still remains: how did the combination actually work? The answer so far has been “Great!” Unlike most diesels, Brad is able to brake-boost into the staging beams at about 15psi, hit the transbrake and then spool to 60psi in a little over a second. While the blower requires some power to drive, at 115psi of boost, drive pressure is only 56psi, which saves on pumping losses in the engine. Is Brad’s ride a one-off creation or part of a new trend? It’s hard to tell, but there’s no doubt that it’s one of the most interesting and creative diesels we’ve seen in quite a while. DW

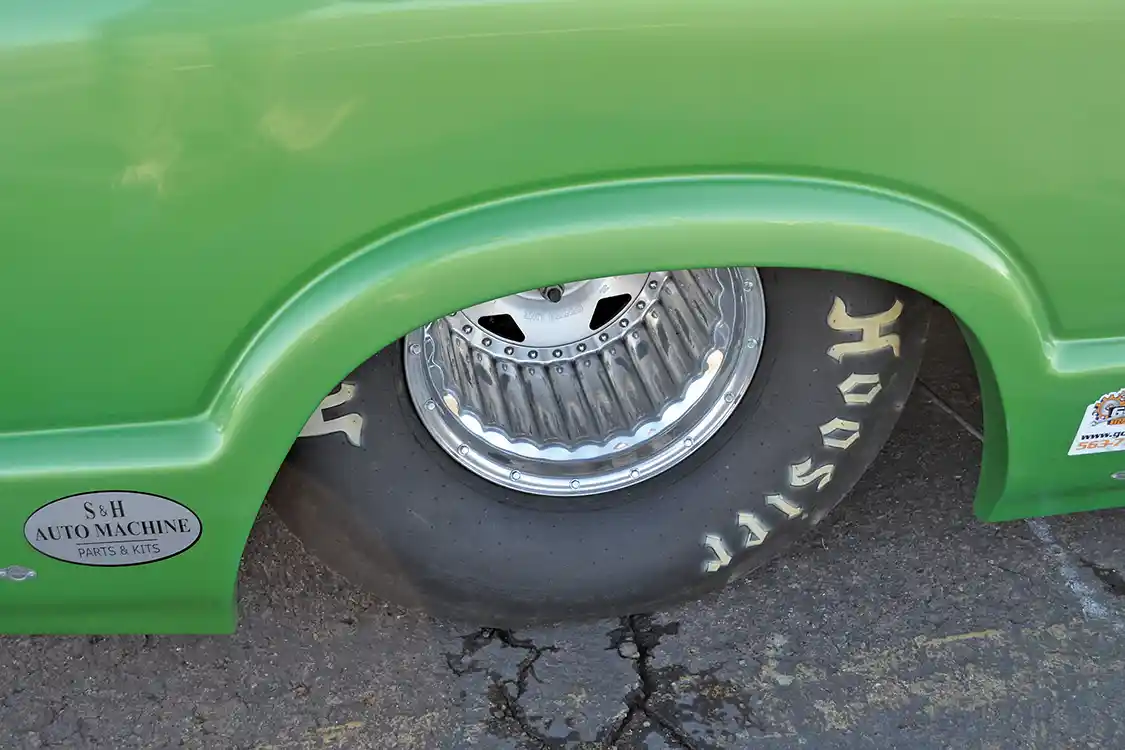

In drag racing, traction is all-important, so here, Brad didn't skimp. A set of 33x16x15-inch Hoosier drag slicks mounted on Centerline Convo Pro's provide the grip for high 1.2-second 60ft times.
In drag racing, traction is all-important, so here, Brad didn’t skimp. A set of 33x16x15-inch Hoosier drag slicks mounted on Centerline Convo Pro’s provide the grip for high 1.2-second 60ft times.

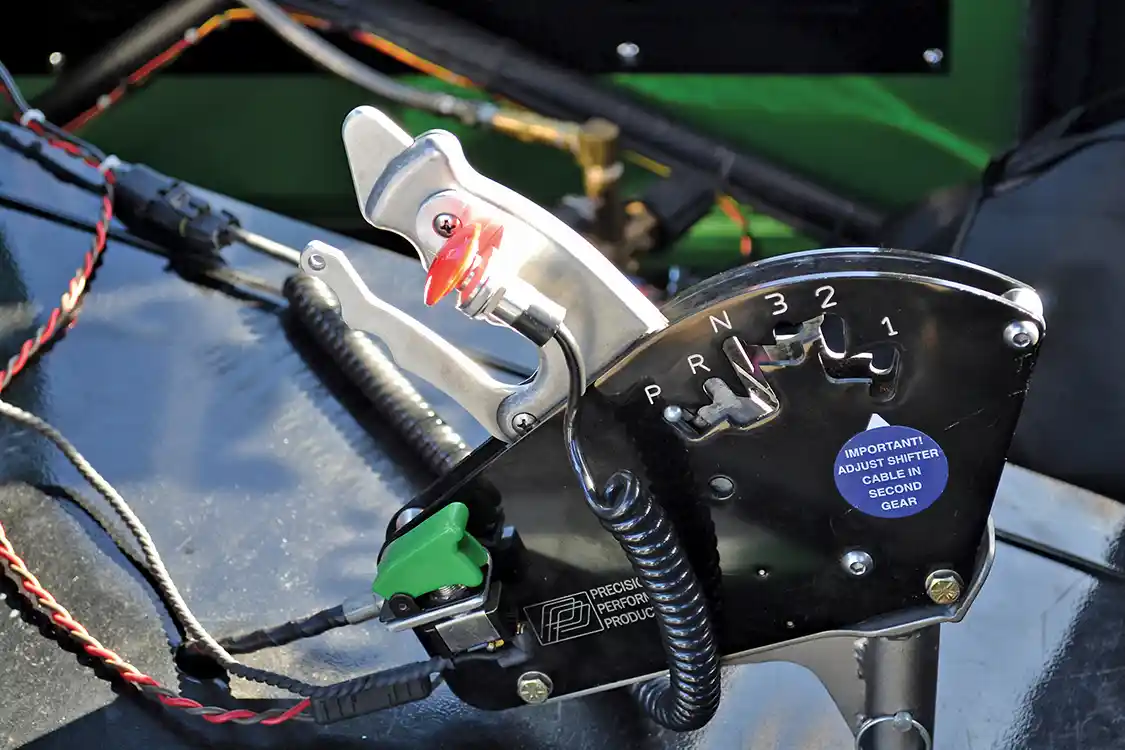

Lightweight parts are an important aspect of a drag vehicle build, like this 18-ounce Precision Performance Products shifter, which controls the Dodge 47Rh transmission.
Lightweight parts are an important aspect of a drag vehicle build, like this 18-ounce Precision Performance Products shifter, which controls the Dodge 47Rh transmission.

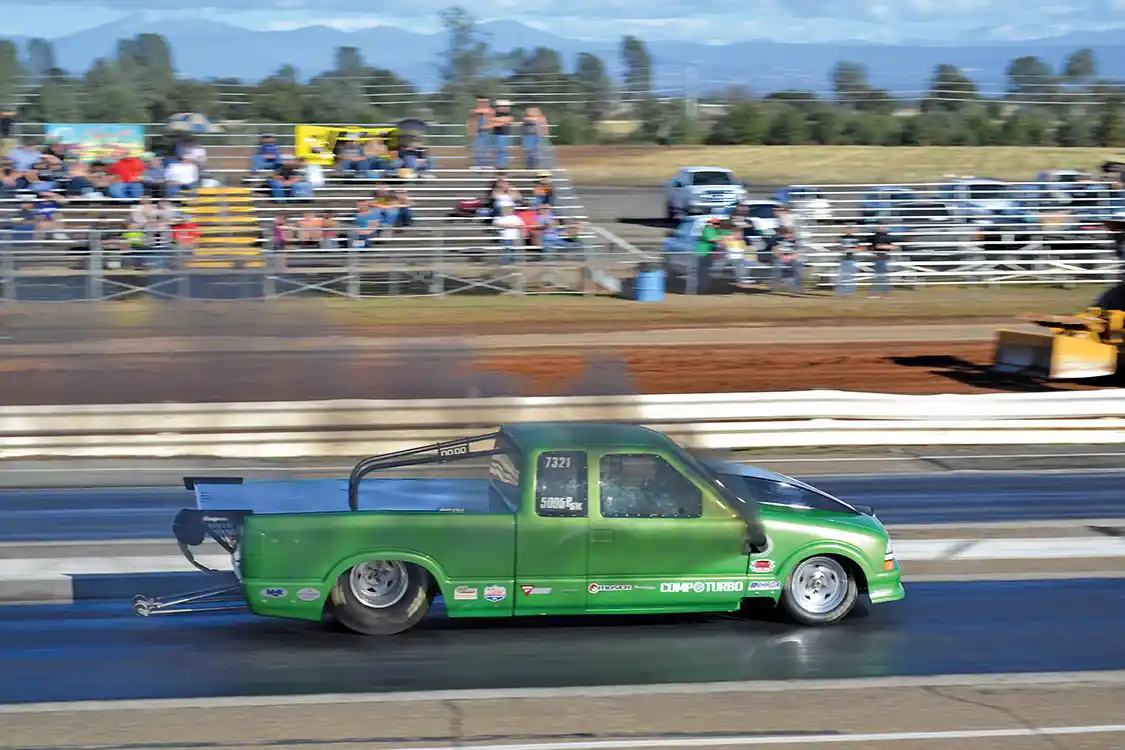

Brad's been through a few different turbos, as 100+psi of boost isn't easy on compressors. His current setup from Gillette Diesel features a billet-wheel 78mm turbo, with a large 1.25 a/r exhaust housing to keep drive pressure down.
Brad’s been through a few different turbos, as 100+psi of boost isn’t easy on compressors. His current setup from Gillette Diesel features a billet-wheel 78mm turbo, with a large 1.25 A/R exhaust housing to keep drive pressure down.
