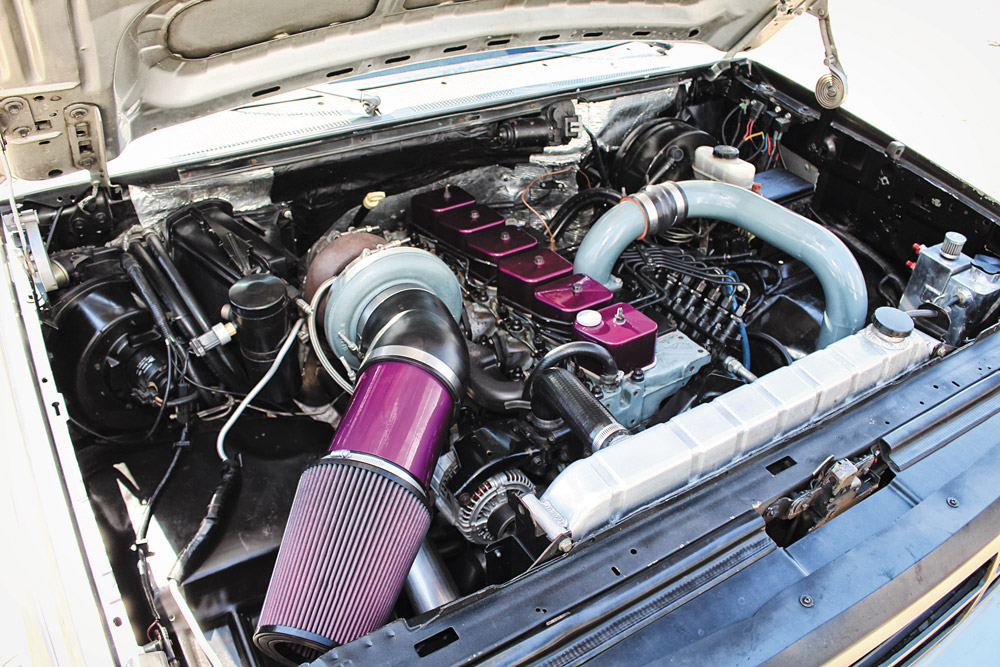

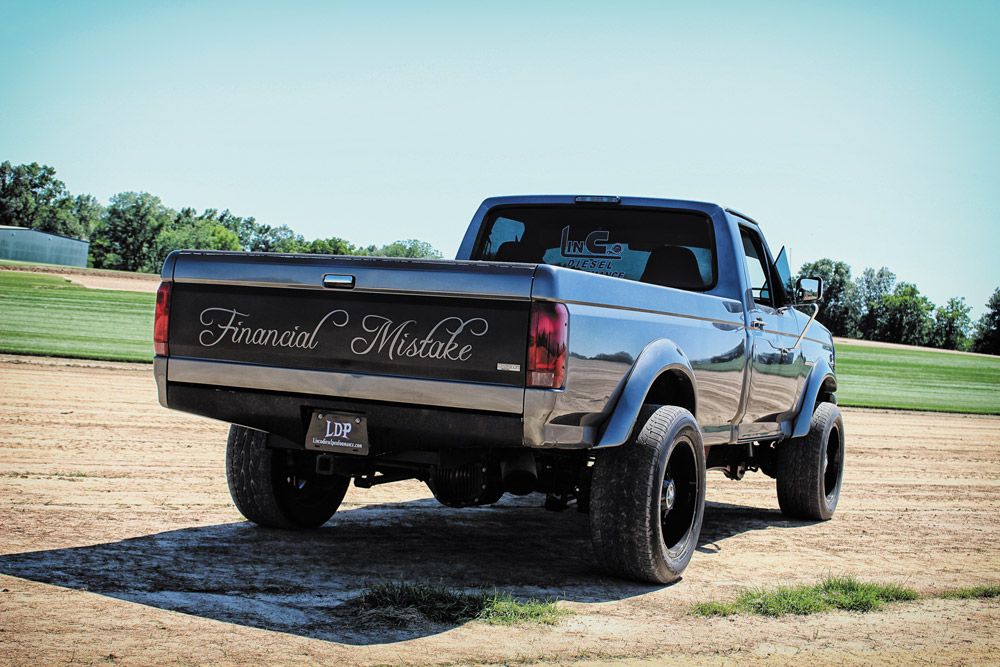

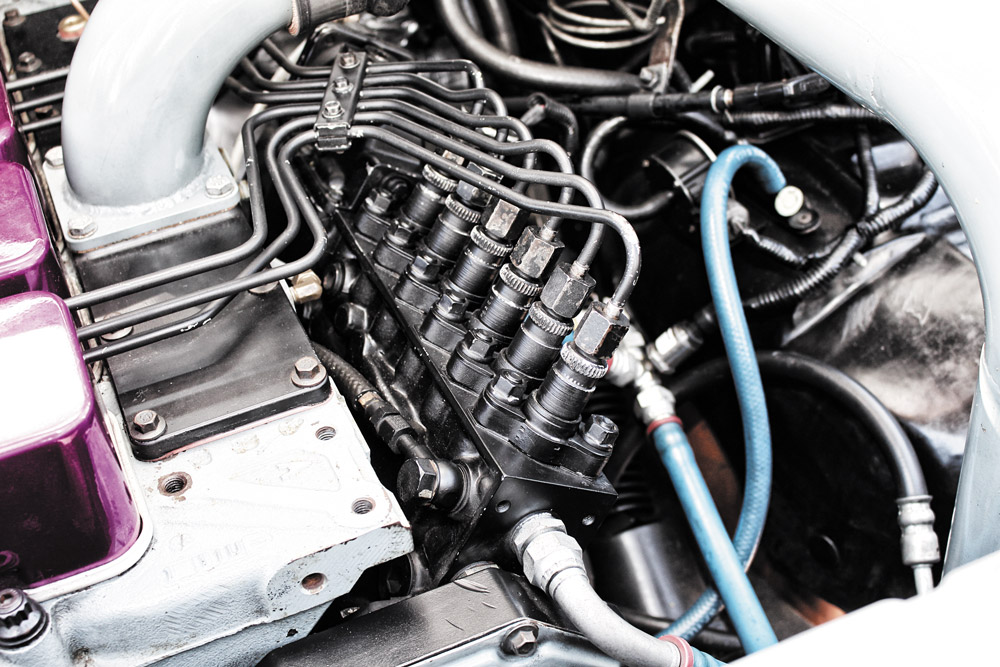

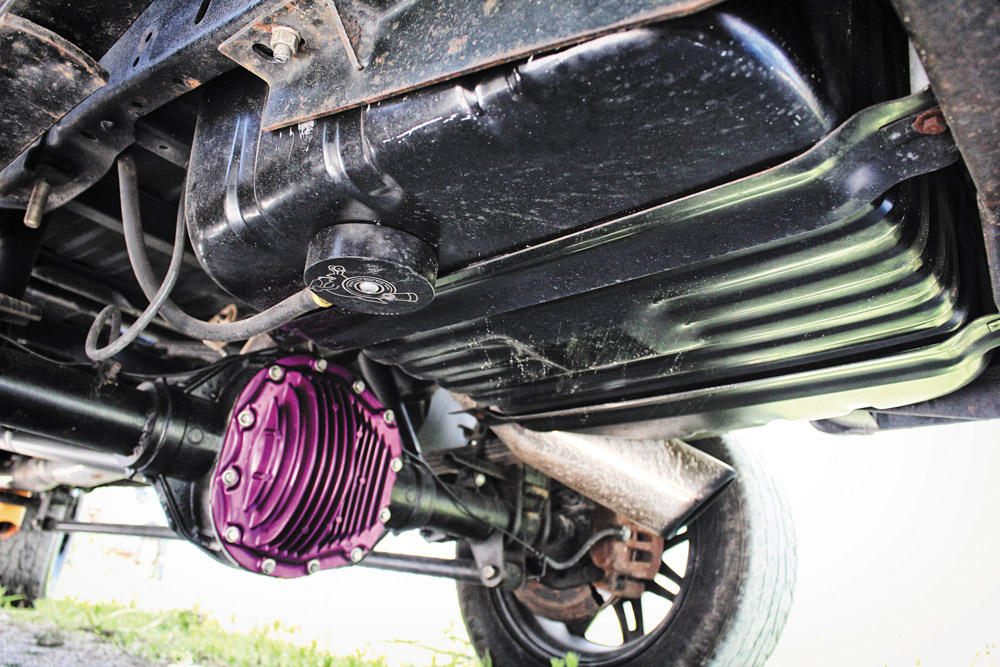

Up next VINTAGE SMOKE PINT-SIZED POWERHOUSE Published on April 07, 2020 Author Mike McGlothlin Tags 4x4 diesel trucks, 7.3L, chevy 4x4 trucks, Cummins, Diesel, Diesel Magazine, diesel performance, diesel power, diesel world, ford, ford 4x4 trucks, Share article Facebook 0 Twitter 0 Mail 0 Financial Mistake A 700HP, Cummins-Powered OBS Ford It’s true that you don’t have to spend big money to build the truck of your dreams. Even though Tyler Turay lightheartedly refers to the project shown here as a financial mistake, his ’95 Ford F-250 is actually living proof of that statement. A self-taught fabricator and no stranger to using a wrench, his changing tastes have influenced the look of his OBS Ford tremendously over the last 10 years—and doing nearly all the work himself has saved him a boatload of money. First, a Dana 60 replaced the factory Dana 50 TTB, six inches of lift was added, and the truck rode on 38-inch Mud Grapplers. Then came the ’05 axle swap, a leveled front-end, and 35s. Most recently, the old-school ¾-ton was lowered and graced with Toyo Proxes. Of course, the biggest change took place when Tyler ditched the 7.3L Power Stroke in favor of a P-pumped Cummins back in 2013. Plucked from a ’92 first-gen, the 5.9L Cummins in Tyler Turay’s ’95 Ford was originally a VE-pumped engine. After P-pumping it and rocking the 265,000-mile mill for three years, a broken camshaft meant it was time for a mandatory overhaul. During the rebuild, Tyler added ARP main studs, secured the factory rods to the crank with ARP rod bolts, sprang for marine pistons, and installed a Hamilton 188/220 cam—the largest drop-in camshaft available. Hamilton extreme pushrods and dual valvesprings, 24-valve tappets, ARP heads studs, and an O-ringed head round out the rest of the 6BT’s mods. The freshened up 12-valve sees plenty of air courtesy of this BorgWarner S400, which makes use of a 67.7mm billet compressor wheel, a race cover, an 83mm turbine wheel inside a 1.10 A/R exhaust housing, and builds 63 psi of boost under load. The charger’s race cover clears the T4 Steed Speed exhaust manifold thanks to a 1-inch spacer from Stainless Diesel. Tyler fabricated the 6-inch-to-5.5-inch air intake and the intake elbow on the opposing side himself. Before the Cummins was swapped in, the VE pump was scrapped in favor of a P7100 off of a Ford F800. To get as much out of the P-pump as possible, Tyler threw the book at it. The fuel plate was ground down to a #0, the AFC was modified, and 4,000-rpm governor springs, 7mm delivery valves, a Mack rack plug, dual feed line kit, and TorkTek overflow valve were all added. A set of 5×18 injectors with a 155-degree spray angle (for the marine piston bowls) came from Contagious Diesel. 7.3L Out, 5.9L Cummins In After encountering multiple electrical gremlins with his modified-yet-aged 7.3L Power Stroke, Tyler came across a ’92 first-gen take-out engine listed on Craigslist. Because he had a strong desire to simplify the truck and make more horsepower—and the Cummins could be had for just $1,500—his mind was made up. However, knowing the first-gen Cummins’ VE injection pump would never provide the kind of fueling he was after, he sourced a P7100, front cover, injection lines, and everything else he’d need from a Ford F800 and went to work. The 265,000-mile, P-pump-equipped 5.9L was swapped in and life was good, for a few years anyway… Mandatory Engine Build When disaster struck just three years into the swap (the camshaft had split in two and summarily led to the valves meeting the pistons), Tyler was forced to rebuild the Cummins. On top of the standard machining performed on the block and head, he opted for ARP main studs, ARP rod bolts, and Mahle standard bore marine pistons. He also O-ringed the head and added head studs as reinforcement measures. A drop-in, 188/220 Hamilton camshaft, stiffer valve springs, 24-valve tappets, and heavier-duty pushrods were also part of the engine’s makeover.Subscribe Our Weekly Newsletter To simplify the P-pump swap, Tyler added a front cover from Linco Diesel Performance, complete with this removable plate. At the present time, the pump is set to fire a healthy 25 degrees before top dead center. Low-pressure fuel supply gets its start with an Every Last Drop sump installed in a 38-gallon steel tank. Tyler scored the fuel tank, which is intended for late 80s Fords, on Rock Auto for less than $200. Also notice the powder coated ’08-’10 style differential cover, present on the rear 10.5-inch axle that Tyler robbed from an ’05 F-250. A 47RE chock full of SunCoast goodies keeps the 12-valve in the meat of its power band. The four-speed conceals billet input, intermediate, and output shafts, a billet direct drum, Raybestos clutches, and Tyler shifts his own gears thanks to a full manual valve body. A SunCoast billet stator, 3D race converter with a 2,500-rpm stall speed is well-matched to the S400 and makes the truck very drivable. The Dormant Orange and Dormant Purple theme used throughout the truck represent the colors of cancer awareness. Tyler’s mother tragically lost a battle with leukemia when she was just 34 and he was 16. All powder coating was done by Gateway Powder Coating in O’Fallon, Missouri. No Shortage of Fuel Tyler’s path toward 700 rwhp began by making all the usual tweaks to the 12mm P7100. Grinding down the factory fuel plate to a #0, modifying the AFC, adding 4,000-rpm governor springs, a Mack rack plug, 7mm delivery valves, and a TorkTeknology adjustable overflow valve help wake the 175hp pump up tremendously, while a FASS system and a dual feed line kit keep it supplied with plenty of fuel. Contagious Diesel 5×18 injectors with SAC-style nozzles make use of the popular 155-degree spray angle to match the marine piston bowls located beneath them. 60+ PSI of Boost Packing the cylinders full of air begins with an S400, equipped with a race cover and 6-inch to 5.5-inch air intake that Tyler fabricated. The sizable single employed a billet 67.7mm compressor wheel, an 83mm turbine, and a fairly loose 1.10 A/R exhaust housing. It mounted to a T4 Steed Speed exhaust manifold with a 1-inch T4 spacer between the two in order to clear the race cover. Per Tyler’s Auto Meter analog gauge along the A-pillar, the engine sees more than 60 psi of boost at full steam ahead. Boost is routed through an aluminum 7.3L Super Duty intercooler before making its way into the engine. From the first Dana 60 swap to the complete ’05 axle and suspension swap, to being lifted then lowered back down, and then on to ditching his highly-modified 7.3L for the 12-valve, Tyler’s OBS has undergone quite a few transformations over the past decade. While Tyler jokingly refers to his F-250 as his “financial mistake,” we have no doubt that steam-rolling Corvettes makes it all worth it. As you can imagine, with a manual valve body in the mix, Tyler is constantly kept busy in the cockpit. Along the A-pillar, Auto Meter gauges for oil pressure, boost, and water temp keep him company as well, not to mention the fuel pressure gauge on the steering column and the transmission temperature gauge on the dash. Tyler uses an Edge CTS2 monitor to keep tabs on EGT, which has logged a peak of 1,911 degrees in the past but that usually never exceeds 1,800 on prolonged pulls of up to 130 mph. With 90 percent of the truck being built in Tyler’s driveway, that’s exactly where the ’05 axle and suspension swap took place. Opting for Harley Davidson-spec’d coil springs meant that a softer spring rate would be realized for best ride quality, and both coil springs were cut down to drop the truck’s ride height ¾ of an inch. On the steering side, one of Ballistic Fabrication’s universal track bar mounts was sourced to accommodate the Super Duty track bar. Because the truck was originally equipped with a ZF-5 speed manual, Tyler built his own stainless steel shift stalk to mount the B&M Pro Ratchet shifter. In spirited driving and the occasional roll race, Tyler commands his shifts at 3,800 to 3,900 rpm. 47RE & Manual Valve Body With the kind of hard-earned miles Tyler planned to put on the engine, erring on the side of an overbuilt transmission was more than justifiable. Making the four-speed 47RE darn near indestructible, it was treated to all billet shafts and a billet direct drum, Raybestos clutches, and a billet stator, 3D race converter—all from SunCoast. The converter’s 2,500-rpm stall speed lights the S467.7 perfectly and the use of SunCoast’s manual valve body places every shift in Tyler’s hands. A remote mount, external filter, 6.0L Power Stroke transmission cooler, and deep PPE pan keep fluid clean and cool. As a matter of fact, Tyler tells us ATF never crests 150 degrees. Owner-Built So what’s it like to drive a 5,900-pound, Cummins-powered old body style Ford with 700 rwhp on tap? Let’s just say Tyler finds himself in his fair share of impromptu drag races, and we hear roll-racing is one of his specialties—which isn’t something you see a lot of big, single-turbo diesels excel at. Beyond the breakneck power of this 11-second daily driver is an owner who built it himself. “I did 90 percent of the work in my driveway until I started working at LinCo Diesel Performance,” he told us. “I even did the body prep work myself—outside—before it went in for the Sterling Silver Metallic paint.” Whether he’s hunting down Corvettes, commuting to work, or just enjoying the coil-sprung ride, Tyler’s Cummins-powered OBS creation has the perfect blend of modern diesel muscle and old-school looks. 1995 Ford F-250 Owner: Tyler Turay Hometown: St. Charles, Missouri Odometer: 223,000 miles Engine: 5.9L Cummins Short Block: Fresh overhaul with polished crankshaft, ARP main studs, factory forged-steel rods with ARP rod bolts, cast-aluminum Mahle marine pistons, Fluidampr Head/Valvetrain: O-ringed head, Hamilton Cams 188/220 camshaft, 24-valve tappets, Hamilton extreme duty pushrods and dual valvesprings, ARP head studs Fuel: Bosch P7100 with #0 fuel plate, modified AFC, 4,000-rpm governor springs, 7mm delivery valves, Mack rack plug, dual feed line kit, TorkTeknology adjustable overflow valve, Contagious Diesel 5×18 injectors, FASS Titanium system, 38-gallon tank with sump Air: BorgWarner S467.7 with race cover and 1.10 A/R exhaust housing, custom 6-inch to 5.5-inch air intake, fabricated intake elbow, 7.3L Power Stroke intercooler Exhaust: Steed Speed T4 manifold, 4-inch downpipe and exhaust, 7-inch tip Electronics: Edge Insight CTS2 Transmission: 47RE with billet input, intermediate, and output shafts, Raybestos clutches, Sun Coast billet direct drum, manual valve body, billet stator 2,500-rpm stall 3D race converter, and billet flexplate, 6.0L/5R110 transmission cooler, external filter, PPE deep pan Horsepower: 700-rwhp (est.) Torque: 1,300 lb-ft (est.) Tires: 305x50R20 Toyo Proxes STII Wheels: 20×10-inch Lonestar Outlaw Axles: ‘05 Super Duty Dana 60 with 3.73 ring and pinion (front), ‘05 Ford 10.50 with 3.73 gears and ‘08 diff cover (rear) Suspension/Steering: ‘05 Super Duty Harley Davidson edition front coil springs and radius arms, Ballistic Fabrication universal track bar mount, Rancho shocks, homemade traction bars Total 0 Shares Share 0 Tweet 0 Pin it 0 Share 0
