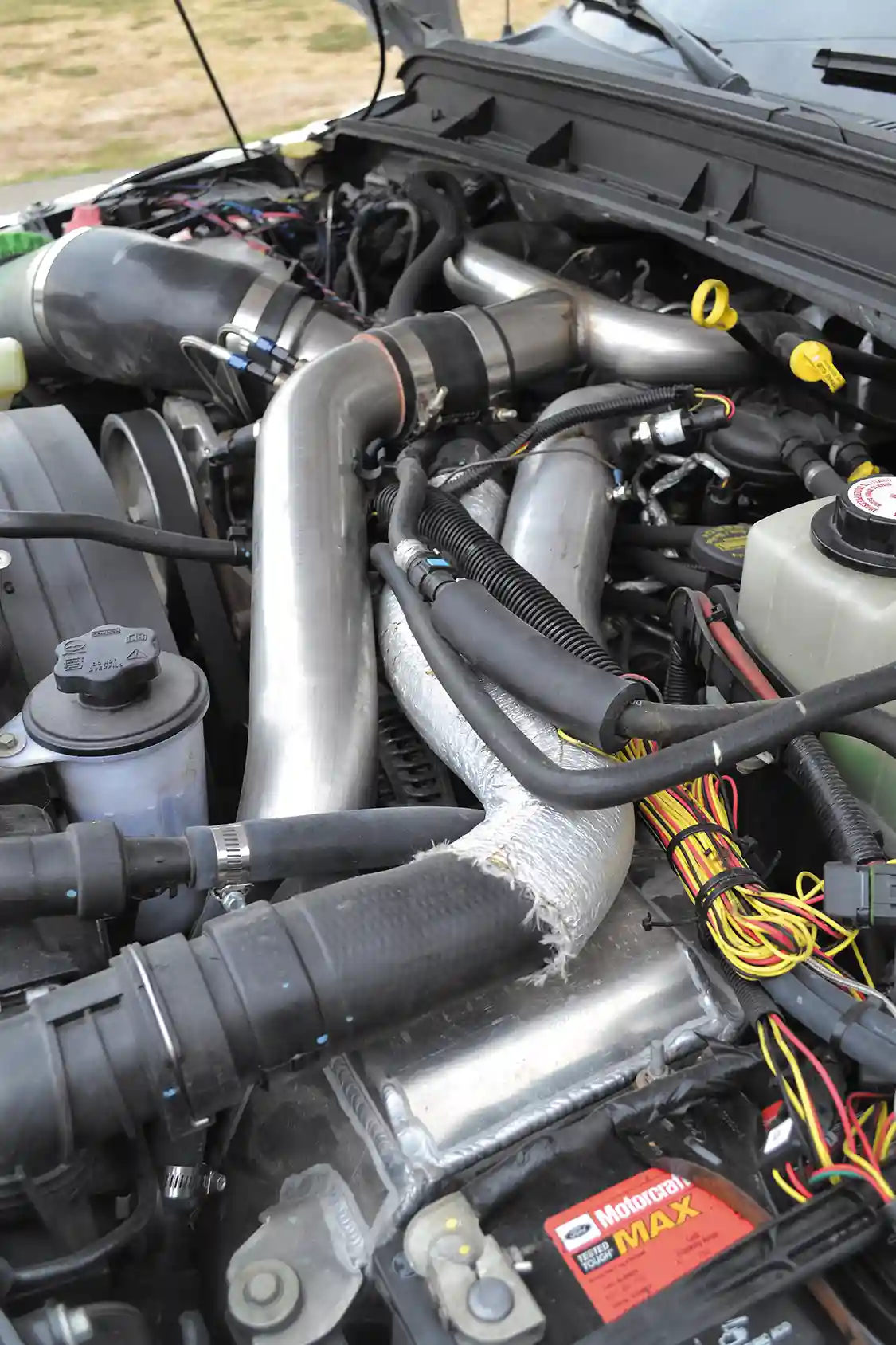

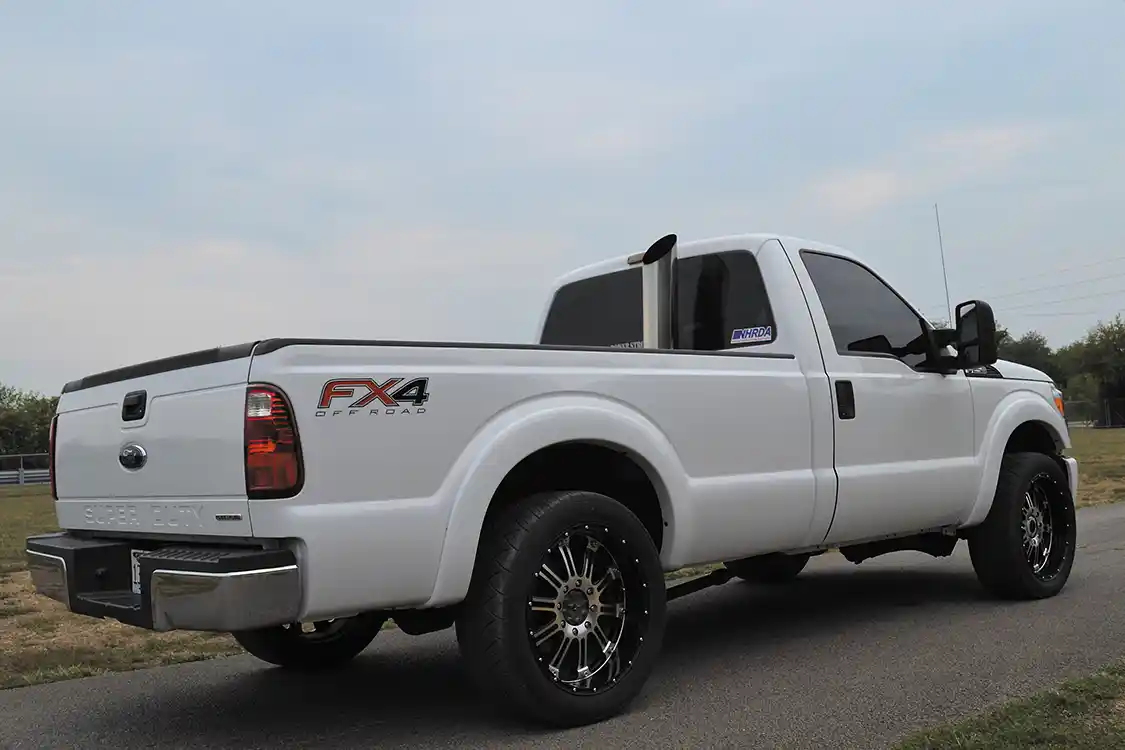

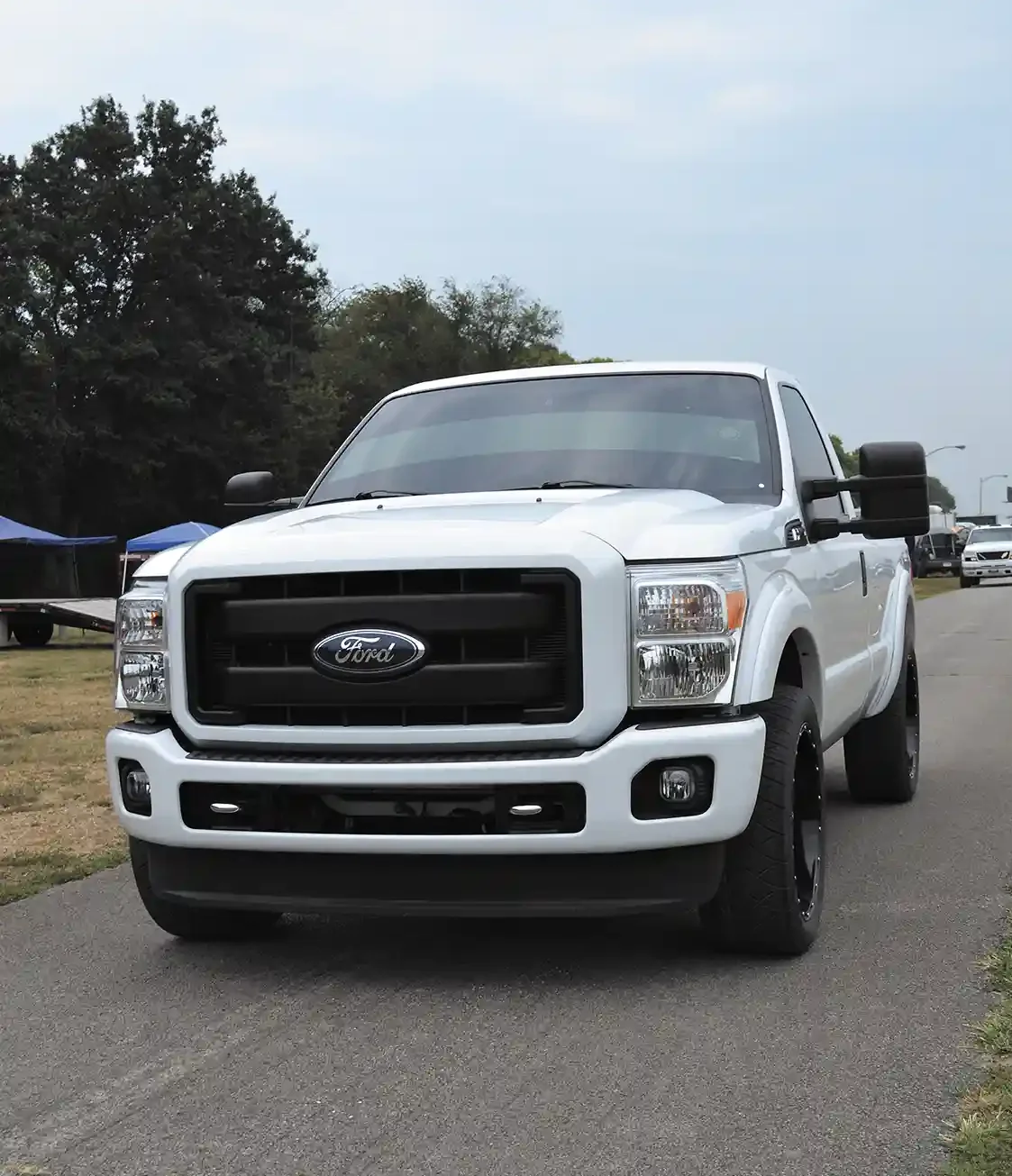

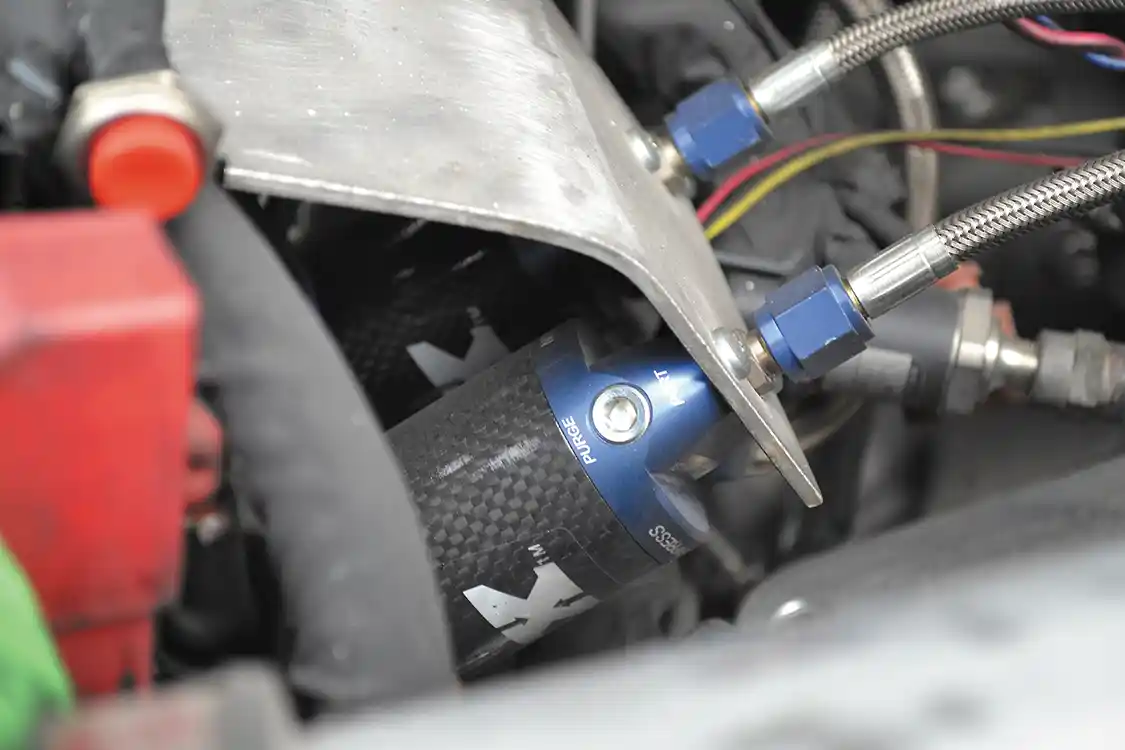

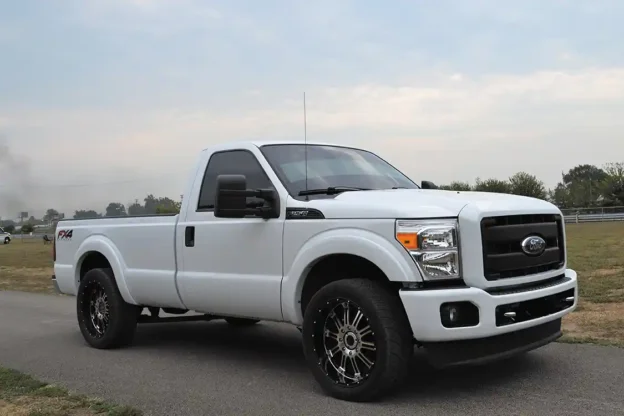

Up next Without a Hitch: Weekend on the Edge 2015 Published on March 06, 2016 Author Jason Sands Tags 1000 hp 6.7 powerstroke, 1000hp 6.7 powerstroke, 6.7 powerstroke 1000hp, 6.7 powerstroke build, 6.7 powerstroke max hp, 6.7 powerstroke stroker kit, 6r140 transmission hp rating, best built 6r140 transmission, built 6.7 powerstroke, built 6.7 powerstroke engine, Diesel, diesel engine, diesel injectors, Diesel Truck, diesel world, ford, Ford Diesel, nitrous, power stroke, turbocharger, Turbodiesel, Share article Facebook 0 Twitter 0 Mail 0 Primm’s 2011 6.7L Power Stroke F-250 With a growing business, Morgan Primm knew he needed a truck to showcase the talents of his shop, Midwest Diesel and Auto in Athens, Illinois. Since Morgan lived firmly in horsepower country, a show truck just wasn’t going to make the grade. So, he decided to see just how far he could push the 6.7L Power Stroke engine and 6R140 transmission and purchased a 2011 Ford F-250. Built short block, dual common-rail pumps, injectors, and a custom single turbo. Results are a whopping 750 rwhp on diesel alone, and an amazing 1,365 rwhp on two stages of nitrous. 6.7L POWER STROKE “There were certain weak links in the platform that we knew about,” said Morgan. “Our plan was to push an upgraded factory platform as much as we could, without doing anything too exotic.” With the type of power he knew he’d be looking for (more than 1,000 hp), a fully built engine was the first step in ensuring lasting performance. The crank and block are factory pieces, but they’ve been balanced with a set of R&R connecting rods, and cut and ceramic-coated pistons. The factory heads were also ported and secured with ARP studs, with Midwest Diesel supplying its own pushrods and HD springs. Surprisingly, no o-rings or fire-rings were used in the combination. Morgan Primm decided to see just how far he could push the 6.7L Power Stroke engine and 6R140 transmission.Subscribe Our Weekly Newsletter The upper end of the Power Stroke was also modified with a number of fuel and turbo system upgrades. The fuel side starts with a stock lift pump (surprisingly) which feeds a Midwest Diesel-modified CP4 pump in the valley, with a Fleece Performance stroker CP3 mounted up top. The 6.7L engine’s injectors were also set off to Exergy Engineering where they were modified to flow 100 percent more than stock. One interesting aspect of Morgan’s build is that he retained a variable geometry turbocharger. The 2011 unit was replaced with an updated and upgraded ’15 turbo, which was further modified with a 66mm compressor wheel (Boost on a hot tune is 45 psi with 62 psi drive pressure). For nitrous use, a 44mm Tial wastegate was also installed with Midwest’s own gate kit. The final icing on the cake was a two-stage Nitrous Express diesel nitrous system, which adds an incredible 600 horsepower to the mix when it’s jetted all the way up. A lot of nitrous meant a waste gate had to be added, so Morgan fabbed up an up-pipe setup that incorporated a 44mm Tial gate. Even with the wastegate wide open, drive pressure is still a scary 90 psi when both stages are activated. In addition to the intake, No Limit Fabrication also supplied an air-to-water intercooler, which flows 30 percent more than the factory version yet fits right where Ford originally intended. The build on the 6.7L started with an intake from no limit fabrication that flows a lot more air than the factory version. Since life as a shop truck can be difficult, a pre-filter was also included to filter out chunks of mud, dirt, and debris. The drop-in theme continued with Morgan’s build, as a variable geometry turbo featuring an upgraded 66mm compressor wheel and 70mm turbine (like the newer ’15 models) was installed with Midwest Diesel’s own piping kit. Morgan wanted to push the 6.7L platform as far as he could while retaining a stock-style turbo, which meant a lot of nitrous. Two big 0.125-inch solenoids are used for dyno runs, as well as dragstrip passes. TRANSMISSION WORK Morgan’s experimentation didn’t end with the engine, however. He also pushed the limits of Ford’s 6R140 transmission. The converter was cut apart and re-stalled to allow quick spool-up times with the larger turbocharger. The internals of the transmission were also modified, as plates were cut and clutches were added to nearly every gear to help the 6R140 hold the power. Finally, Morgan spent hours tuning the transmission himself with the MCC program, including perfecting second gear launches at the dragstrip. 750 rear-wheel horsepower without nitrous, 1,365 rear-wheel horsepower with the bottle. While a number of parts were developed to be drop-in pieces, that doesn’t mean Morgan ended up with a slow ride. The engine makes a little over 750 rear-wheel horsepower without nitrous, and with a 1,000-rwhp tune, it has run an impressive 10.77 at 125 mph at the dragstrip. All-out on the dyno, it put down a whopping 1,365 rear-wheel horsepower and 2,135lb-ft. of torque. True to its shop truck heritage, it’s still used to haul and carry various truck parts and pieces around town. When it comes to a “triple threat” truck that can do it all, it’s hard to beat Morgan’s wild 6.7L Ford. DW Since the 6.7L platform was a test bed for Morgan’s company, he needed as much information as possible when tuning the truck. An H&S Mini Maxx with MCC tuning by Morgan and an Edge CTS monitor provides all the information he needs. Since Morgan hits the dragstrip on a regular basis (running a best of 10.77 at 125 mph) Nitto 420S tires mounted on 22×10 XD wheels along with One Up Offroad traction bars provide grip. Gearing was also changed from the factory 3.31 ratio to 3.73 gears for better dragstrip launches. While boost and nitrous are key components to the truck’s power, a lot more fuel had to be added as well. For fueling, Morgan mounted a CP3 pump using his own kit, along with a set of 100-percent over injectors from Exergy Engineering. The front of the truck was lowered as much as possible, with some trimmed gas-engine coils replacing the factory springs, along with removed leafs in the rear. Morgan reported the truck sits so low that he had to trim the bump stops. In contrast to the highly modified engine, the interior of Morgan’s Ford is fairly stock, other than a couple of monitors. The downpipe from the upgraded turbo was fabricated by Morgan and sends exhaust back to a 5-inch exhaust and into a Pypes 5 to 7-inch stack. Total 0 Shares Share 0 Tweet 0 Pin it 0 Share 0
