The Next Frontier To Duramax Drivability: Duramaxtuner ECM/TCM Matched Tuning Software

Duramaxtuner
Duramaxtuner has spent countless hours creating all new tuning via EFILive software to match their already potent ECM tuning to the Allison’s TCM software. In doing so, they’ve created an all new frontier to better drivability in both stock and modified applications.

Performance tuning is nothing new to the Duramax market, companies like Duramaxtuner of Marengo, Illinois, have been using EFILive software to create custom tuning for the 2001+ GM Duramax for many years. Through continued time behind the wheel and thousands of hours on the chassis dyno, performance ECM software is out there to cover just about any owner’s wants and needs. One thing that has always lagged behind is better control of the Allison automatic transmission, but that’s what sets Duramaxtuner apart.

The 2001-2010 GM Duramax/Allison uses an ECM (Engine Control Module) and separate TCM (Transmission Control Module) that work together to produce the best vehicle performance and efficiency possible. The OEM GM engineers worked tirelessly to match the programming found within the two to create good drivability for every situation. While the aftermarket has focused on the ECM performance side of things, the TCM adjustments have always been a step or two behind, especially in high horsepower applications. To get a better handle on this, Nick Priegnitz (owner and lead tuner at Duramaxtuner) set out to unlock all the hidden potential within the TCM. While the TCM adjustments will be more noticeable in a modified application (bigger tires, bigger turbos, bigger injectors, etc.) an otherwise stock truck can benefit from the Duramaxtuner Matched ECM/TCM files.

DRIVABILITY ADJUSTMENTS
First off, since most 2001-2010 GM trucks came from the factory with lightweight 16-inch wheels and 30-inch highway tires, it’s not uncommon for owners to upgrade to a larger wheel and tire package. For those jumping to 35-inch or taller tires, the rolling resistance, rotating mass and overall change in gear ratio can really affect how the truck accelerates. The bigger the tire, the larger the shift extension (rpm drop between shifts), so the factory TCM calibration can have a bit of a “short shift” feel where the engine rpm just drops too far and the engine lugs and struggles to accelerate. By moving the shift point later in the rpm range, the engine will stay in a higher rev range keeping the engines power output where it needs to be.

The next major adjustment within the TCM removes the major defuel felt on the 1-2 shift exchange at wide open throttle. This is much more noticeable with a built transmission and higher horsepower application, but can definitely be noticed in stock transmission truck as well. Basically, the factory TCM is commanding the ECM to pull fuel before the 1-2 shift to limit torque being sent through the transmission during the shift. Obviously once a transmission has been upgraded, it can handle a much higher torque load, so the big defuel is no longer needed as a “safety net.” The defuel can be programmed accordingly to maintain a smooth forward motion from the truck, but this does require the ECM and TCM programming to be matched for best results.

In six-speed applications, the overdrive and double overdrive gears can be a little reluctant to down shift, which keeps rpm low, this keeps the truck from accelerating on the highway like it should. Sometimes the driver will have to apply more than 80 percent throttle to get the downshift to happen, usually when passing, but once that downshift happens, because you’re at such heavy throttle input, the ECM is commanding a lot of fuel so the power output is extreme and makes the truck jump and behave erratically. The Duramaxtuner TCM allows the downshift from fifth and sixth gear to happen at a lower throttle percentage at lower rpm, so the truck will effortlessly find a lower gear, create boost, and accelerate around someone much easier.

Lastly, for the big turbo crowd, rpm can become your new best friend and the TCM adjustments can make a truck much friendly on the street. Running a large 72+ millimeter turbo requires a higher rpm range to stay within its map, so extending the shift points and allowing earlier downshifts will make the truck quicker to respond to throttle input.

COMPETITION ADJUSTMENTS

For the competition crowd, the new TCM programming can also be setup specifically to meet your needs on both the sled pull and asphalt drag track. Since most sled pull applications are running big single turbos that can be hard to light, Duramaxtuner can set the TCM up with second or third gear starts when running in four-low. By avoiding first gear all together, the TCM can command a second or third gear launch from the starting line which will allow a much heavier load to be placed on the engine to help spool a big turbo.

“Launching in second gear can also make for much more consistent 60-ft times”

Similar tweaks can be made for the drag race crowd with second gear starts when running in ‘Tow/Haul’ mode. This allows a harder load to be placed on the engine for more boost on the line and prevent the truck from creeping through the brakes at the staging tree. Launching in second gear can also make for much more consistent 60-ft times, due to the smoother launch and lack of the 1-2 shift happening so quick after you leave the line.

TORQUE CONVERTER CONTROL

Better torque converter lock-up is also achieved within the TCM tunes to improve power transfer to the ground. As horsepower continues to climb it becomes much harder for the torque converter to fully lock under heavy load due to some limitations within the factory TCM programming. While under normal load the T/C may lock between the 2-3 shift as commanded, but once the throttle goes wide open and power and torque output skyrocket, the TCM delays the T/C from locking until much later. Third, fourth even fifth gear lock-up is not unheard of in big power trucks. So rather than locking when you want and need it most, sending 100 percent power to the tires, the transmission just delays, slips, creates excessive heat and wastes energy.

The Duramaxtuner TCM files will eliminate this all together thanks to minor adjustments made within the torque converters lock-up tables in the programming. By improving the commanded pressures and rpm control of the lock-up clutches, there’s no more delay and second guessing within the TCM, converter lock-up happens when it’s commanded, stab the throttle and there the converter will be, fully locked and ready to take all that torque to the ground.

For competition guys, sled pullers and drag racers alike, the new TCM programming can also eliminates the need to run a separate lock-up control box. So no more buttons to push to command lock-up as you go down the track and no more remembering to unlock at the end of the track either. You can focus on driving and let the truck and Allison due its own thing, without questioning its consistency.

RESULTS

To get a better feel for what the crew at Duramaxtuner was talking about, we opted to install the matched ECM/TCM files in two different trucks we could spend some time driving, getting honest before and after input. The first truck was a completely bone stock 2006 LBZ GMC. The Spade tuning device from Duramaxtuner had been preloaded with their DSP5 engine tuning and matched TCM files. Limited by the stock transmission, the Spade offered up to 120 hp over stock, but we spent most time driving in the 80 hp file as it seemed to be best for daily driving. Within the first few tanks of fuel we’d noticed much better throttle response, easier downshifts and just an overall improvement in how the truck moved itself through town and down the highway, plus we also netted 2 mpg increase in fuel mileage.

The second test vehicle was a 2002 LB7 Chevrolet running a host of modifications, 67mm single turbocharger, built Allison transmission, intake and exhaust upgrades, fuel lift pump and 33-inch tires. The truck had already been tuned with Duramaxtuner ECM files and had been dyno tested at close to 600 hp, so the owner already knew the performance potential of the truck, but the factory TCM tune was definitely a limiting factor in drivability. Running the new performance TCM files turned it into an all new truck, with more consistent performance, more predictable gear exchanges with solid converter lock-up at heavy throttle input. No changes were made within ECM files, so there was no increase in power output, but from the seat you could just feel the truck working better. Shifting quality was improved, defuel felt more appropriate and the truck was much more responsive and fun to drive.

The matched TCM and ECM tuning software offered by Duramaxtuner really can turn just about any Duramax into something closer to the ultimate driving experience. The broader power and torque curves from ECM changes make towing, daily driving and competing more enjoyable while the perfectly matched TCM software ensures all that power is put to good use, efficiently and effectively.



While this 2006 Chevrolet LBZ Duramax is completely bone stock under the hood, right down to the factory air intake

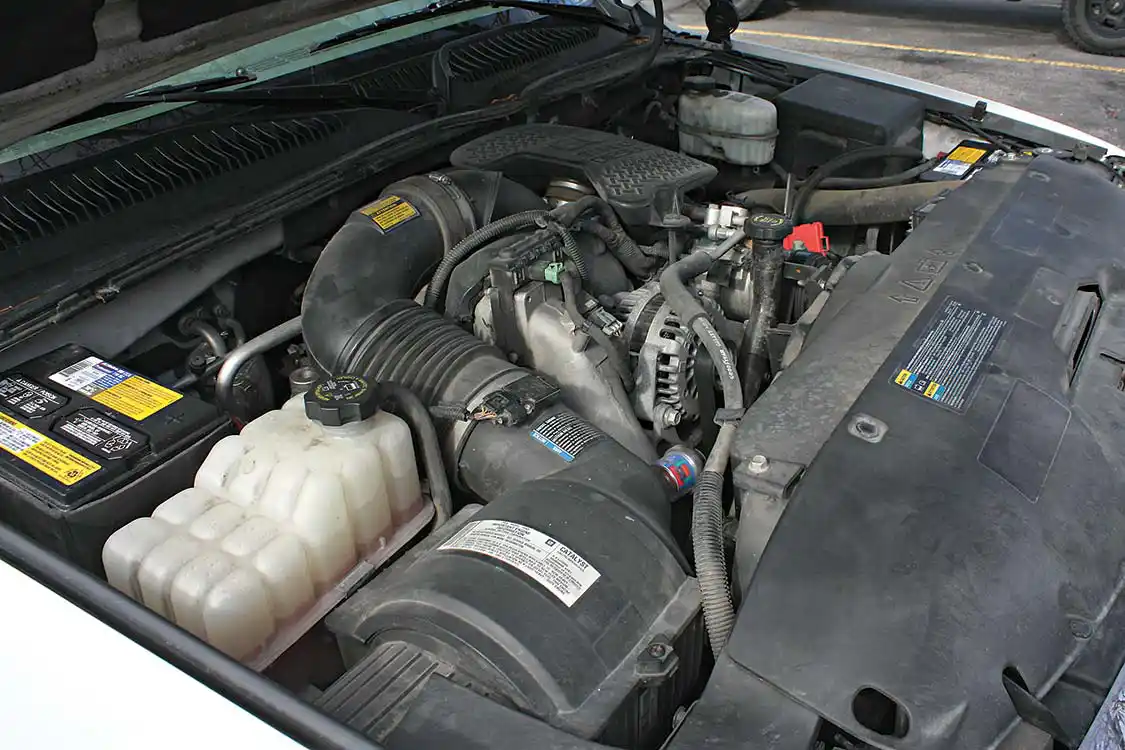

While this 2006 Chevrolet LBZ Duramax is completely bone stock under the hood, right down to the factory air intake, it can still benefit from the latest ECM and TCM tuning software supplied by Duramaxtuner.com. Unlocking an additional 100 hp within the Duramax platform is quite simple with the help of their Spade Tuner, but the corresponding TCM tune-up will really bring the trucks performance to an all-new level.
Transmission Control Module

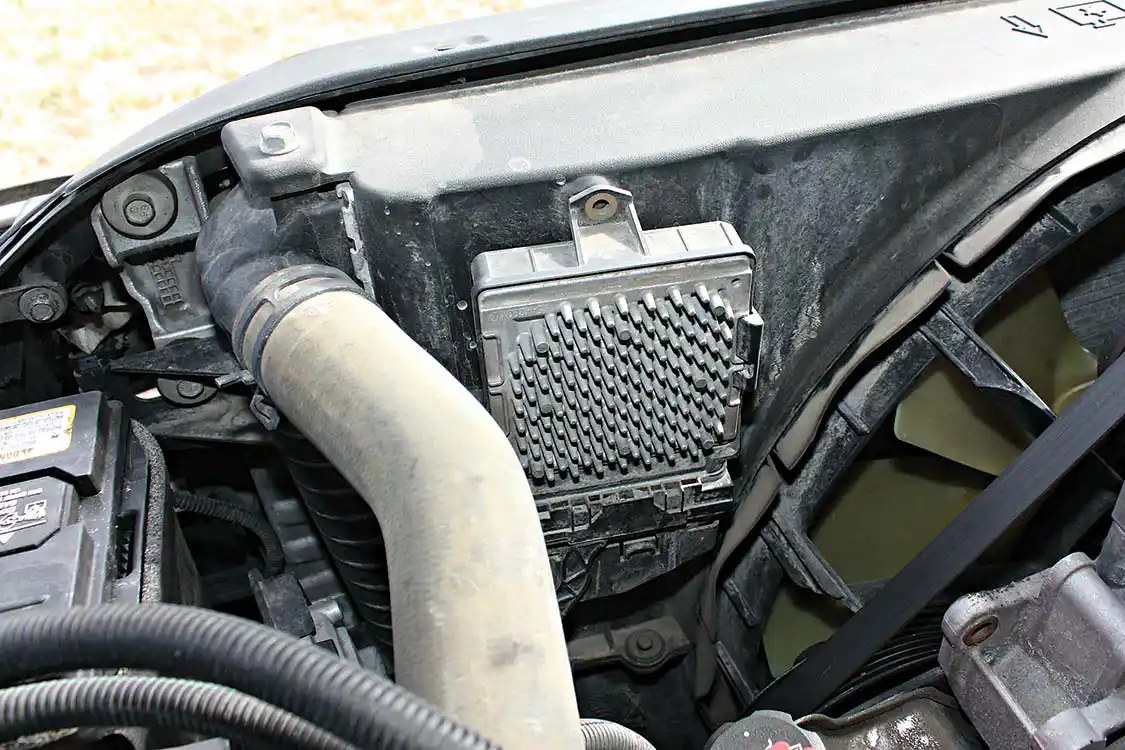

On the 2001-2010 GM Duramax trucks, the TCM (Transmission Control Module) is located on the backside of the radiator fan shroud. While the TCM won’t need to be removed from the vehicle to adjust the software found inside when using the Duramaxtuner Spade tuner, for some, it may be logical to remove the TCM from the vehicle and mail it back to the specialists at Duramaxtuner to make the required adjustments before returning it for reinstallation.
the EFILive software

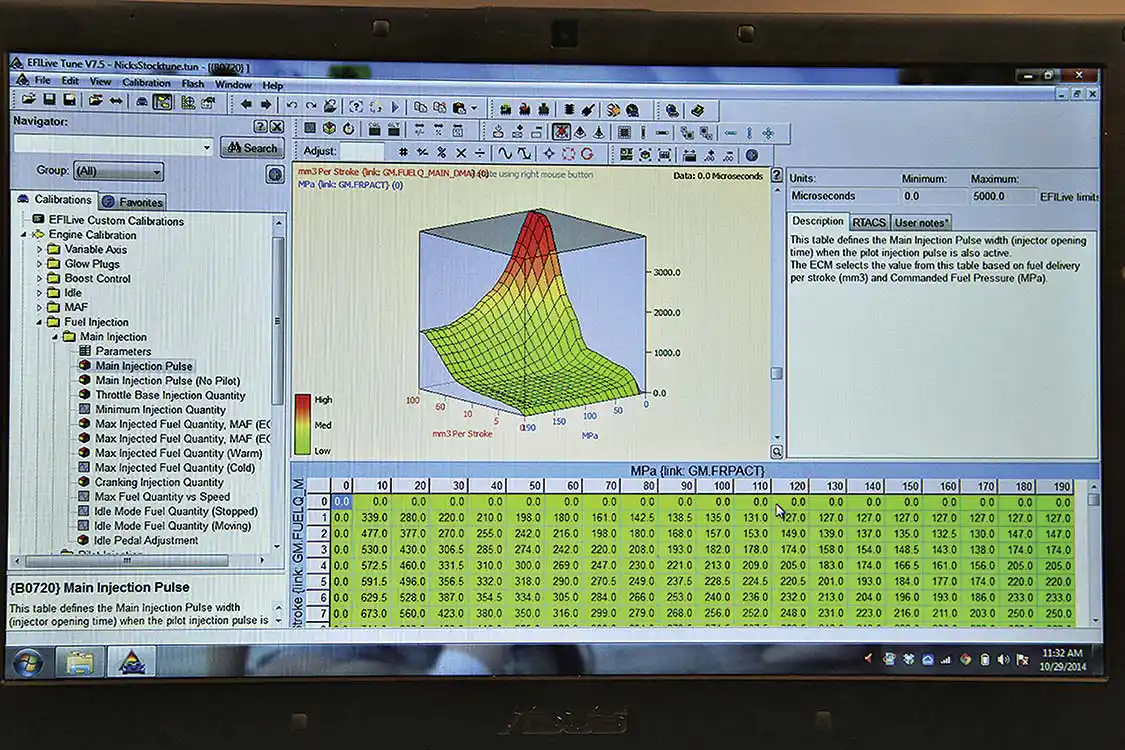

Duramaxtuner has been tuning the Duramax engine and transmission for years with the EFILive software and has always been on the forefront of product and engineering development within it. While the software allows tuners control of the vehicle’s ECM and TCM, it takes a true genius to fully understand what each adjustment will affect and how to take a safe reliable approach at bettering the performance of your truck.
Standalone Programming and Diagnostics Equipment

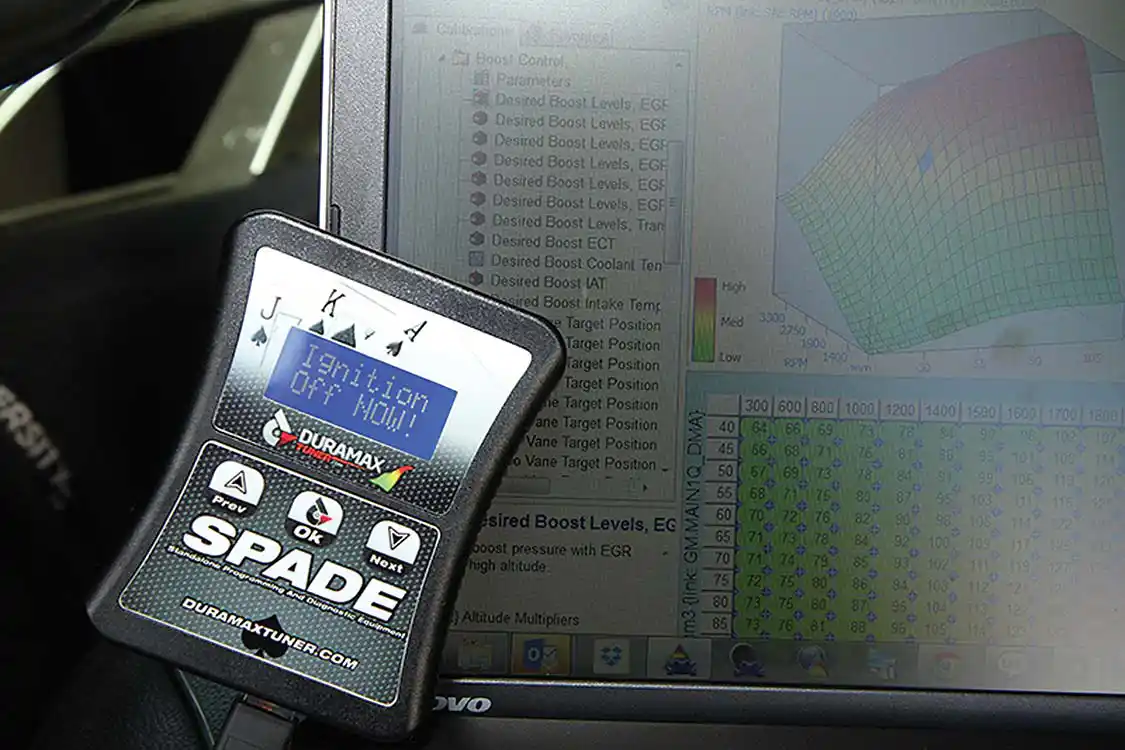

The SPADE (Standalone Programming and Diagnostics Equipment) offers what Duramaxtuner states as the highest quality tunes on the market via an OBD-II flash tool. This handheld device contains fully matched engine and transmission tuning to turn the average daily driver into a true performance vehicle, whether that means better power while towing the families RV down the highway or blowing through the traps at the local 1/4-mile dragstrip.
Located just inside the driver-side fender well, is the Duramax engines command center, the ECM

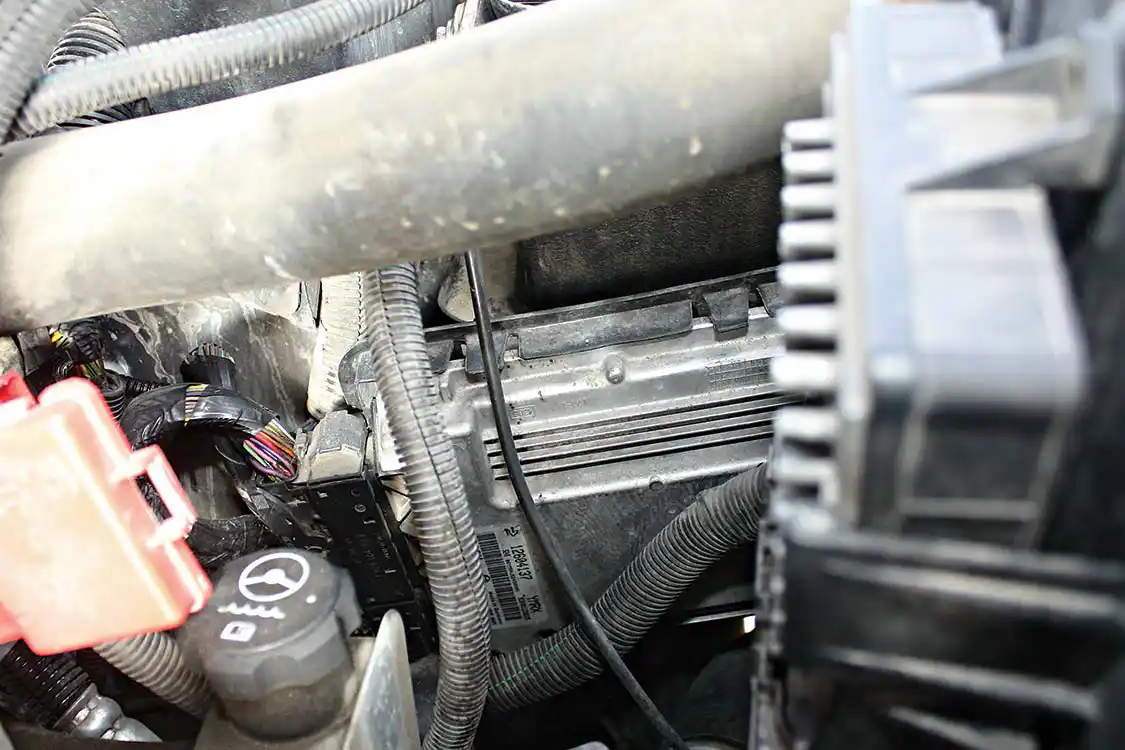

Located just inside the driver-side fender well, is the Duramax engines command center, the ECM. While performance programming of the ECM will be handled via the OBD-II port under the dash inside the truck, if you choose to run the optional DSP5 tuning software (like most do), you will need to install two new wires into the factory ECM wiring harness connectors. The DSP5 option will allow you to select from multiple performance tunes via an in-cab adjust on the fly control knob.
the in-house Mustang dyno

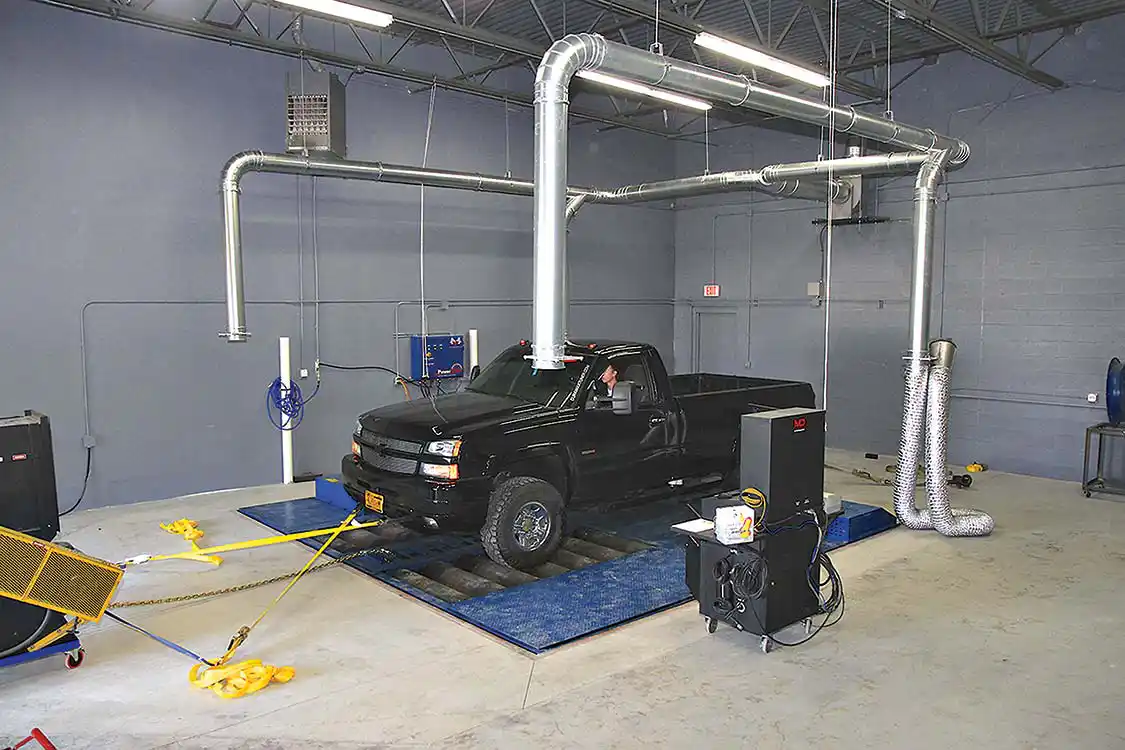

While the on-road performance is still the main factor in tune development, the in-house Mustang dyno at Duramaxtuner.com allows for real world situations to be replicated time and time again without environmental changes being thrown into the mix. The same load and speed can be tested with multiple tune adjustments in a very short amount of time, making the progression of knowledge a much speedier process.
cab DSP5 control

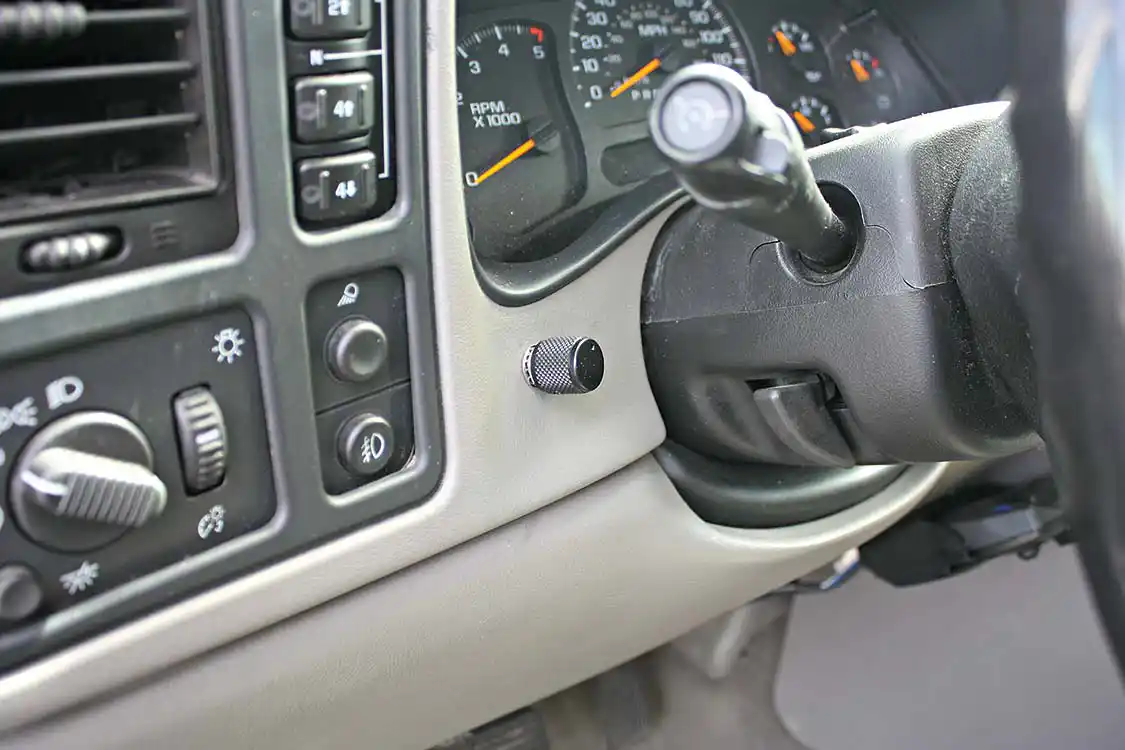

As mentioned before, the in-cab DSP5 control knob can be mounted just about anywhere the only prefers, but this location on the dash keeps it within easy reach and makes for a clean simple install. All the wiring can be routed neatly under the dash through the firewall where it will be connected to the ECM harness.
Once the DSP5 switch is installed in the cab, the wires will be routed to this main ECM harness connection location.

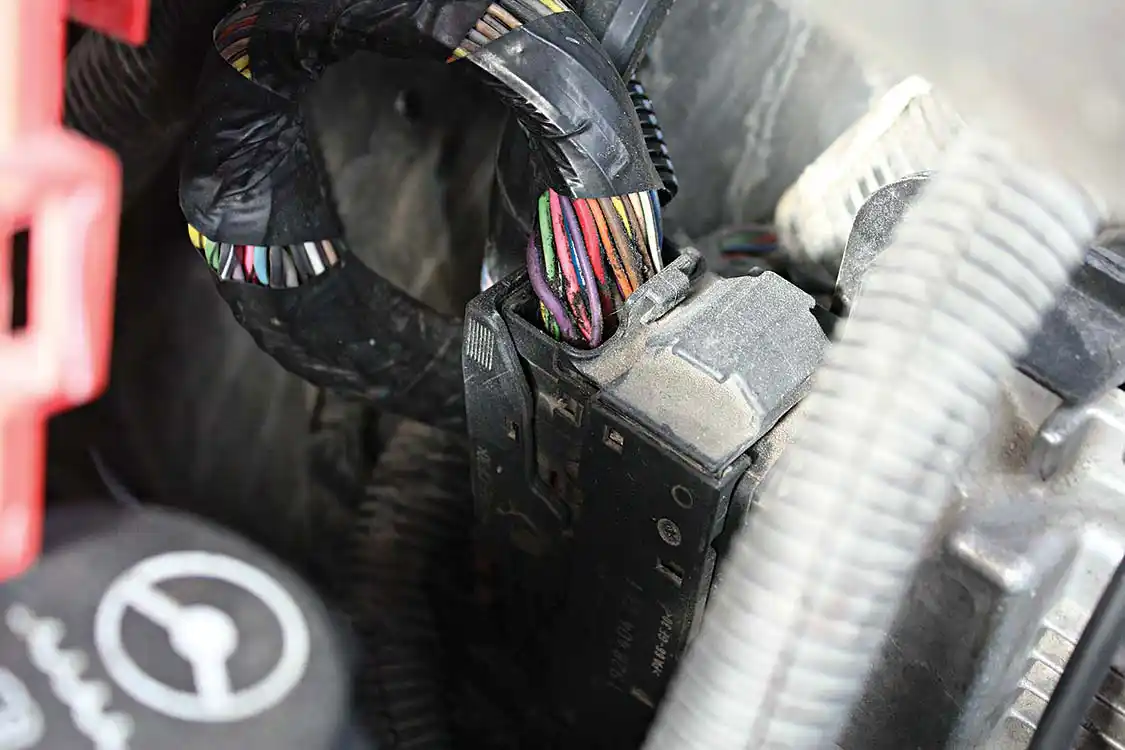

Once the DSP5 switch is installed in the cab, the wires will be routed to this main ECM harness connection location. The harness connector will need to be disassembled so that the new wires can be pinned into two ports. Included instructions, along with an online tutorial video will aid in this step and make it much less intimidating.
Duramax owners Nick Ryan and Brock
Duramax owners Nick Ryan and Brock Weber were the first initial Beta testers for the new matched ECM and TCM tuning software from Duramaxtuner. Both owners said they experienced a much more consistent shift pattern, with crisp shifts that matched the engines output seamlessly. No more nasty 1-2 shift defuel that would almost through you into the steering wheel and improved turbo response under lighter throttle input.
