TONY RIZZI’S DURAMAX POWERED 1937 CHEVROLET DRAG TRUCK

With around 30-years of diesel experience, Tony Rizzi has seen many changes in the diesel world, and he continues to be at the forefront of diesel performance. As the owner of Full Pull Diesel Performance, he’s built trucks for and competed in both sled pulling and drag racing through the years, but around 2015 he began to focus his diesel efforts on drag racing leading to the creation of his ’37 Chevrolet pickup that’s affectionately known as “The Outcast”.

In around two months’ time, Rizzi worked with his team as well as friends at Wagler Competition Products, S&S Diesel Motorsport, PPEI, and ATS Diesel to initially build what’s developed into a very stout diesel drag racer. He and his crew transformed a rolling chassis into the ’37 Chevy pickup currently tearing up the strip and placed a stout Duramax diesel engine between the frame rails. The truck has run a best 1/8-mile pass of 4.3 seconds at 169 mph at its 3,254-pound weight, but like most race cars, has evolved in a never-ending quest for more speed. It features a combination of steel and fiberglass bodywork that has been modified as needed by Rizzi, his Full Pull Diesel team, as well as the crew at Collins Collision in Edmond, OK. The truck was given a signature matte black finish to match its oil-burning personality.

01

Duramax Power

Originally the LML Duramax engine used a pair of twin 6266 Precision Turbos along with a cooling system for the block and heads, but it has since migrated to use a single monster-sized 102 mm Precision Turbo, a dry block, and heads. The rotating assembly was built to precise tolerances with Rizzi and the Wagler group working together on the engine. The block’s capped with a set of billet aluminum race series CNC-machined Wagler cylinder heads and a cast aluminum Wagler Street intake manifold.

02

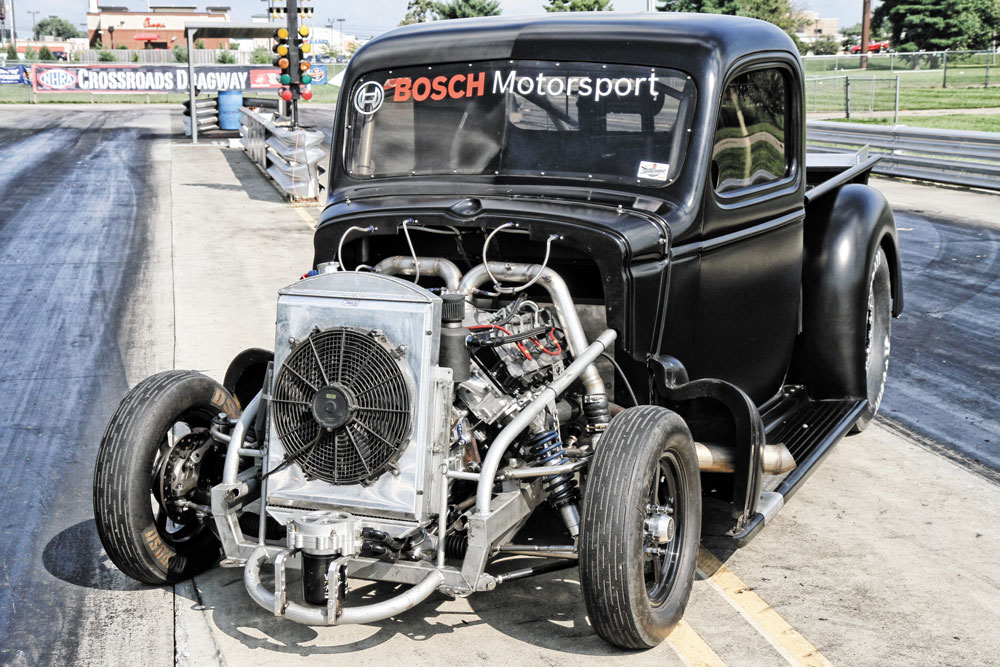

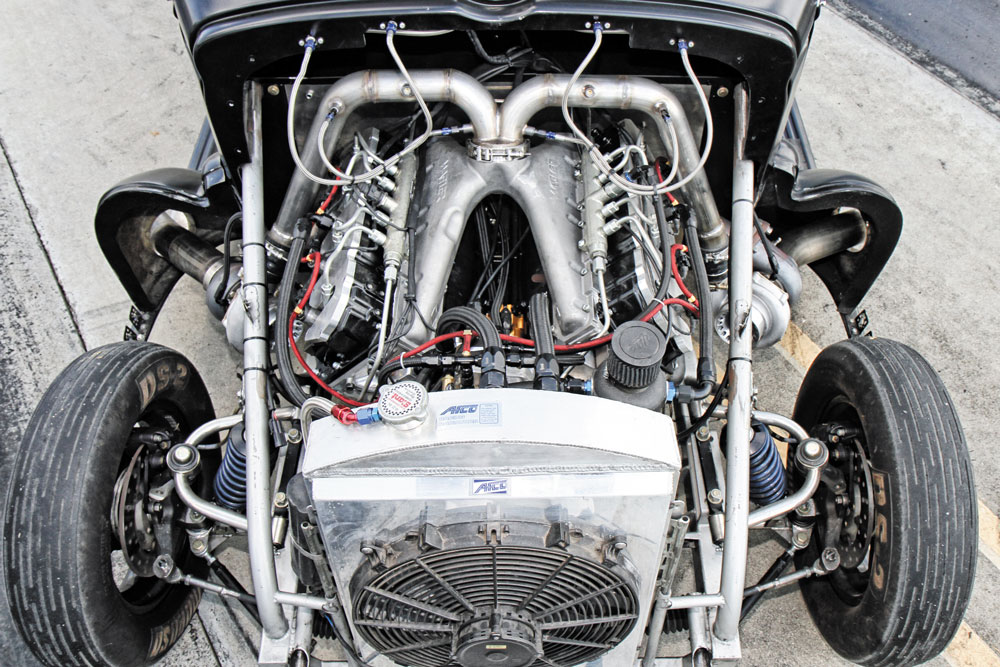

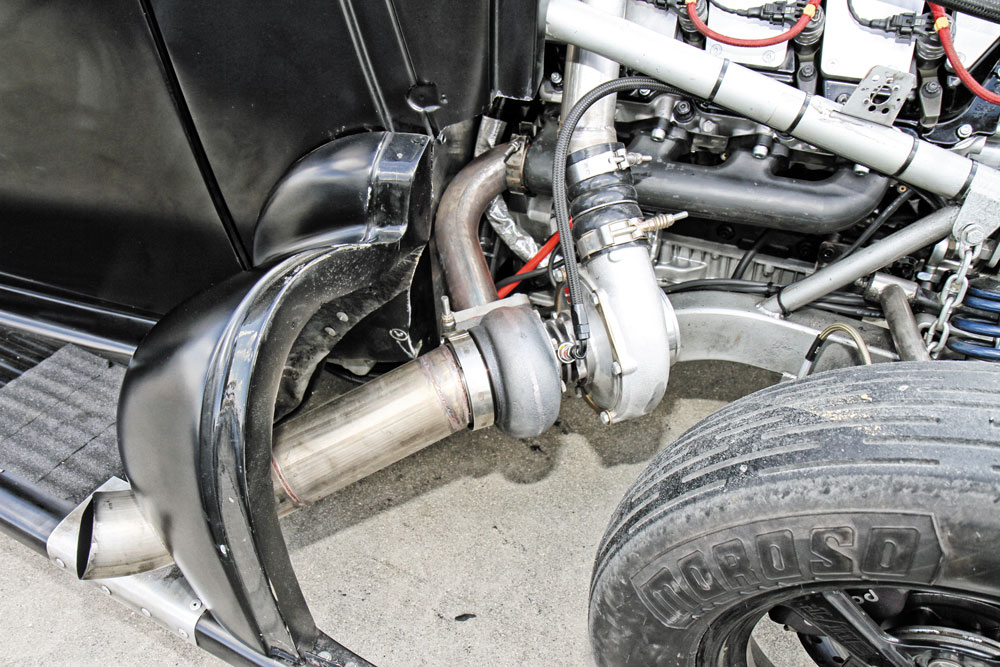

Rizzi was running a set of twin 6266 Precision Turbos on the Duramax with one on each side of the engine tucked down low near the chassis.

03

Fueling is handled by a Waterman Sprint mechanical low-pressure pump mounted in the valley of the block in the place where the factory CP3 typically resides. The mechanical pump draws fuel from the fuel cell and supplies it to three S&S Diesel Motorsport 10mm stroker CP3 high-pressure pumps mounted to the front of the block with a billet front cover. The high-pressure CP3s feed the fuel rails and then send the fuel off to a set of S&S 500% over LBZ fuel injectors. The fuel delivery is enhanced with a boatload of nitrous oxide fed into the engine in multiple stages from two large Nitrous Express bottles mounted in the cab. Everything’s controlled by a Bosch Motorsport stand-alone ECU. Rizzi estimates that the engine is making around 2,400 horsepower and 3,000 lb-ft of torque.

Transmission

To get the power to the rear axle, Rizzi relies on a Rossler Transmission Turbo 400 based 3-speed automatic transmission that’s linked to the engine through an ATS Diesel flexplate and 5,500 rpm stall Neal Chance torque converter. The output from the transmission is channeled to the rear axle through a Mark Williams driveshaft where a Carmack 10-inch spool and gears send the power to the wheels through Bear’s Pro Axles shafts. A set of 33.0/17.0-16 Hoosier drag slicks do the best they can to put the power to the track when Rizzi mashes the loud pedal and unleashes the full force of the Duramax.

Cockpit

The truck’s interior is sparse and built for racing with a multi-point roll cage with driver containment as well as a single aluminum racing seat and Simpson race harnesses to secure him in the seat as he blasts down the track. Both the Bosch Motorsport ECU and DDU10 display are installed in the cab along with a Precision Performance Products shifter for gear selection. The final additions to the interior are the pair of Nitrous Express bottles in a billet aluminum mount, a fire extinguisher, and of course the driver inputs of a quick-release steering wheel and custom pedal assembly for go and whoa.

Chassis Suspension

Strange Engineering coil-over shocks are used at all four corners to tame the chassis and give Rizzi a smooth ride as he blasts down the track for each 1/8-mile pass. With adjustable shocks and coil spring options, he and his crew can tune the chassis for any track conditions. He tends to race on various “no-prep” tracks and “street” races and the 4.3 second Duramax typically does well against the gassers as well as other diesel-powered rigs. One of the best wins came at the end of the 2019 season in Ennis, TX at the diesel no-prep race when he caught fire during eliminations on the way to a round win. He then made repairs and raced his way into the finals to take the win.

05

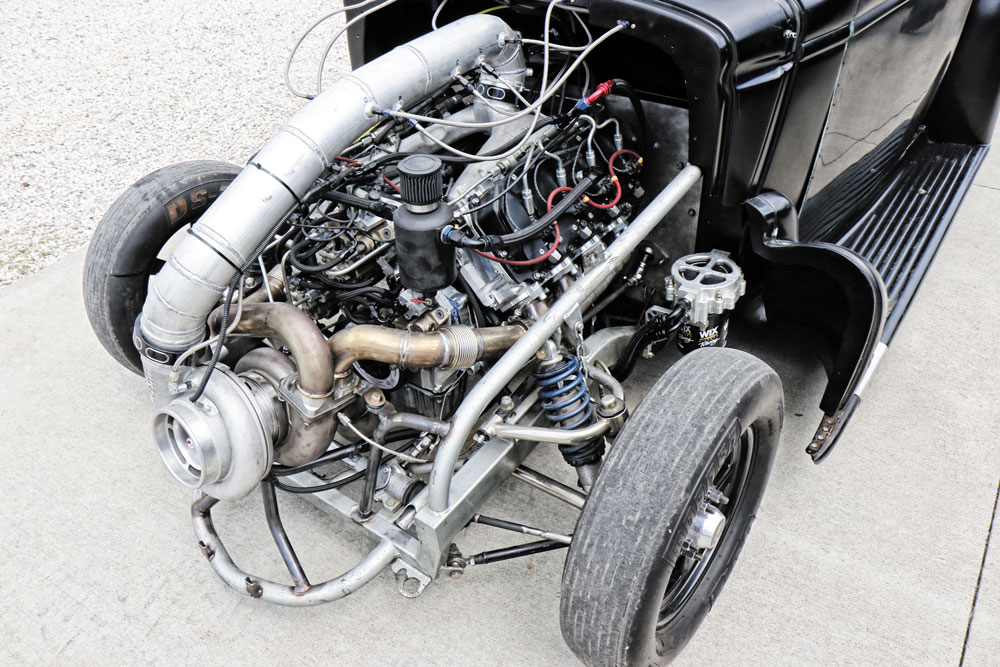

In a quest to go faster and make the truck more reliable, Rizzi moved on from the twin Precision Turbos to a single large 102mm Precision Turbo and converted the engine to a dry block and heads as well, eliminating the extra weight of the radiator and the possibility of watering down the track which can be scary in a short wheelbase go-fast machine.

04

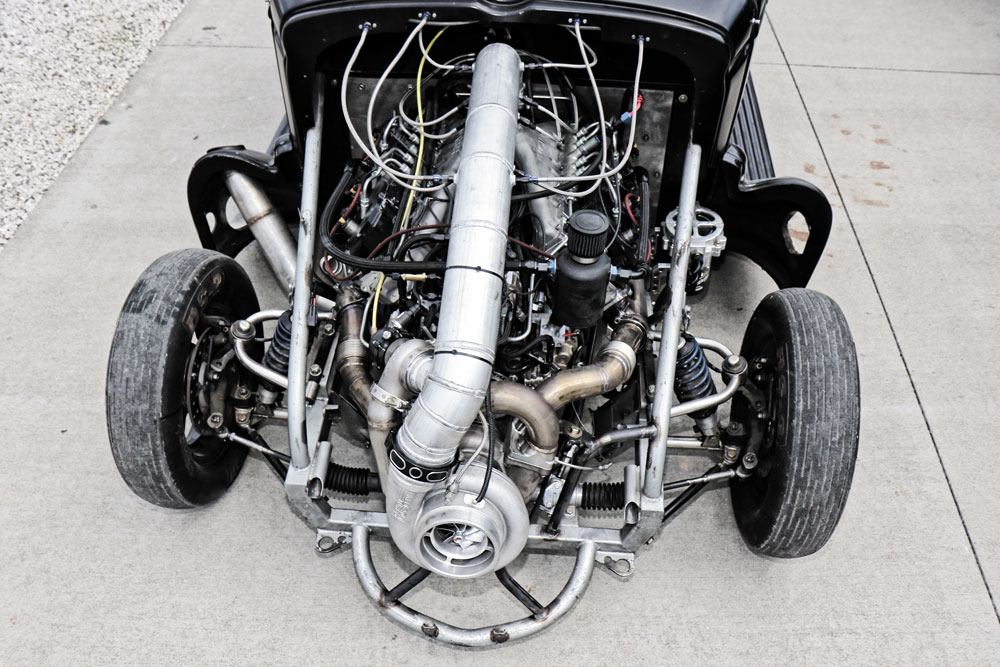

Like most racers, Rizzi always wants to go faster and despite the success of the truck, he feels that he’s reached the limits with the current configuration. So, he turned to Bob Tynan of Tynan Racecars to build the next Outcast, which of course will be lighter and more powerful, so the competition better watch out. He hoped to have it on the track for testing in the spring of 2020, but COVID-19 has derailed those plans. Hopefully, by the time you read this, we’re back to racing, and Rizzi and the new Outcast are blasting down the track. Don’t worry about the original Outcast as he plans to put a water-cooled block back into it, and make it a streetable truck once again to use for cruising and fun!

06

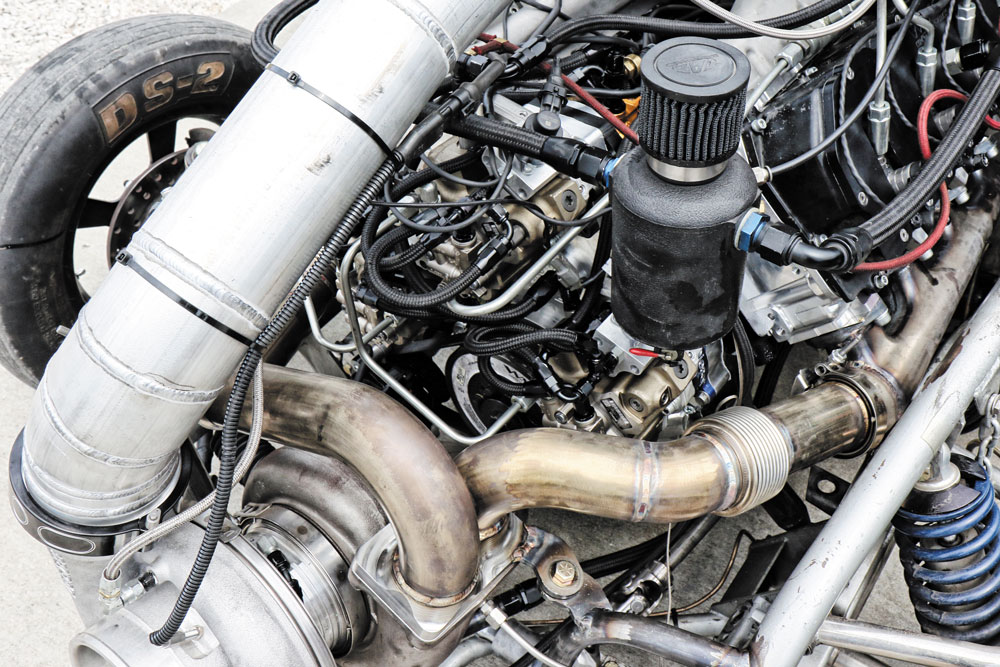

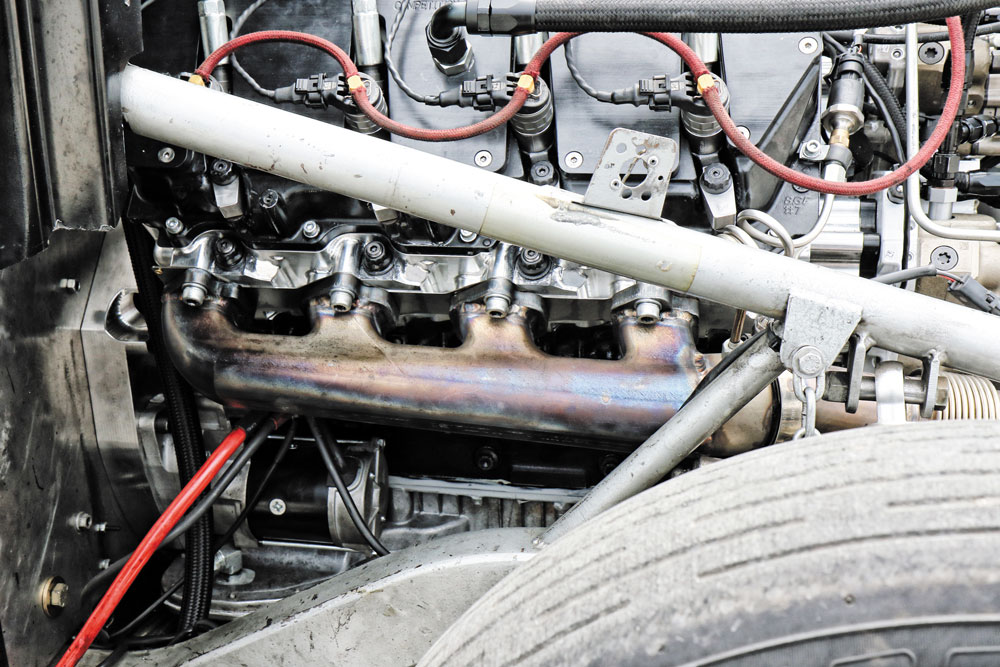

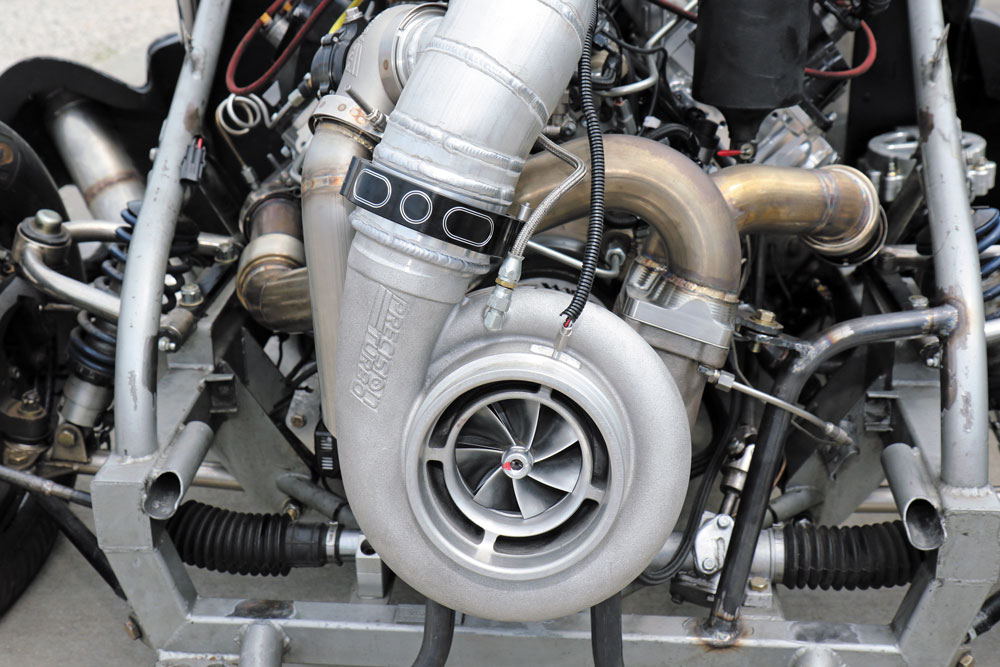

The massive 102mm turbo draws in plenty of fresh air from its remote-mount location forward of the engine. The turbine wheel is spun via intense blasts of spent exhaust gasses channeled through the HSP Diesel performance exhaust manifolds and custom piping.

07

08

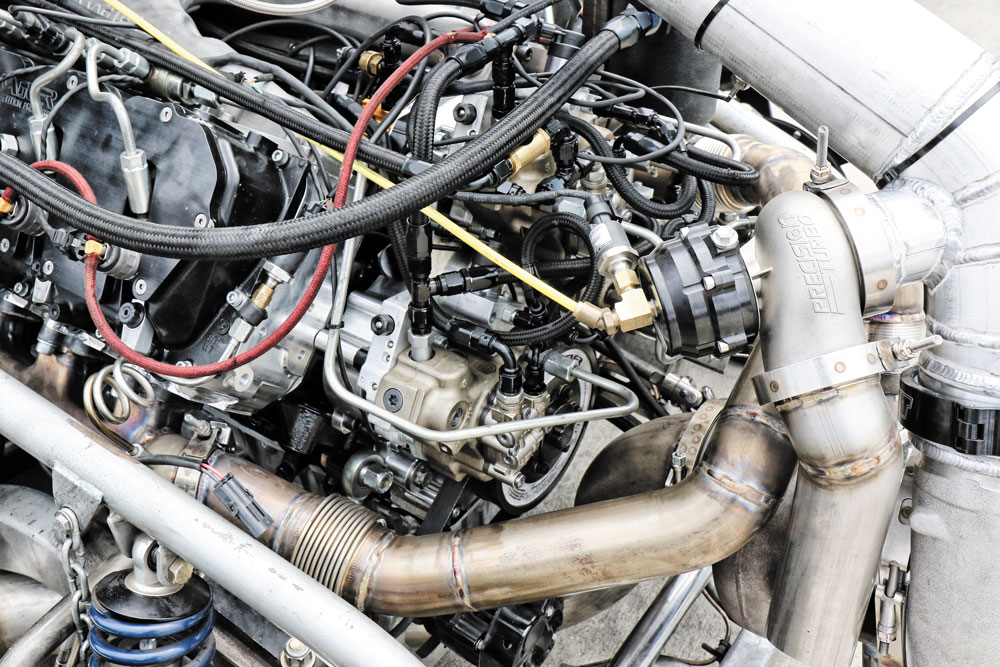

The front of the Duramax engine features a trio of S&S Diesel Motorsport 10mm stroker high pressure reverse-rotation CP3 fuel pumps to deliver plenty of fuel to the common-rail engine.

09

11

Rizzi and his team fabricated the chassis under the ’37 Chevy specifically for drag racing with boxed steel frame rails and tubular additions for strength while maintaining low weight.

10

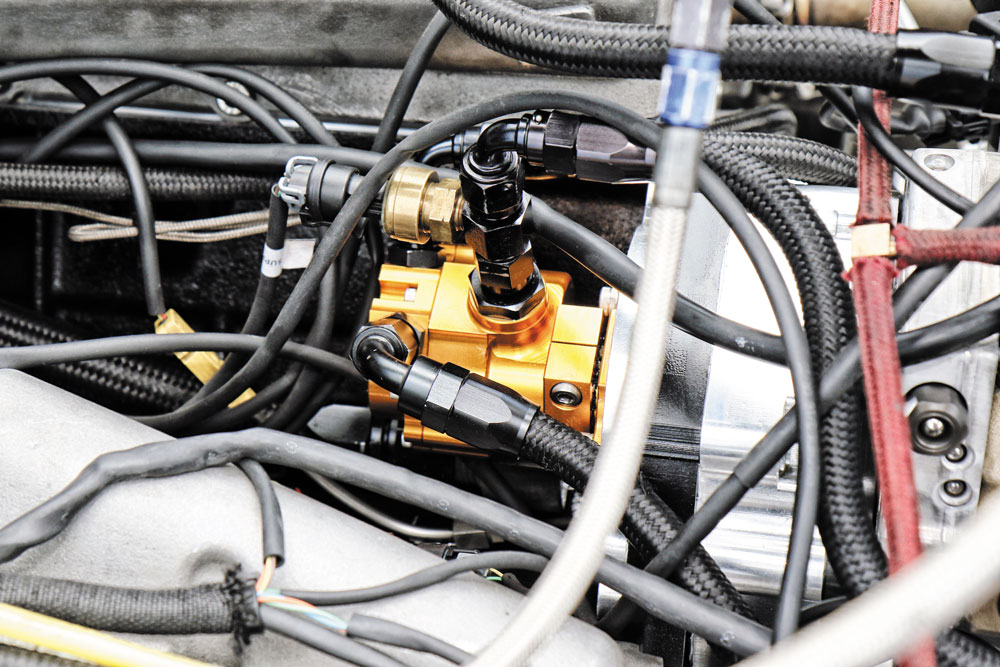

A Waterman Sprint mechanical low pressure fuel pump is mounted in the valley where a CP3 is found in a factory Duramax configuration. The gear-driven pump delivers fuel from the rear-mounted tank to the high pressure CP3s.

13

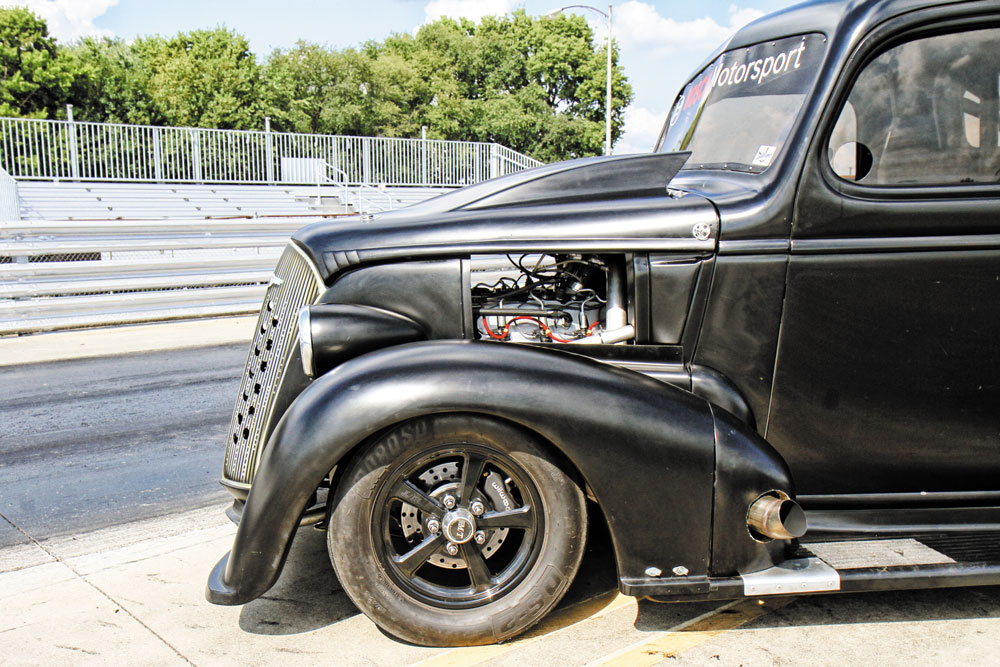

Skinny Moroso DS-2 25×4.5-15 front drag tires are wrapped around black 5-spoke Mickey Thompson lightweight drag wheels to steer and keep the truck pointed in the right direction while Rizzi flies down the track.

18

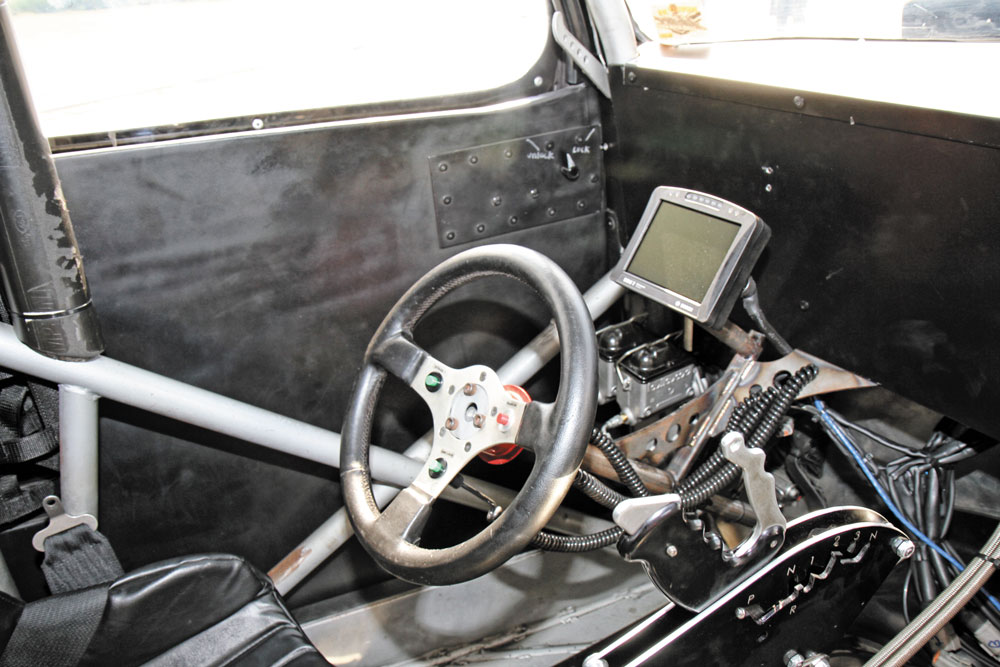

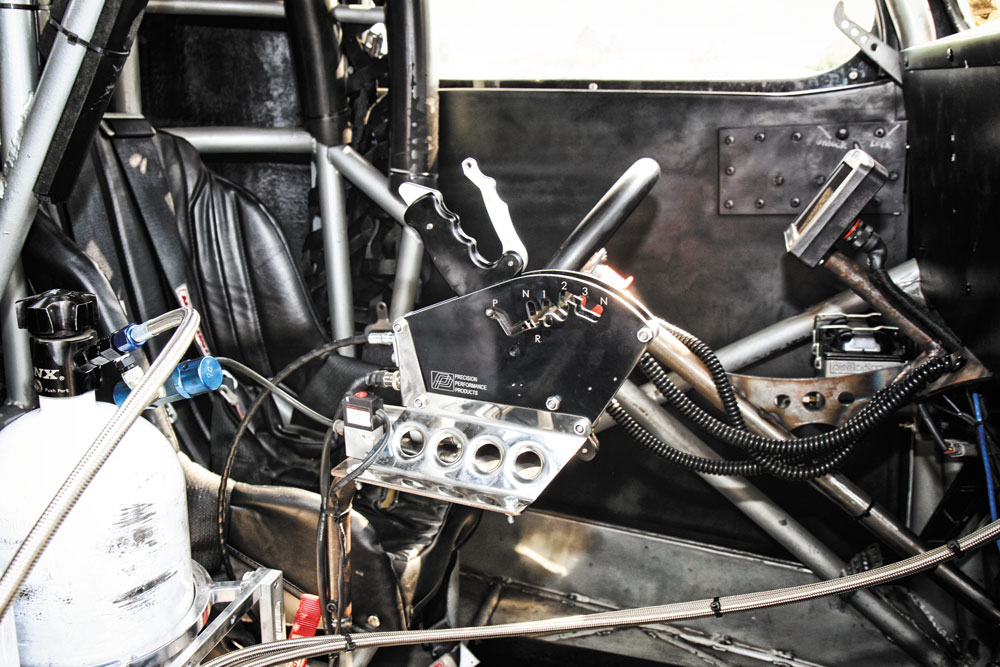

Everything Rizzi needs is within easy reach and sight while he’s strapped into the truck with the quick-release steering wheel directly in front, the Bosch Motorsport DDU10 display mounted forward of the wheel, and the Precision Performance Products shifter located to the right.

15

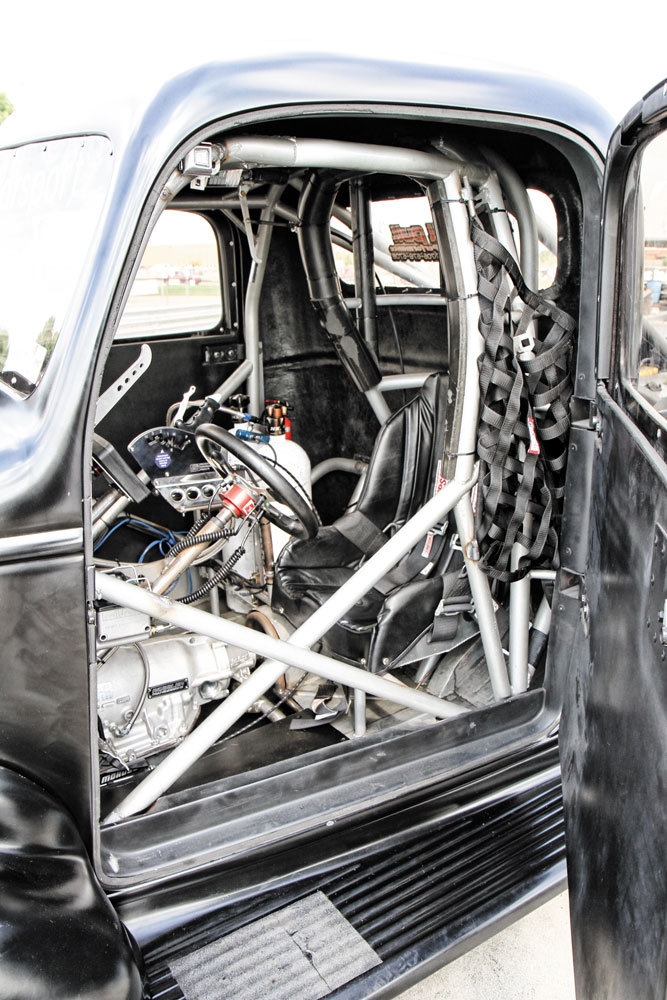

Opening the suicide-hinged door reveals a funny-car style full-containment roll cage as well as the window net, aluminum race seat, and a Simpson race harness that all work together to keep Rizzi safe while boosting down the strip.

17

19

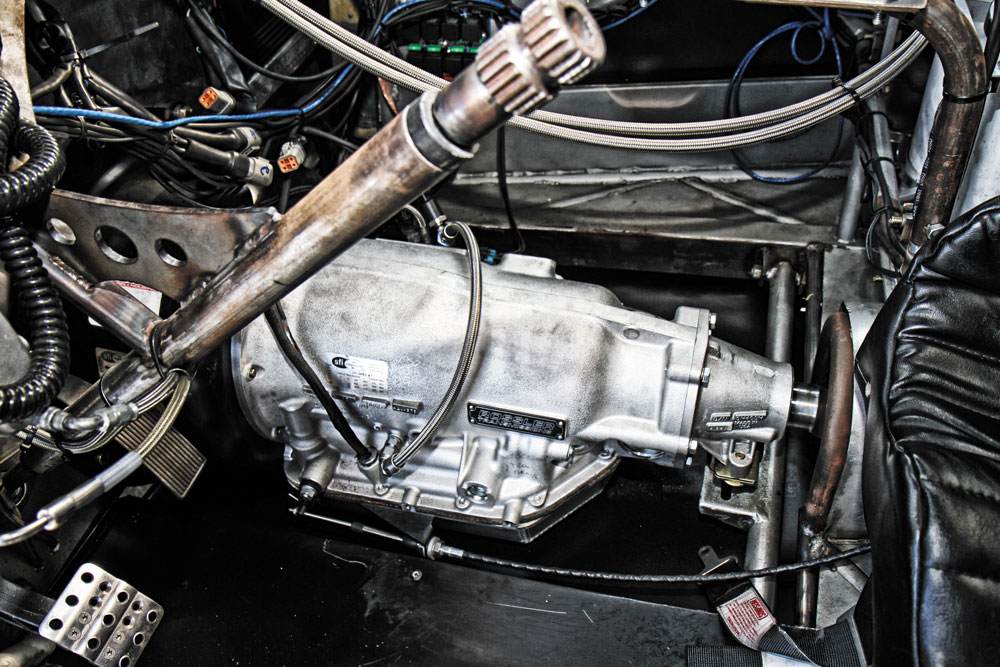

The Rossler Transmissions Turbo 400 based 3-speed automatic is located in the center of the cab housed in a Reid Racing case with a Browell bell housing containing the Neal Chance torque converter and ATS Diesel billet flexplate.

20

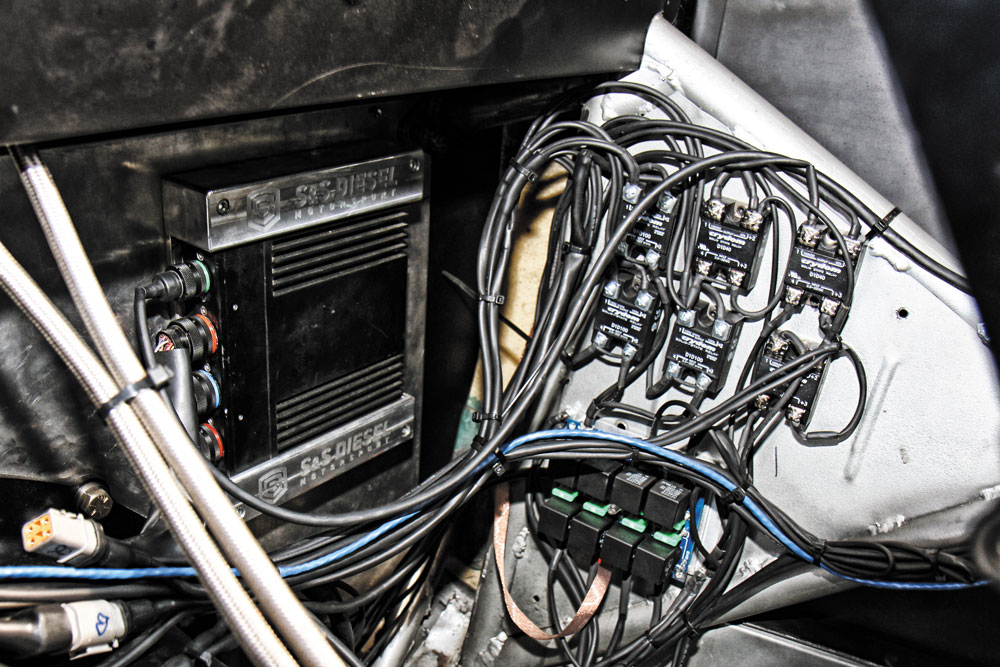

The passenger-side foot well is filled with harnessing, switching, and relays for the truck, all controlled by the Bosch stand-alone ECU from S&S Diesel Motorsport.

24

The little ’37 looks great from any angle, but this rear-view certainly shows that the matte black truck is a serious racer with massive rear Hoosier drag slicks and a Stroud parachute indicating it means business.

22

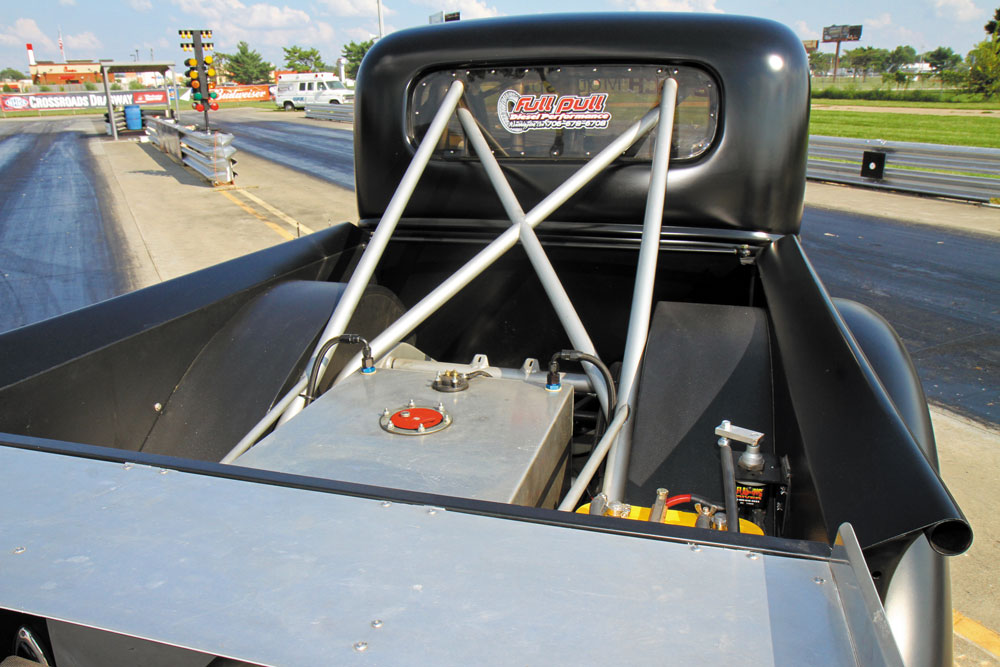

Rizzi and his crew sectioned the acrylic rear window to fit tightly around the roll cage tubing that protrudes through the window opening. The aluminum fuel cell sits between the frame rails while a single Yellow-Top Optima battery is located in the right rear corner of the bed.

26

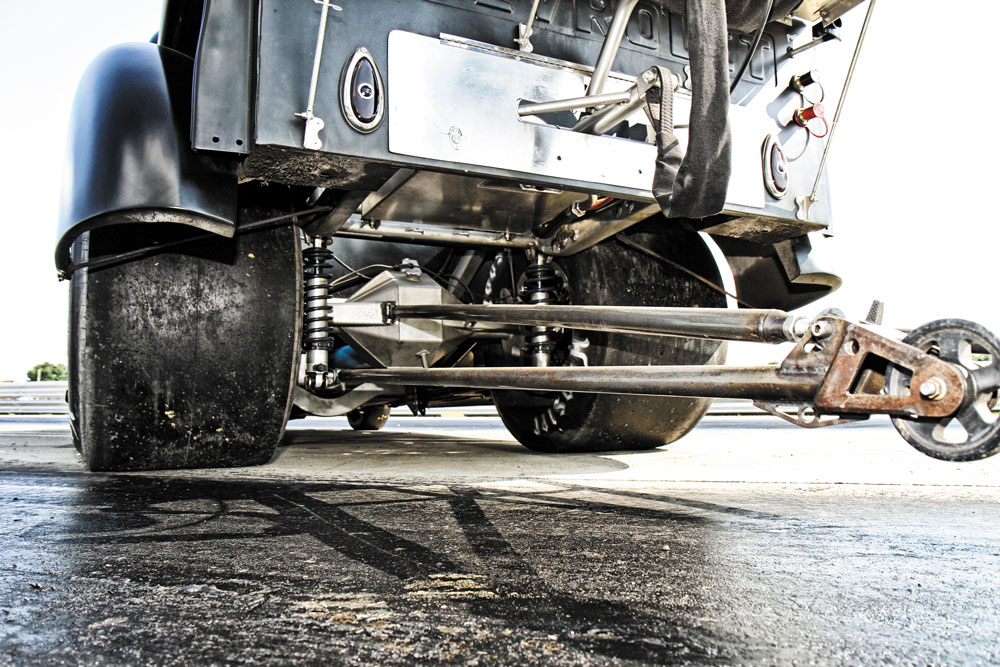

From the rear you can see the adjustable wheelie bars that keep the short-wheelbase race truck from getting too unruly on launch as well as the Carmack 10-inch fabricated rear axle housing. Like the front Strange Engineering single-adjustable coil-overs are used in the rear to tame the chassis and set ride height.

25

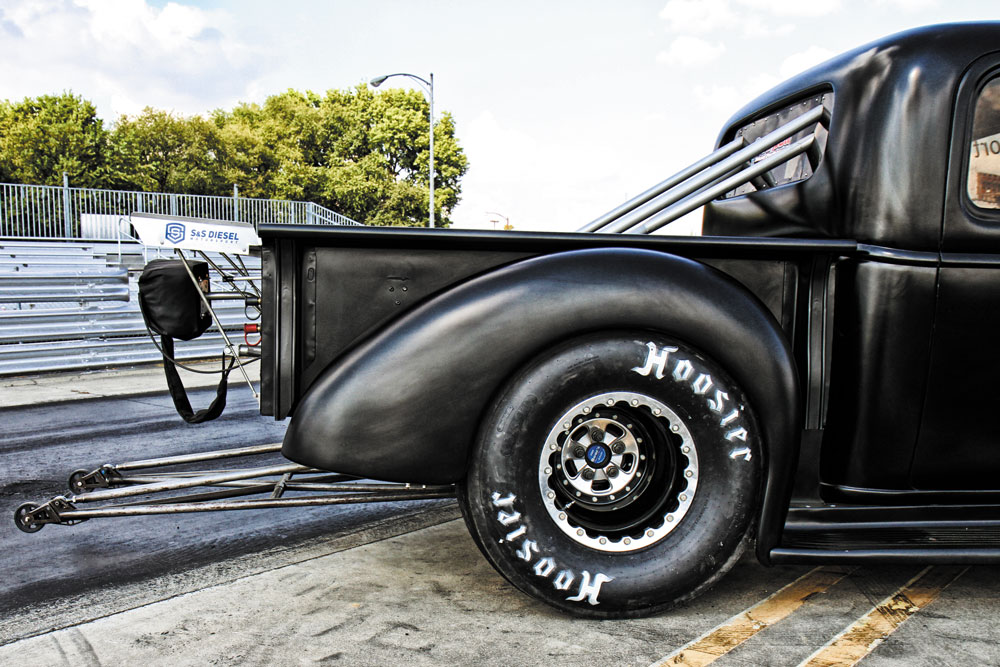

Rizzi fitted the truck with a pair of 33.0/17.0-16 Hoosier C07 drag slicks to put the Duramax power to the ground; they’re wrapped around a set of lightweight double-beadlock wheels to prevent the wheel from spinning in the tire when he mashes the loud pedal.

27

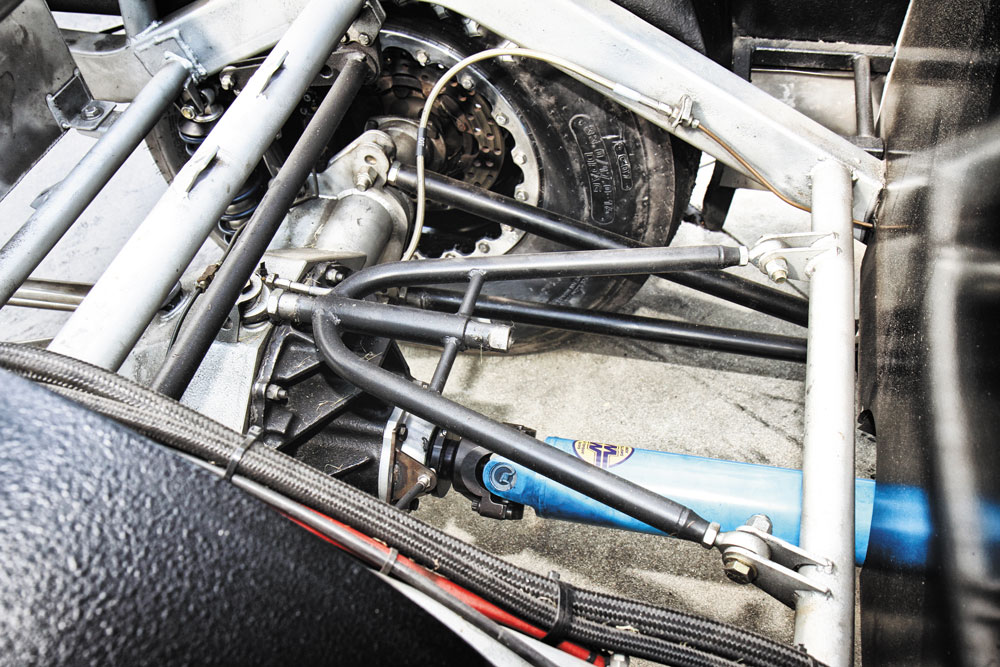

Looking at the rear axle assembly from the top side, you can see the custom Mark Williams driveshaft as well as the wishbone top link and triangulated link arms that keep the axle housing properly positioned in the chassis.
