The massive Ford F-650 is an imposing industrial-duty rig, typically outfitted with a dump bed or cargo box. So what does it take to turn a big 650 into a good-looking personal pickup with four-wheel-drive? Chuck Bump can tell you.

Bump’s 2009 F-650 started out as a utilitarian 2WD cab/chassis setup. Instead of fitting the rig with a functional flatbed, his workhorse became a parade float for Chuck’s employer, Advanced Refining Concepts (ARC). This firm is the inventor and refiner of a new, high-quality alternative fuel called GDiesel (see sidebar). Bump’s Clydesdale, even though it’s now groomed for parade duty, can still pull with the best of them. But what did it take to get it so prettied up?

Bump bought his truck in 2014 from Jones West Ford in Reno, Nevada. Despite being five years old, the truck had just 18,000 miles on it, which meant the 6.7L Cummins engine was just barely broken in. The first owner of the truck had already replaced the factory seats with four National Seating Premium Medium Duty air ride seats. They feature three different lumbar air chambers and two bolster air chambers that provide extra comfort when Bump is riding high and living large.

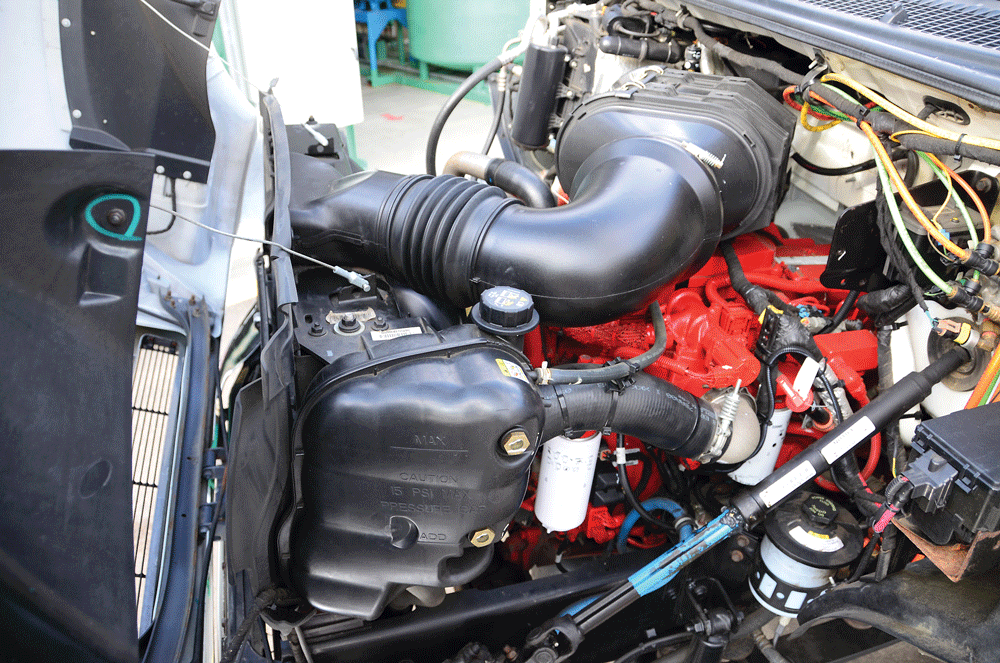

The relatively lightweight fiberglass hood tilts forward to provide access to the 6.7-liter Cummins ISB (Interact System B) turbo diesel. Expanded from 5.9 to 6.7 liters for 2007, the Cummins comes with eight standard and optional power ratings, and two vocational ratings, ranging from 220 to 360 horsepower, and 520 to 800 lb-ft of torque.

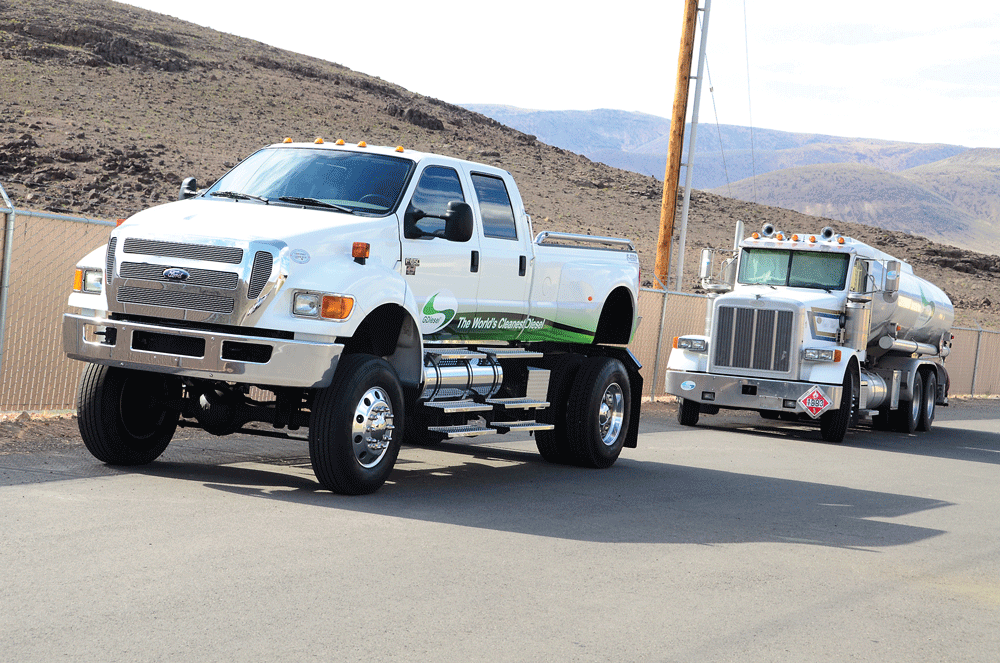

Note the size comparison between the F-650 and the GDiesel oil tanker rig.

Manning Equipment handled the chassis work, converting the F-650 to 4WD, and adding a pickup bed. For the latter, Manning’s VP of Sales, Mark Payton, says the frame rails needed to be shortened to 56 inches CA (Cab-Axle, measuring from the back of the cab to center of the rear axle). The rear axle simply slides forward, and the excess length of the frame rails is cut off.

“Manning Equipment handled the chassis work, converting the F-650 to 4WD, and adding a pickup bed.”

The bed rises nearly a foot above the frame rails. It’s a standard OEM unit with a tailgate, fender flares, and chromed bed rails and bumper. Bump installed a Transfer Flow combination toolbox and fuel tank in the bed.

Since getting access to the cargo area is much harder than on a conventional pickup, a collapsible ladder is attached to a bracket that folds up neatly on the tailgate. To climb into the lofty bed, Bump rotates out the bracket and slides the ladder’s lower section down to the ground.

The 4WD conversion was far more complicated. The steer-drive front axle was replaced with a Marmon Herrington front-drive drop axle in a center bowl configuration with automatic slack adjusters for the air brakes. Double cardan joints are used in the two-piece front driveline, mated to a Marmon Herrington MVG750 two-speed transfer case with an air-shift mechanism.

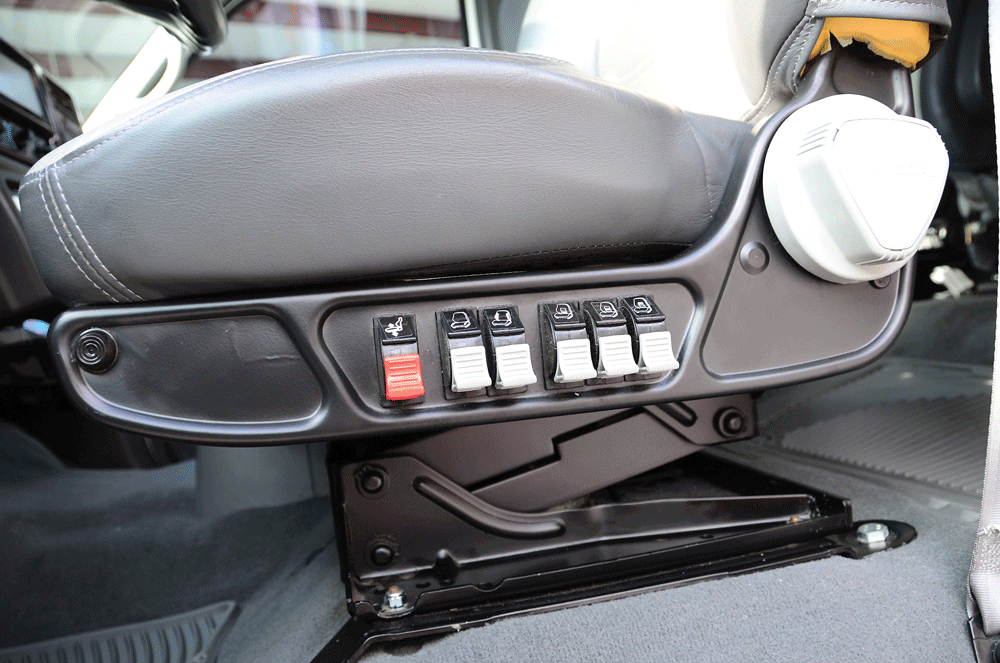

The National Premium Medium Duty Air ride seats make for a much smoother driving experience with three different lumbar air chambers and two bolster air chambers to customize the seat to the driver’s body.

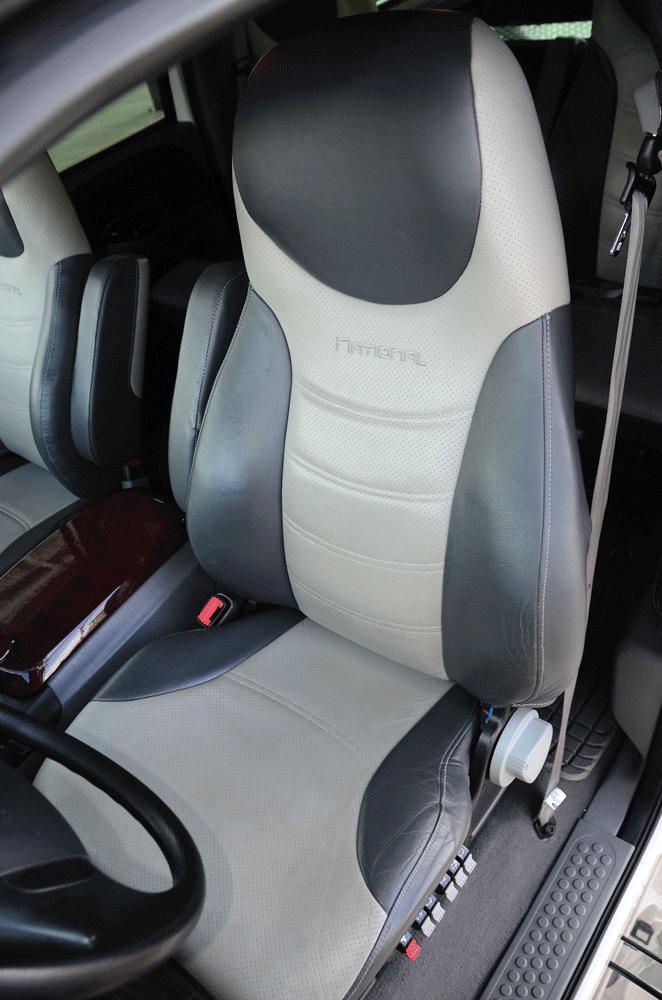

National’s posh leather upholstery with perforated
inserts dresses up the cockpit.

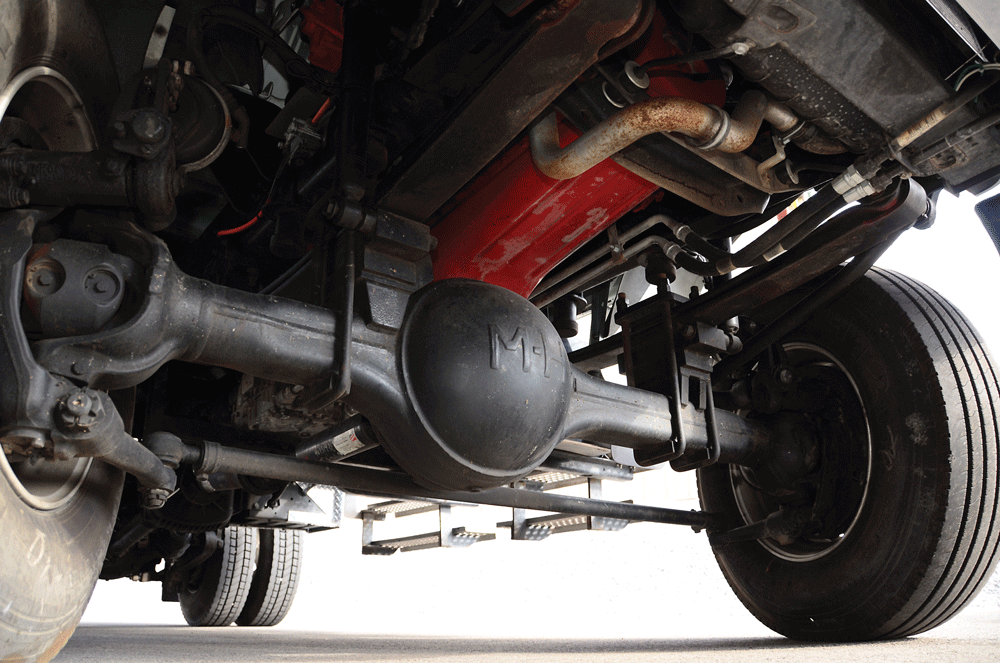

Converting the Ford F-650 to a 4WD setup required a Marmon Herrington front-drive drop axle in a center bowl configuration.

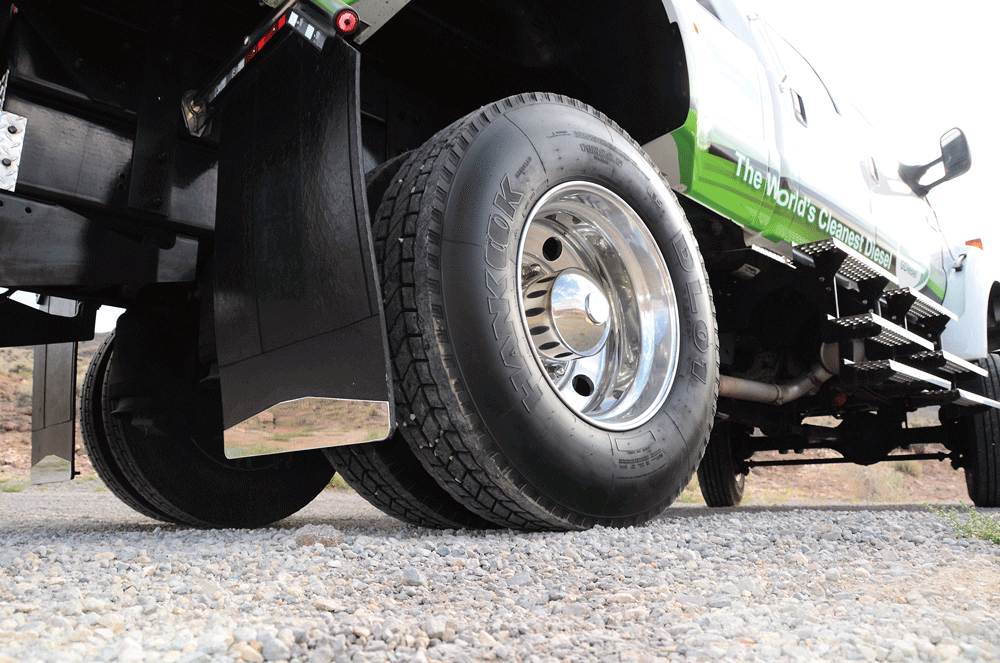

This truck features polished stainless steel hub and lug nut covers on 22.5-inch wheels, with an aluminum ornamentation kit. Rubber comes from Hankook.

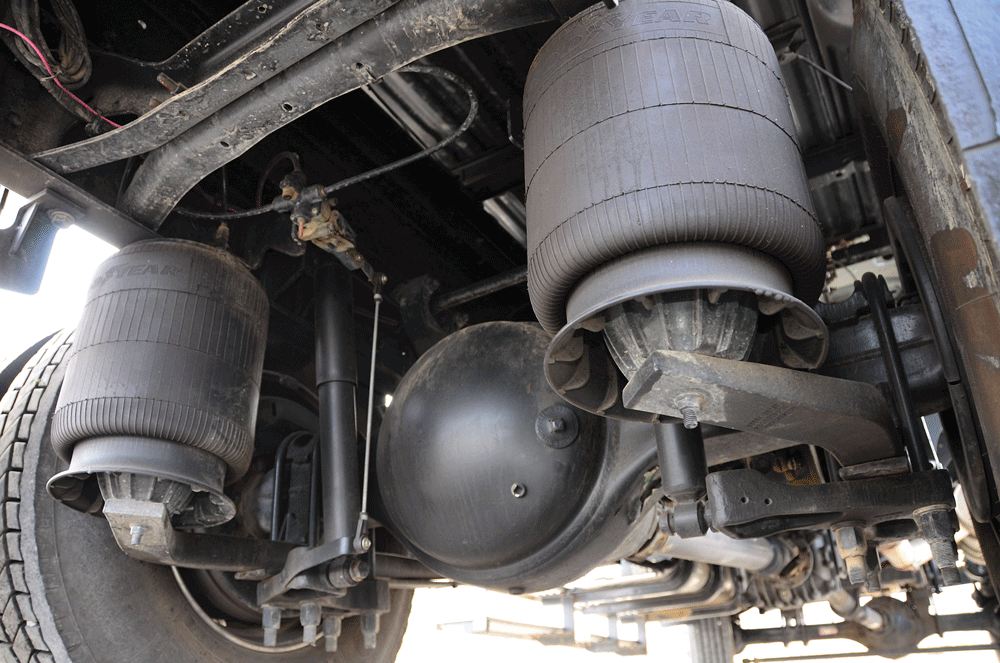

Massive Goodyear air bags level out the load and smooth out the ride.

Specific restrictions are involved in this setup. You can use only a 43B or 43C OEM front axle (with the drive axle rating the same as the factory GAWR). Normally, a five-speed automatic transmission is used, rather than a six-speed; otherwise the sixth gear must be deleted.

The suspension conversion is not available with a two-speed rear axle, and either the 91B or 91D exhaust systems are required. Only air brake drums (measuring 16.5 x 5.5 inches) will work with this setup, along with 22.5-inch wheels, and an air-ride suspension and/or a high-CG body. Note, too, that the step-frame conversion needs some 30 inches of additional length on the CA dimension.

To give this big bad boy some bling, Bump added diamond plate covers on the battery boxes, along with the side and rear body trim. To broadcast the merits of GDiesel, J&R Sign in Reno applied a wrap with the company logo prominently displayed. It’s a crowd favorite at events such as the 2014 Elko Mining & Equipment Show and the Reno Safety Fair, and just about anywhere Bump rolls.

The signage is designed to make the most of his frequent trips. The can’t-miss-it presentation towers over commuter cars and even most lifted pickups. “This truck is my daily driver and is used for grocery shopping,” he says. It could probably haul enough food and supplies to empty a Costco warehouse—and do it with style!

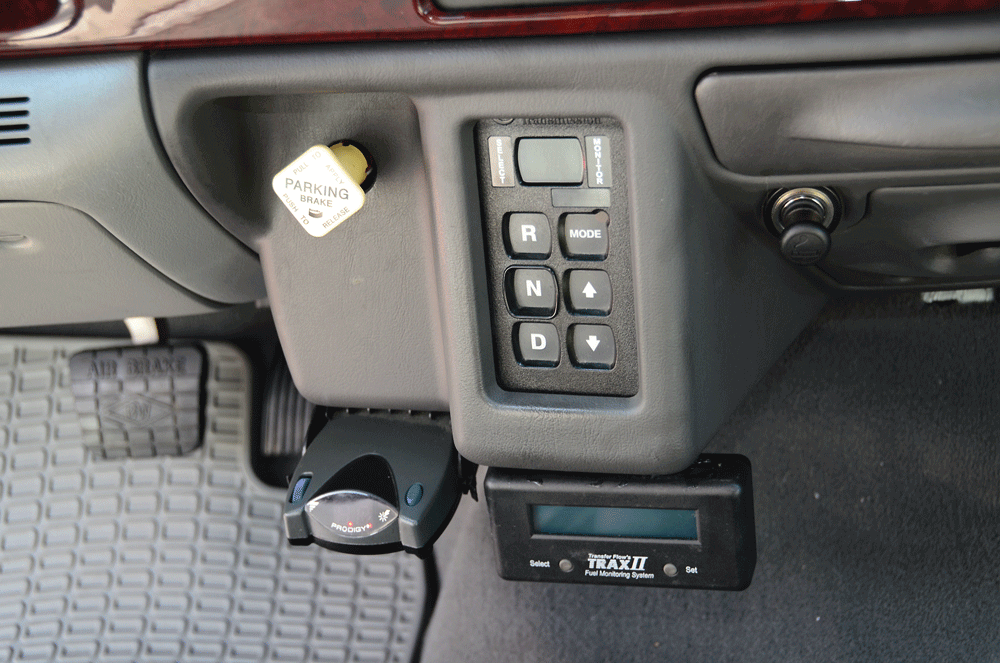

Air brakes (knob seen here) and a five-speed transmission are a must on this type of conversion.

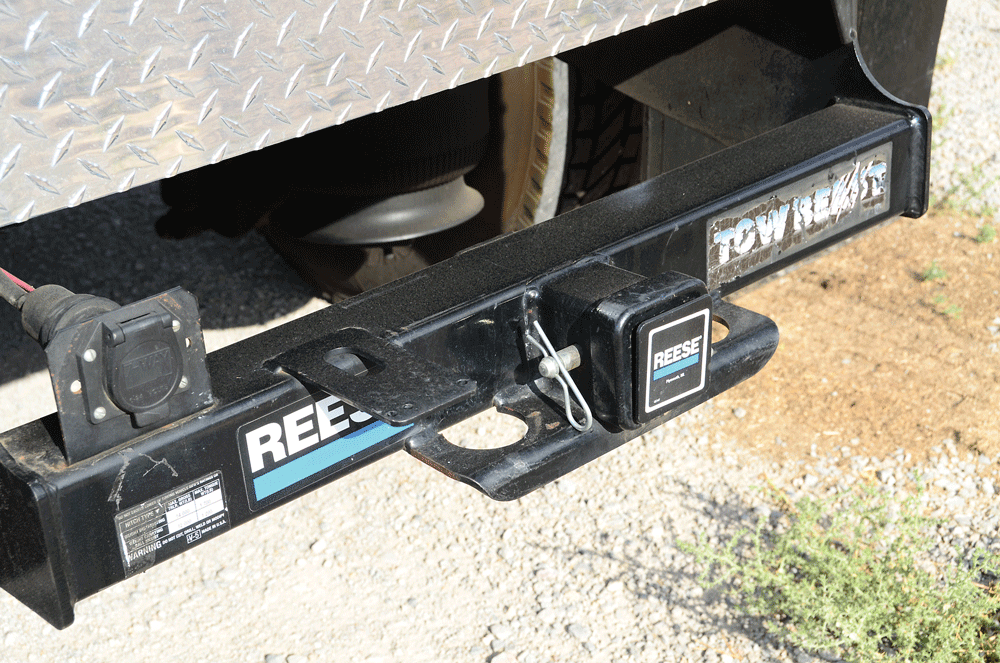

The Reese Class 5 hitch is awesome for towing a 25-foot travel trailer or 16-foot car trailer carrying a Jeep CJ-7 rock crawler.

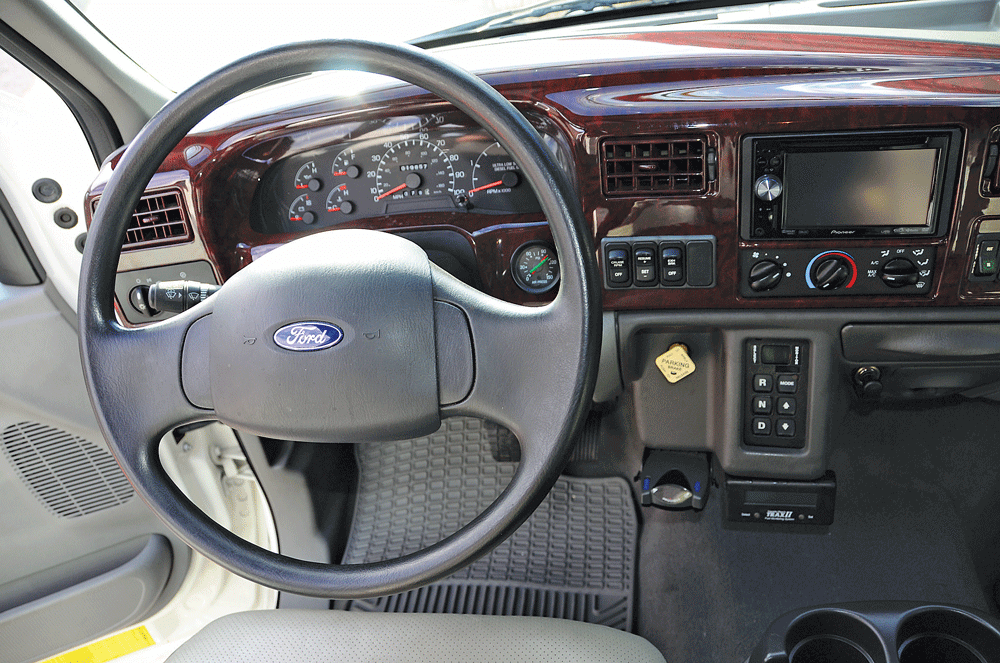

A wood-grain dash is not what you’d expect in a utility rig.
Chromed bumper and polished diamond plate further accent the trim on this showboat.

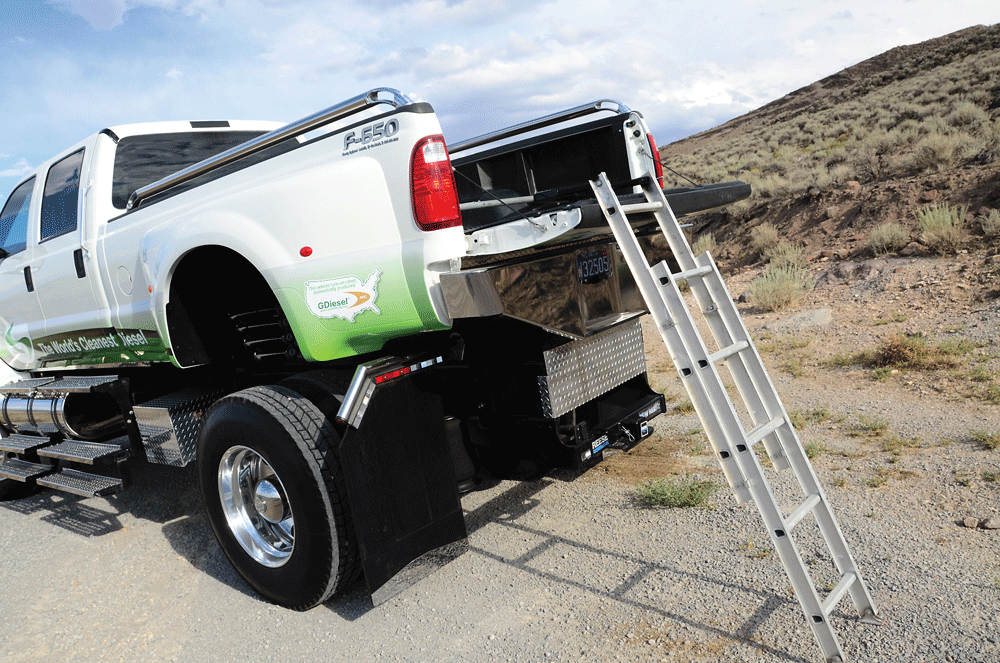

A folding ladder stored on the tailgate provides much-needed access to the pickup bed, which is nearly a foot above the main frame rails.

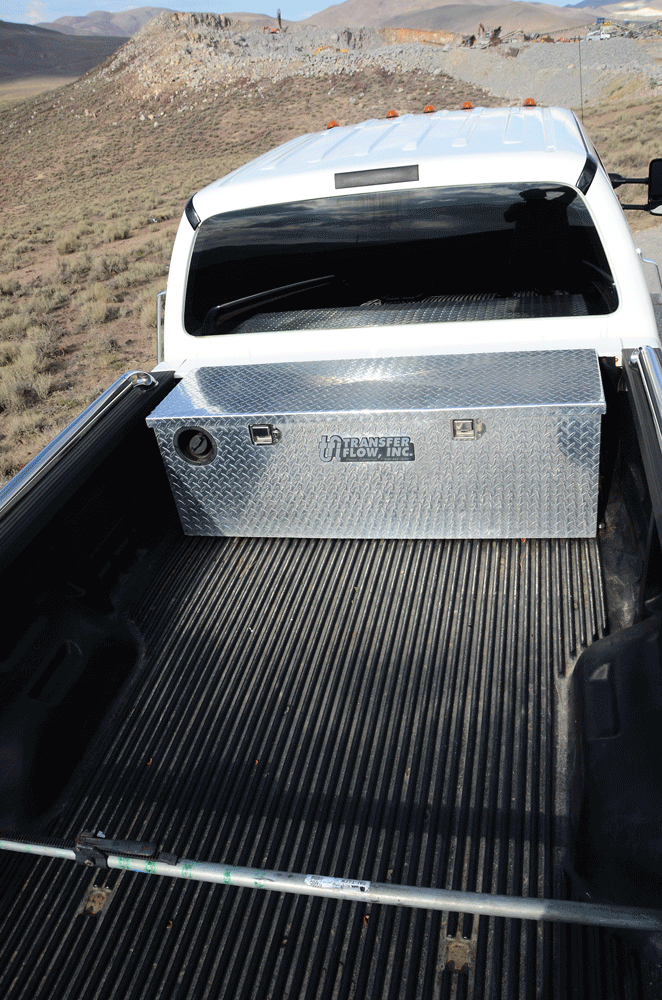

Transfer Flow’s combination toolbox and auxiliary tank make for more range and extra storage. A cargo load bar is also standard.

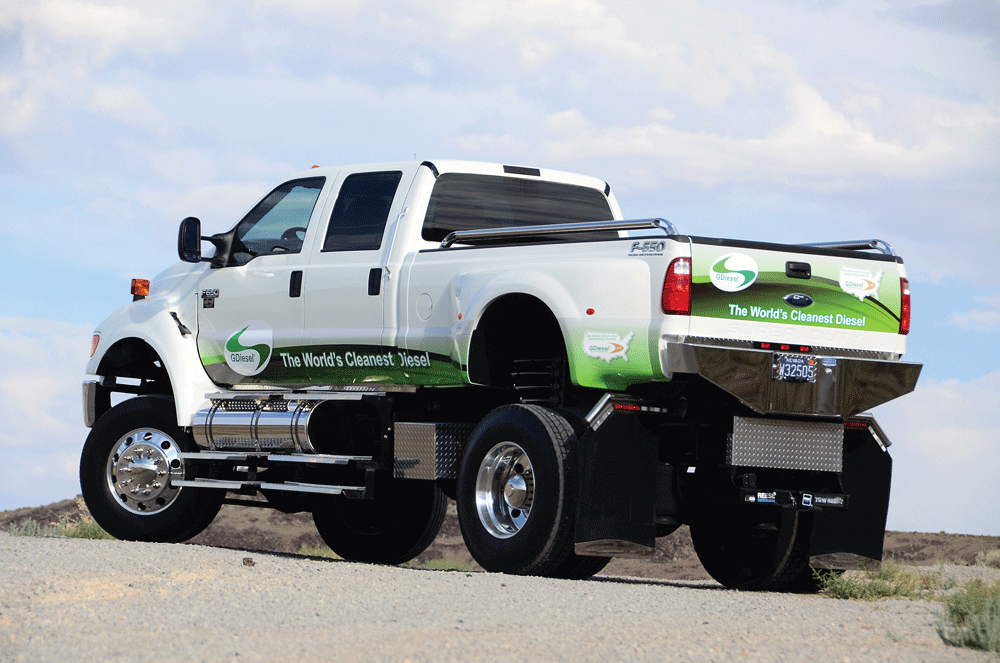

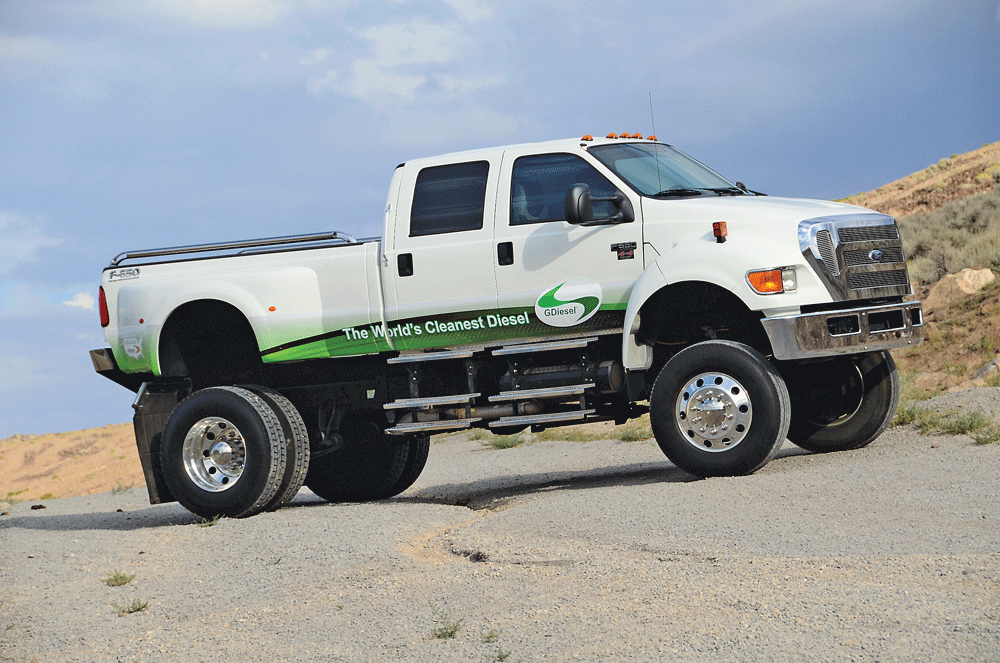

This classy chassis cuts a stylish profile, even though it’s way shorter than most industrial-duty rigs.

What Exactly Is GDiesel?

While the “G” in its name could be interpreted in various ways, the official version refers to the natural gas used to re-refine No. 2 diesel into an alternative fuel that’s markedly improved in several areas. Invented by Dr. Rudolf W. Gunnerman (who has several other fuel technology patents to his credit), GDiesel is not a biofuel, and has a lower molecular weight and burns more efficiently than conventional diesel.

The basics of the patented ClearRefining process used to make GDiesel are relatively simple. It begins with standard ultra-low sulfur diesel fuel (ULSD) that you’d buy at any filling station. This feedstock is first pressurized in a steel tank to about 10 psi and heated to about 250 degrees F (much lower levels than those required during typical refinery processes). Natural gas, the same stuff used for cooking and heating, is piped into the tank of diesel, and the resulting mixture swirls up and through a wheel-shaped filter wrapped with four different metal catalysts (cobalt, among others).

The ClearRefining process starts with conventional No. 2 diesel that’s pumped into a tank, where it’s slightly heated and pressurized. Natural gas is added and catalyzed with the diesel to form GDiesel, a cleaner type of EPA-approved fuel with a higher energy content.

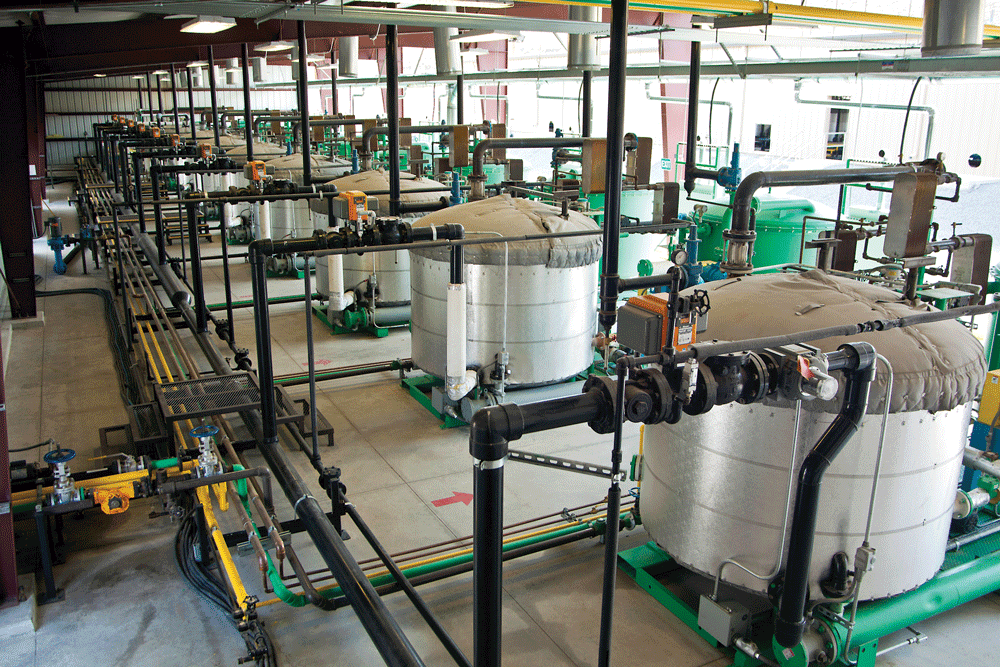

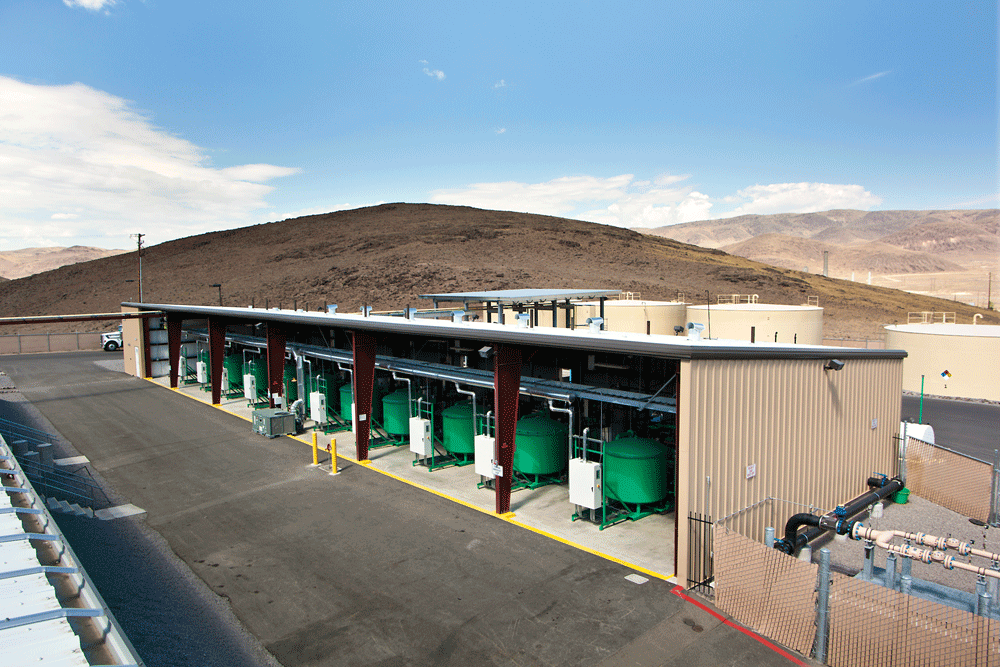

Two phases of GDiesel refineries have already been completed, both located in the foothills east of Reno.
ARC Partner and Director, Peter Gunnerman (right) worked directly with Rod Hall in supplying GDiesel for the off-road school.

As most chemistry students already know, catalysts are substances that modify and increase the rate of chemical reactions without undergoing any permanent chemical change themselves or being consumed in the process. In the case of GDiesel, the metal catalysts cause the gas molecules to chemically bond with the liquid. This newly formed mix of gas and liquid diesel then flows through a layer of plastic pellets to facilitate condensation, and through a heat exchanger for cooling. The final stage involves running the GDiesel through a 15-micron filter to ensure purity.

In more precise technical terms, what the ClearRefining process does is take the asymmetrical distribution of hydrocarbon chains in ULSD and transforms it into a more uniform output. Shorter-length hydrocarbon molecules combust more completely than longer chain molecules. As a rough analogy, it’s like putting smaller pieces of wood on fire rather than a big log.

“In more precise technical terms, what the ClearRefining process does is take the asymmetrical distribution of hydrocarbon chains in ULSD and transforms it into a more uniform output.”

ARC Partner and Director Peter Gunnerman filling up his personal Humvee with GDiesel at the refinery.

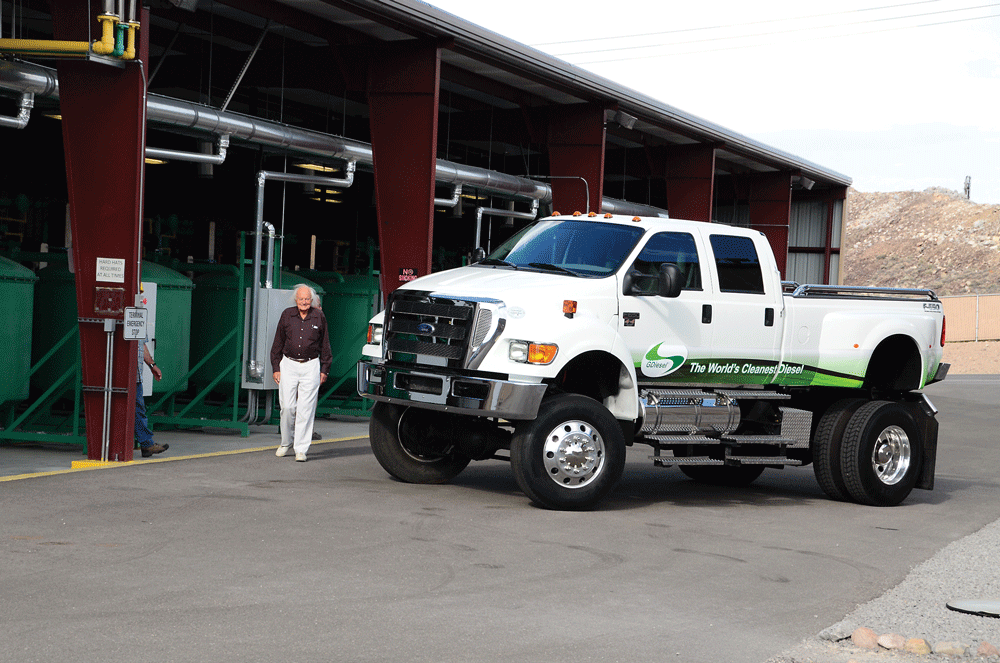

Dr. Rudolph Gunnerman, inventor of Gdiesel and several other fuel technologies, happened to be inspecting his refinery during our shoot.

The results are impressive in both efficiency and emissions. Independent reports from fleets using GDiesel indicate that improvements in mileage range from 10 to 35 percent, depending on the engine and vehicle. We’ve personally measured a 21 percent gain in a 1996 Dodge Ram with a 12V Cummins, noting an immediate increase from 19 to 22 mpg, while cruising on the highway with a double-overdrive gear splitter.

In addition, GDiesel’s more uniform hydrocarbon chain distribution provides more complete combustion in an engine, resulting in lower CO2 and NOX exhaust emissions, as well as reduced smoke and odor. A recent study done by Dr. Eric A. Lutz, Assistant Professor and Director of Mining Safety and Health Programs at the University of Arizona, demonstrated GDiesel’s significantly lower diesel particulate matter—66 percent—compared with low-sulfur No. 2 diesel. (By comparison, biodiesel reduced particulates only 33 percent.) His research further indicates that GDiesel also resulted in a reduction in all other exposures except CO.

Veteran off-road competitor and instructor Rod Hall found that GDiesel greatly improved the fuel efficiency of his school’s Humvee trucks.

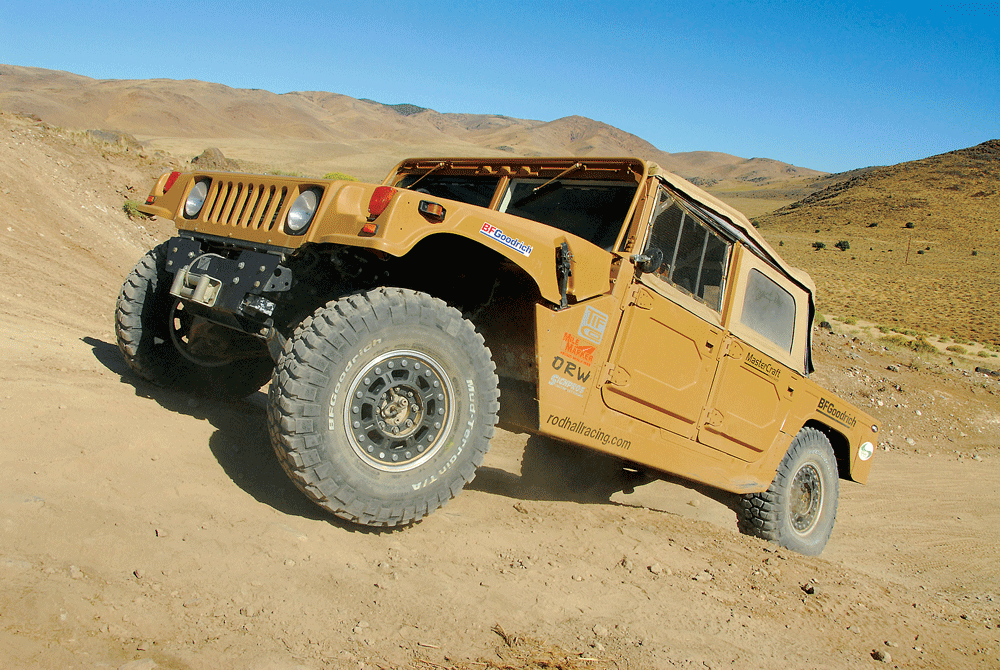

Some action in the dirt with Rod Hall’s GDiesel-fueled Humvee at his off-road school east of Reno.

While some diesel performance enthusiasts might not be personally concerned about emissions, it has become a health issue of late in the wider community, so emitting less black exhaust smoke is a real plus. GDiesel offers an immediate remedy, along with a significant improvement in fuel consumption in most applications. DW


Advanced Refining Concepts, LLC

Manning Equipment, Inc.
