Red Rush: 12V Cummins Restoration

Bet you’d never guess this beautiful red 1996 Dodge has seen over a half-a-million miles in its day. Thanks to the unwavering love for the 12V Cummins, Casey Adams has worked hard to turn this 500,000 truck into a 700hp show stopper with an attention to detail you won’t find in many trucks out there.

After getting the bug for diesel performance back in high school Adams has gone through a few different Cummins trucks all of which were turned into pretty potent performers, but his latest project dubbed ‘Red Rush’ has become his best one yet. Owner of Flatline Diesel out of Payson, UT and a marketing spokesman for Attitude Performance Products of Sandy, UT, turning an unsuspecting stock truck into a tire shredding monster without losing that daily driver versatility has become his specialty.

“Casey Adams has worked hard to turn this 500,000 truck into a 700hp show stopper”

New Life

This particular truck was purchased in 2012 from the original owner who had already put over 400,000 miles on the odometer. Surprisingly, the truck had been left virtually stock and made for a clean slate for Adams. Once cleaned up, the truck was in fairly clean shape and made it another 90,000 miles without major issue. Nearing the half-million mark, the motor started acting up and was showing heavy compression loss in two cylinders. Being a die-hard 12V Cummins man, Adams decided it was time to dive head first into the project and go all out with a complete rebuild and restoration from the ground up. The motor was pulled from the frame and the chassis went to the shop for a complete rework of the suspension and body over the winter.

You’ll be hard pressed to find a cleaner engine bay on a nearly 20-year truck with an attention to detail like no other.

700HP 12 Valve

Knowing big horsepower was the final goal, the engine went through a complete overhaul with machining and balancing done by C&T Machine of Orem, UT. Adams assembled the engine himself with new .020+ Mahle pistons, a Hamilton 188/220 camshaft, 1.5 tappets, billet pushrods, beehive valve springs, a mild port and polish of the cylinder head, new rockers, billet oil squirters and freeze plugs from Attitude Performance, ARP head studs, killer dowel pin cover, new flex plate, Fluidamper damper and of course all new gaskets and seals.

Fueling

To fuel the newly built engine, Adams turned to Goff Injection of Salt Lake City, UT who modified the stock P7100 to their 12mm specifications with high flow Dynomite Diesel delivery valves, 4k Governor spring kit and an Attitude Performance rack cap. Once on the engine, Adams then added the all new Attitude Adjuster that allows in-cab control of the fuel plate position to adjust fueling from just 85cc of fuel in Level 1 to 550cc of fuel on Level 10. The adjustable fuel plate allows Adams to keep power and smoke output low for daily driving and mileage, but it can be cranked up to over 700hp at the turn of a dial while driving. For injectors, a set of Stage 3 Dynomite Diesel pieces were used and are fed by a 220gph Fass lift pump.

Turbo Duties

To supply air for all that fuel, a compound turbo pipe kit from Diesel Power Source was used to fit a pair of polished Borg Warner turbos built by High Tech Turbo of Salt Lake City, UT under the hood. The high pressure unit is a custom 63mm S300 with a Forged Mill compressor wheel, 68mm turbine wheel and 12cm wastegated turbine housing, the turbo also received a 360-thrust bearing and adjustable wastegate actuator. This 63mm is paired with a S475 that flows enough to support 700hp, this combo keeps great street manners at the lower horsepower levels and even allows for good towing performance when the Attitude Adjuster is dialed into level 3 or 4 (around 450hp). To help keep the 60+ pounds of boost cool, a polished High Tech Turbo high flow intercooler was also installed.

Like everything on the outside of the truck, the interior went through a complete remodel as well with custom seat covers, painted panels and a major deep cleaning to remove stains and wear marks from the carpet and headliner.

Body Work

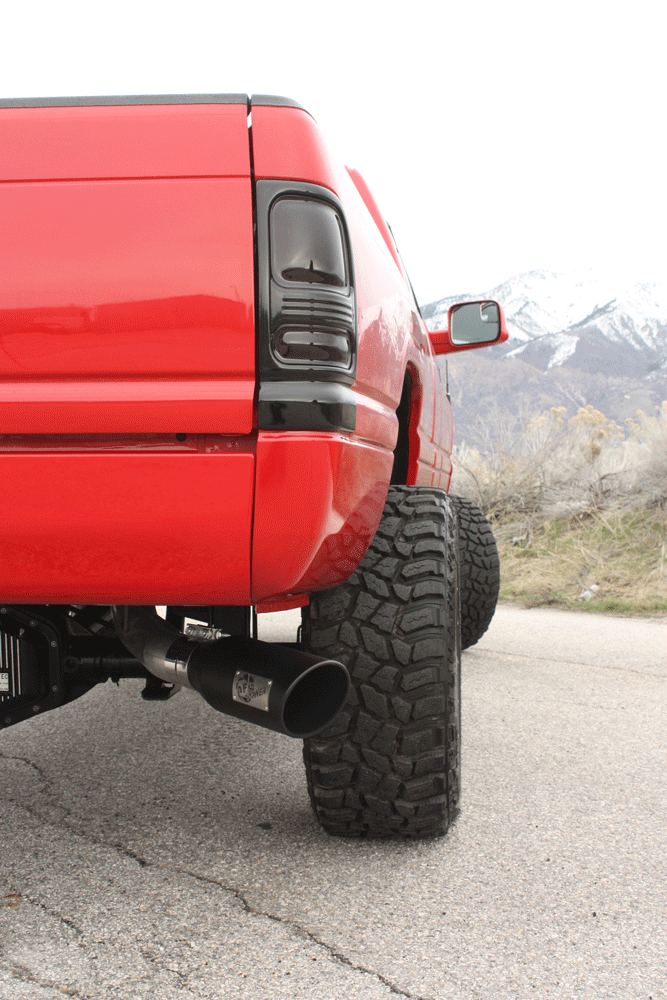

Back to the chassis, Adams was able to do the body and paint work himself, which included countless hours sanding and prepping to lay down that flawless victory red paint. The front bumper was cleaned up with a Street Scene cover and the rear bumper was replaced with a smoothed out roll pan. The grille was replaced and is the only pop of chrome you’ll find on the truck. The stock mirrors were replaced with late model tow mirrors that were also painted red to match. Smoked cab and taillights add to the trucks sleek look as well. The frame rails and suspension were all cleaned up and painted black with a fresh layer of undercoating.

Somewhat new to the market for the P7100 injection pump trucks, the Attitude Industries Attitude Adjuster allows Adams to adjust his fuel plate travel on the fly, offering ten different settings for ultimate fuel control. And you thought adjustable ‘chips’ were only available on electronically controlled engines…

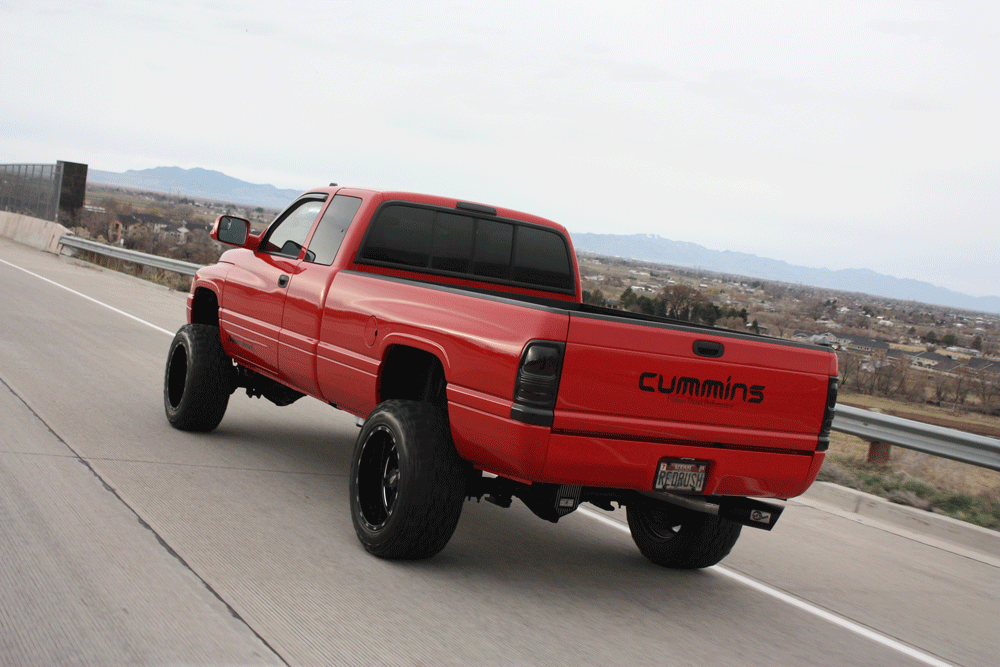

A walk around this truck makes you think it’s fresh off the dealers showroom floor, as no part of the truck was left untouched. But the odometer tells the true story, you’re eyes do not deceive you, that’s 503,894 miles.
To help feed a constant supply of clean diesel to the worked over 12mm Goff Injection P7100 pump, a FASS 220gph lift pump is mounted just outside the frame rail stuffed up under the bedside.

Suspension

For the suspension, the stance had to come up a bit from stock height to give the truck the aggressive stance Adams was after. So a custom front end level kit was put together that includes matching red coil springs and a dual shock bracket Adams fabricated himself. The truck sits on dual Bilstein 5100 shocks up front and matching Bilstein 5100’s out back. For tires, a set of Cooper STT Pro 305/55 rubber is wrapped around a set of 20×12 Moto Metal black and machined wheels. Firestone Ride Rite airbags were also installed on the back axle to help keep the truck level while towing.

The custom suspension setup built by Adams offers a fully leveled front end with painted factory coils and a custom dual shock mount holding two Bilstein 5100 shock absorbers.



“17+ miles per gallon”

Power Transmission

To keep all-that horsepower getting to the tires safely, an ATS automatic transmission was installed along with one of their full five-disk torque converters and deep sump pan. The factory drivelines were overhauled with new u-joints and then balanced to keep the drivetrain vibration free. The stock 3.73 gears were retained as they offered great drivability and lower RPM’s while cruising at highway speeds. The rear differential was capped off with a Mag Hytec cover.

To supply air to the 12V engine, Adams used a twin piping kit from Diesel Power Source with fully polished 63/68/12 and S475 turbos from High Tech Turbo.
The high pressure unit in Adams compound kit is a 63mm built by High Tech Turbo, it uses their 68mm turbine wheel and 12cm wastegated T3 exhaust housing. To control exhaust pressures being fed to the big S475, a fully adjustable HT Turbo wastegate actuator was also installed.
For rolling stock, the 96’ Dodge sits on 20×12 Moto Metal black and machined wheels with 305/55R20 Cooper Discoverer STT Pro tires.

“60+psi of boost”

Since completing a near frame off restoration of the truck Adams has put about 4,000 miles on the truck and brought home a 2nd place Autorama ‘Best Truck’ trophy at Utah’s largest car show. Adams loves to take his family out cruising back country roads of Utah and says his wife’s support in this build has been incredible. The parts combination has worked flawlessly together and does everything he imagined it would. With 700hp and 1400lb-ft of torque, it’s easy to see why he’d feel that way as having that kind of power on tap while still being able to tow and maintain 17+ miles per gallon on the highway makes it super versatile truck. Adams has no immediate plans to make any other changes to the truck, as the current power package is working together extremely well and should be good for another 500,000 miles.

Backing all that horsepower and getting it to the tires is a fully built ATS transmission. Even under wide open throttle at nearly 1400lb-ft of torque, the transmission shifts crisp and clean.
The original P-Pump was worked over and upgraded to a 12mm setup by Goff Diesel Injection of Salt Lake City, UT. The pump runs high flow delivery valves from Dynomite Diesel, a 4k governor spring kit, Attitude Performance long travel rack cap and their patented Attitude Adjuster that allows fuel flow to run at just 85cc in the lowest setting and 500cc on Level 10.

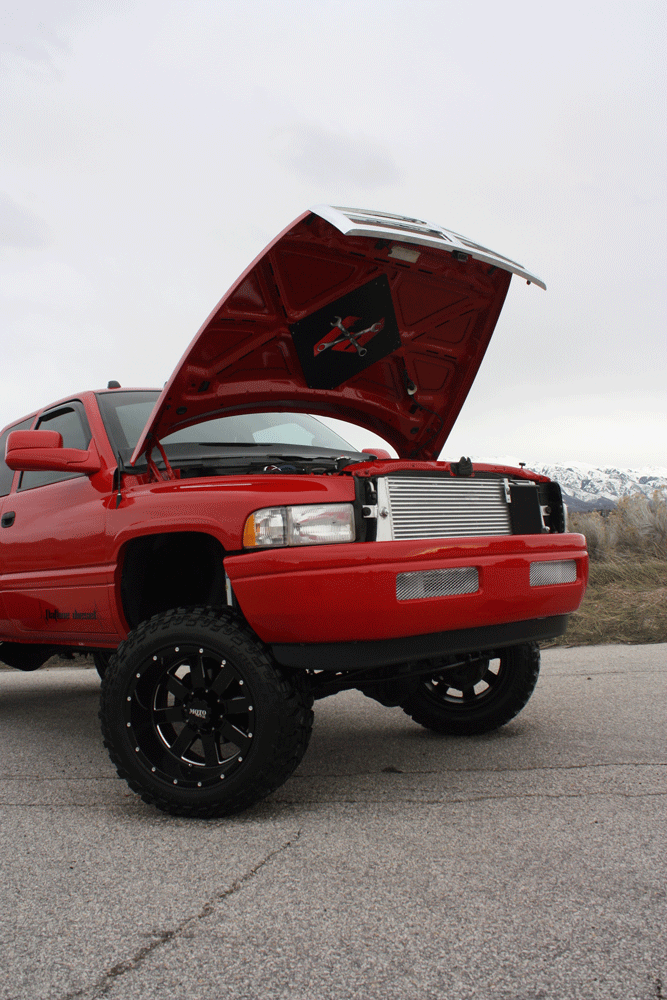

To help keep charge air temps and EGT’s under control a fully polished cast intercooler from High Tech Turbo was mounted behind the grill.
