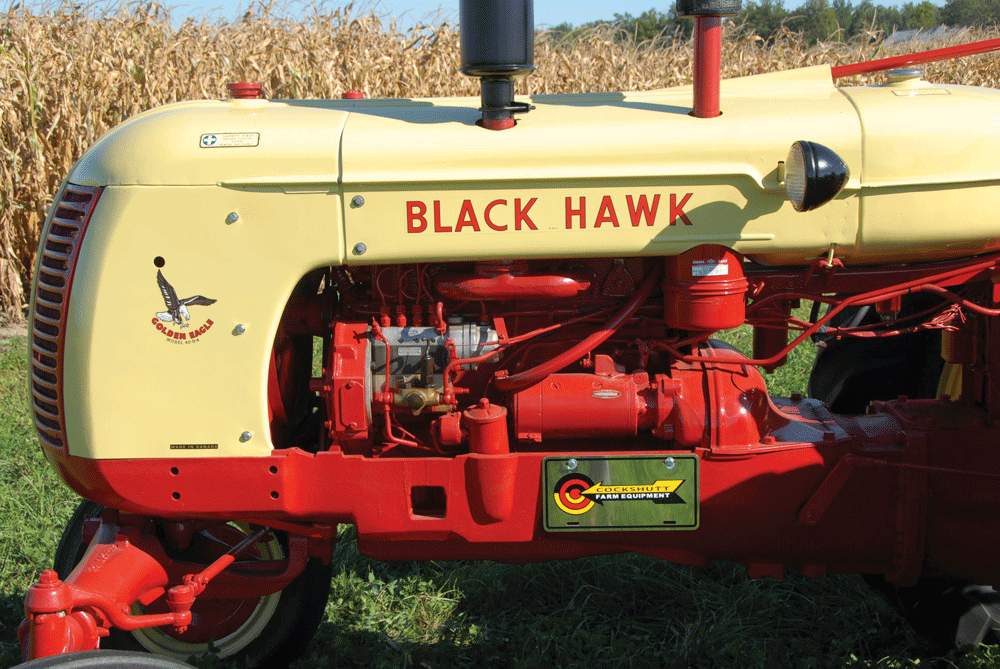

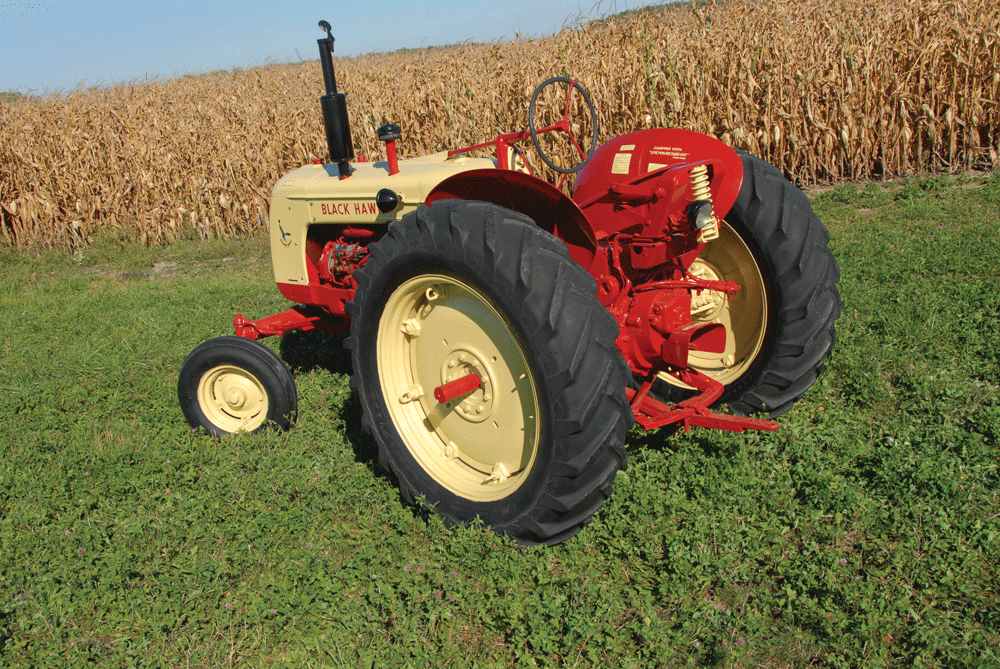

Up next DOOM & GLOOM Published on March 24, 2018 Author Jim Allen Tags 4x4 diesel trucks, ag, Automobile Magazine, cockshutt, Diesel, diesel performance, diesel pickup trucks, diesel trucks, Farming Equipment, Farmland Equipment, Performance, power, restoration, Restored Tractor, row crop, Tractor, Truck Magazine, vintage, Vintage Diesels, vintage tractors, Share article Facebook 0 Twitter 0 Mail 0 BLACK HAWK! 1956 COCKSHUTT BLACK HAWK 40PD By the middle part of the 1950s, Cockshutt Farm Equipment, of Brantford, Ontario, Canada, was feeling the pain of being a small-but-prestigious family owned company. It was all they could do to avoid being trampled underfoot by the many larger, publicly owned companies building farm equipment around the world. They built some good tractors and other equipment but were having trouble maintaining traction in a market dominated by giants. An actual “giant stomping” had occurred when Allis-Chalmers bought Buda Engines in 1953. Buda had been Cockshutt’s “go-to” for both gas and diesel powerplants for many years. When AC took over, they cut the Buda engine lineups and eventually promised to cut supply to Cockshutt. This forced the company to look at alternative suppliers; one of their early choices was the British-made Perkins diesel, which was a natural decision being as it was in the British Commonwealth. At the end of 1954, a Perkins four-cylinder diesel installation was developed for Model 40 production. The Perkins L4 was an old design by the time this tractor was built. It developed a maximum of 59 net fl ywheel horsepower at 2,000 rpm, which was the intermittent rating for road use in trucks. In ag use, the continuous rating was 48 hp at 1,500 rpm. It was a torquey bugger and held a net torque peak of 180 lb-ft from 950 to 1,200 rpm and kept more than 160 lb-ft below 1,800. These numbers were actually a bit ahead of the six-cylinder Buda, despite the Perkins having two fewer holes. It was indirect-injected with wet sleeves and a three-main crankshaft. It used a CAV model BPE-4A inline pump that cranked out 102cc with the larger 7mm plungers and a full stroke. The CAV injectors popped at 2,200 psi. The L4 was produced into 1961, but the basic design would inspire an upgrade in the form of the 4.236, which was a similar and well-loved design but with a smaller bore and a longer stroke. The Model 40 had previously been offered with either a 230ci Buda six-cylinder gasser or a six-cylinder Buda 6BD230 Lanova diesel with the same displacement. Starting in 1955, the Perkins model was offered as an alternative. The 270ci Perkins L4 was built from 1952 to ’61 as an Ag engine. It wasn’t one of Perkins’ more advanced designs but a value offering that was one of the company’s most dependable Ag/industrial powerplants. The Model 40 with the Perkins was designated Model 40PD, “PD” for Perkins Diesel.Subscribe Our Weekly Newsletter THE MODEL 40 WITH THE PERKINS WAS DESIGNATED MODEL 40PD, PD FOR PERKINS DIESEL. At the same time the 40PD models appeared, the sales and marketing department looked for other opportunities to increase Cockshutt market share. Starting in 1956, the company made its tractors a little more special by offering “Deluxe” paint schemes. Deluxe paint consisted of the traditional Vermillion Red for the lower parts and Cream Yellow for the hood and wheels. Normally, Cream was the wheel color. From there, the Deluxe models carried many marking variations, some tailored to the intended market, but the end result was a stylish eye-opener that has become a favorite among Cockshutt collectors. Goyings’ 40PD is without the optional 3-point hitch but has a live PTO, swinging drawbar and a pair of rear hydraulic remotes. Though the accommodations look more than a little Spartan, Cockshutts were known for a “good” seat (note the seat suspension on the Knoedler seat). To highlight the acquisition of the American manufacturer of Black Hawk corn planters and cultivators, the “Black Hawk” models were also produced for the US market to tie the two companies together. This combination eliminated the normal hood side graphics on a Deluxe painted tractor and added “Black Hawk.” These were produced from mid-1956 into early 1957. The production numbers are not known exactly but they were relatively few. DELUXE PAINT CONSISTED OF THE TRADITIONAL VERMILLION RED FOR THE LOWER PARTS AND THE CREAM YELLOW FOR THE HOOD AND WHEELS. By 1957, the Model 40 was nearing the end of its production run and little had changed from its 1949 introduction. It still mounted a very stout six-speed transmission. A Buda 6B230 gas 6-cylinder was standard, with the 6BD230 diesel optional and the Perkins-powered unit available as a separate model. Cockshutt was the pioneer of the live PTO system and a side-mounted drum PTO was optional. A three-point hitch was also optional, as was a hydraulic pump and remotes. Various ways to hang iron were available; some were curved and stylish to match the tractor. Production of the Model 40PD line, and all the curved-hood-style tractors, was discontinued in November of 1957 to make room for the new 500 Series. By this time the switch to alternative engine manufacturers had occurred and the Buda engines were all but gone. Some of the curvedhood tractors remained to be sold well into 1958, but even with a new line of tractors Cockshutt’s life as an independent tractor manufacturer was about to end. But that’s another story, one we told back in the February 2016 issue. TYPICAL SPECIFICATION: 1956 COCKSHUTT 40PD BLACK HAWK SOURCE ENGINE 4-cylinder diesel, direct injected, Perkins L4 DISPLACEMENT 269. 5 ci BORE & STROKE 4.25 x 4.75 in. FLYWHEEL HORSEPOWER: 48 @ 1,500 FLYWHEEL TORQUE: 182 lb-ft @ 1,000 COMPRESSION RATIO: 17.5:1 TRANSMISSION: 6-speed TIRES: Front: 6.00-16 Rear: 12.00-38 WEIGHT: 5,500 lbs. FUEL CAPACITY: 21gal Total 1 Shares Share 0 Tweet 0 Pin it 1 Share 0
