HOW TO MAKE 500 TO 1,500 HP WITH GM’S FAMOUS DIESEL

There are many ways to build horsepower, and each has its advantages and drawbacks. Power costs money, but there’s still a smart way to do it. You can push some components, and others not so much. As a way of exploring, we’ve run into many folks who’ve built these 6.6Ls from mild to wild, and we decided to share our thoughts from 500 to 1,500 hp. Enjoy!

-Advertisement-
-Advertisement-

500 RWHP 6.6L Duramax

When it comes to 6.6L Duramax engines, there are tons of designations to choose from. There are LB7s, LLYs, LMMs, LMLs, and even the new L5P. While there have been a number of upgrades available for these powerplants over the years, the basic architecture has remained the same, which means all models respond to tuning and tweaks. In factory form, the earlier LB7 (rated at 300 flywheel hp) will put down about 240 to 260 rear-wheel hp, with the new LML (397 flywheel hp) at around 340 to 360 hp. The LLY, LBZ, and LMM will usually fall somewhere in between those numbers. Fortunately for horsepower junkies, a simple tune is all it takes to get in the 450 to 500rwhp range; we’ve seen a bone-stock LB7 hit 477 rwhp on a stingy Mustang dyno with just a PPE Hot+2 programmer. Shops across the nation also offer custom EFILive tuning, which can be used to switch power levels on the fly, or dial an exact power or EGT level.

DW-1711-DMAX-002

Factory 6.6L Duramax engines will make 300 to 397 flywheel horsepower depending on the model. Virtually any model can be bumped up to around 600 hp (about 480 rwhp) with simple computer tuning, provided that the turbocharger and fuel system are in good working order.

DW-1711-DMAX-003

If you’re looking at modifying a high-mileage Duramax engine, make sure it’s in good shape to begin with. Blown head gaskets (LB7, LLY), leaking injector cups (LB7), or cracked pistons (LBZ) are common issues that will need to be taken care of before performance parts are added.

While the turbochargers of all generations generally limit power to some extent, the real weak point in a 500rwhp Duramax build is the transmission’s holding power. Especially with the earlier five-speed Allison, the higher gears are a weak point, and often slippage when standing on it in Fifth is what will throw the transmission into limp mode. It should be noted that limp mode (when the trans locks itself in a single gear at a high line pressure) is not a death sentence. Backing down the tune just slightly can keep the transmission going for years until a rebuild can be performed.

750 RWHP 6.6L Duramax

It may not seem like a 250-horsepower jump would require a host of add-ons, but in terms of power production, virtually everything has to be changed to hit that 750 mark. The stock turbo peters out well before 600 hp, so a larger turbocharger is a must, at minimum something in the 68-75mm inducer range. The fuel side will also need an upgrade, as the factory injectors and CP3 will also conk out well before 750. A single modified CP3 or CP4 pump or twin pumps are a necessity, as is a fuel system (lift pump) and a set of 60 to 100% over injectors.

DW-1711-DMAX-004

Factory Duramax turbos were well designed, but you can only push them so far. For power levels past about 500 rwhp, it’s time for an upgrade. Turbochargers in the 64-66mm range are good for around 600-700 hp, with 68-75mm turbos being more suited to 700-plus.

DW-1711-DMAX-005

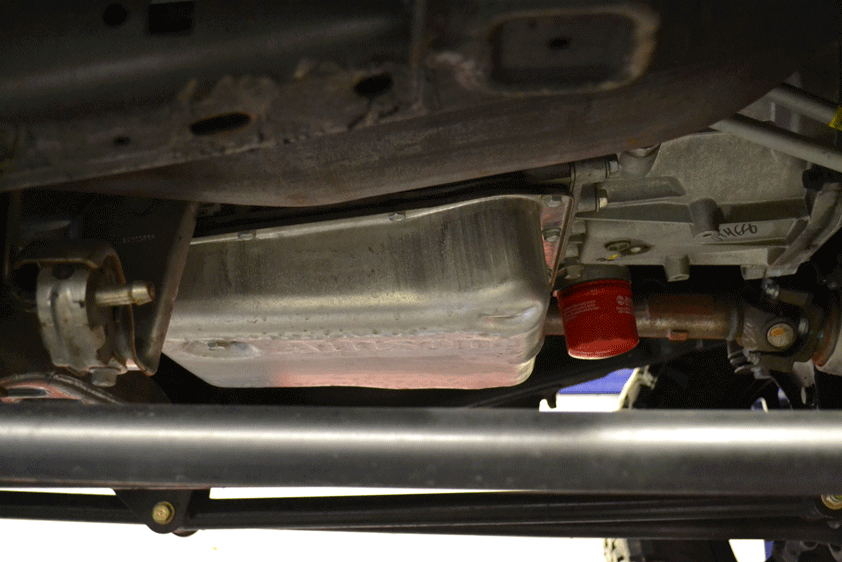

Later six-speed Allison transmissions can handle power a little better than the earlier five-speed models, but all Allisons need some help when it comes to handling big power. Prices can range from $2,000 for a transmission kit and converter to $8,000 for a fully built race transmission.

DW-1711-DMAX-006

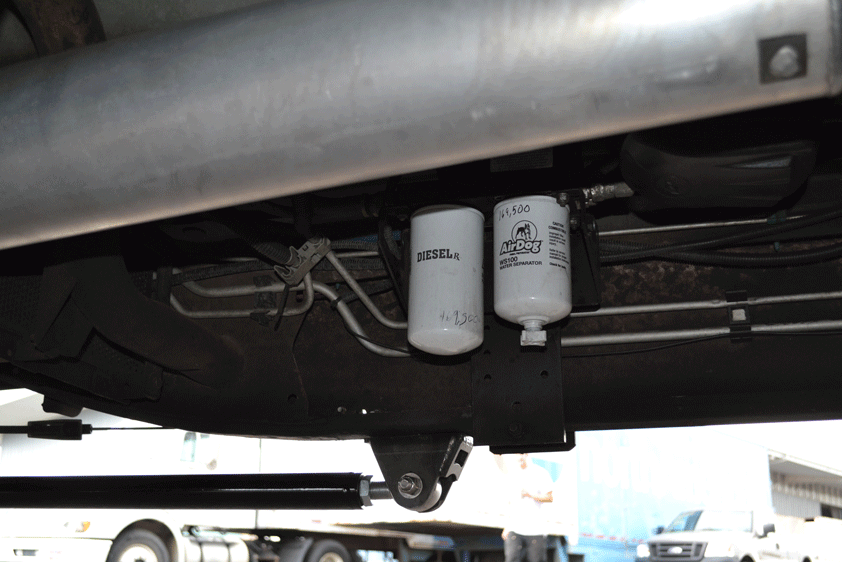

Duramax engines are very efficient and they don’t need much inlet pressure, so they don’t need quite as much lift pump as some powerplants. Still, as power rises from 700-1,000hp levels, a good fuel system is mandatory to keep common-rail pump inlet pressure from dropping to zero.

The bottom end of the 6.6L also needs some help when it comes to making this type of power. A performance balancer is a good idea, and an alternate-fire camshaft that takes the stress off the nose of the crank can also be a worthwhile addition. LBZ engines have pistons that are prone to cracking, so their pistons should be upgraded if the engine is rebuilt. Later LMM and LML owners making high-rpm power can get away with stock connecting rods, but for earlier engines upgraded connecting rods are a good idea. When exactly the stock rods will bend is sort of like predicting the weather, but if you’re in the 650-750hp range, know that your engine is living on borrowed time.

DW-1711-DMAX-007

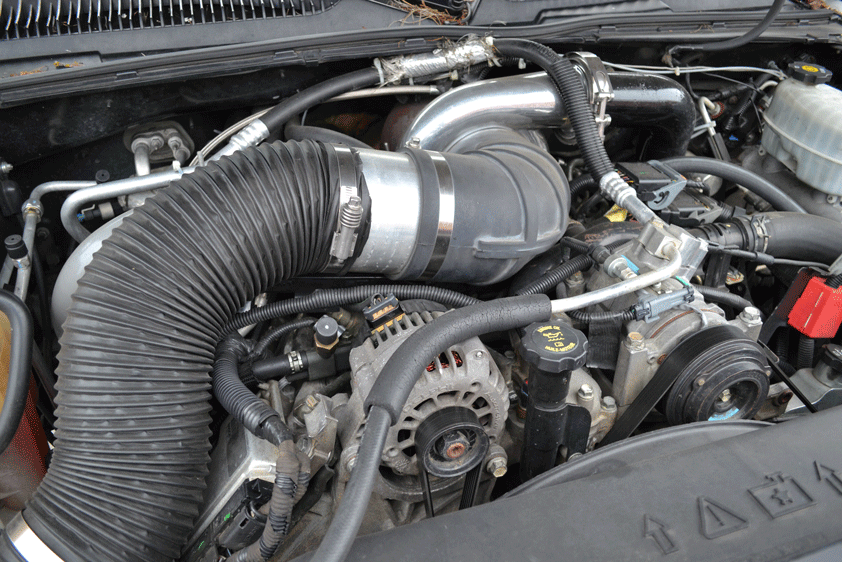

Thanks to their high-revving nature (stock Duramaxes can spin to 4,000 rpm), larger single turbos work quite well on these 6.6Ls, even on street trucks.

DW-1711-DMAX-009

There are many exhaust manifold options to replace the restrictive factory manifolds. From 50-state-legal highflow manifolds to full race headers, high-flow manifolds are especially helpful when looking to lower exhaust gas temperatures.

DW-1711-DMAX-008

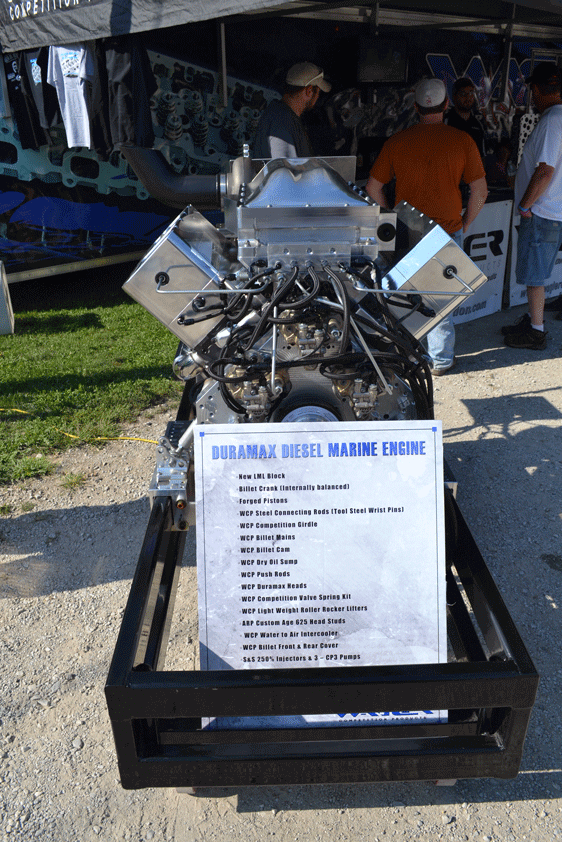

Duramax connecting rods are a weak point as power rises. It’s tough to know exactly when the rods will bend (a lot depends on tuning) but most experts agree that 700-800 hp is pushing it. Fortunately, companies like Carillo, Wagler, and R&R make beefed-up versions that are much stronger—or you could just buy a complete long block!

For this type of power, the transmission will also need a full rebuild with a flexplate and performance torque converter. The clutches inside the transmission should also be upgraded, and a deep transmission pan or secondary cooler is also a good idea. Upgrading the shafts largely depends on the usage of the truck, and whether it will be drag raced or used for sled pulling. It should be noted that the cost of this type of build isn’t cheap, and while there are shortcuts to making 700-plus horsepower (think stock engine with lots of nitrous), reliability will certainly be a concern.

-ADVERTISEMENT-

1,000 RWHP 6.6L Duramax

Hitting the magical 1K mark isn’t an easy task, but it’s one that can be performed with relatively few upgrades from the 750hp build. Turbocharging is an area of added expense, as a turbo in the 80- 88mm range is mandatory, with many folks choosing to go with compound setups using either twin or triple turbochargers. Intercooler upgrades, piping upgrades, upgraded Y-bridges, and a selection of custom parts are usually part of bringing a 1,000hp build to life.

DW-1711-DMAX-010

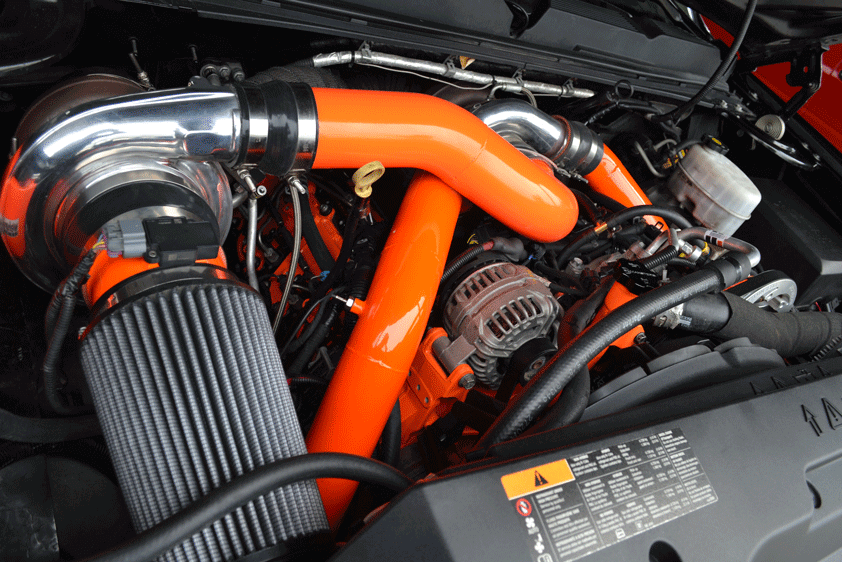

Single turbochargers can be used to make virtually any amount of power, but for street trucks, compound turbos are a great mix of performance and response. They’re also the hot ticket for EGT reduction and towing.

DW-1711-DMAX-011

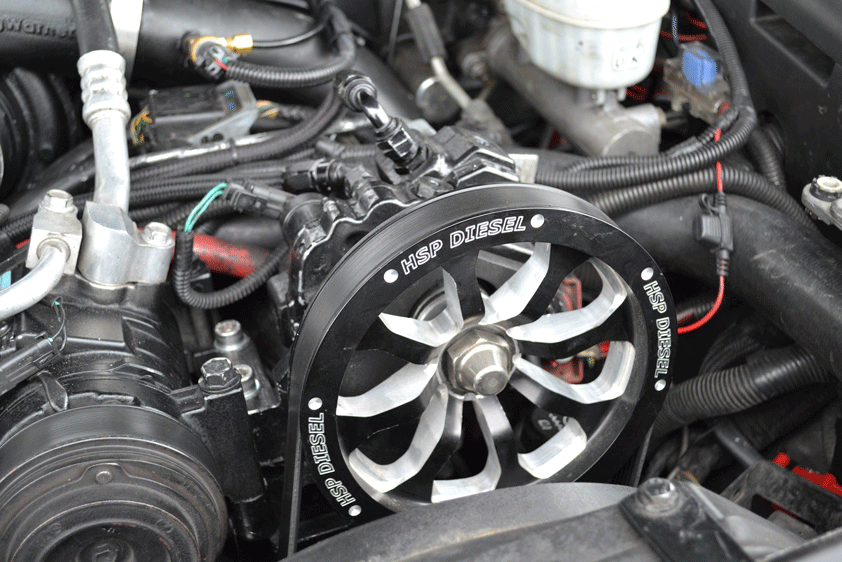

Modified CP3 (or CP4 in 2011 and later trucks) pumps are needed around 550 rwhp and up. Twin pumps are also an option, and for high-rpm, high-horsepower applications, twin modified pumps are a good idea.

The fuel system will also need some help, as 200% over (or larger) injectors should be used, along with twin CP3 pumps. If the short block is already beefed up it can handle 1,000 hp, although a crankshaft and main caps and/or a girdle isn’t a bad idea. A larger camshaft and ported heads can also take some of the workload off the compressors and help them spool faster, so if you’re planning on a 1,000hp build, plan on taking the engine completely apart. A transmission that can hold 750 rwhp should still be OK at one thousand, but if racing is involved, then a selection of aftermarket shafts and internal parts are something that should be included in the budget.

1,500 RWHP 6.6L or 7.1L Duramax

There aren’t many GM diesels that can break 1,500hp at the wheels in this country (or any country for that matter), as the time, effort, and monetary outlay that it takes to make this kind of power can be daunting. For the engine itself, you’ll be looking at an all-out racing long block, complete with a forged and internally balanced crank, severe-duty rods, forged pistons, a girdle, filled block, billet caps, main studs, and high-dollar, high-strength head studs. Recently, competitors have even gone as far as to deckplate these engines, although that has mainly been a practice among pullers.

DW-1711-DMAX-013

At 700 horsepower, traction can become a big problem, and at 1,000 hp or more, it can even be a problem in four-wheel drive.

DW-1711-DMAX-014

Modified CP3 (or CP4 in 2011 and later trucks) pumps are needed around 550 rwhp and up. Twin pumps are also an option, and for high-rpm, high-horsepower applications, twin modified pumps are a good idea.

Due to the complexity of these types of builds, a number of shops we talked to recommended going with a full race crate engine, one that would have a specific grouping of parts set up with certain tolerances. These types of engines can be purchased from companies like Dirty Hooker Diesel, Industrial Injection, SoCal Diesel, and Wagler Competition Products. After securing all the needed options, expect to pay a good $30,000 or more for the long block—and that’s not counting turbo or fuel upgrades. Speaking of turbos, it seems that “triples” are the poweradder of choice at this rarified level. Even turbos as large as the 98mm Garrett and Precision turbochargers are pushed to their max to make this power, so many folks go with three: two into one. For this setup you’d be looking at two 75mm or two 80mm turbos into a single 80mm, and total boost in the 100psi range. The intercooler is most likely a custom air-to-air or air-to-water unit, and connections must be heavily reinforced. Fueling is another “all-out” scenario and 400 to 800% over injectors, twin modified CP3 pumps, and twin lift pumps pushing a total of 300 gph or more are standard fare.

Where Does It End?

At this point, the most powerful Duramax engines in the country (that we know of) make somewhere around 2,500 to 3,000hp at the flywheel. At this year’s UCC, the Trippplemax entry of Wade Minter cranked out 1,960 hp to the rear tires with a set of huge triple turbos and multiple stages of nitrous—with a factory block. The engine endured through the drags, dyno, and sled pull without an issue, proving that this type of power can still be somewhat reliable.

DW-1711-DMAX-015

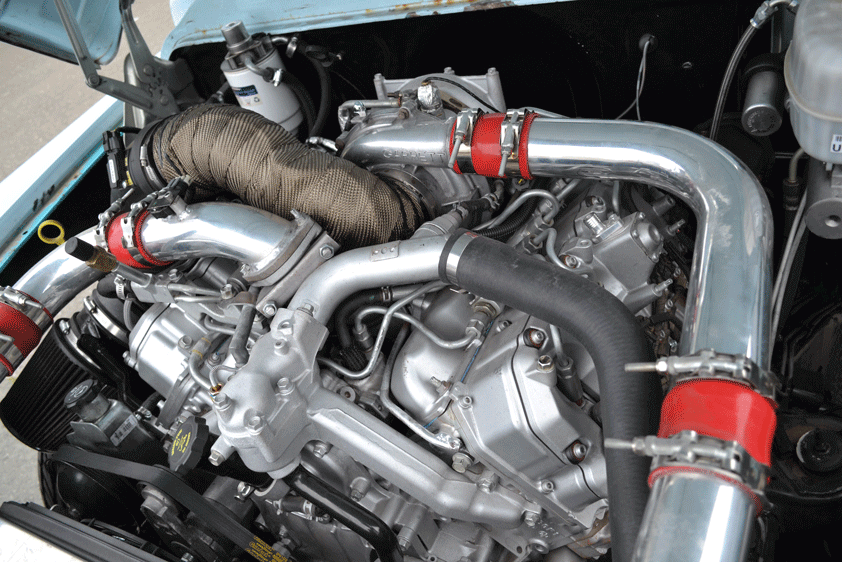

Duramax engines are a very popular engine swap for older trucks and muscle cars thanks to their relatively compact nature and light weight as compared to other diesel engines.

DW-1711-DMAX-016

The most powerful common-rail Duramax engine that we know of resides in Kyle Michael’s “Climax” puller. With four CP3 pumps, a stand-alone engine management system, and 109mm and 127mm turbochargers, the engine produces an estimated 3,000 horsepower and 4,000 lb-ft of torque and easily revs to 6,000 rpm.

“DUE TO THE COMPLEXITY OF THESE TYPES OF BUILDS, A NUMBER OF SHOPS WE TALKED TO RECOMMENDED GOING WITH A FULL RACE CRATE ENGINE…”

While the outer limit of performance is a sight to behold, most daily drivers we know of fall into the 500 to 800hp range. Usually these trucks aren’t built all at once to offset costs; a transmission build might happen one year, the next year it might be turbo and fuel. Oftentimes, owners will run stock short blocks while they build the core up for more power, or buy one turbo for 600hp, then use it in a compound arrangement when they shoot for 900 or 1,000. As ludicrous as owning a 1,000hp truck might sound, we know of quite a few of them, and some are still even driven daily. As time marches on, one thing is for sure: The ’01-17 Duramax diesels will continue to be a versatile and exciting platform that inspires diesel enthusiasts for years to come.. DW
