The Bosch CP3 injection pump has been used in the Duramax application since its introduction in 2001 and has since proved to be the go-to injection system for the light duty diesel market. Whether it be a stock daily driver/towing application or high performance sled pull/drag race truck, the Common Rail injection system with a dual CP3 setup is just hard to beat. Due to the CP3’s ability to supply extreme rail pressures (26,000 psi or more) and its ease of tenability, the CP3 technology continues to evolve and take diesel performance to heights never thought possible with electronic injection.

-Advertisement-
-Advertisement-

Basic Operation Principles

Not only was the CP3 used on the Duramax engines from 2001-2010, the Dodge Cummins has been using its common rail technology since 2003. The radial three piston design is gear driven off the engine. Obviously, its main purpose is to create high pressure for the fuel rail, which feeds fuel to the individual injectors. Since the engine’s computer and the injectors are doing most of the work when it comes to injection timing and injection rate, basically all the CP3 is required to do is supply a commanded fuel pressure to the rail system based off the ECM’s calculated need. The internals of the pump work much like a basic engine does, with a rotating assembly in the middle of the pump body; an offset lobe on the shaft moves each of the three pistons up and down to create pressure within their respective cylinder; this motion creates the extreme pressurization of the fuel which is then fed into the fuel rail. The injection pump uses electronics and a Fuel Control Actuator (FCA) to regulate this pressure and increase volume and pressure as requested. Since an engine will need less volume and pressure at idle than it would under a heavy wide-open throttle run, the pressure regulator is key to a proper functioning CP3.

Modifications

Since the CP3 pump was engineered to supply fuel to a stock engine at 360 hp, in most applications, once you’ve surpassed the 500-hp mark, the factory CP3 just can’t supply the required volume of fuel to maintain the requested fuel rail pressure. To overcome these limitations, Fleece Performance of Brownsburg, Indiana, developed all new internals to replace the factory pieces that not only increase the flow of Bosch CP3 but improve its strength and durability from higher horsepower and high-pressure applications. Since the pumps have to be able to withstand a higher side load from the rotational stresses, the internal camshaft is designed and machined completely in-house on state-of-the-art equipment. Fleece is currently offering two versions of the Bosch CP3: the CP3K which is a perfect stock replacement (with internal modifications made to remove the fuel restriction at 3,000+rpm) the PowerFlo 750 uses a 10mm stroke, which bumps volume up enough to support 750 rwhp without rail pressure drop under hard load.

To gain better understanding of the science behind the CP3 injection pump and what the aftermarket is doing to improve their performance potential, a quick Q&A session with Brayden Fleece and Jeff Merriam of Fleece Performance should help you grasp the latest on CP3 technology.

While this article is based solely off the Duramax product line, Fleece also offers a complete line of modified replacement pumps for the 5.9L and 6.7L Cummins applications, and the science and engineering within these pumps will be virtually identical.

Conversation with Brayden Fleece and Jeff Merriam

Q : What exactly does the CP3 injection pump do?
A: “A common rail fuel system is most easily related to the economics theory of supply and demand. The commanded main fuel injection duration is the “demand,” while the CP3 pump is the “supply.” As the injector size gets bigger and/or the commanded fuel duration gets longer (more demand) the higher the supply is going to need to be. The factory CP3s are limited to what they can supply volume wise, mostly based on displacement and engine rpm. As the demand increases beyond the CP3s ability to maintain supply, fuel rail pressure will start to drop.

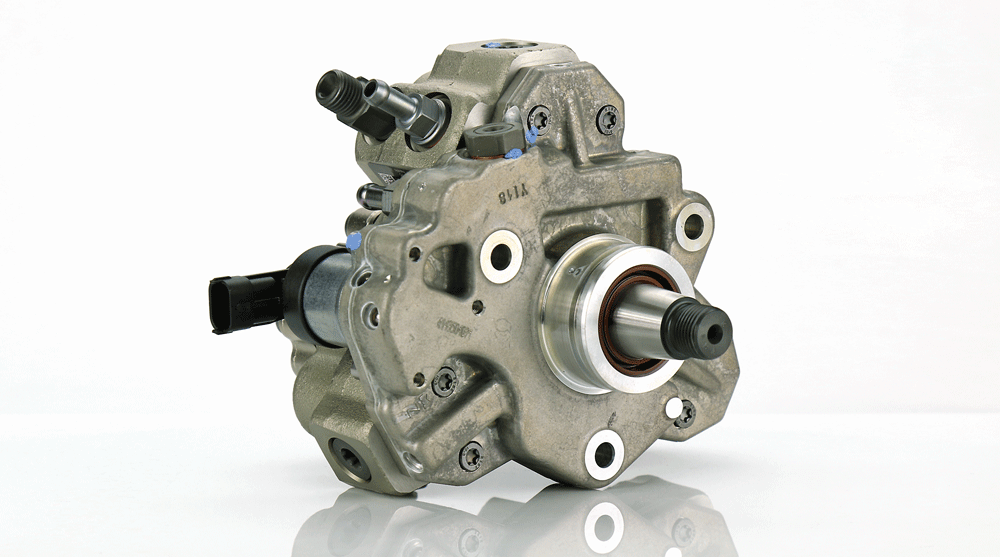

1 The Fleece Performance PowerFlo CP3 is a straightforward, no-inflated-numbers CP3 upgrade proven to support 750 RWHP with the proper complimentary modifications. Not only will it support 750 rwhp, but it also eliminates the factory fuel flow restriction that begins at 3,000 rpm.

2 While the PowerFlo 750 CP3 injection pumps are built using brand new Bosch

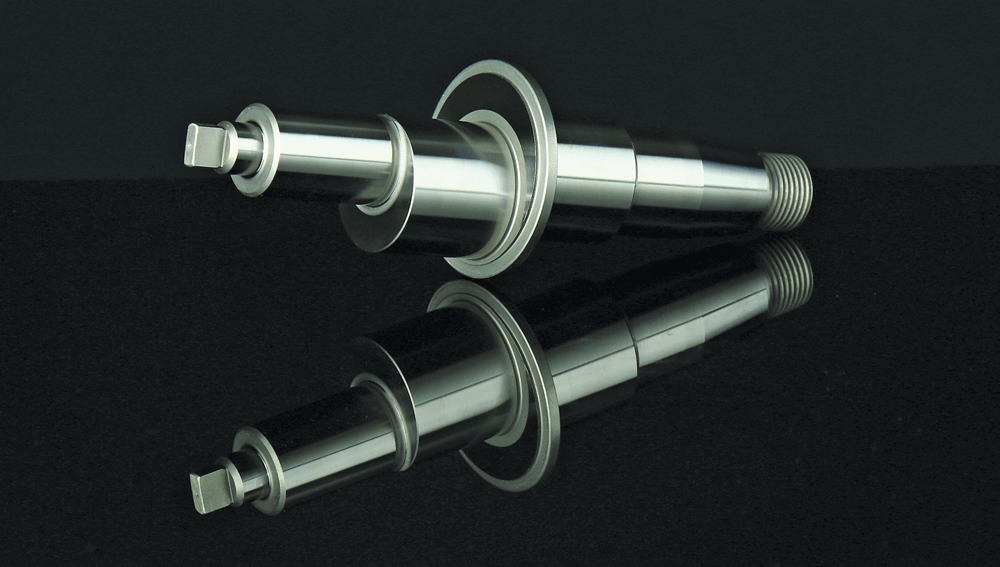

injection pumps, there are multiple modifications made within the pump to increase the volume of fuel flow available. The most important piece to this puzzle is the in-house machined center shaft that the plungers will ride on: Much like the camshaft of an engine, the profile on this “cam” is key to proper flow and maximum rail pressure.

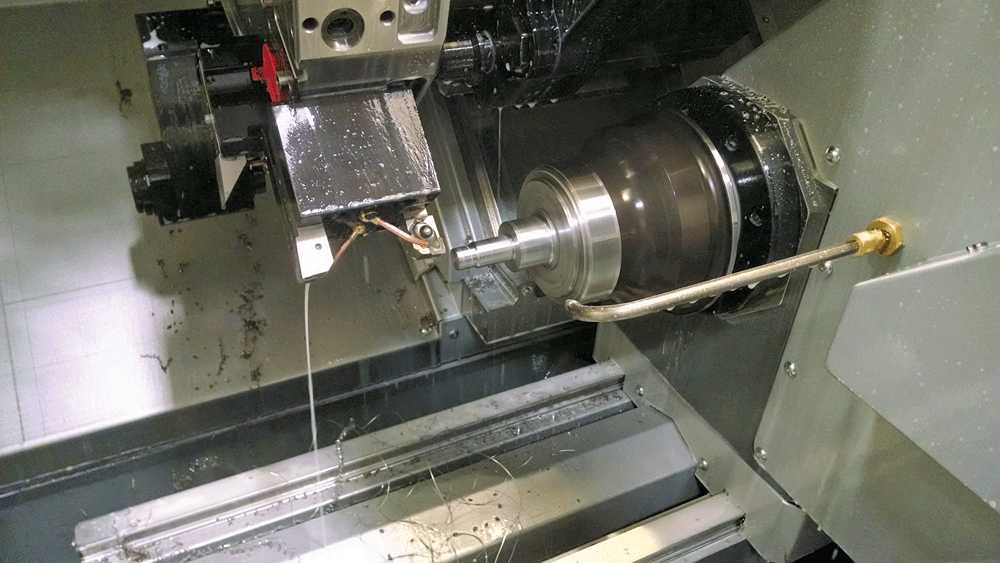

3 Running on state of the art CNC equipment, all pieces made by Fleece Performance go through strict quality control checks to ensure that each pump built and shipped will perform as good or better than advertised.

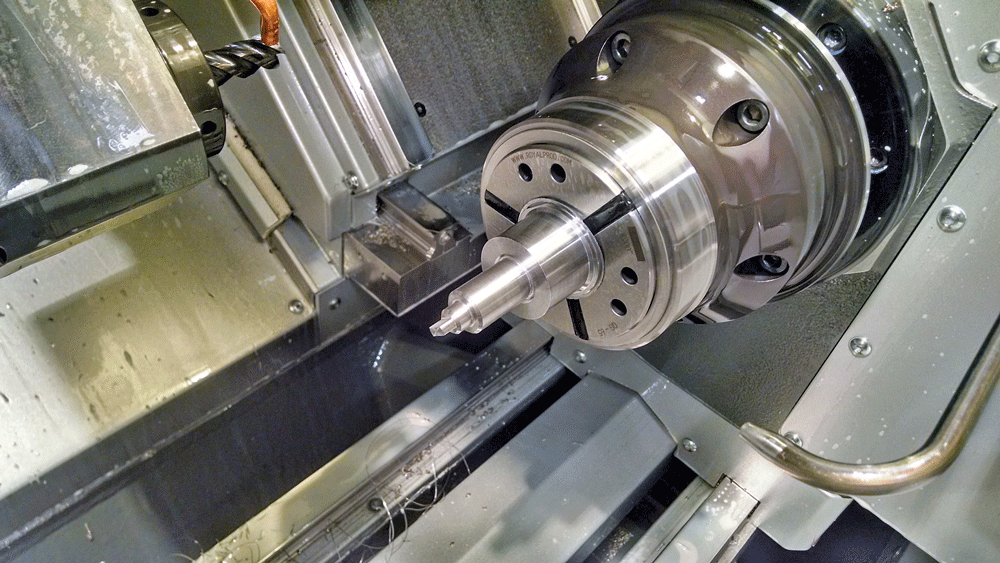

4 Once completed on the CNC lathe, the internal cam can be installed into the Bosch CP3 pump where its 10mm additional stroke will aid in the pumps ability to supply the required fuel to the injectors to surpass the factory pumps horsepower potential. The PowerFlo 750 has been proven to support a true 750 rwhp should your supporting modifications and turbocharger be sufficient to do so.

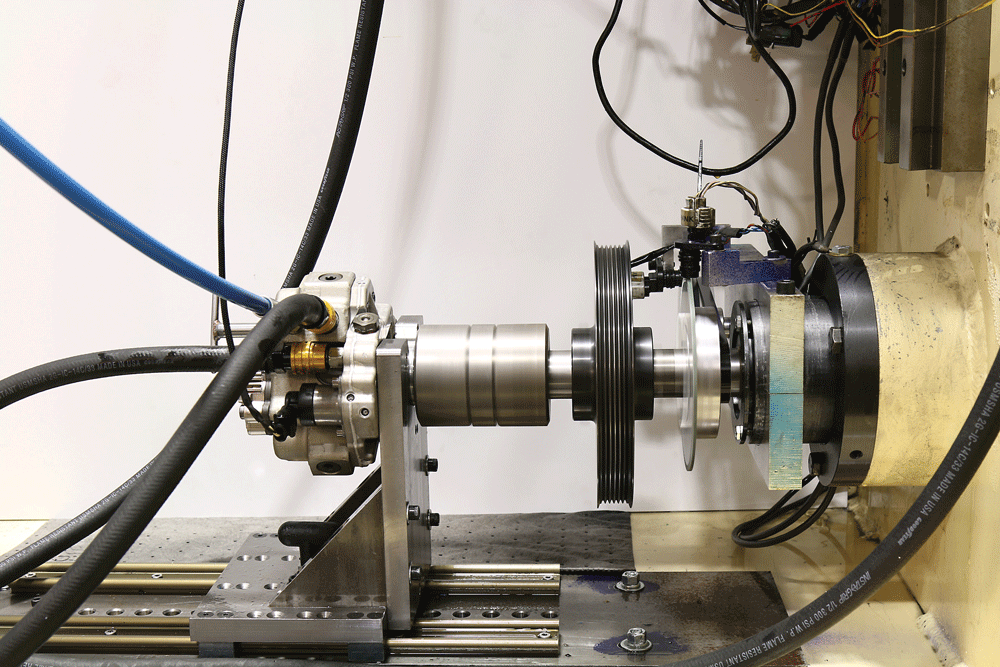

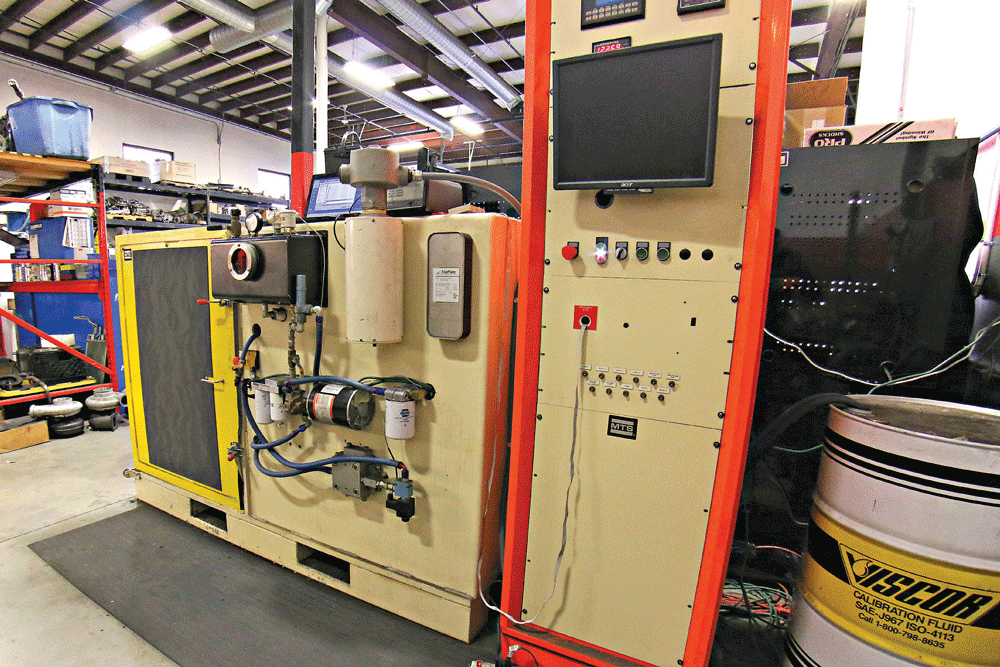

5 & 6 To ensure each pump will perform to its maximum and advertised potential, they are placed inside the Common Rail Engine simulator and test stand that are designed by Fleece Performance. Running an LBZ Duramax ECM and injectors with FPE 60% nozzles, they can
demand main injection duration used in high horsepower applications to recreate real world conditions and put the pumps through their paces to guarantee rail pressure drop will be a thing of the past.

Q: When the OEM stock CP3 starts getting weak and won’t maintain rail pressure and/or fails, what are the advantages to running the modified CP3K over a complete stock replacement pump?
A: The Fleece Performance CP3K is a brand new Bosch pump that is modified to eliminate the factory fuel flow restriction that begins at 3000 rpm. The stock CP3 will start losing fuel flow and rail pressure after 3000 rpm. This decrease in flow and pressure will correlate to power loss when you may need it the most. This CP3K is a cost effective upgrade that will allow you to maintain desired fuel rail pressure clear to the red line.

Q : What is Main Injection Duration?
A: Main Injection Duration is the amount of time that the injector is turned on or energized. Measured in microseconds (mcs) it is sometimes referred to as pulse width. Basically, this is the command from the computer telling the injector how long it needs to be open and injecting fuel into the cylinder.

Q: What size injectors can be run with each of your CP3 upgrade options?
A: Injector size should be based off your desired horsepower goals: The truck uses overall tuning capabilities. The commanded main injection duration or tuning ultimately determines what size injector a CP3 will support. Our PowerFlo 750 will support our 100-hp injector at 2,600 mcs with no issue, resulting in over 750 rwhp (given you have the supporting mods and turbocharger to support it). Some customers have even seen 800 rwhp with shorter durations and larger injectors on the Fleece 68mm turbocharger.

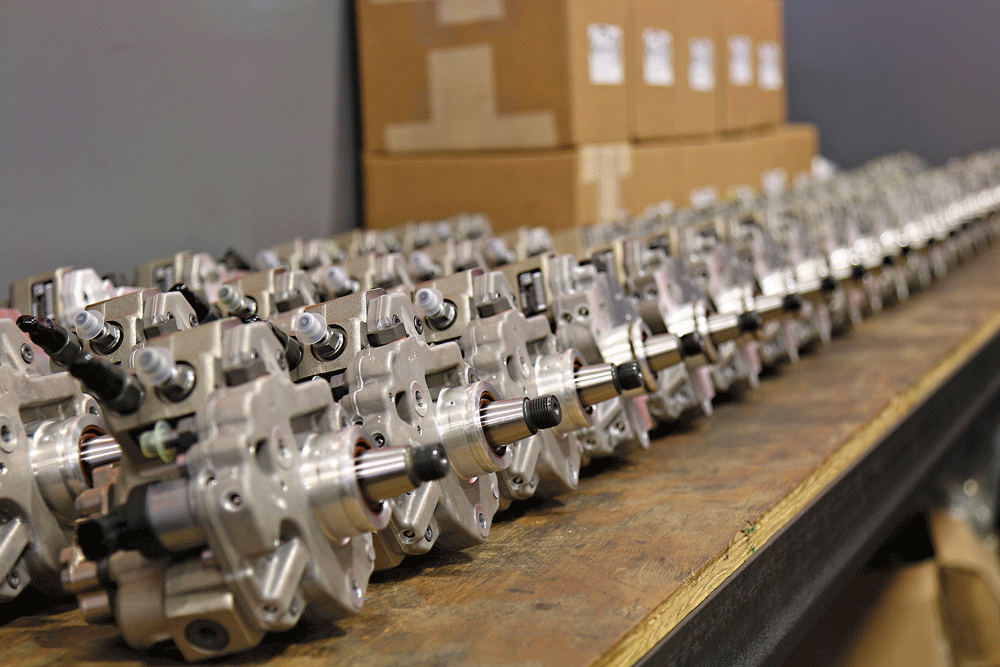

7 The PowerFlo 750 injection pumps have become quite the hot ticket item for Fleece Performance.

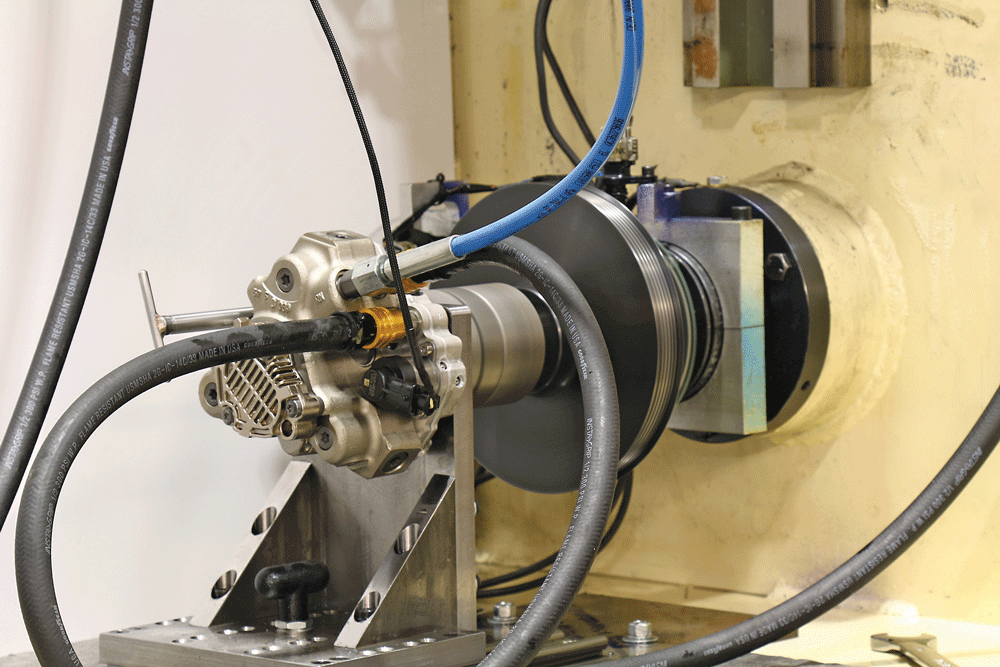

8 The CP3 test stand is an invaluable piece of data equipment that maintains the highest quality standards. With an Airdog 150 lift pump supplying fuel pressure to the CP3s and a complete LBZ ECM and injectors being used, testing on this stand is as close to real world as it gets.

9 The Fleece CP3K and PowerFlo 750 injection pumps are available for 2001-2010 trucks as direct fit replacements to the OEM pumps. Because the LBZ model regulator offers the best overall performance from the CP3, they are used on all modified pumps, so LB7 and LLY trucks may require custom tune adjustments to ensure proper idle and run quality.

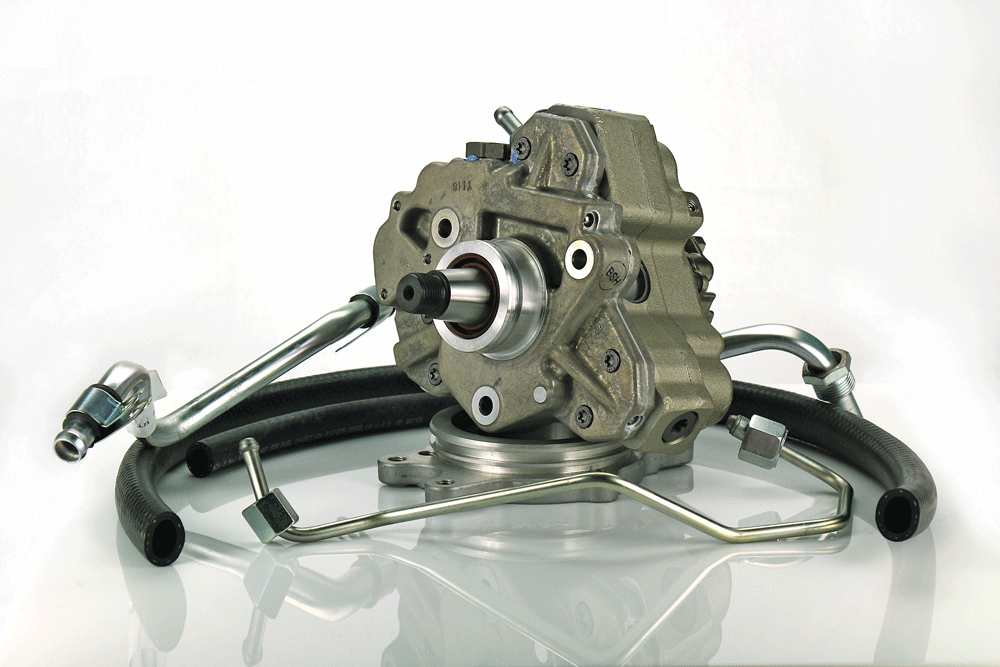

10 The Fleece LML CP3 conversion kit includes everything required to convert the 2011-2015 CP4 equipped trucks over to the higher flowing CP3 injection pump. By converting the later model trucks back to the earlier CP3, 750+ horsepower goals will no longer be an issue.

Q: The CP3 was used in the 2001-2010 Duramax. Why the big change from GM to the newer CP4 pump found on the 2011-2015 LML application?
A: The CP4 was introduced mostly as a cost reduction for the LML platform. With its more efficient piezoelectric injectors, a smaller amount of fuel is required to accomplish factory horsepower/torque demand, so the CP3 was not needed.

Q: If the LML requires less fuel demand, what were the reasons behind Fleece developing a CP3 Conversion kit for the 2011-2015 trucks?
A: Unfortunately, since its introduction, the CP4 pump has proven to be less reliable and much less capable than the CP3 system used in previous Duramax platforms. While sufficient in a stock application, the CP4 will only support around 500 rwhp. At that point, it just can’t move the volume of fuel required to push power any further. Converting over to the earlier CP3 design can help take performance even further. Due to the efficiency of the injectors in the LML, a stock CP3 that could only make 550 hp in a 2001-2010 truck should have no problem supporting 600+rwhp. This jump in performance potential also carries over to the PowerFlo 750 where it has made over 800 rwhp in multiple LML trucks. DW
