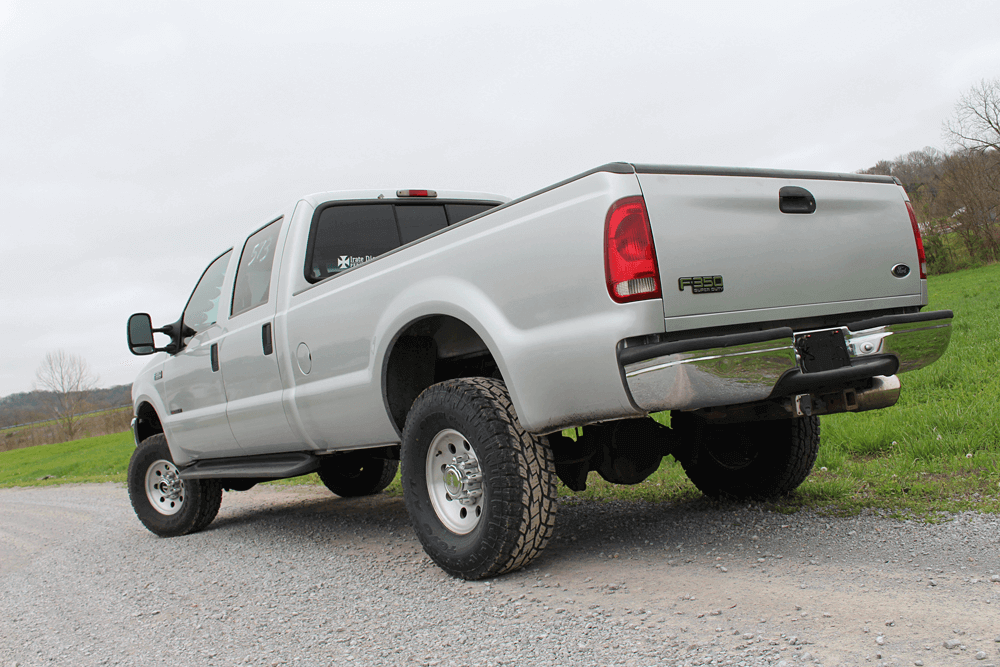

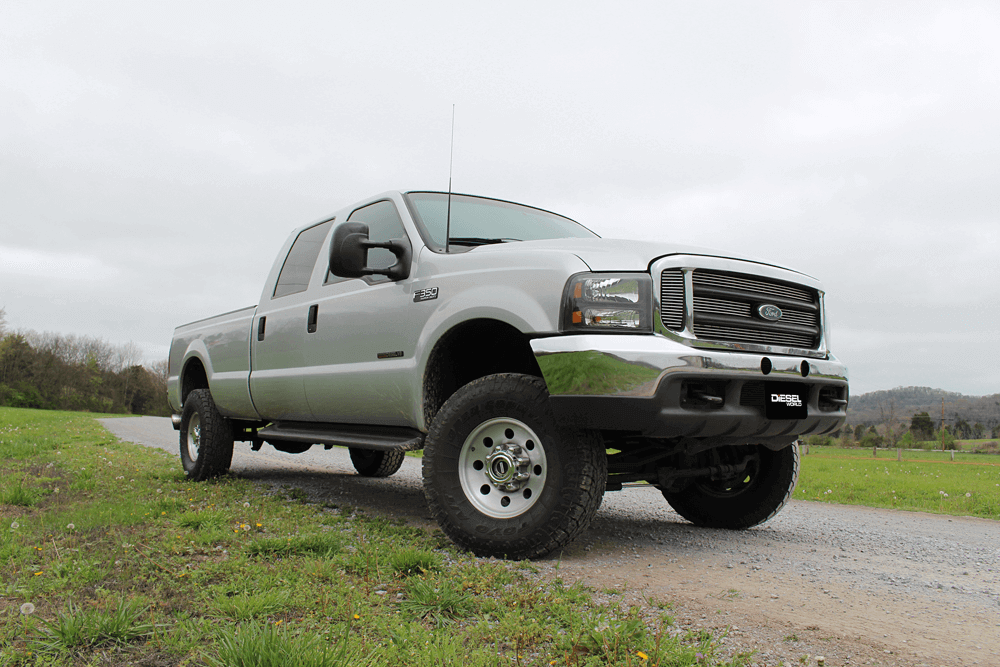

Up next Diesel News 11.19.18 Published on November 19, 2018 Author Mike McGlothlin Tags 7.3, ford, power stroke, Share article Facebook 0 Twitter 0 Mail 0 THE SILVER SLEEPER A 555 HP 7.3L THAT FLIES UNDER THE RADAR 7.3L performance is like a fine wine—it’s only getting better with age. Not only are ’94.5-’03 Fords being made to outrun Detroit’s latest and greatest, but they’re blowing the doors off of modified diesels as well. While bringing the oil-fired V-8 up to modern horsepower standards and beyond requires some work, it’s much easier (and cheaper) than you think. This is especially true if you know how to fortify your own transmission and tune your own truck. Enter Chuck Dorsey and his ’00 F-350. Although the original 7.3L Power Stroke in Chuck Dorsey’s ’00 F-350 survived more than 100,000 miles’ worth of abuse courtesy of bigger injectors and turbo’s, a rod let loose near the 260,000-mile mark. Starting with a fresh forged-rod bottom end, the 7.3L shown here was graced with a set of Irate Diesel Performance competition beehive valve springs in the heads, Smith Brothers chromoly pushrods, and ARP head studs. Thanks to a complete T4 turbo mounting system from Irate Diesel Performance, Chuck’s 7.3L breaths through a BorgWarner S369 SX-E turbocharger. Based on an S300 chassis, the box charger features a forged milled, 69mm inducer compressor wheel, 73mm turbine wheel, a 1.00 A/R exhaust housing, and a 360-degree thrust bearing. The quick-lighting turbo is well matched for both towing and all-out performance, and Chuck tells us he can peg the 60-psi boost gauge under wide-open throttle. His 22-foot long Super Duty epitomizes the perfect 7.3L sleeper. Sporting the stock ride height, factory Alcoas, and conventional exit exhaust, it appears to be a run-of-the-mill, untouched ’99-’03 Ford. But Chuck’s F-350 is much more than the loud, 235hp version that left the factory nearly 18 years ago. It’s still loud— don’t get us wrong—but it makes three times the power it did when it rolled off the assembly line. “Around here [in Missouri], Cummins and Duramax guys are pretty surprised when I leave them,” Chuck tells us. Forged-Rod, Stock Bottom End Even after the original engine ejected a connecting rod at the 260,000-mile mark, Chuck went right back to a stock, forged-rod short block. But why? For starters, it’s been proven time and again that forged rods can live for thousands of miles in the sub-600hp range. And as the owner of Dorsey Diesel, a company that specializes in all things 7.3L, Chuck has a few core blocks sitting around… Freshly rebuilt, the forged-rod version currently bolted between the truck’s frame rails sports nothing more than a few valve train upgrades, namely Irate Diesel Performance’s beehive valve springs and Smith Brothers pushrods. ARP studs secure a set of stock heads to the block.Subscribe Our Weekly Newsletter A set of 250cc hybrid injectors equipped with 100-percent larger nozzles from Unlimited Diesel Performance make mid-500-rwhp possible. Ample oil volume for the HEUI hybrids comes by way of an Adrenaline high-pressure oil pump from DieselSite. After we went to press, Chuck added another pump to the mix courtesy of a BTS twin HPOP system, but he left the proven, 115,000-mile Adrenaline in the factory location Hybrids & Adrenaline After running a set of 160cc injectors and making respectable power in the mid-400hp range for a time, Chuck recently stepped up his injector game to hybrids. Built by Unlimited Diesel Performance, the new sticks flow a maximum of 250cc’s and utilize a 100-percent larger nozzle. ICP is rock steady thanks to an Adrenaline high-pressure oil pump from DieselSite, while a 165-gph AirDog II system keeps the hybrids supplied with plenty of fuel. An Irate Diesel Performance regulated return system ensures fuel supply pressure remains consistent. Assuring that consistent supply pressure is always available for the 250/100 injectors (and that fuel no longer deadheads in the cylinder heads) is a regulated return system from Irate Diesel Performance. Chuck keeps supply pressure set at 65 psi via the Fuelab regulator. With the factory fuel filter reservoir removed from the engine, the job of sending air and water-free fuel to the injectors is left to an AirDog II system. The second-generation AirDog assembly flows 165-gph and supplies fuel to the back of each head. 60 Pounds of Boost Producing 60 psi of boost for the 7.3L to ingest is the popular S369 SX-E turbocharger from BorgWarner. Thanks to a T4 turbo mounting kit from Irate Diesel Performance (complete with an air intake and stainless steel intercooler pipes and up-pipes), the BorgWarner unit forces incoming air through an ATS Diesel intercooler and exhaust gasses out a 4-inch Irate downpipe. The cutting-edge, 69mm charger spools like an S366, but flows as much air as a small S400. With a quick-lighting turbo, stock stall converter, and 1,200 lbft of torque on tap, it doesn’t take a lot of effort to lay waste to the rear tires. At the drag strip, Chuck’s F-350 has turned in a best eighthmile effort of 8.62 seconds on fuel, which translates into a 13.5 in the quarter. Given the 4-plus ton heft of his Super Duty, its elapsed times confirm the truck’s 555 hp fuel-only dyno numbers. Billet 4R100 Although he thoroughly knows his way around the 7.3L engine, building E4OD’s and 4R100’s is what Chuck does best. The Stage 4 unit found behind his Power Stroke is a top-of-the-line build, with its shafts, forward drum, and overdrive planetary all made of billetsteel. Raybestos GPZ clutches, a TCT triple disc torque converter, and select other internal modifications are part of the Stage 4’s build sheet as well. This same transmission has survived countless drag strip passes and dyno pulls in a customer’s 850hp, low-11- second, ’97 F-250. Because the 1-ton spends a lot of its time hooked to a 13,000-pound, tandem axle camper via fi fthwheel hitch, a Firestone Ride-Rite air spring system is employed. The air springs provide up to 5,000 pounds of load leveling capacity and help maximize the truck’s towing potential. When asked, Chuck will flat-out tell you he’s not into huge, flashy wheels with a lot of offset. He’ll also tell you he intended to build a sleeper out of his ’00 F-350, which helps explain the factory 16- inch Alcoas still being on the truck. Traction comes in the form of a 295/75R16 Toyo Open Country A/T II at each corner. Well-Crafted Tuning On the electronic side of things, Chuck uses Power Hungry Performance software to write his own custom tuning files. Thanks to his tuning prowess, he’s able to perfect the transmission’s shift points, make the truck incredibly drivable whether it’s towing or empty, and get as much power as possible out of the 250/100’s. While Chuck’s Super Duty is used as a daily driver and a tow-rig most often, it will always serve as an 8,600-pound plaything—as is evident by the NOS bottle mounted in the bed. Using a single stage with a 0.060-inch jet, the boost-activated nitrous system helped the truck clear 690-rwhp at its latest chassis dyno outing. Thanks to a well-contrived combination of parts, Chuck’s F-350 is just as at home at the drag strip as it is with a 13,000-pound camper behind it. Use of the quick-spooling, S369 makes towing a breeze, hybrid injectors provide for more than 550-rwhp worth of capability, the built-to-the-hilt 4R100 never skips a beat, and custom tuning ties every modification together. Whether it’s out breaking the hearts of Cummins and Duramax owners or utilizing the fifth-wheel hitch in the bed, this stock-appearing firstgeneration Super Duty is fit for any occasion.DW SPECIFICATION 2000 FORD F-350 OWNER: Chuck Dorsey HOMETOWN: Park Hills, Missouri ODOMETER: 264,000 miles ENGINE: 7.3L Power Stroke with Irate Diesel Performance competition beehive valve springs, Smith Brothers chromoly pushrods, ARP head studs FUEL/OIL: Unlimited Diesel Performance 250/100 hybrid injectors, DieselSite Adrenaline highpressure oil pump, AirDog 165-gph fuel supply system, Irate Diesel Performance regulated return TURBO/AIR: Irate Diesel Performance T4 turbo mounting kit, BorgWarner S369 SX-E with 1.00 A/R turbine housing, ATS Diesel intercooler EXHAUST: Irate Diesel Performance 4-inch downpipe, Flo-Pro 4-inch system with 5-inch polished tip Tuning: Dorsey Diesel custom tuning via Power Hungry Performance Minotaur software and QuarterHorse emulator TRANSMISSION: Dorsey Diesel Stage 4 4R100 with Torque Converter Technology (TCT) billet triple disc converter, billet input, intermediate and output shafts, full-spline billet forward drum, billet overdrive planetary, Raybestos GPZ clutches, modified center support, pump and valve body, Mishimoto 37-row transmission cooler HORSEPOWER: 690 hp (dyno, nitrous), 555 hp (dyno, fuel only) TORQUE: 1,177 lb-ft (dyno, fuel only) TIRES: Toyo Open Country A/T II 295/75R16 WHEELS: 16-inch Factory Alcoa AXLES: Yukon Grizzly locker in rear 10.5, 3.73 ring and pinion SUSPENSION/STEERING: Firestone Ride-Rite air spring system Total 0 Shares Share 0 Tweet 0 Pin it 0 Share 0
