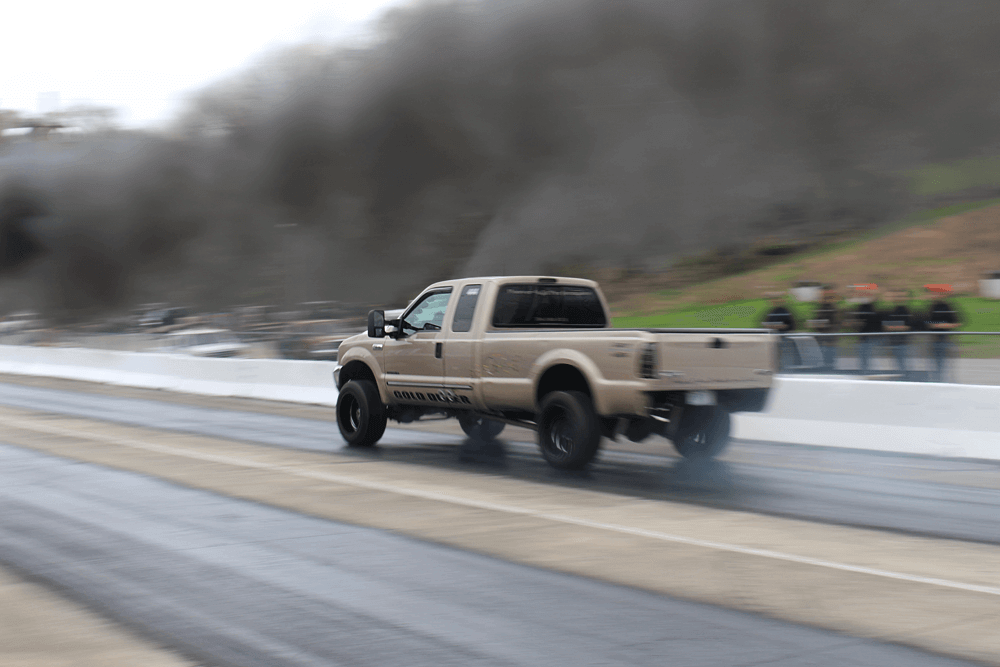

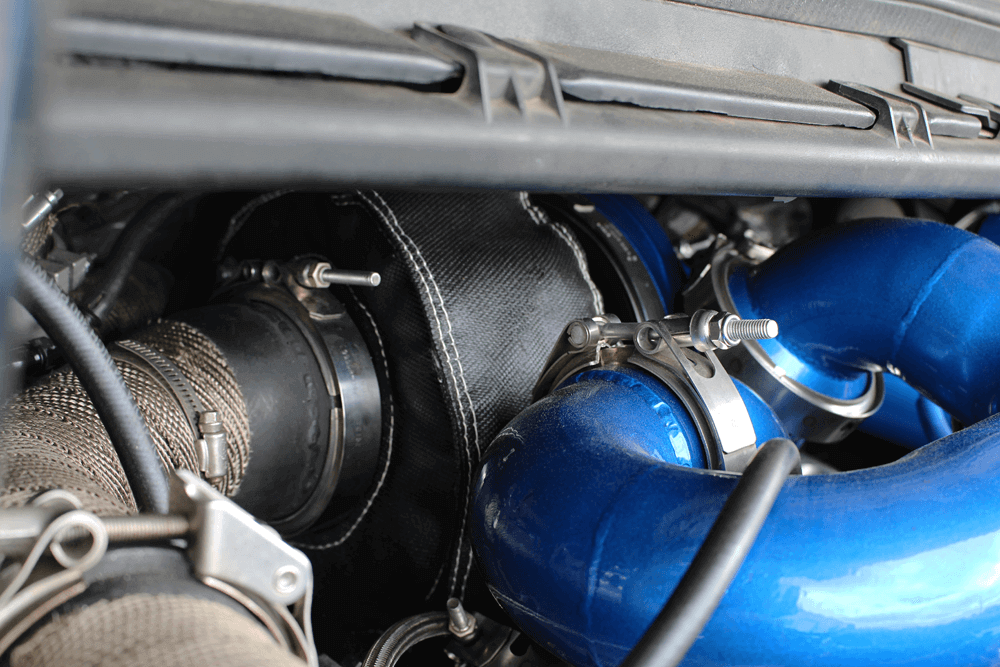

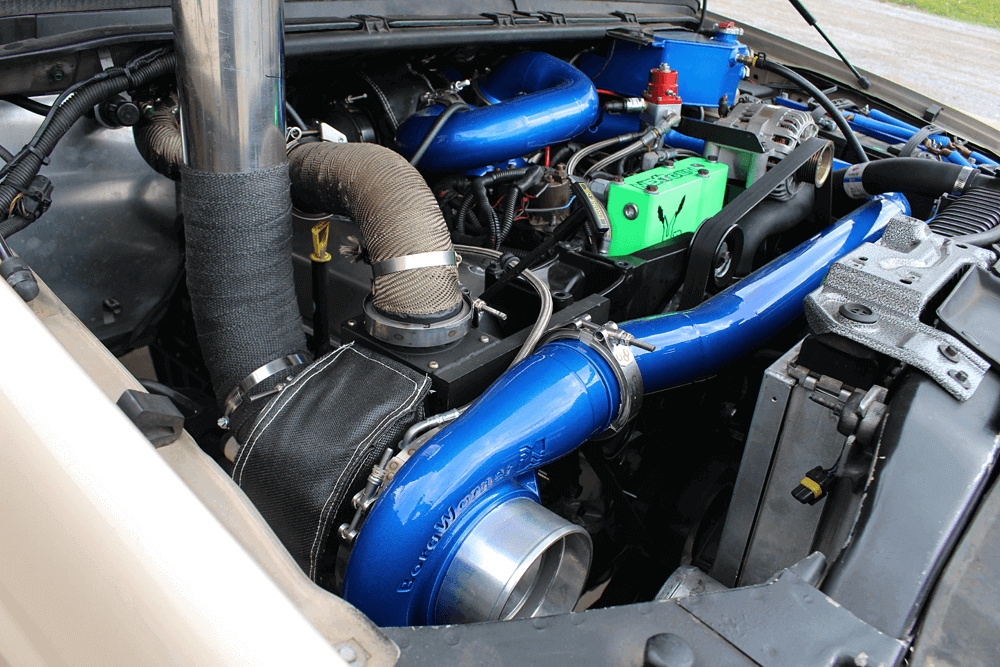

Up next Diesel News 2-18-19 Published on February 13, 2019 Author Mike McGlothlin Tags 7.3L, Share article Facebook 0 Twitter 0 Mail 0 Gold Digger A COMPOUND-TURBO, 800-HORSE 7.3L It’s no secret that owning a highly modified diesel can take a big bite out of your pocketbook. And if you’re trying to compete with a HEUI-fired 7.3L Power Stroke, you’ve definitely got your work (and expenses) cut out for you. SURVIVING NEAR TRIPLE-DIGIT BOOST MEANT THE ENGINE HAD TO BE BUILT, AND BUILT RIGHT. Perhaps no one knows this struggle better than Chris Hoover. The Asheboro, North Carolina, native has been addicted to playing with Ford’s first Power Stroke since the first time he hooked to the sled many moons ago. And even after retiring his ’99 F-250 from the dirt, he quickly found a way to continue pouring time and money into it.Subscribe Our Weekly Newsletter The new goal? See how quick the 7,200-pound Super Duty can shuffle down the drag strip. After playing with fire for a few years—in the form of running compound turbos and a set of 350/200 hybrids on a stock forged-rod bottom end—Chris Hoover pulled out all the stops with the 7.3L Power Stroke that currently powers his late ’99 F-250. Milled at Crutchfield Machine in Liberty, North Carolina, and assembled at Hoover’s shop, Hoover Built Performance, the built 7.3L benefits from a Carson Stauffer girdle, Carrillo rods, 14:1 compression Mahle pistons, and both the block and heads were cut for fire rings. The heads were ported and polished along with being fitted with larger intake and exhaust valves at Crutchfield Machine, and are matched to a Stage 2 camshaft from Gearhead Automotive Performance. A Forced Inductions S488 SX-E serves as the atmosphere unit in Hoover’s compound turbo configuration. The setup forgoes the use of an air-to-air intercooler, as Hoover is in the process of adding a water-to-air unit. Providing a 200 to 400-degree drop in EGT at the present time is a modified Snow Performance Tow-Max water-methanol kit, which incorporates three of the largest nozzles Snow offers feeding each head. The 72mm, T4-flanged BorgWarner S472 SX-E is known as a fairly large turbo in the 7.3L segment, but Hoover uses one as the high-pressure charger in his compound arrangement. Nestled snugly beneath the cowl and at the back of the lifter valley, it makes the lion’s share of the 80-plus psi of boost the engine sees. With a hungry set of Full Force Diesel 450/400 hybrid injectors to feed, Hoover went to great lengths to make sure the high-pressure oil side of the equation was never an issue. In conjunction with a DieselSite Adrenaline (in the factory location), a Next Gen high-pressure oil pump—a collaboration between Hoover and Crutchfield Machine—ensures an abundance of high-pressure oil volume is always on the table. A Pair of S400s While most 7.3L enthusiasts throw a large single at the engine and sacrifice low-rpm drivability in exchange for a strong top-end hit, Hoover wasn’t willing to compromise. Instead, he runs a set of compound turbos in a system he pieced together himself. The two-stage arrangement consists of a T6 flange Forced Inductions S488 SX-E atmospheric charger and a box BorgWarner S472 SX-E in the valley. Under full load, it takes a 100psi gauge to keep track of how much boost this duo brings to the table. Competition-Ready 7.3L Surviving near-triple-digit boost meant the engine had to be built—and built right. For this, Hoover enlisted the help of nearby Crutchfield Machine, which handled all machine work performed on the block and heads. From the bottom up, the engine employs a Carson Stauffergirdle and ARP main studs, a partial block fill, Carrillo rods, cut and coated Mahle pistons, a Gearhead Automotive Performance Stage 2 cam, and a set of ported and polished heads. To keep the head gaskets alive at more than 80 psi of boost, both the block and heads were cut to accept fire rings, with ARP studs being used to clamp the high-flow heads to the block. Fuel supply is never an issue, as an Aeromotive Eliminator pulls diesel from a Complete Performance sump in the tank and sends it to the back of each cylinder head. A speed controller is employed to keep the pump from running full bore at all times. A regulated return system pieced together by Hoover keeps fuel free of air and locks fuel pressure in at a sound 70 psi. For daily driven tunes, Hoover prefers his street files from DP Tuner, which he can conveniently navigate via an F6 gauge style switch. At the drag strip, he opts for track-proven, aggressive calibrations from JeliBuilt Performance by way of a TS Performance six-position chip. Good friend Jared Chriscoe of Brueilly Auto Repair Center built the 4R100 Hoover relies on to get him down the track. Graced with billet input, intermediate, and output shafts, a 2,200 rpm stall triple-disc Atlantic converter, Red Eagle clutches, and a Mag Hytec pan, it’s got all the bells and whistles you would expect to find in a transmission that’s been prepped to harness more than 800 rwhp. Fuel & Oil Demand No stranger to the fact that it takes a sizeable injector to make big power in the 7.3L game, Hoover opted for a set of 450/400 hybrids from Full Force Diesel. With the potential to flow 450cc worth of fuel through a nozzle that measures 400 percent larger than stock, the 450/400s are no joke, but they do require big oil. To make sure the injectors’ high-pressure oil demands were met, Hoover mounted a Next-Gen high-pressure oil pump (a joint effort between he and Crutchfield Machine) over a DieselSite Adrenaline. A custom dualfeed fuel supply system—built around the use of an Aeromotive Eliminator pump and a regulated return— guarantees a consistent 70 psi of fuel pressure is always on tap for the big hybrids to use. Billet 4R100, Custom Tuning To hold up to 1,500 lb-ft (or more) of torque and regular abuse at the drag strip, Hoover had local friend and transmission guru, Jared Chriscoe of Brueilly Auto Repair Center, build the truck’s 4R100. It sports billet input, intermediate and output shafts, Red Eagle clutches and a triple-disc converter from Atlantic Torque Converter, another Asheboro-based company. As for taming the 450/400s for street use, Hoover relies on PCM tuning from DP Tuner, while more aggressive files from JeliBuilt Performance are used at the track. With a setup that he conservatively estimates to be around 800 hp at the wheels, Chris Hoover’s Super Duty is pretty serious in the 7.3L world. Even out amongst the Duramax and Cummins wolves it should have no problem holding its own. If all goes well in 2018, we won’t be surprised to hear his 7.3L has gone deep into the 7s in the eighth-mile, if not high 6s—a pretty impressive feat for any truck, let alone a 7.3L. If it looks like the frame mounts used in Hoover’s traction bars are actually leaf spring hangers, they are. Pulled from an F-450 cab-and-chassis model, the front leaf hangers make for some stout bolt-on frame mounts. Hoover told us that once he added these to his traction bar setup they effectively brought all breakage to a halt. The rear 10.5-inch Sterling has seen its fair share of carnage, and as such is now benefitting from a pair of Yukon 37-spline axleshafts along with a Detroit Truetrac to keep both rear wheels digging. Up front, an ARB air locker is employed. The factory 3.73 axle ratio remains. Street- and strip-worthy Nitto 420S tread (measuring 305/50R20) graces each corner of the truck and offers ample traction on any paved surface. For cosmetic appeal, a set of 20×12-inch Moto Metal MO962 wheels got the call. No longer wanting to get kicked off the drag strip, Hoover added a full roll cage prior to the 2017 racing season. Fabricated from 1.75-inch diameter, 1/8-inch wall chromoly tubing, it added some weight back into the truck but will definitely be needed if he reaches his high-10-second goal. Still working out the kinks, Hoover plans to push the Gold Digger deep into the 7s at his local eighth-mile track this year. He also told us that if he can manage a high 6 on fuel, the engine will be introduced to a boatload of nitrous to see how much further he can take it… [divider]SPECIFICATIONS [/divider] 1999.5 FORD F-250 OWNER: Chris Hoover HOMETOWN: Asheboro, North Carolina ODOMETER: 336,286 miles ENGINE: 7.3L Power Stroke SHORT BLOCK: Partially fi lled block, fi re-ringed, Carson Stauffer girdle, ARP main studs, Carrillo rods, fl y-cut and coated 14:1 compression Mahle pistons, Gearhead Automotive Performance Stage 2 cam HEADS: Crutchfi eld Machine port and polish, fi re-ringed, oversize intake and exhaust valves, beehive competition valve springs, Smith Brothers pushrods, cryo’d stock rocker arms, ARP head studs FUEL: Full Force Diesel 450/400 hybrid injectors, Hoover Built Performance fuel supply system with Aeromotive Eliminator pump and regulated return, Complete Performance fuel tank sump OIL: Hoover Built Performance Next Gen high-pressure oil pump over DieselSite Adrenaline, DieselSite high volume low-pressure oil pump AIR: Hoover Built Performance compounds with S488 SX-E from Forced Inductions (atmospheric) and BorgWarner S472 SX-E (high-pressure, valley) INJECTABLES: Snow Performance Tow-Max water-methanol system with three nozzles feeding each head (60/40 methanol/water mix) TUNING: DP Tuner via F6 Smart Chip (street tunes), JeliBuilt Performance race fi les via TS Performance six-position chip (track tunes) TRANSMISSION: Brueilly Auto Repair Center 4R100 with billet input, intermediate and output shafts, Red Eagle clutches, TransGo shift kit, triple-disc Atlantic torque converter, billet fl ex plate, Matt Maier shift box HORSEPOWER: 800 rwhp (est.) TORQUE: 1,500 lb-ft (est.) TIRES: 305/50R20 Nitto 420S WHEELS: 20×12 Moto Metal MO962 AXLES/SUSPENSION/STEERING: Detroit Truetrac locker and 37-spline Yukon axle shafts (rear), ARB locker (front), 3.73 gears, Hoover Built Performance traction bars, One Up Offroad dual steering stabilizer system Total 0 Shares Share 0 Tweet 0 Pin it 0 Share 0
