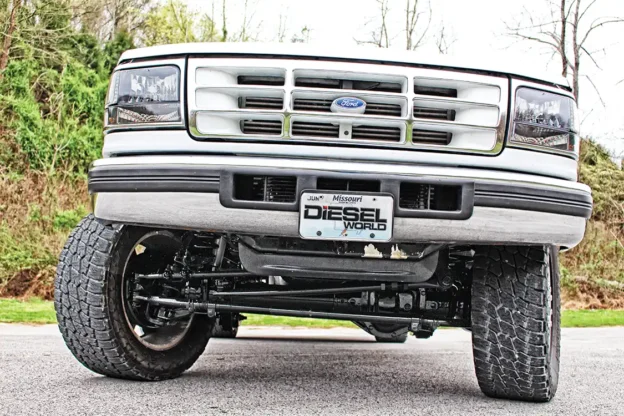

’05+ SUPER DUTY AXLE SWAP

The Axle And Suspension Conversion That Brings Your OBS Ford Into The Modern Age

More than a quarter-century after production ended, old body style Fords remain popular—especially the 7.3L Power Stroke equipped versions offered from ‘94.5-’97. But just because OBS fans are holding onto their favorite body style doesn’t mean they aren’t interested in improving a few things or making significant upgrades. Case in point, when the leaf spring solid front axle option gave way to coil springs for 2005 model year Super Duty’s, everyone took note of the improvements in ride quality, strength, and turning radius. Fast-forward a few years, when late-model Super Duty’s starting showing up in wrecking yards and OBS enthusiasts began getting their hands on the more modern running gear, and the ’05-newer axle and suspension conversion trend began to take off.

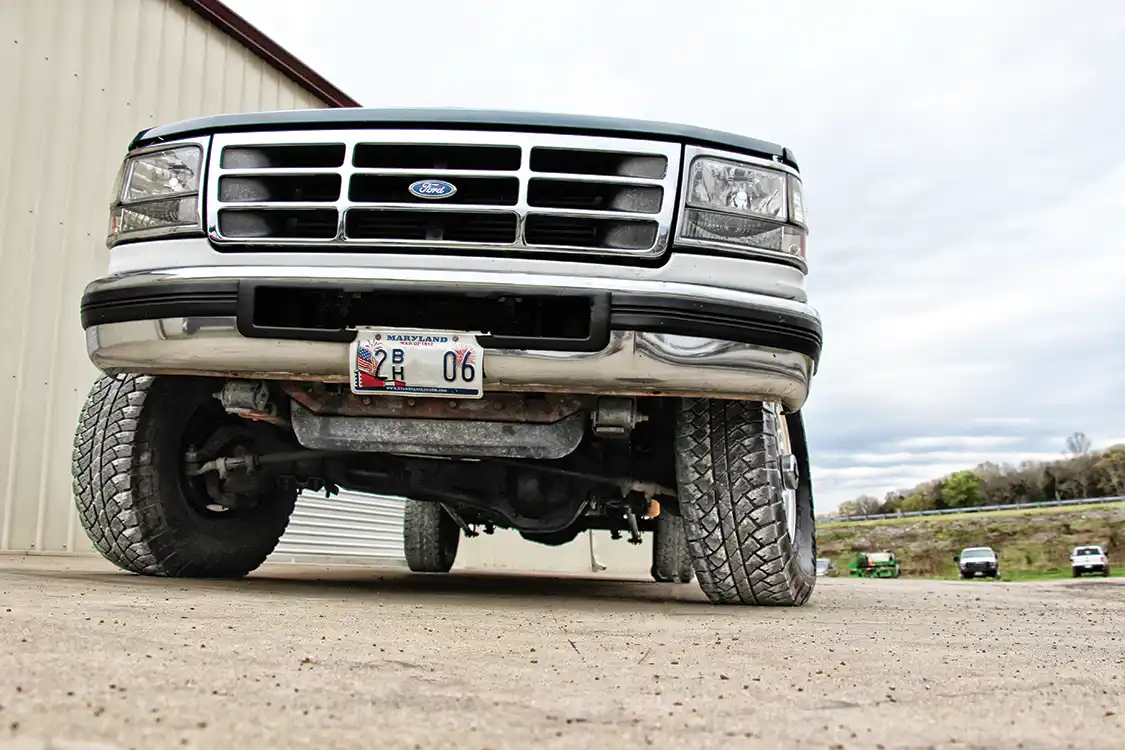

This is the source behind the bulk of many ‘05+ Super Duty swaps: the twin traction beam (TTB) Dana 50 under 4×4 OBS Ford F-250’s. While four-wheel drive F-350 trucks of the same era lucked out with the solid Dana 60, the ¾-tons were stuck with IFS front-ends. Unlike the leaf sprung Dana 60, the TTB Dana 50 (also leaf sprung) has many more points of wear, which include but aren’t limited to axle beam pivot bushings and shackle bushings, not to mention rampant alignment issues when larger tires are in the mix.

Today, virtually every OBS owner has heard of the swap (often referred to as an “05+ Super Duty Swap”). And for many who’ve chosen to scrap the tired TTB Dana 50 arrangement under their F-250 in favor of a solid front axle, an ’05-newer coil spring and radius arm suspension makes a lot of sense. This time, we’re highlighting what’s involved in the highly-popular conversion process. From parts-scavenging conversions performed by the DIY’er on a tight budget to all-out, show-quality builds with additional lift, ’05+ Super Duty axle swaps run the gamut. So we’ll share which components you’ll have to source on your own, the odds and ends that will be required to make everything work, and also showcase the comprehensive aftermarket conversion kits that simplify the process.

Subscribe Our Weekly Newsletter

Instead of rebuilding the TTB when the time comes (often prematurely), a lot of OBS owners pull the trigger on a solid axle swap—and some go all-in on ’05-newer axles, complete with front coil springs and radius arms. The result is vastly improved ride quality, a stronger front suspension, and a tighter turning radius.

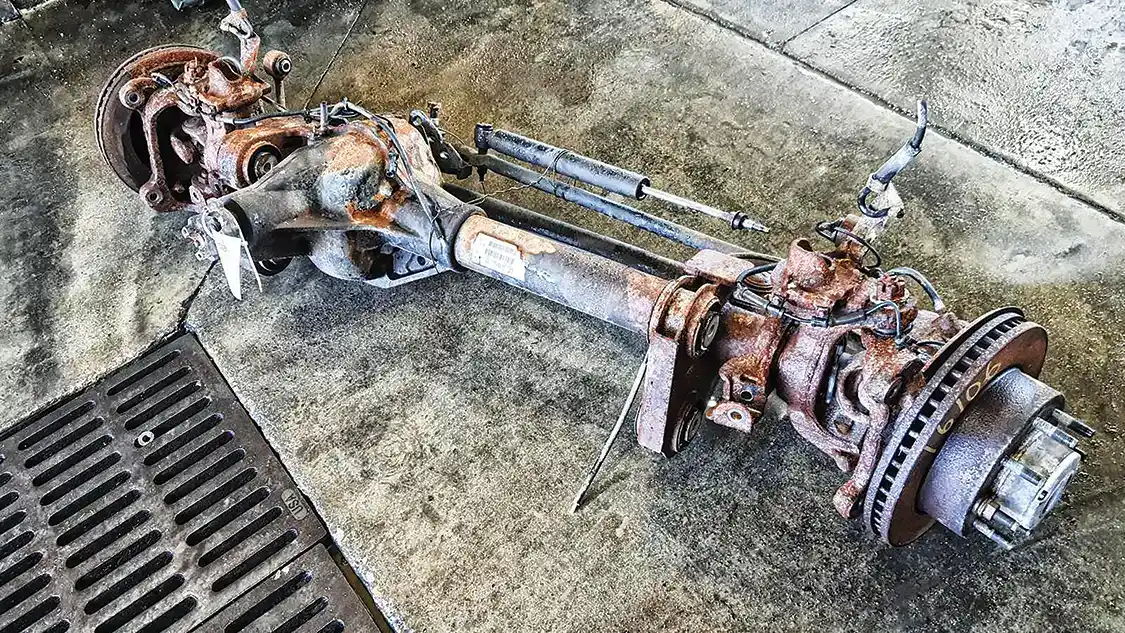

To pull off the ‘05+ swap, you’ll first have to source the front axle. Any Dana 60, be it from an ’05-’07, ’08-’10 or ’11-’16 will work, and oftentimes the axle and suspension are purchased together. Some even score an entire wrecked Super Duty for an affordable price to get everything they need.

If you have an unknown model year ’05-’16 axle, it can be identified by looking at the front sway bar end links. On ’05-’07 models, the bushing will be on the bottom and the stud on top. On ’08-’10 models, there will be a bushing on the top and bottom. And on ’11-’16 axles there will be a stud on top and on bottom. The photo shown here illustrates all of the above and comes courtesy of Sky’s Offroad Design.

If you go with aftermarket radius arm frame brackets, follow the instructions to a T. Key measurements will include the distance from the cab mount to the holes in the bracket you’ll have to drill out. Getting this correct is paramount.

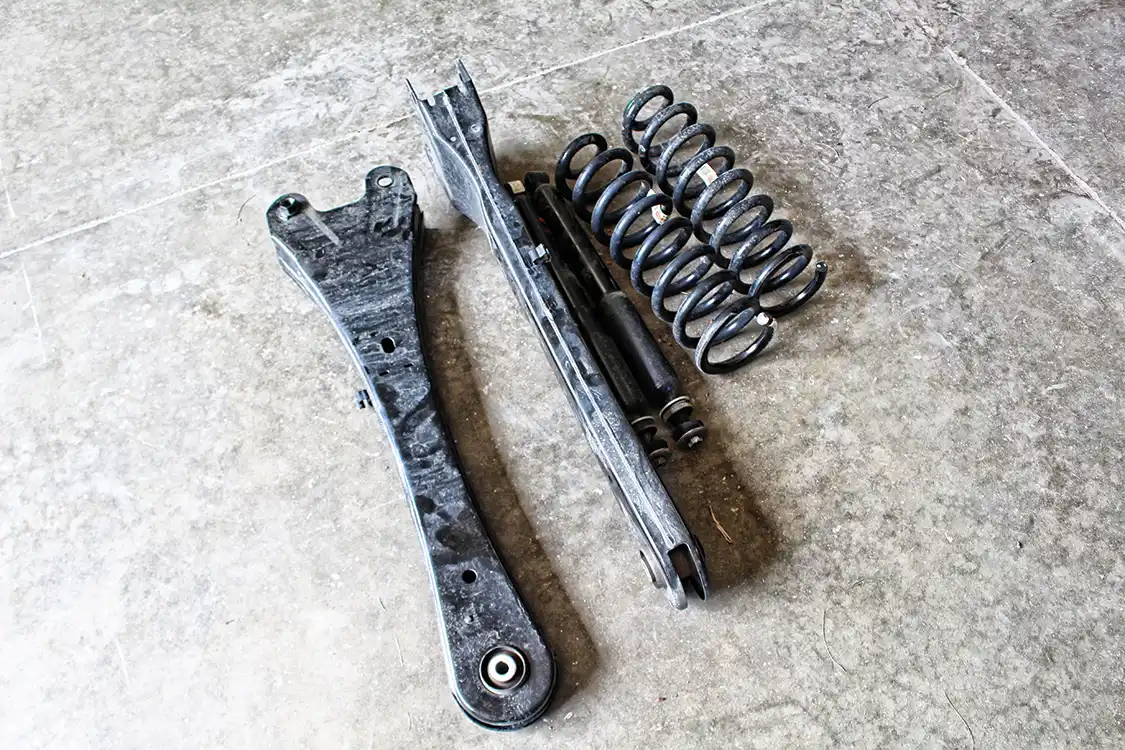

Sometimes, coil springs and radius arms can be found and/or bought together. Just remember you need the right and left coil buckets as well—not to mention that half a dozen different spring codes exist, signifying different spring rates, for factory coil springs. Look for those specific codes and spring rates later in this piece.

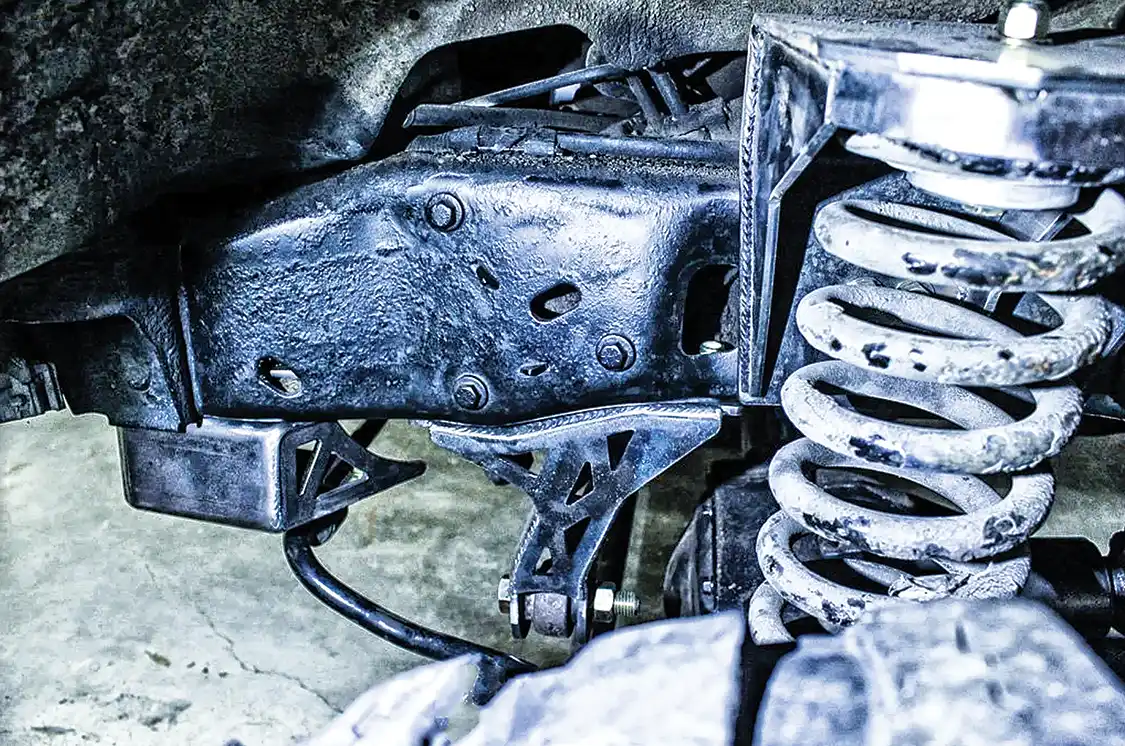

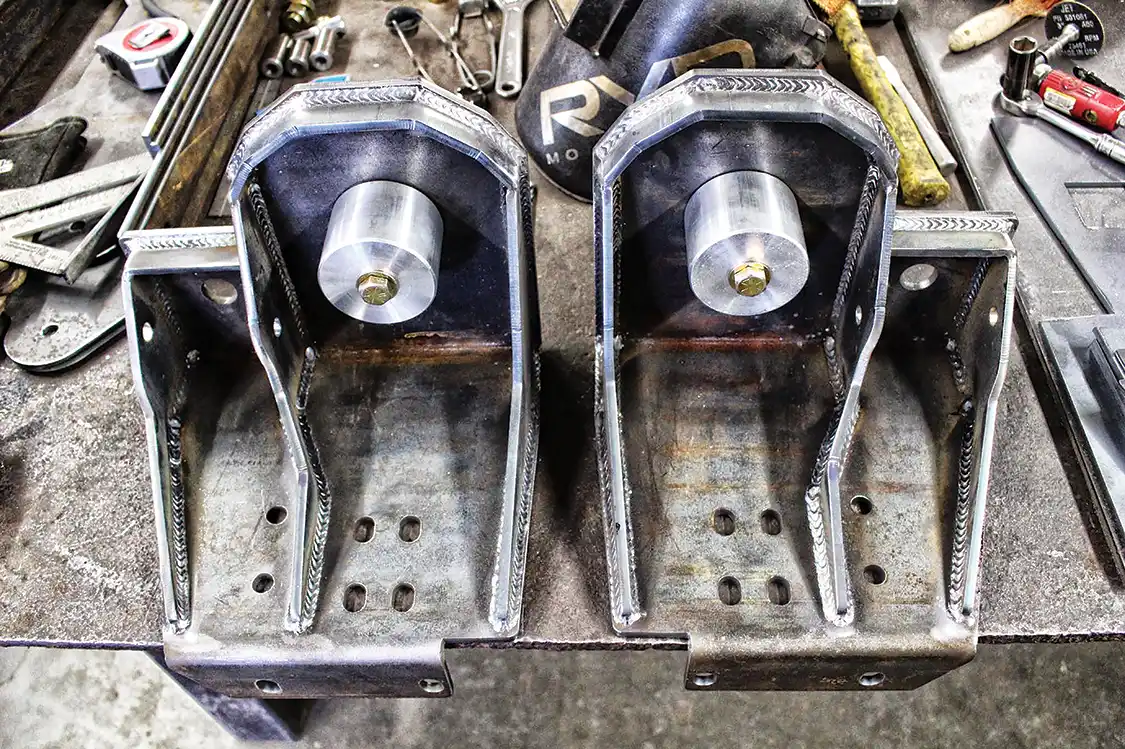

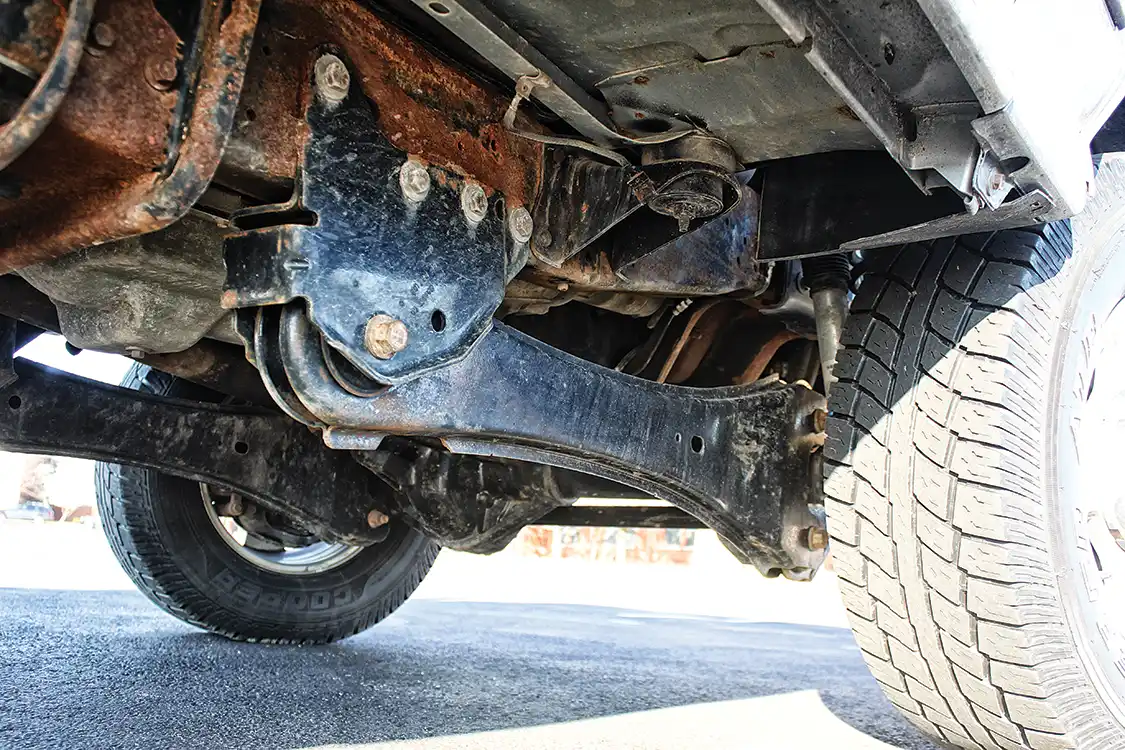

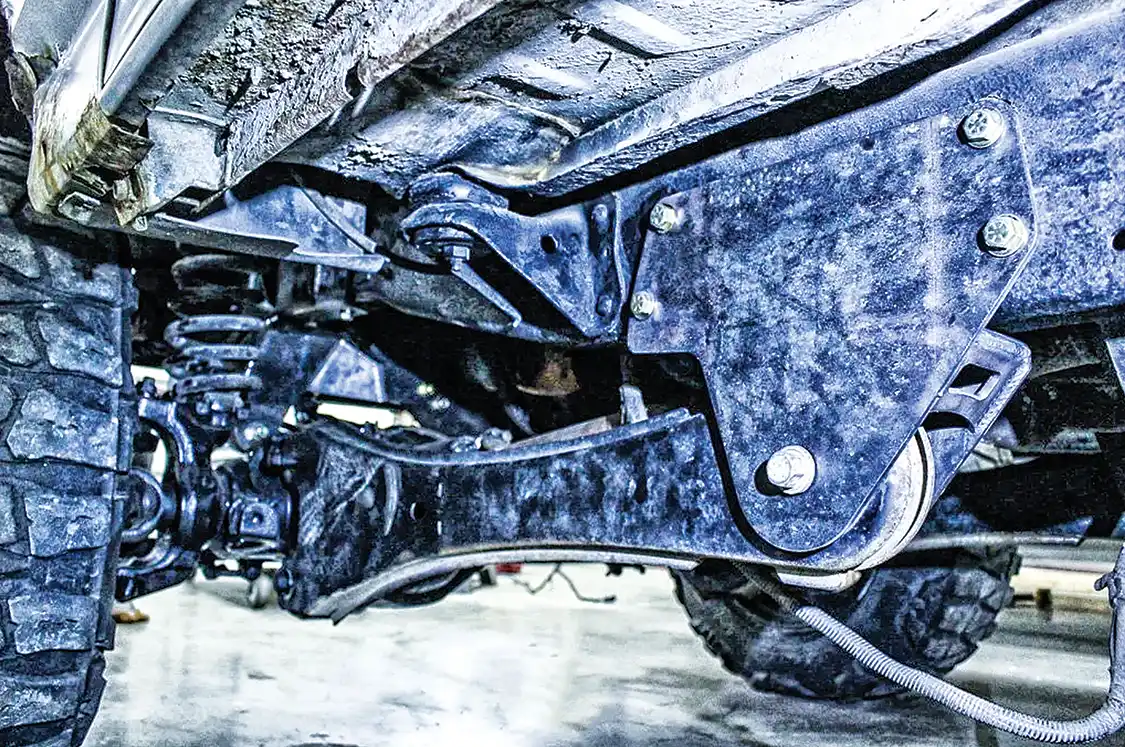

When it comes to the radius arms, don’t forget the frame brackets. Either OEM or aftermarket versions can used. As for the install, it pays to not be intimidated. In the grand scheme of things, an ‘05+ axle and suspension swap is more about taking measurements and drilling holes than anything else. Don’t over-think it. As you can see here, the factory radius arm frame brackets install very close to the front cab mounts on an OBS.

No matter which radius arm frame brackets you choose, make sure that section of the frame is clean prior to install. That means prepping the area first via rust removal and paint (if necessary). Once the radius arm brackets are in place on the frame, all fasteners should be torqued to factory specifications.

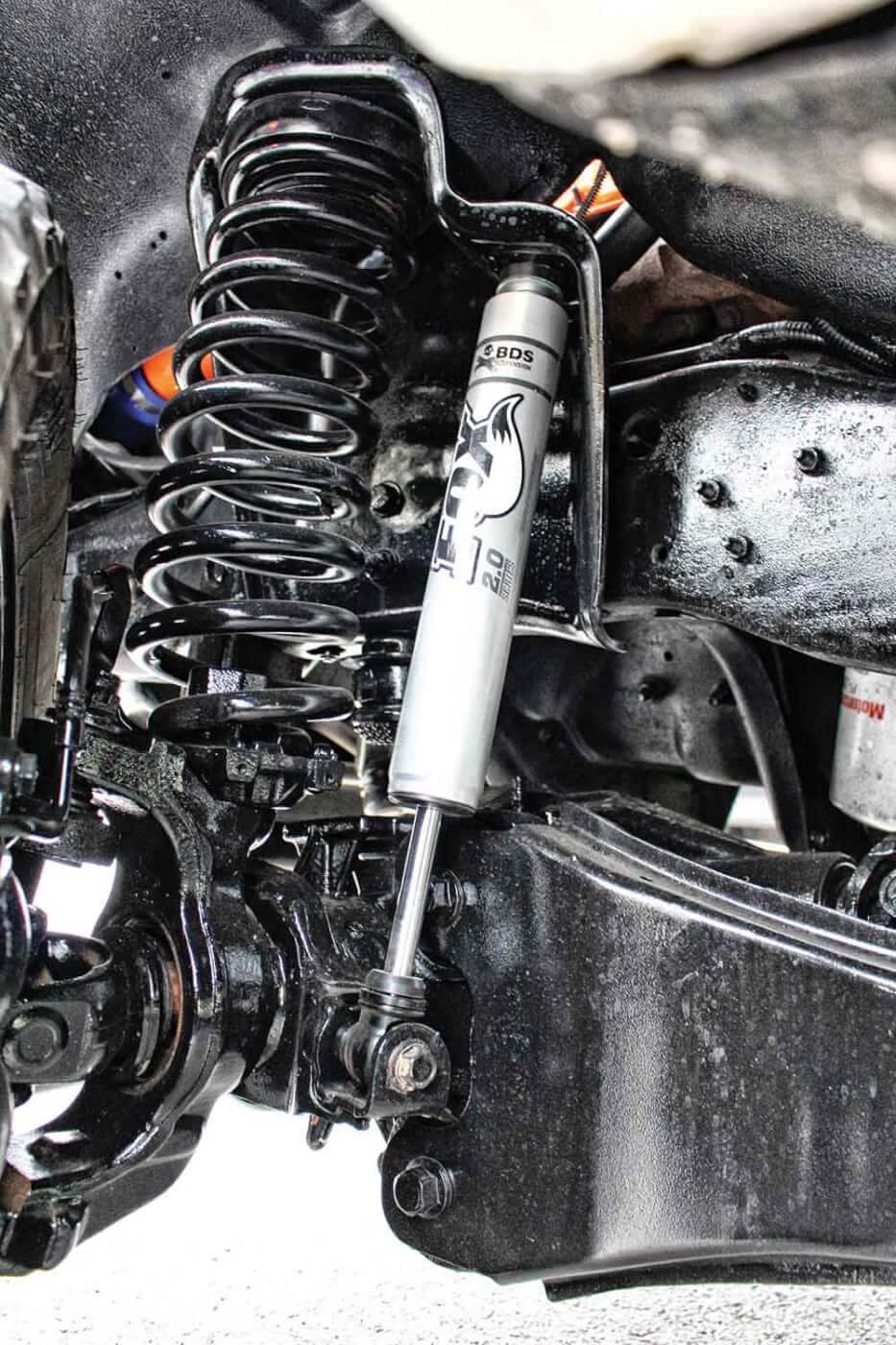

Shock absorber selection shouldn’t be overlooked in an ’05+ axle swap, especially with most shocks being affordable enough even with custom-valving specific to your application. The Fox Performance Series 2.0 shock pictured is both valved appropriately in its OBS application and is the correct length for the added ride height the owner’s coil spring choice provided.

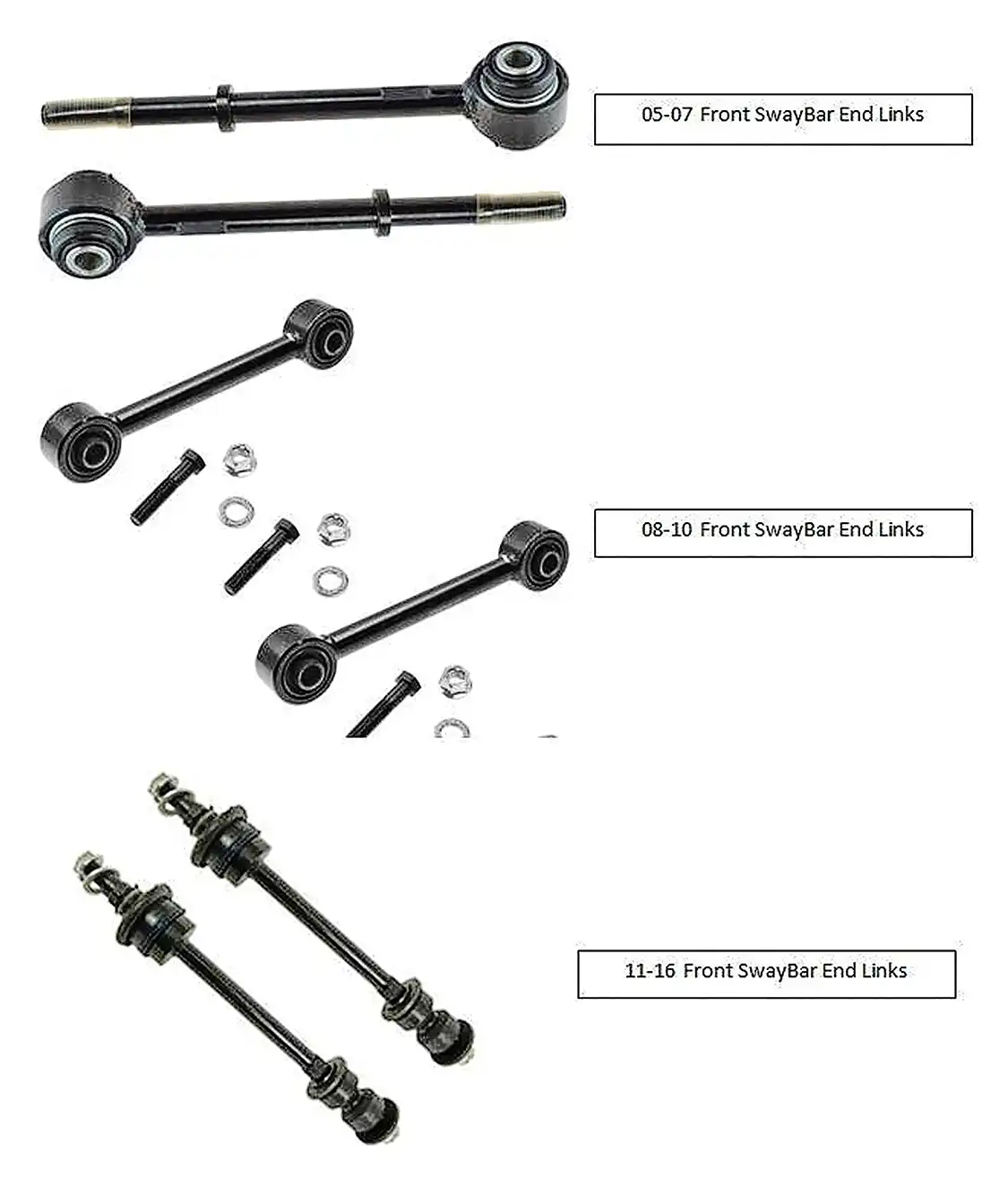

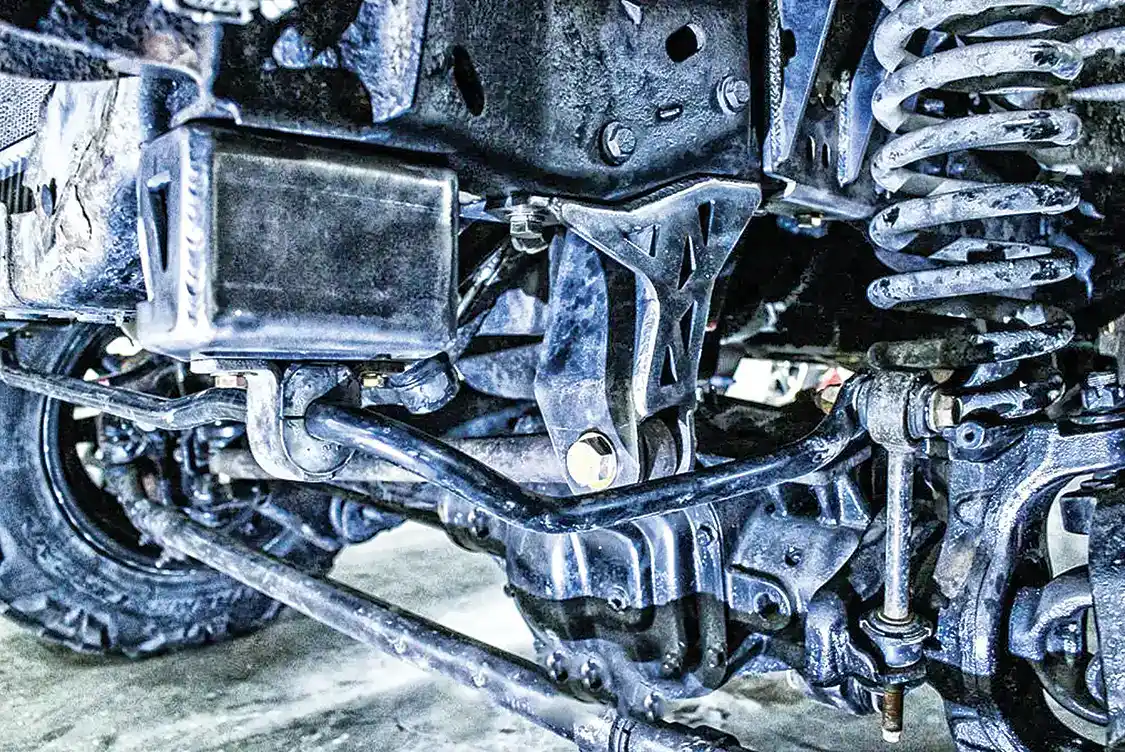

A front sway bar complete with end links will be required for the swap, and it pays to go with fresh end link bushings here. Remember, the sway bar (antiroll bar, anyone?) is present to help reduce body roll in an effort to keep the frame as parallel to the ground as possible, which optimize your tires’ contact patch with the road.

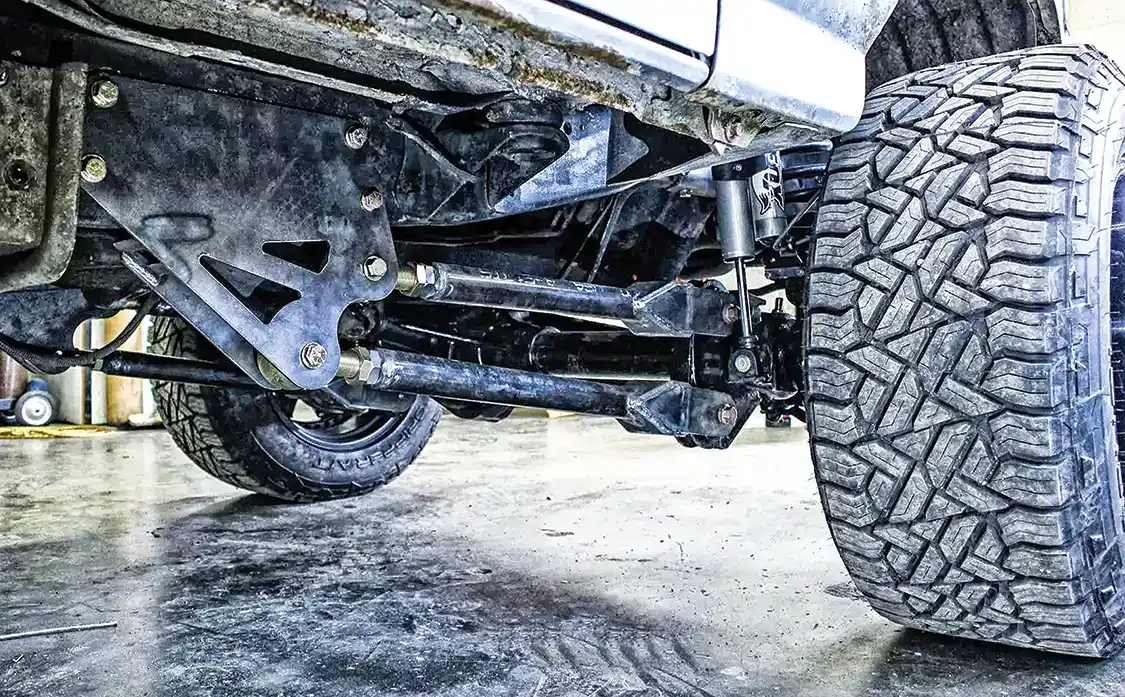

As for the track bar (i.e. panhard bar), the do-it-yourselfer will have to fabricate his or her own track bar mount. Others can source an aftermarket version through outlets like Sky’s Offroad Design or RYD Motorsports. According to many who’ve performed the swap, the ’05-’16 adjustable track bar offered by Icon Vehicle Dynamics is one of the best on the market, allowing you to fine-tune and precisely align your front-end track alignment. It’s important to note here that the OBS engine cradle may require a little trimming in order for an adjustable track bar to clear it.

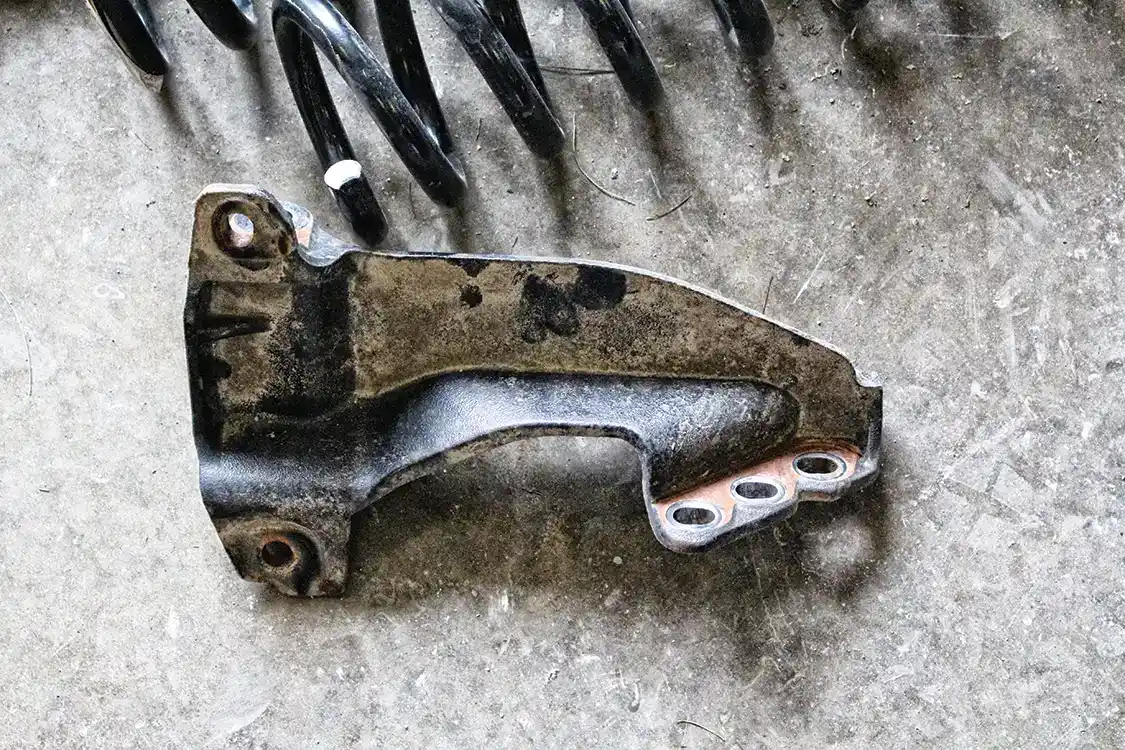

The RYD Motorsports track bar mount accommodates your Super Duty-intended track bar and also ties in to the back side of the engine cradle. We’ll note that is also comes with Grade 8 mounting hardware. And in case you were wondering, all of RYD’s ‘05+ conversion bracketry ships in bare steel form. You’ll need to powder coat or paint all components before install.

The appropriate sway bar mount will be a requirement that you’ll either have to fab up yourself or get from (once again) either Sky’s Offroad Design or RYD Motorsports, both of which sell versions specifically designed for OBS trucks. The RYD version is pictured here.

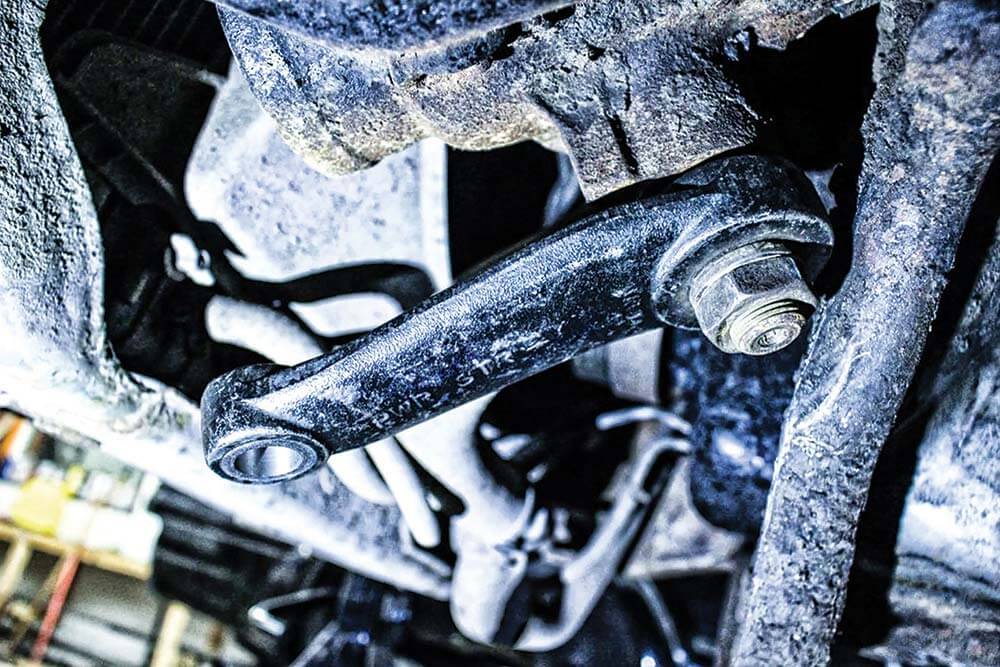

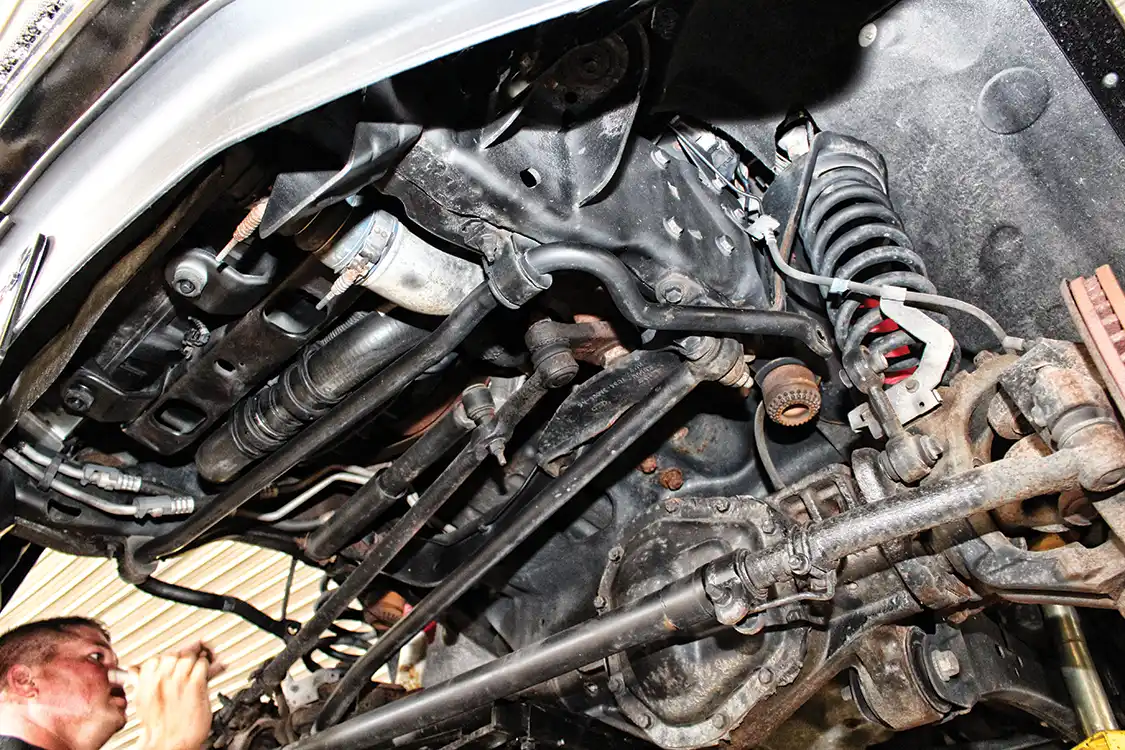

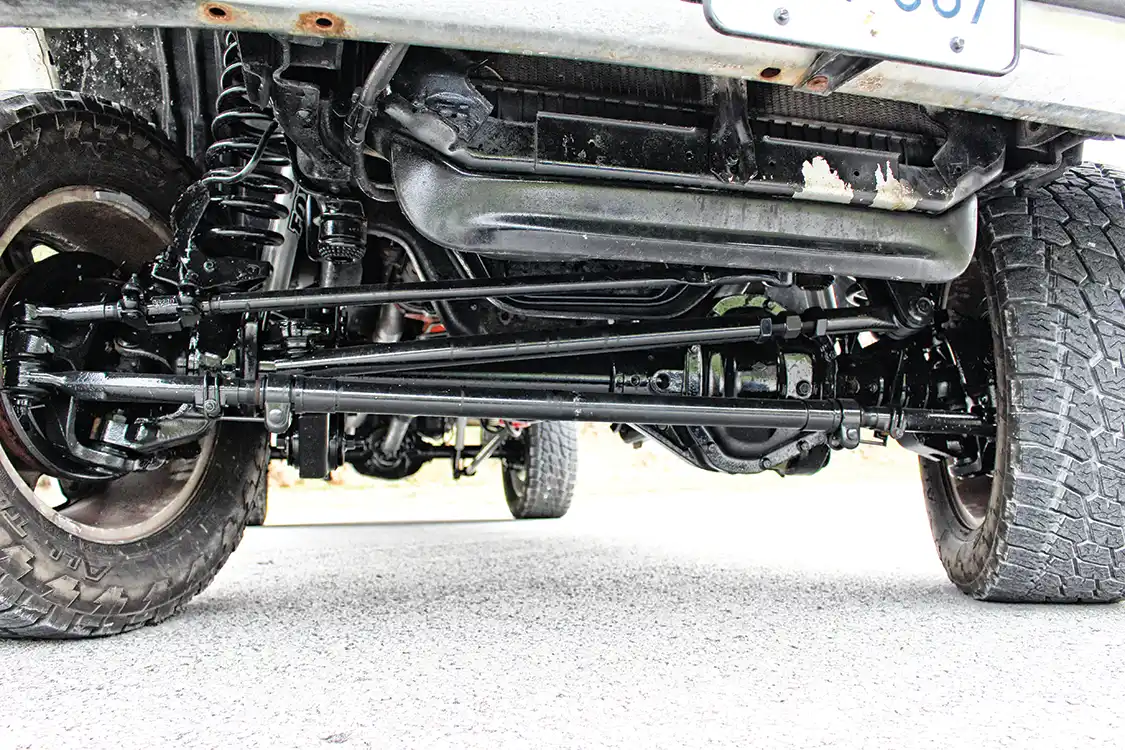

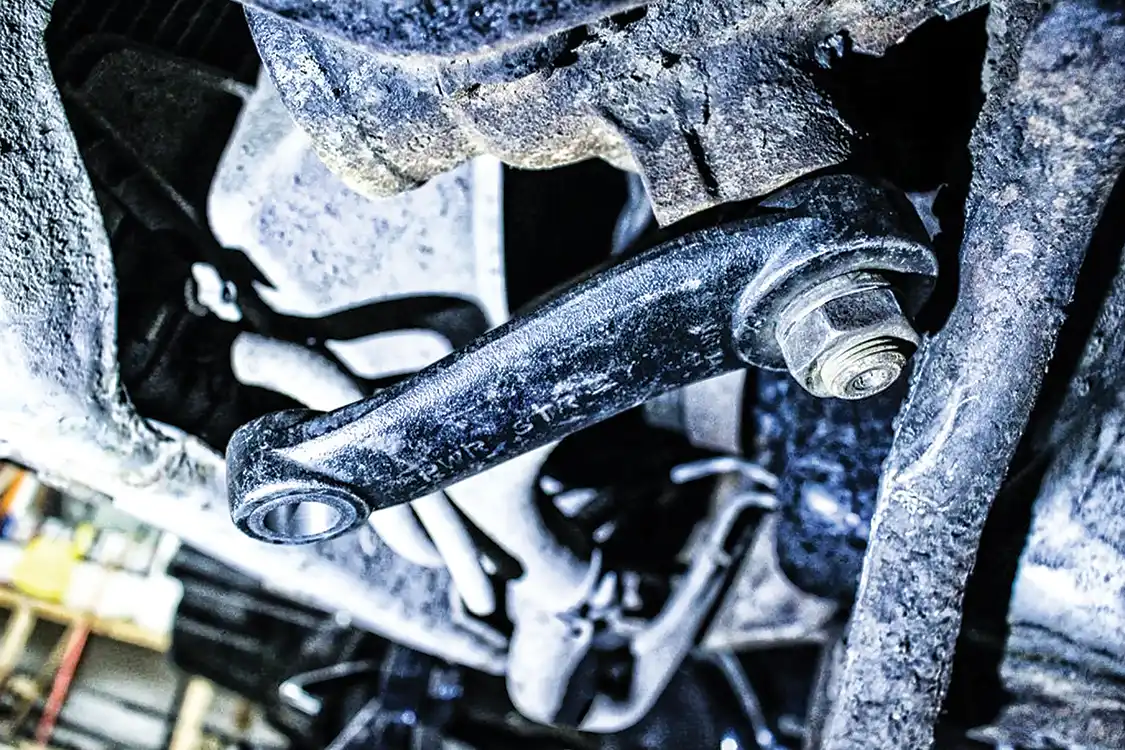

The more factory Super Duty steering parts you retain, the easier the swap will be. In order to make the OBS pitman arm work, it will have to be shortened and machined to accept the Super Duty steering. RYD Motorsports offers a pitman arm for OBS trucks from stock height to 3-inches of lift, and a drop pitman arm that accommodates trucks with as much as 8-inches of lift.

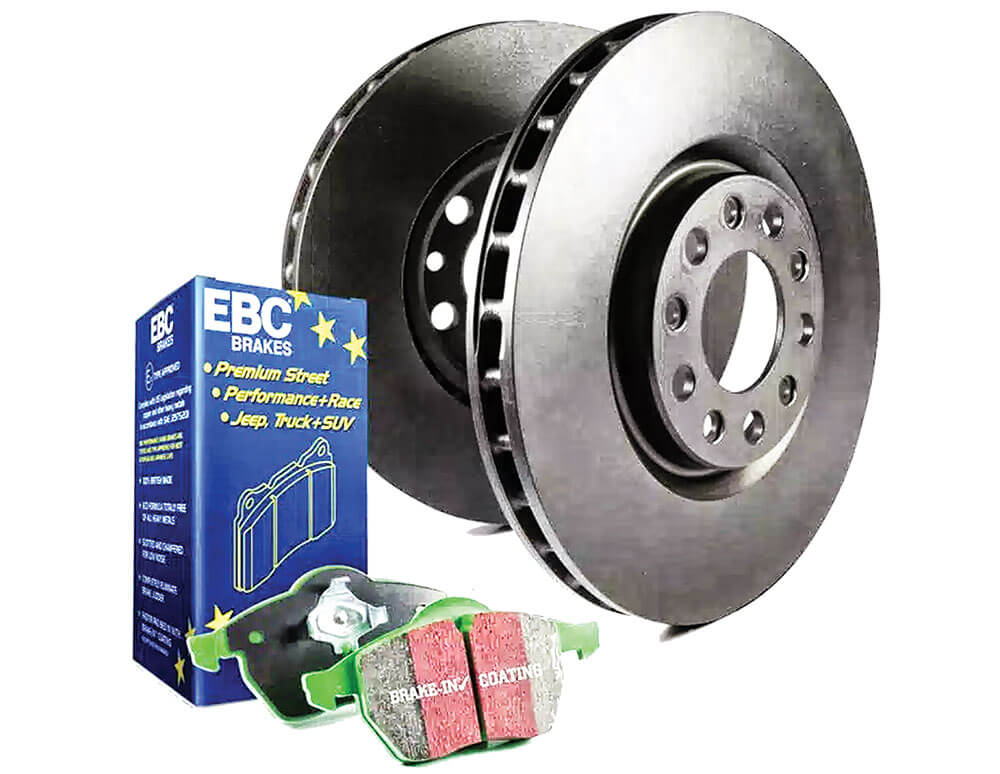

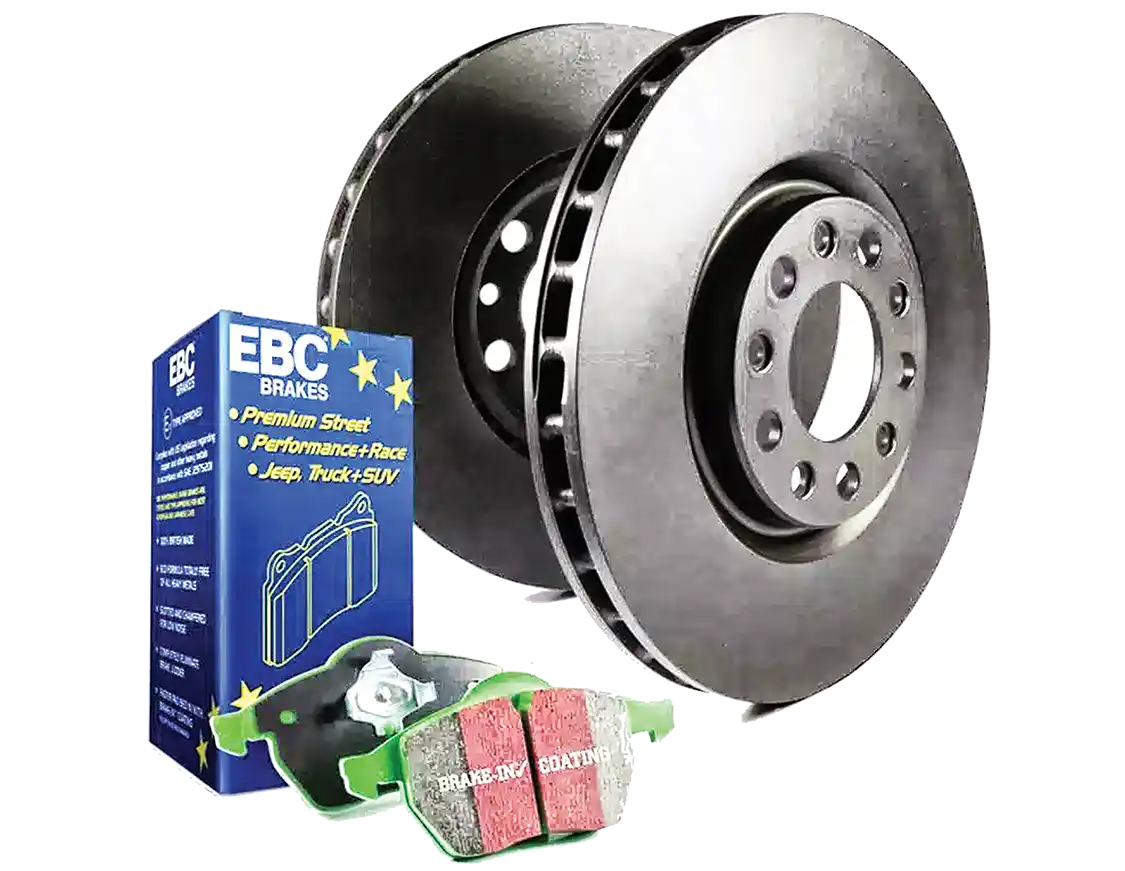

With ‘05+ axles under your OBS you’ll finally have bigger brakes and better stopping power. However, you should decide early on if you want to control the 4-way disc brakes via vacuum pump (factory OBS), or if you plan to upgrade to hydroboost. As a helpful hint, an F-Super Duty booster, power steering lines, return line, and the master cylinder and reservoir will all bolt right in. A front, 13.66-inch diameter EBC brake rotor intended for an ’06 F-250 Super Duty, available from our friends at Riffraff Diesel, is shown here.

Although not as glamorous as the coil spring, radius arm ‘05+ Dana 60 up front, a rear 10.5-inch Sterling is a mandatory part of the axle conversion process. And while a ’99-’04 version will certainly work, the ’05-’16 10.5-inch is preferred because of its larger brakes. The rear rotors on a ’99 F-250 measure 13.03-inches (od) vs. 13.39-inches starting in ’05.

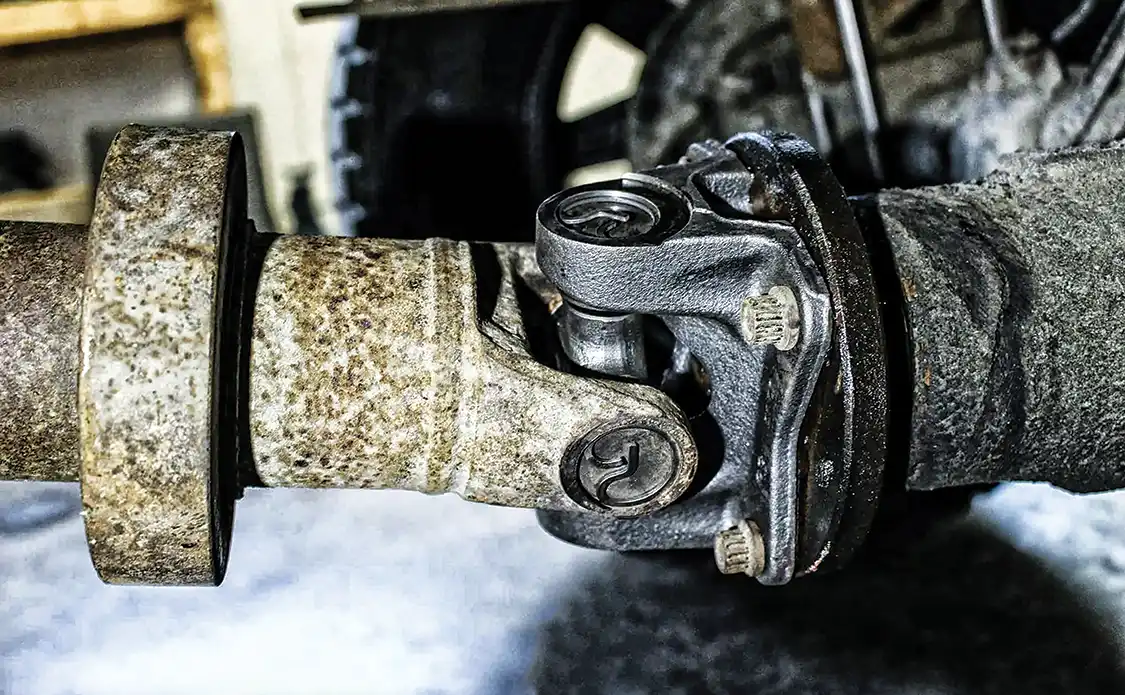

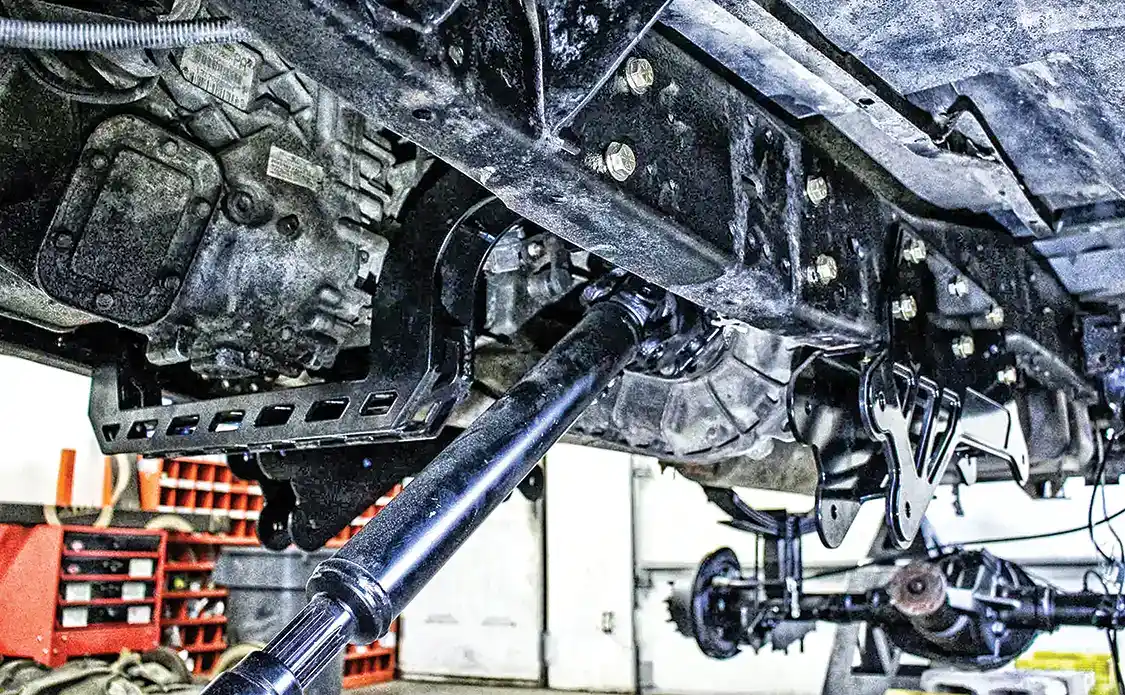

There are several roads you can travel down as far as driveshafts are concerned. We’ve seen Super Duty axles be made to work, but more often than not we see OBS owners stick with their original driveshafts. Of course, depending on the ride height you choose (i.e. lifted or lowered), you may also have to shorten or lengthen your driveshafts.

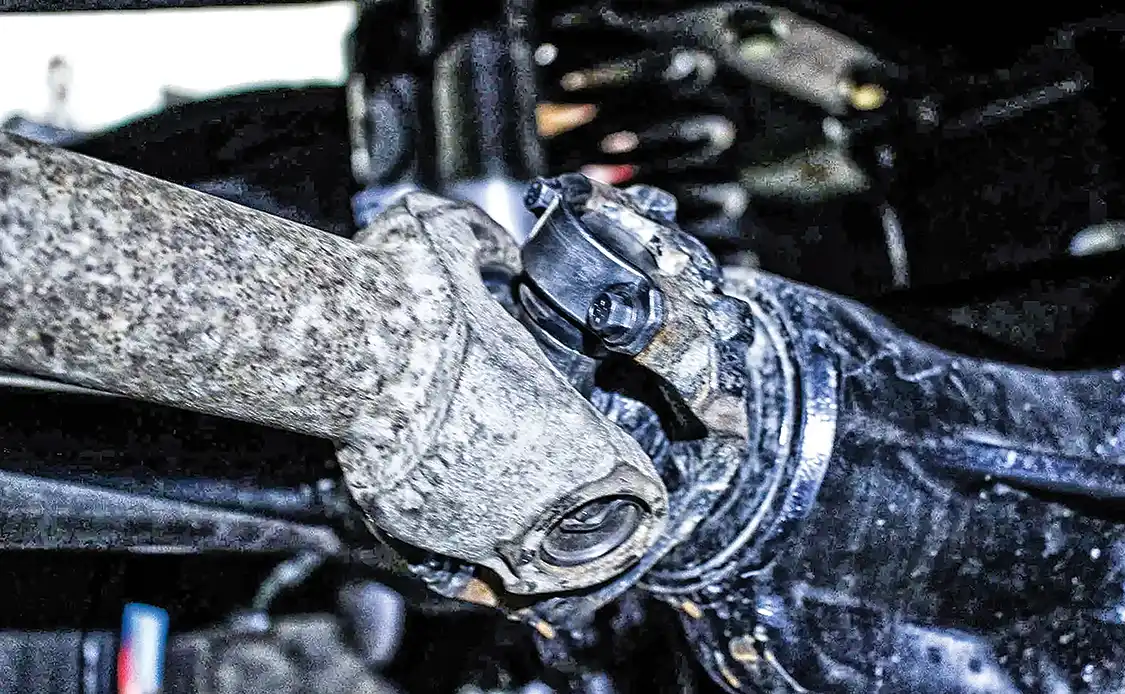

The easiest way to make your OBS driveshaft work with a Super Duty axle is by using RYD Motorsports’ driveshaft conversion kit. Its kit provides for a U-joint being used up front, and a flange being used in the rear to seamlessly adapt your old driveshaft to the new axle.

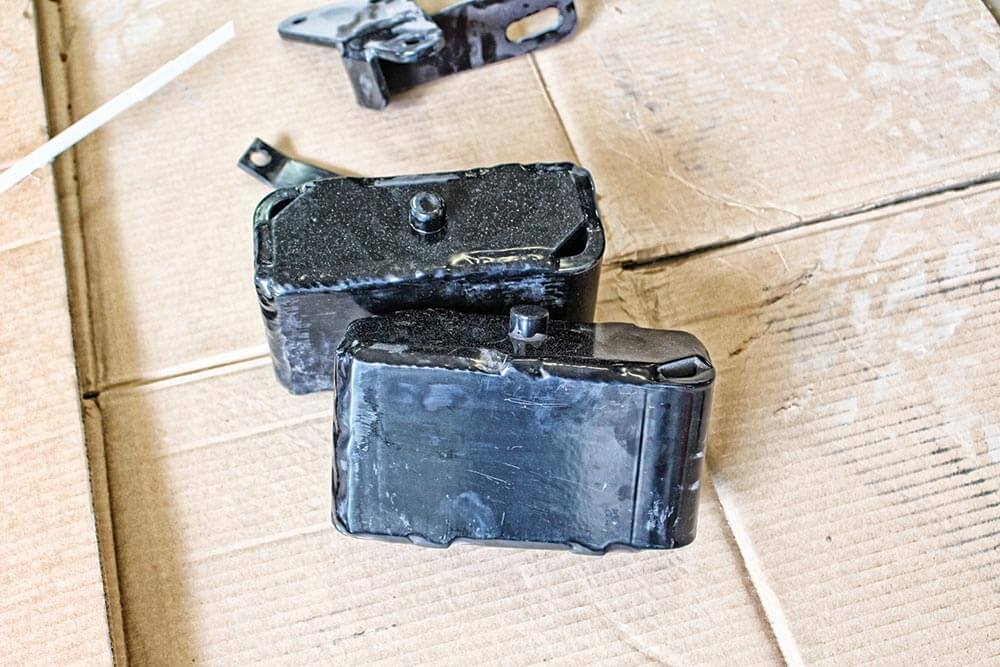

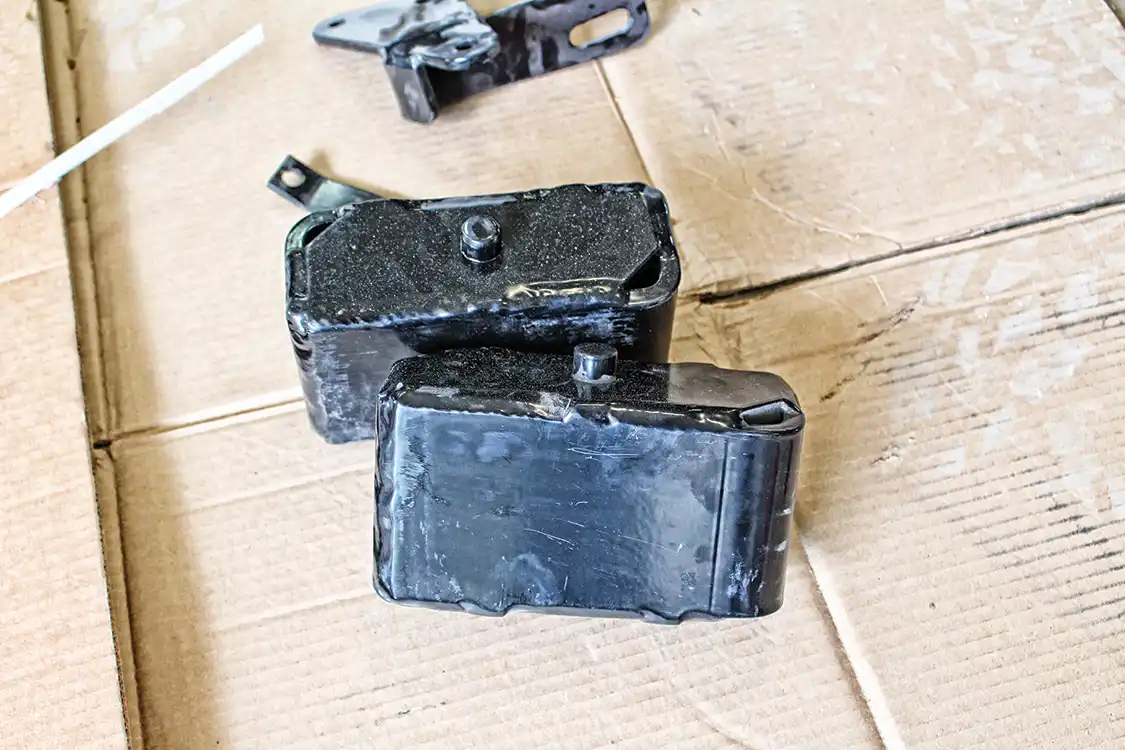

When you’re transferring over or selecting your rear leaf spring packs, keep in mind that correctly-sized blocks are the best way to achieve your target rear ride height. In direct factory ‘05+ axle and suspension swap-overs, we’ve seen the 3-inch rear blocks utilized the most.

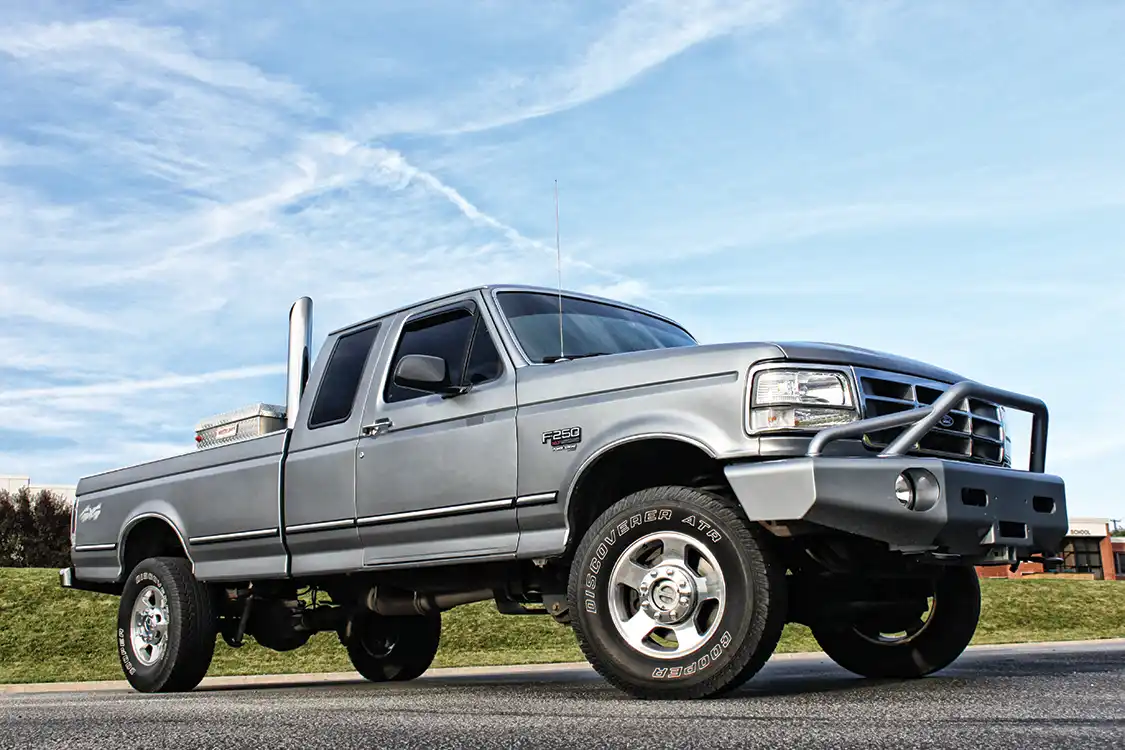

Back in the day, outfitting an OBS with ’05-newer axles was a total DIY job and aside from a few in-the-know on the forums, you were essentially on your own in handling the swap. Garret Mazon committed to ‘05+ swapping his ’95 F-250 more than a decade ago and pulled it off with help from Complete Performance, several enthusiasts on the Power Stroke forums, and close friends and relatives for in-person labor. His ’06 axles and suspension were found in local junkyards and his OEM aluminum 17×7’s were sourced from eBay.

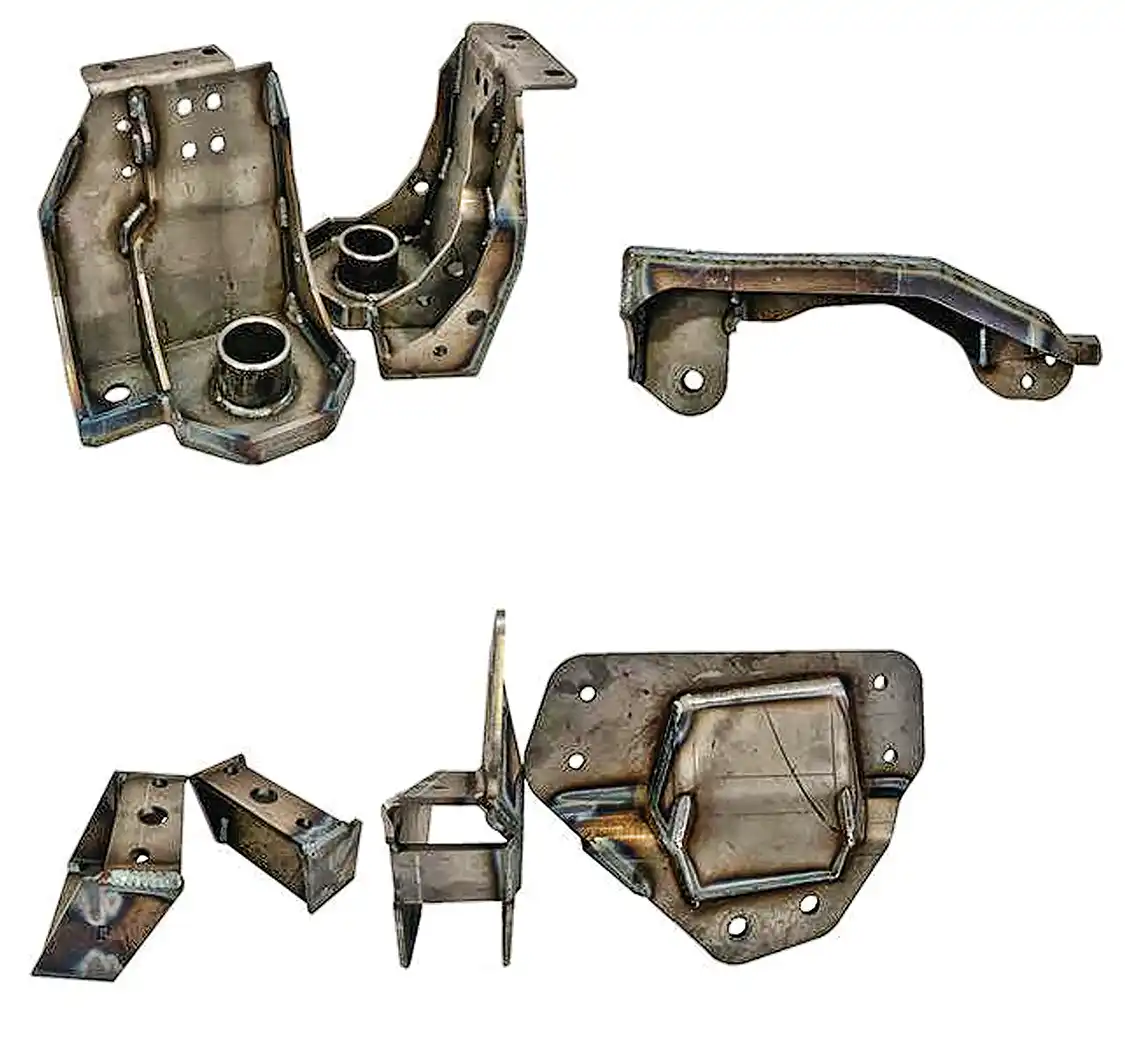

Today you’re no longer on your own, as several aftermarket companies offer complete kits to help simplify the conversion process. Among them is the aforementioned RYD Motorsports and Sky’s Offroad Design, as well as Blowing Diesel. The kit from Sky’s Offroad Design (shown) is designed for ’92-’97 F-250 and F-350 trucks and can be ordered to fit ’05-’16 Dana 60 axles (which are broken down into ’05-’07, ’08-’10, and ’11-’16 versions). Sky’s kit comes with stock height (and right and left) coil buckets, right and left radius arm frame brackets, right and left sway bar brackets, a panhard bar bracket, a machined flat pitman arm, all necessary hardware. Everything is laser cut, CNC formed, welded to perfection, and the all-inclusive kit retails for $1,532.00.

What we really like to see is a company taking care of manual transmission OBS owners, and RYD Motorsports’ ZF-5 crossmember does exactly that. It’s designed to fit inside the frame rails of your OBS and use the same mounting holes as the company’s radius arms to ease the installation process. The crossmember loops over the top of the driveshaft, offers plenty of clearance, is CNC cut and bent, and is made from ¼-inch thick steel.

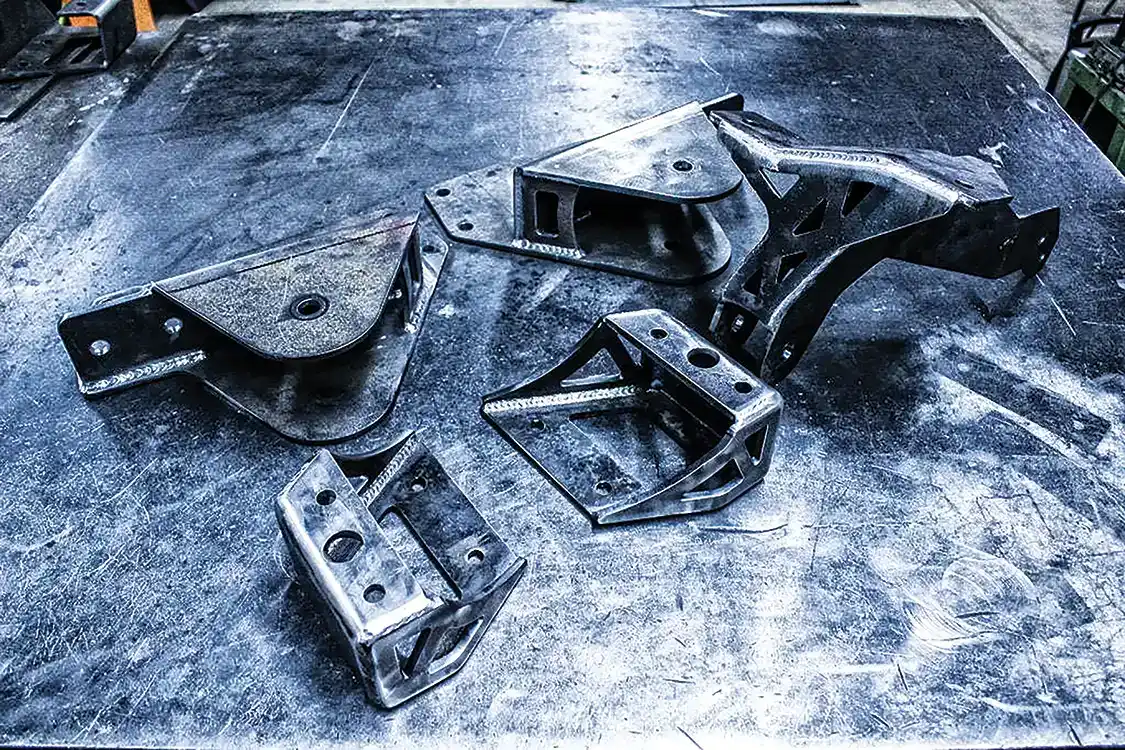

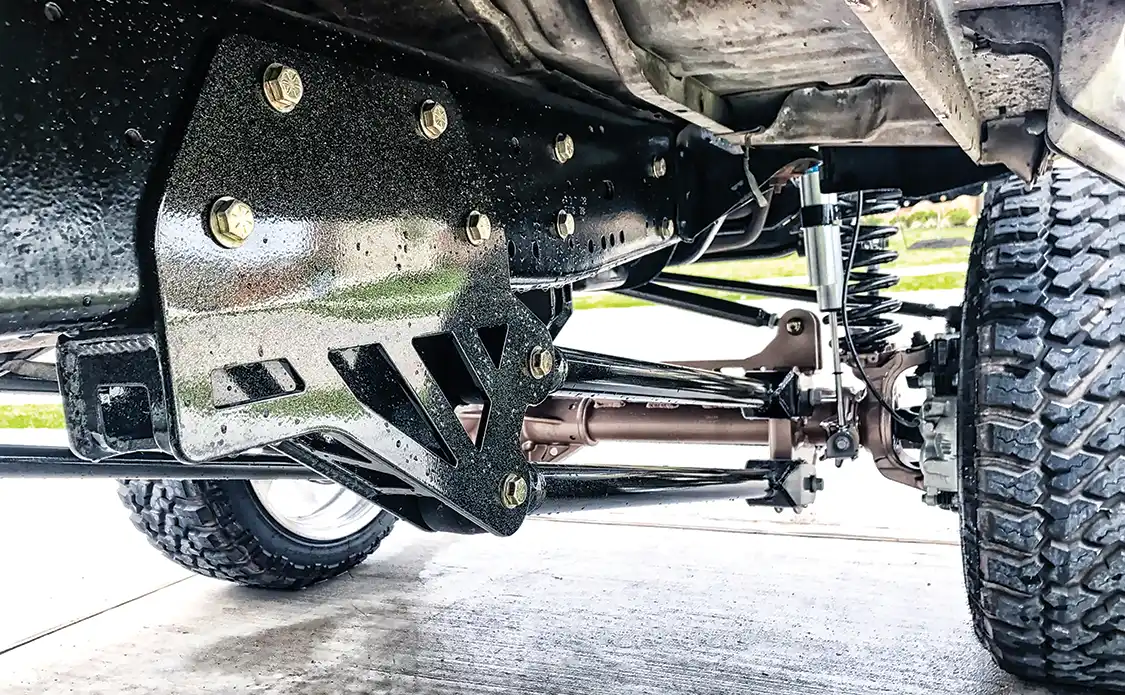

At a similar price point ($1,549.99), RYD Motorsports’ ‘05+ Super Duty axle swap kit is designed to retain and use all the factory parts from the ‘05+ suspension and steering in order to keep the swap process as straightforward as possible. The company’s kit includes stock height fabricated coil buckets (pictured), radius arm frame brackets, a track bar bracket, sway bar brackets, a pitman arm (which has been machined to accept Super Duty steering), and Grade 8 hardware. To minimize drilling, all brackets bolt in and locate using existing holes in the OBS frame.

One of the complaints some high-horsepower OBS owners have with an ‘05+ Super Duty axle swap is the same front-end bouncing that occurs on ’05-newer trucks in four-wheel drive. To solve the problem, RYD Motorsports offers a short-arm four-link system. It keeps the front axle planted, and improves stability and caster control during wheel travel. With a four-link system, you’re able to enjoy the improved ride quality the coil spring suspension provides without sacrificing traction during boosted, 4×4 launches.

For all-out, show-quality OBS builds, RYD again has an answer. Its 8-inch front and rear coilover kit is intended to help you clear massive rolling stock. The system entails sway bar and end links, an 8-inch track bar kit, coilover buckets and axle mounts, four-link bars for both the front and rear, a cradle, rear trusses, conversion U-joints, brake lines, and overlays for everything.

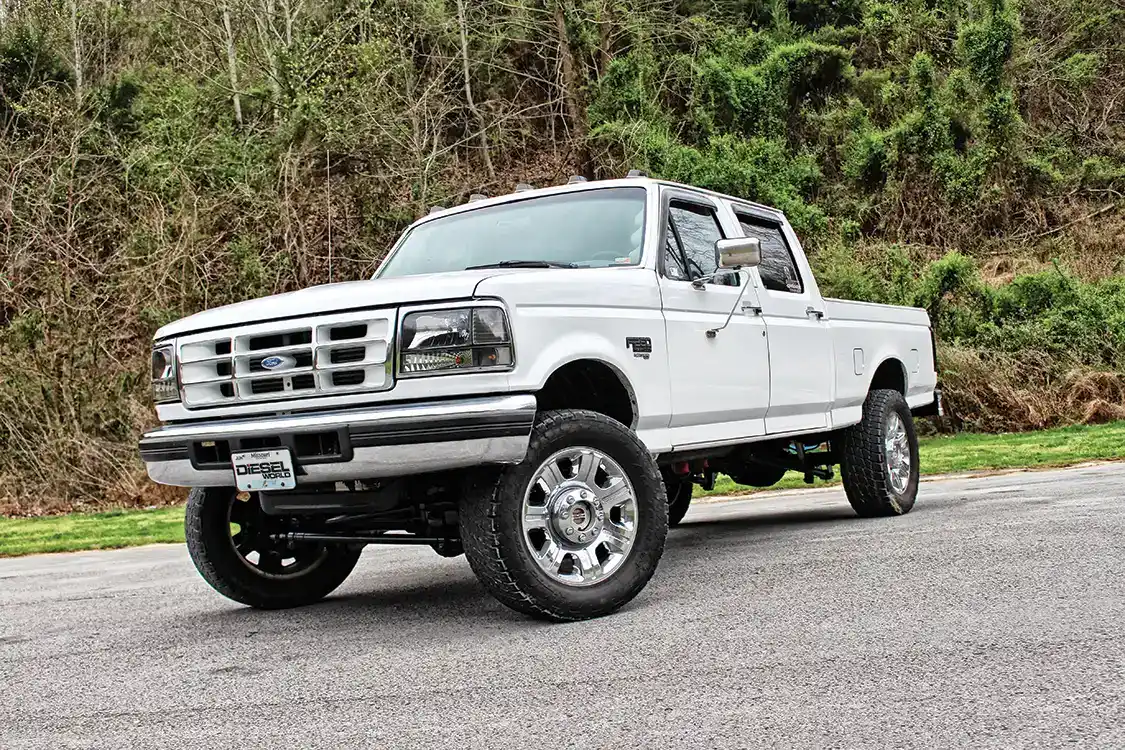

If you wanted a crew cab 4×4 with a short bed in the 1990s, it had to come in F-250 form. This meant your truck rode on the TTB Dana 50—until you converted it to a solid axle. Andy Inman switched over to a leaf sprung Dana 60, then a few years later pulled the trigger on ’08 Super Duty axles and suspension. The front coil spring, radius arm suspension was installed in two evenings after work at his place of business in Park Hills, Missouri: Andy’s Garage Service.

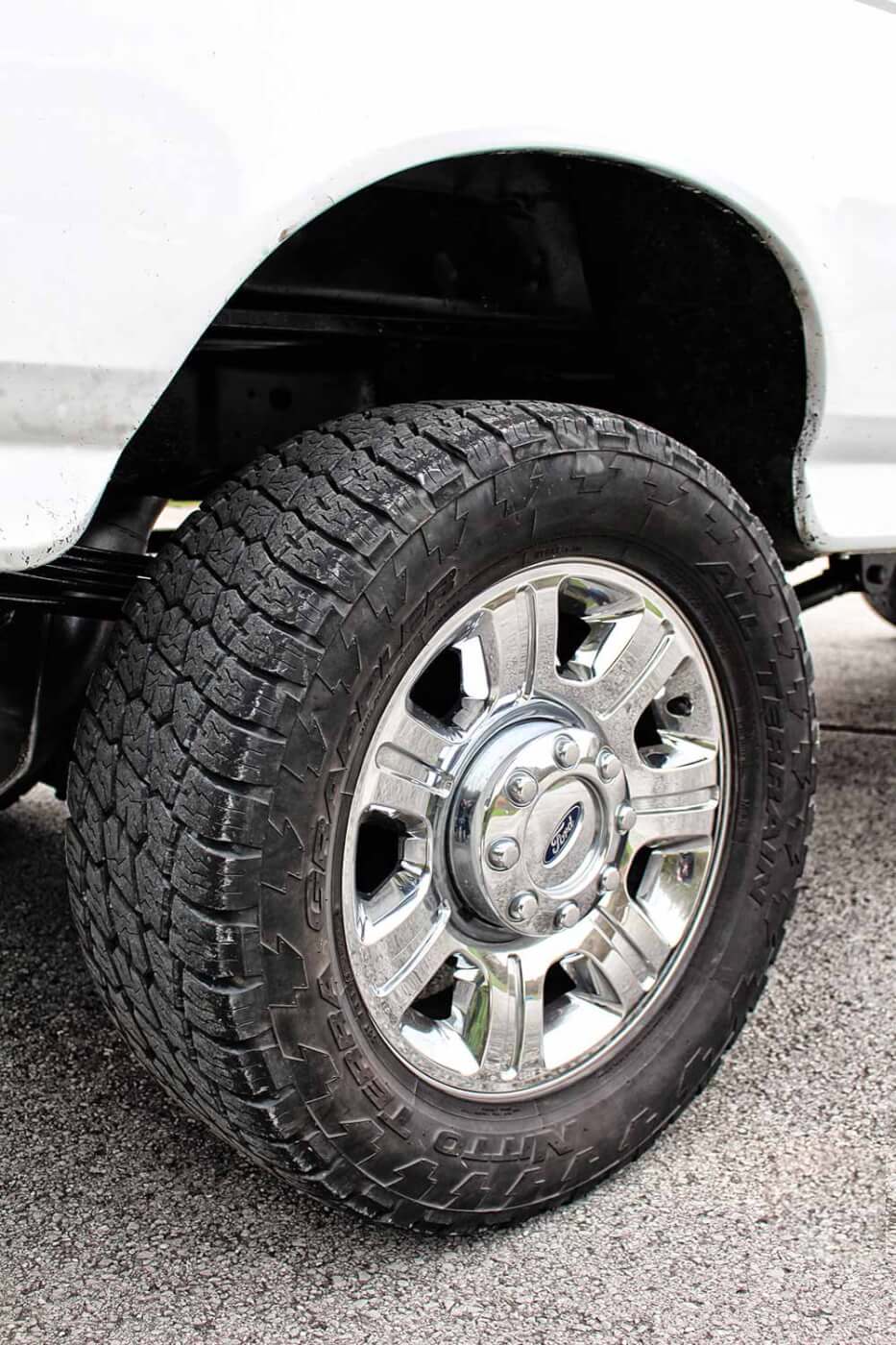

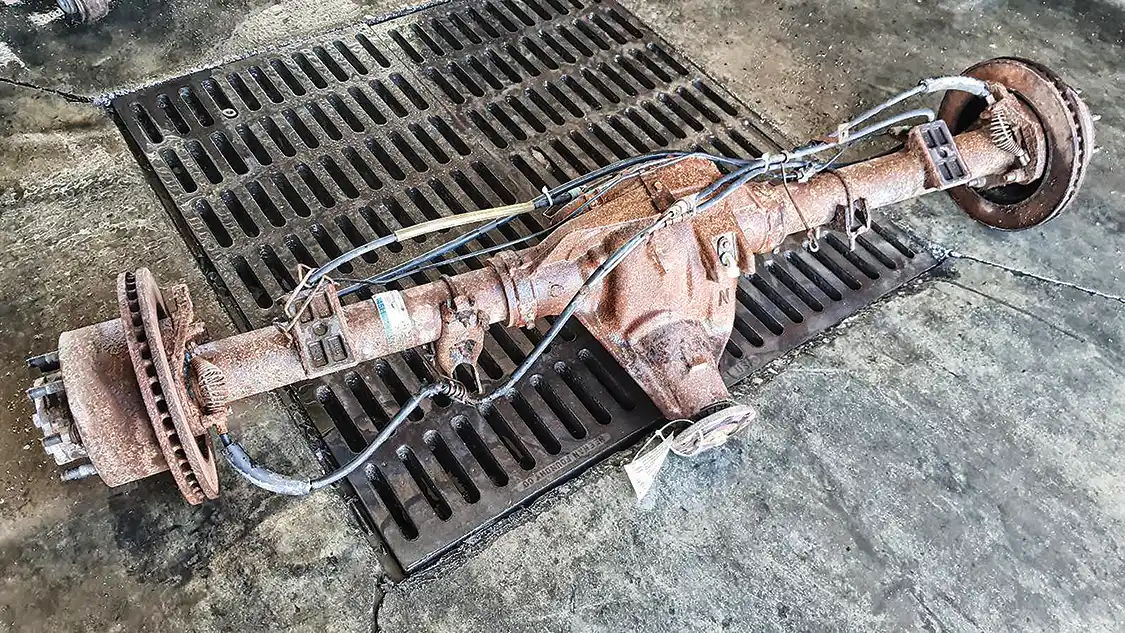

One of the benefits of running Super Duty axles is that you get the 8 on 170mm bolt pattern (vs. the OBS trucks’ 8 on 6.5), which means you get to bolt Super Duty wheels on without the need for adapters. However, you will likely have to source your own Super Duty wheels, be they aftermarket or OEM 17×7’s. Here, Andy Inman’s ’97 F-250 sports a set of 20-inch wheel off of a ’15 King Ranch Super Duty. As for overall tire diameter, you can run a 34-inch tire on stock ’05 coil springs and still enjoy ample clearance.

What You’ll Need To Obtain And/Or Do On Your Own:

*Front axle (be it a Dana 60 from an ’05-’07, ’08-’10 or ’11-’16)
*Coil springs (be advised that different factory spring rate coils exist:
*Different spring rates by code:
ACD = 4,000-lb
ADD = 4,400-lb
AED = 4,800-lb
AFD = 5,200-lb
AGD = 5,600-lb
AHD = 6,000-lb
*Radius arms
*Track bar
*Sway bar with end links
*Steering components from the pitman arm down
*Rear axle (can be a ’99-’16 10.5-inch, but the ’05-’16 is preferred because of the larger brakes)
*Appropriate height rear blocks
*Source new power steering lines
*Shorten the steering linkage/pitman arm or purchase aftermarket
*Fabricate a new track bar mount or purchase aftermarket
*Decide if you want to control the 4-way disc brakes via vacuum pump or if you want to convert to hydroboost
*Source different length brake lines

SOURCES

1023 Diesel & Fleet
833.773.1023
1023diesel.com

Andy’s Garage Service
573.431.2626

Blowing Diesel
blowingdiesel.com

Complete Performance
409.383.6004
cpaddict.com

Icon Vehicle Dynamics
951.689.4266
iconvehicledynamics.com

Riffraff Diesel
541.879.1052
riffraffdiesel.com

RYD Motorsports
604.210.5170
rydmotorsports.com

FREQUENTLY ASKED QUESTIONS

Are there any customer reviews available for the Ford OBS 05+ Axle Swap Kit?

Customer Reviews for the Ford OBS 05+ Axle Swap Kit

Overall Rating

4.85 out of 5 (Based on 26 reviews)

Detailed Customer Feedback

Jacob D. (10/11/2024)
- Installed the kit on a ’94 Bronco with a 5.8 engine.
- Quality of the kit and hardware was impressive.
- Note: Required bracket modifications for a perfect fit on a 1/2 ton frame.
Zachary Freeman (09/09/2024)
- Praises the craftsmanship and weld quality of the front axle swap kit and cross member.
- Commends swift shipping and top-notch customer service.
- Appreciates detailed support from the company owner when contacted.
Mason (08/15/2024)
- Expressed excitement for installation, highlighting aesthetic appeal.
Michael Barrett (07/25/2024)
- Pleased with the axle swap kit’s fitment and technical support.
- Proudly notes product origin.
Josh Masaschi (07/18/2024)
- Successfully used the kit for swapping axles on a ’97 F350 with those from an ’09.
- Found instructions user-friendly and parts well-crafted for seamless integration.
- Praises the transformative ride quality and exceptional customer support.

These reviews showcase high customer satisfaction with the Ford OBS 05+ Axle Swap Kit, highlighting the product’s quality, ease of installation, and excellent customer service.

Is the axle swap kit intended for off-road use only?

Yes, the axle swap kit is specifically designed for off-road use. These kits are engineered with the rugged demands of off-road adventures in mind, enhancing the durability and performance of vehicles traversing tough terrain.

Why It’s Suitable for Off-Road

Enhanced Durability: The components are crafted to withstand the harsh conditions of rocky trails and uneven surfaces, ensuring longevity and reliability when the going gets tough.
Improved Performance: Off-road trails often present unique challenges, like steep inclines and sudden drops. The axle swap kit offers improved articulation and ground clearance, which is crucial for tackling such obstacles effortlessly.
Custom Modifications: These kits allow for extensive customization, letting users tailor their vehicles specifically for off-road adventures. Features like increased tire clearance and reinforced axle shafts are just some enhancements that improve off-road capability.

Considerations for Road Use

Legal Restrictions: Many regions have regulations that restrict the use of certain off-road modifications on public roads due to safety standards. It’s essential to check local laws if you intend to use a vehicle with this kit on paved roads.
Ride Comfort and Handling: While excellent for rough terrains, these kits might affect on-road ride comfort and handling, making them less ideal for everyday road use.

In summary, the axle swap kit is ideally suited for those who prioritize off-road excursions. If your adventures often lead you off the beaten path, this kit is an excellent choice. However, always ensure compliance with local vehicle regulations if you plan to occasionally hit the highway.

Is there a downloadable installation guide available?

Absolutely, you can access a downloadable installation guide to assist with your setup. This guide offers detailed instructions to ensure a smooth and hassle-free installation process.

Here’s what you need to know:

Step-by-Step Instructions: The guide walks you through each crucial step, providing clarity and helpful tips to prevent any potential hiccups.
Visual Aids: With diagrams and illustrations, you’ll find it easier to understand and follow the procedures.
Compatibility Details: Check which third-party brands and components are supported, ensuring your installation is successful from the start.
Quick Access: Download the guide directly to your device for easy reference, even while offline.

Install with confidence by downloading your comprehensive installation guide today!

What are the specific customer feedback and experiences with the axle swap kit?

Customer Feedback and Experiences with the Axle Swap Kit

Overall Impressions

Customers are generally delighted with the quality and craftsmanship of the axle swap kit. Common praises include top-notch materials and welding, making the products stand out in terms of durability and finish. The hardware is designed with precision, ensuring a solid fit and enhancing vehicle performance.

Installation Experiences

Feedback indicates varied installation experiences depending on vehicle models. For instance, users installing the kit on a 1994 Bronco with a 5.8 engine noted that, while possible, it required custom fabrication for certain brackets. Nonetheless, the kit seems to fit perfectly for other vehicles such as the Ford F350, particularly models from 1997upgraded with 2009 parts, with straightforward instructions and alignment with existing frame holes.

Customer Service

Customer service receives high marks across a range of reviews. Buyers appreciate the responsiveness and expertise of the support team, highlighting the ability to speak directly with knowledgeable staff. This personalized assistance helps customers navigate both installation intricacies and any required additional components.

Additional Observations

Ease of Installation: Many find the kit user-friendly, with comprehensive instructions that make the process smoother.
Product Longevity: The “Made in the USA” label reassures users about product quality and supports domestic manufacturing.
Immediate Performance Improvement: Users have noted a significant enhancement in ride quality post-installation.
Positive Recommendations: Several reviewers enthusiastically recommend the kit and express intent to make future purchases.

Shipping and Delivery

Customers report efficient shipping processes, often receiving the kit within a week of purchase. This prompt service adds to the overall positive buying experience.

This mix of high-quality product features, effective customer service, and real-world vehicle improvements leaves a strong impression, encouraging many to return for additional purchases.

Can the kit be used for both 2WD and 4WD vehicles?

Absolutely, the kit is designed to accommodate both 2WD and 4WD vehicles.

Features

Versatile Compatibility: Whether your vehicle is 2-wheel drive or 4-wheel drive, this kit has you covered.
Customizable Options: Before adding to your cart, simply select your vehicle’s drivetrain type to ensure optimal performance and fit.

Simple Selection Process

Identify Your Vehicle Type: Determine if your vehicle is 2WD or 4WD.
Make Your Choice: Select your preferred drivetrain option from the dropdown menu during the purchase process.

This ensures that you’ll receive components tailored specifically to your vehicle’s needs. Enjoy the flexibility without compromising on quality!

What is the overall customer satisfaction rating for the axle swap kit?

The axle swap kit has received an impressive overall customer satisfaction score, with an average rating of 4.85 out of 5 stars based on feedback from 26 reviewers.

What are the return and cancellation policies for the axle swap kit?

Return and Cancellation Policies for the Axle Swap Kit

When purchasing the axle swap kit, it’s important to be clear on both our return and cancellation policies.

Return Policy

Custom Creations: Each axle swap kit is crafted specifically for your order. Due to this customization, all sales are final. We do not offer returns or refunds on these products.

Cancellation Policy

Request Process: If you need to cancel your order, please submit a cancellation request before your product is shipped.
Acknowledgment Required: Ensure that your request is acknowledged to confirm the cancellation process.
Cancellation Fee: Be aware that a 5% fee will be applied to all cancellation requests. This covers processing and any inconvenience caused during the order fulfillment phase.

Being informed of these policies ensures a smooth purchasing experience and helps manage expectations regarding transaction changes. If you have any further questions, feel free to reach out for assistance.

What is included in the Ford OBS 05+ Axle Swap Kit?

Stock height fabricated coil buckets (pictured)
Radius arm frame brackets
Track bar bracket
Sway bar brackets
Pitman arm (which has been machined to accept Super Duty steering)
Grade 8 hardware

This comprehensive kit ensures that each component is tailored to fit seamlessly with your existing setup. By focusing on compatibility with factory parts, the swap process is not only simplified but also maintains the integrity and performance of your vehicle’s suspension and steering systems. Whether you’re upgrading or replacing, this kit provides all the essentials for a smooth transition to the ‘05+ axle configuration.

Is there an emphasis purely on what is included, without additional context?

The focus is strictly on listing the items in the kit, providing a clear and concise inventory without further narrative or context.

Are there any additional components not mentioned in your article?

The inclusion of coil buckets and radius arm brackets is noted, without specifying design or height details, suggesting a potential broader interpretation of the kit content.

What components are included in the kit?

The kit contains components such as coil buckets, radius arm brackets, a track bar bracket, sway bar brackets, a pitman arm, and Grade 8 hardware.

Which vehicles are compatible with the Ford OBS 05+ Axle Swap Kit?

Today you’re no longer on your own, as several aftermarket companies offer complete kits to help simplify the conversion process. Among them is the aforementioned RYD Motorsports and Sky’s Offroad Design, as well as Blowing Diesel. The kit from Sky’s Offroad Design (shown) is designed for ’92-’97 F-250 and F-350 trucks and can be ordered to fit ’05-’16 Dana 60 axles (which are broken down into ’05-’07, ’08-’10, and ’11-’16 versions).

Compatibility and Modifications

Fits: 1992-1997 F250, F350
Additional Adjustments Needed For:
- F150, Bronco, and 1980-1991 2WD Trucks: May require additional holes drilled and a 1/4″ shim at the frame rail for the track bar bracket.
- ZF5 Trucks: Crossmember modification is necessary.
- Engine Crossmember: Minor trimming might be required for track bar clearance, ranging from 1/6″ to 1/4″.

These detailed specifications ensure you have all the information needed to determine compatibility and any required modifications for a successful swap, enhancing the ease of upgrading your vehicle with modern axle technology.

Are there specific models that do not require these modifications?

The 1992-1997 F250 and F350 models do not require these additional modifications for compatibility.

Is there any trimming required for track bar clearance?

Minor trimming of the engine crossmember might be necessary, ranging from 1/6″ to 1/4″.

Are there any specific modifications needed for ZF5 trucks?

Yes, ZF5 trucks require modifications to the crossmember.

What specific modifications are necessary for certain vehicles?

For the F150, Bronco, and 2WD trucks, additional holes must be drilled, and a 1/4″ shim may be needed at the frame rail for the track bar bracket.

Which vehicles require modifications for compatibility?

The F150, Bronco models from 1980 to 1991, and 2WD trucks need additional adjustments.

Is the axle swap kit recommended for certain applications or vehicle models?

Today you’re no longer on your own, as several aftermarket companies offer complete kits to help simplify the conversion process. Among them is the aforementioned RYD Motorsports and Sky’s Offroad Design. The kit from Sky’s Offroad Design (shown) is designed for ’92-’97 F-250 and F-350 trucks and can be ordered to fit ’05-’16 Dana 60 axles (which are broken down into ’05-’07, ’08-’10, and ’11-’16 versions).

Sky’s kit comes with stock height (and right and left) coil buckets, right and left radius arm frame brackets, right and left sway bar brackets, a panhard bar bracket, a machined flat pitman arm, and all necessary hardware. Everything is laser cut, CNC formed, welded to perfection, and the all-inclusive kit retails for $1,532.00.

Specific Vehicle Fitment and Modifications

Fits: 1992-1997 F250, F350
Additional Requirements:
- F150, Bronco, 80-91, and 2WD trucks will require additional holes drilled and may need a 1/4″ shim at the frame rail for the track bar bracket.
- ZF5 trucks will need the crossmember modified.
- Minor trimming to the engine crossmember might be required for track bar clearance (1/6″ – 1/4″).

This comprehensive kit not only provides everything you need for the swap but also outlines potential modifications, ensuring that buyers know exactly what to expect when fitting different vehicle models. Whether you’re working on a straightforward swap or tackling a more complex project, this kit aims to streamline the process while maintaining high quality and performance.

What specific adjustments might be needed for vehicle components?

Some vehicles might need minor trimming of the engine crossmember to ensure track bar clearance, with adjustments ranging from 1/6″ to 1/4″.

Are there any additional modifications required for certain models?

Yes, F150, Bronco, and 2WD trucks may require extra holes to be drilled and a 1/4″ shim added at the frame rail for the track bar bracket. Additionally, ZF5 trucks will need modifications to the crossmember.

Which specific vehicle models and years are compatible with the kit?

The kit is designed to be compatible with 1992-1997 F250 and F350 models. However, it can also be adapted for F150, Bronco, and 2WD trucks from 1980-1991 with additional adjustments.

Are there any modifications required for certain vehicle models when using the kit?

One of the complaints some high-horsepower OBS owners have with an ‘05+ Super Duty axle swap is the same front-end bouncing that occurs on ’05-newer trucks in four-wheel drive. To solve the problem, RYD Motorsportsoffers a short-arm four-link system. It keeps the front axle planted and improves stability and caster control during wheel travel. With a four-link system, you’re able to enjoy the improved ride quality the coil spring suspension provides without sacrificing traction during boosted, 4×4 launches.

However, when considering this upgrade, it’s crucial to be aware of the specific modifications needed for different vehicle models:

Compatibility Notes:
- Fits seamlessly with 1992-1997 F250 and F350 models.
- For F150, Bronco, and 80-91 2WD trucks, additional drilling is necessary. A 1/4″ shim at the frame rail may also be required for the track bar bracket.
- ZF5 trucks will need modifications to the crossmember.
- You might need minor trimming of the engine crossmember for track bar clearance, ranging from 1/6″ to 1/4″.

By addressing these specific requirements, you can ensure a smoother installation process, enhancing the performance benefits of your axle swap.

Is any trimming needed for the engine crossmember?

Yes, minor trimming may be necessary for track bar clearance, ranging from 1/6″ to 1/4″.

What modification is necessary for ZF5 trucks?

ZF5 trucks will require the crossmember to be modified.

What additional modifications are required for F150, Bronco, and 80-91 2WD trucks?

For these models, additional holes must be drilled, and a 1/4″ shim may be needed at the frame rail for the track bar bracket.

Which vehicle models does the kit fit without additional modifications?

The kit is compatible with 1992-1997 F250 and F350 models without requiring further changes.

What are the additional notes or considerations when purchasing the axle swap kit?

At a similar price point ($1,549.99), RYD Motorsports’ ‘05+ Super Duty axle swap kit is designed to retain and use all the factory parts from the ‘05+ suspension and steering in order to keep the swap process as straightforward as possible. The company’s kit includes stock height fabricated coil buckets (pictured), radius arm frame brackets, a track bar bracket, sway bar brackets, a pitman arm (which has been machined to accept Super Duty steering), and Grade 8 hardware. To minimize drilling, all brackets bolt in and locate using existing holes in the OBS frame.

Additional Considerations:

Raw Steel Shipping: The kit ships in raw steel, so be prepared for any necessary finishing or corrosion protection.
Drive Shaft Modifications: You might need to modify the drive shaft to fit the new setup, a crucial step for ensuring optimal performance.
Wheel Specifications: Your wheel bolt pattern will now be 8×170, requiring a minimum 17″ wheel. Check compatibility before purchase.
Customization Options: There’s no logo option available on the coil buckets. If preferred, leave a note under Order Special Instructions to request this.
Lead Time: Allow for a lead time of 1+ week when planning your project to accommodate for shipping and any unforeseen delays.

These additional notes are vital for ensuring a smooth installation process and achieving the best results from your axle swap kit. Planning ahead with these considerations will help you integrate the new components seamlessly into your vehicle.

What is the expected lead time for receiving the kit?

Allow for a lead time of at least one week before the kit is shipped.

Can I customize the appearance of the parts?

Yes, you can opt for no logo on the coil buckets by including a note with your order instructions.

What wheel specifications do I need to consider?

You will need to accommodate a wheel bolt pattern of 8×170, with a minimum wheel size of 17 inches.

Will any modifications be necessary?

Yes, you might need to modify the drive shaft to ensure proper fit and functionality.

In what condition will the kit be shipped?

The kit will be delivered in a raw steel condition, allowing for customization or finishing as desired.

Is there an option to add a crossmember to the axle swap kit?

What we really like to see is a company taking care of manual transmission OBS owners, and RYD Motorsports’ ZF-5 crossmember does exactly that. It’s designed to fit inside the frame rails of your OBS and use the same mounting holes as the company’s radius arms to ease the installation process. The crossmember loops over the top of the driveshaft, offers plenty of clearance, is CNC cut and bent, and is made from ¼-inch thick steel.

For those considering an axle swap kit, there is indeed an option to add a crossmember. Choose from:

BDD ZF5 Crossmember 2 1/4″ Center to center: An ideal fit for precise setups, priced at $549.99.
BDD ZF5 Crossmember 2 3/4″ Center to center: Offers slightly more flexibility in mounting, also priced at $549.99.

These options ensure that whether you’re looking for specific dimensions or robust support, the crossmember can be seamlessly integrated into your build, providing the perfect combination of strength and adaptability.

What is the cost of the crossmember add-on?

Each crossmember option is priced at an additional $549.99.

What are the specifications of the available crossmember options?

There are two crossmember options available with different center-to-center measurements: one at 2 1/4 inches and another at 2 3/4 inches.

Is there an option to add a crossmember?

Yes, the crossmember is available as an add-on option.

What is the return policy for products purchased?

Return Policy

Custom Creations:Each axle swap kit is crafted specifically for your order. Due to this customization, all sales are final. We do not offer returns or refunds on these products.
Made to Order:All our products, including the axle swap kits, are made to order. This means that once your purchase is confirmed, it is uniquely tailored to your specifications.
Final Sale:Please note that all sales are final. We are unable to accept returns or provide refunds. By focusing on custom manufacturing, we ensure each product meets our high standards, but this also necessitates a strict no-return policy.

This policy allows us to deliver personalized and high-quality products to our customers, ensuring satisfaction with every purchase.

Are there any exceptions to the return policy?

No, the policy is absolute, with no returns or refunds permitted under any circumstances.

Do all products have the same return policy?

Yes, the policy applies to every product since everything is custom-made per order.

What is the recommended procedure for swapping pinion holes in an axle swap?

Recommended Procedure for Swapping Pinion Holes in an Axle Swap

Swapping pinion holes during an axle swap can be a straightforward process if you follow these steps:

Understand Your Requirements:
- Identify whether you’re working on the rear or front pinion hole. This distinction matters for the type of components you’ll need.
For Rear Axle:
- Utilize the pinion hole from your existing rear axle. By reusing parts from the original setup, you maintain compatibility with the drivetrain.
For Front Axle:
- You’ll need a universal joint (U-joint) that bridges the size difference between the original and new pinion hole. Look for a U-joint that converts from a 1330 to a 1350 series. This ensures a tight fit and secure connection.
Installation Process:
- Remove the Original Pinion Flange:Carefully detach it by unscrewing any bolts or fasteners.
- Align the New U-Joint:Once the appropriate U-joint is selected, align it to fit both the existing driveshaft and the new pinion flange.
- Seal and Tighten:Ensure all components are properly sealed to prevent leaks. Secure all fasteners tightly to avoid any movement during operation.
Test the Setup:
- After installation, conduct a thorough test drive to confirm that the axle swap is functioning smoothly without any vibrations or noises.

Following these steps will help you successfully swap pinion holes in an axle swap, ensuring optimal performance and structural integrity.

How can one find the measurements for factory coil buckets during an axle swap?

To find the measurements for factory coil buckets during an axle swap, you can start by consulting online resources such as instructional videos or DIY guides. Search for videos that detail the process of positioning coil buckets, which can offer visual guidance and approximate measurements.

While exact measurements might not always be provided, these resources can give you a reference point. If you’re looking to improve the setup, consider using a 3/8” thick spacer plate to ensure the buckets are evenly spaced and aligned.

Steps you can follow:

Research Online Tutorials:Look for axle swap tutorials on platforms like YouTube that specifically cover your vehicle model and similar swaps. Many car enthusiasts share their experiences and tips, which can be invaluable.
Use Spacer Plates:Adding a spacer plate, such as a 3/8” thick one, can help in appropriately positioning the coil buckets. This trick can also aid in achieving better clearance and alignment.
Consult Vehicle Forums:Check automobile forums and communities for discussions and advice from those who have undertaken similar projects. These platforms often have members willing to share measurements or advice tailored to your vehicle’s make and model.
Hands-On Experimentation:When placing your coil buckets, a little bit of trial and error may be needed. Measure carefully and make adjustments as necessary to achieve the best fit.
Professional Assistance:If in doubt, consult with a professional mechanic who has experience with axle swaps for further guidance tailored to your specific vehicle needs.

By following these steps, you can successfully find and adjust the measurements for factory coil buckets during an axle swap.

Are there any problems with coil springs leaning during an axle swap?

Concerns About Coil Springs Leaning During an Axle Swap

When performing an axle swap, you might notice that coil springs can exhibit a slight lean. While this can be a common observation, many drivers have found that it doesn’t necessarily lead to immediate issues.

For instance:

Longevity: Vehicles have been known to operate smoothly for long periods, even with slightly leaning coil springs, sometimes lasting over 70,000 miles without significant impact on performance.
Performance: Generally, a minor lean in the coil springs should not drastically affect day-to-day driving or handling.
Maintenance: Regular checks are advised to ensure that the leaning doesn’t progress into a more severe alignment issue that could influence tire wear or handling.

Remember, if you do notice excessive leaning or any changes in your vehicle’s handling, it’s best to consult with a professional mechanic to ensure everything is in optimal condition.

What are the potential issues with using stock coil buckets during an axle swap?

Potential Issues with Stock Coil Buckets in an Axle Swap

When tackling an axle swap, particularly aligning with Super Duty configurations, there are a few considerations regarding stock coil buckets that you should keep in mind. Here’s a detailed look at potential issues and solutions:

Compatibility with Coil Springs
Stock coil buckets might face compatibility issues with certain coil springs. If you decide to use Super Duty coil springs, ensure they fit properly within the stock coil buckets to prevent misalignment or inadequate suspension support.
Leveling Challenges
You might encounter a need to level the front and rear suspension systems. This can arise due to variations in spring sizes or the different weights they handle during operation. Consider using adjustable coil spacers or air suspension kits to achieve a balanced stance.
Coil Spring Alignment
A significant concern is the potential for coil springs to lean at an angle when using stock coil buckets. This slight leaning is generally not a major problem but could affect ride quality over time unless addressed. Ensuring proper alignment during installation can minimize this issue.
Brackets and Supporting Components
To enhance stability, consider upgrading to aftermarket trac bar and radius arm brackets. These components can help maintain proper alignment, reducing strain on the coil buckets and springs.

By addressing these issues and considering aftermarket solutions where necessary, you can achieve a more efficient and well-functioning axle swap.

Is leveling needed between the front and rear suspension in an axle swap?

When performing an axle swap, it’s common to consider whether leveling is necessary between the front and rear suspension. Here’s a breakdown to help you decide:

Stock Coil Buckets: Assess the compatibility of the stock coil buckets with the new axle. Occasionally, modifications may be needed to ensure proper fitment and alignment, which could affect ride height.
Aftermarket Coil Springs: Upgrading or changing coil springs can significantly impact the vehicle’s stance. Many opt for aftermarket options like those from Superlift or Rough Country to achieve a balanced look. These springs can be selected based on desired ride height and load-bearing capacity, helping to level the vehicle if required.
Leveling Kits: If there’s a noticeable height difference after the swap, a leveling kit might be the solution. Kits are available that can raise the front or rear of the vehicle to achieve the desired stance. Consider adjustable coilover systems or spacers, which offer flexibility in leveling.
Wheel Alignment: After making changes, always conduct a comprehensive wheel alignment. This ensures not only that the suspension is balanced but that it also maintains proper handling and tire wear.

In conclusion, leveling is often needed in axle swaps, and there are multiple approaches depending on your specific vehicle needs and desired ride characteristics. Whether through coil springs, kits, or other adjustments, achieving the right balance is crucial for optimal performance.

Is it necessary to use a steering gear box from a Super Duty for an axle swap?

When considering an axle swap, it’s not strictly necessary to use a steering gear box from a Super Duty. Generally, the steering gear can remain as-is and function properly. However, for other components in the swap, utilizing Super Duty-compatible parts from reliable third-party brands is often recommended for optimal performance.

Here’s why:

Compatibility and Fit:Using parts designed for Super Duty can ensure better compatibility, reducing the risk of mechanical mismatches or installation issues.
Performance Considerations:Upgrading to SD parts often brings improved functionality and reliability, which is beneficial for handling the increased demands of a heavier axle setup.
Cost-Effectiveness:While steering gear might not require immediate replacement, investing in quality parts from reputable suppliers for other elements of the swap can prevent future expenses and maintenance issues.

In summary, prioritize SD-compatible parts for their benefits without overlooking the option to maintain your existing steering gear unless performance issues arise.

What are the considerations for choosing a track bar bracket during an axle swap?

Compatibility and Modifications

Fits:1992-1997 F250, F350
Additional Adjustments Needed For:
- F150, Bronco, and 1980-1991 2WD Trucks: May require additional holes drilled and a 1/4″ shim at the frame rail for the track bar bracket.
- ZF5 Trucks: Crossmember modification is necessary.
- Engine Crossmember: Minor trimming might be required for track bar clearance, ranging from 1/6″ to 1/4″.

Considerations for Choosing a Track Bar Bracket

Choosing the right track bar bracket is crucial for a successful axle swap. A high-quality bracket can make a significant difference in terms of durability and performance. It’s important to note that many track bar brackets will require modifications, such as trimming the front crossmember. This is a common requirement, so being prepared for such adjustments is essential.

What specific modifications are necessary for certain vehicles?

For the F150, Bronco, and 2WD trucks, additional holes must be drilled, and a 1/4″ shim may be needed at the frame rail for the track bar bracket.

Which vehicles require modifications for compatibility?

The F150, Bronco models from 1980 to 1991, and 2WD trucks need additional adjustments.

Are there any modifications required for certain vehicle models when using the kit?

One of the complaints some high-horsepower OBS owners have with an ‘05+ Super Duty axle swap is the same front-end bouncing that occurs on ’05-newer trucks in four-wheel drive. To solve the problem, a short-arm four-link system can be used. It keeps the front axle planted and improves stability and caster control during wheel travel. With a four-link system, you’re able to enjoy the improved ride quality the coil spring suspension provides without sacrificing traction during boosted, 4×4 launches.

However, when considering this upgrade, it’s crucial to be aware of the specific modifications needed for different vehicle models:

Compatibility Notes:
- Fits seamlessly with 1992-1997 F250 and F350 models.
- For F150, Bronco, and 80-91 2WD trucks, additional drilling is necessary. A 1/4″ shim at the frame rail may also be required for the track bar bracket.
- ZF5 trucks will need modifications to the crossmember.
- You might need minor trimming of the engine crossmember for track bar clearance, ranging from 1/6″ to 1/4″.

Understanding these considerations and modifications will help ensure a smoother installation process and enhance the performance benefits of your axle swap. Whether it’s selecting a bracket that minimizes the need for extensive modifications or preparing for potential adjustments, planning ahead is key to a successful project.

Are there alternative solutions if trimming or modifications are not preferred?

If trimming or modifications are not preferred, look for a track bar bracket specifically designed to fit your vehicle model without extensive alterations, or consult with a professional for custom solutions.

How can I achieve the correct angles with a track bar bracket?

Achieving the correct angles may require customization, such as modifying an aftermarket bracket, especially if a standard bracket like an SD bracket doesn’t align properly.

What should I do if standard brackets don’t fit correctly?

If standard brackets don’t fit correctly, consider modifying an aftermarket bracket to achieve the correct angles and positions. This can be a more effective solution than trying to force a standard bracket to work.

What are some common challenges when installing a track bar bracket?

A common challenge is the need to trim the front crossmember, as many brackets require this adjustment for proper installation.

Which brand of track bar bracket is recommended for quality?

Blowing Diesel is recommended for its high-quality track bar brackets, making it a reliable choice for vehicle modifications.

What modifications are required for the brakes during an axle swap?

With ‘05+ axles under your OBS, you’ll finally have bigger brakes and better stopping power. To ensure a seamless integration, the brakes on the axles are fine; however, you’ll need to get some hoses to connect to the rest of your system. This simple modification is crucial for maintaining functionality and safety during your axle swap.

You should decide early on if you want to control the 4-way disc brakes via vacuum pump (factory OBS) or if you plan to upgrade to hydroboost. This decision impacts how you connect and manage your braking system.

As a helpful hint, an F-Super Duty booster, power steering lines, return line, and the master cylinder and reservoir will all bolt right in, simplifying the upgrade process. Additionally, consider a front, 13.66-inch diameter EBC brake rotor intended for an ’06 F-250 Super Duty, which enhances braking performance.

By addressing both the necessary connection and potential upgrades, you ensure a successful and efficient axle swap, boosting both safety and performance.

What specific modification is needed to integrate the brakes with the existing system?

To connect the brakes to the rest of your system, you’ll need to acquire the appropriate hoses for integration.

Are the brakes on the axles themselves sufficient?

Yes, the brakes on the axles are in good condition and do not require additional modifications.

What options are available for a front U-joint conversion during an axle swap?

When you’re transferring over or selecting your rear leaf spring packs, keep in mind that correctly-sized blocks are the best way to achieve your target rear ride height. In direct factory ‘05+ axle and suspension swap-overs, we’ve seen the 3-inch rear blocks utilized the most.

For those tackling an axle swap, the front U-joint conversion is essential. You’ll need to transition from a 1330bc to a 1350 U-joint. A commonly recommended solution is using a Moog U-joint, which offers the necessary compatibility for this conversion. Identifying the right part number is crucial, so double-check specifications to ensure a seamless fit.

When it comes to the rear, consider swapping the pinion hole from your original rearend to match the new setup. This step, combined with the right rear leaf spring packs, will ensure a balanced and effective swap that enhances performance and ride quality.

So, whether you’re focused on achieving the perfect ride height or ensuring all components are in sync, precision in part selection and installation is key.

How does the front U-joint conversion compare to the rear?

The front conversion requires a U-joint change, whereas the rear conversion involves swapping the pinion hole from the original rear end, highlighting different approaches for front and rear axle modifications.

Is there a known part number for the front U-joint?

While the part number isn’t provided, it is suggested that finding the correct part number is achievable, and the writer plans to look for it.

What parts are needed for the front U-joint conversion?

For the front U-joint conversion, a specific Moog U-joint is required to transition from a 1330bc to a 1350 size.

What steering components are needed for an axle swap besides tie rods and ends?

Steering components from the pitman arm down should be carefully considered when planning an axle swap. While the steering gear itself is generally reliable, opting for high-quality parts is crucial to ensure optimal performance.

For everything else, it’s advisable to use components that match or exceed original specifications. This includes drag links, stabilizers, and any bushings or brackets involved. By choosing robust parts, you can maintain the integrity of your steering system and ensure that all components work harmoniously together.

In summary, focus on integrating reliable and compatible components to achieve a seamless axle swap experience.

What type of parts should be used for components other than the steering gear?

It’s advisable to use parts that meet the SD standard for all components aside from the steering gear.

What should be considered regarding the steering gear?

The steering gear is likely in good condition and does not require replacement or modifications.

What donor axles are needed for an axle swap from a 2005-2016 F-250/F-350?

Today you’re no longer on your own, as several aftermarket companies offer complete kits to help simplify the conversion process. Among them is the aforementioned RYD Motorsports and Sky’s Offroad Design. The kit from Sky’s Offroad Design (shown) is designed for ’92-’97 F-250 and F-350 trucks and can be ordered to fit ’05-’16 Dana 60 axles (which are broken down into ’05-’07, ’08-’10, and ’11-’16 versions).

For those tackling the swap themselves, understanding the donor axle requirements is critical. You’ll need a front Dana 60 from an F-250/F-350, specifically from the 2005 to 2016 models. Ensure you gather the necessary components:

Radius arms
Trac bar
Coils
Sway bar with links
Steering from the pitman arm down

These components work together to ensure a smooth conversion process. Additionally, keep in mind the 8×170 bolt pattern, which is essential for compatibility with your truck’s existing setup.

If you’re considering a different route, the 2005-2010 F-450 axle with a 10-lug pattern is an option. However, this choice requires a corresponding rear 10-lug dual rear wheel (DRW) axle to maintain balance and performance.

By combining these insights with the comprehensive kits available from trusted aftermarket suppliers, you can approach your axle swap project with confidence and clarity.

Are there alternative axle options?

Yes, an axle from an F-450 with a 10-lug pattern can be used, but it necessitates a compatible rear 10-lug dual rear wheel (DRW) axle.

What is the bolt pattern for the axle?

The required bolt pattern is 8×170.

What accompanying components are required with the axle?

You’ll need radius arms, a trac bar, coils, sway bar with links, and steering components from the pitman arm down.

What specific axle is needed for the swap?

The swap requires a front axle from a Dana 60, suitable for F-250 or F-350 models.

What is the installation process like for 2WD versus 4WD trucks?

One of the complaints some high-horsepower OBS owners have with an ‘05+ Super Duty axle swap is the same front-end bouncing that occurs on ’05-newer trucks in four-wheel drive. To solve the problem, a short-arm four-link system can be used. It keeps the front axle planted and improves stability and caster control during wheel travel. With a four-link system, you’re able to enjoy the improved ride quality the coil spring suspension provides without sacrificing traction during boosted, 4×4 launches.

However, when considering this upgrade, it’s crucial to be aware of the specific modifications needed for different vehicle models:

Compatibility Notes:
- Fits seamlessly with 1992-1997 F250 and F350 models.
- For F150, Bronco, and 80-91 2WD trucks, additional drilling is necessary. A 1/4″ shim at the frame rail may also be required for the track bar bracket.
- ZF5 trucks will need modifications to the crossmember.
- You might need minor trimming of the engine crossmember for track bar clearance, ranging from 1/6″ to 1/4″.

2WD Option: Minimizing Modifications

If you’re working with a 2WD OBS truck, some kits are designed to use as many of the factory frame holes as possible, reducing the amount of required drilling. Typically, installation on a 2WD setup means drilling only two holes per coil bucket and three per radius arm bracket—helping to save time and maintain frame integrity. The bolt tabs vary according to drivetrain: 2WD kits usually include two short tabs, while 4WD setups use one short tab and one long tab.

What are the specifications of the kit’s hardware and materials?

What sets RYD’s kit apart is its focus on durability and precision. All brackets are CNC cut from hefty 1/4-inch and 3/8-inch steel and expertly MIG welded, ensuring long-term strength and peace of mind for even the most demanding builds. The kit also thoughtfully includes bolt tabs tailored for both 2WD and 4WD applications—2WD setups receive two short tabs, while 4WD kits come with one short and one long tab—making it even easier to dial in a proper fit for your truck.
