Legend! That’s a powerful word that might be used a little to too often these days. When it comes to the DT466 diesel, though, it fits. Especially when you consider it came from users in the field before International’s marketing department got hold of it. The DT466 legend crosses into the industrial, agricultural and truck realms, but it was the medium-duty truck world where it made the biggest impact.

Development of the International Harvester 300 and 400 series engines started in   1967. The prime mover for the project was the VP of the Construction Equipment Division of International Harvester, Bill Wallace, who saw a need for a new line of in-house designed and built engines. The Construction Equipment Division had it’s own engine section and that put them a little at odds with International’s main engine plant in Indianapolis. Reportedly, Wallace had an uphill struggle to get money allocated for the program but lobbied hard and eventually succeeded by expanding the idea to cover the other IH divisions, many of which very much needed a diesel upgrade.

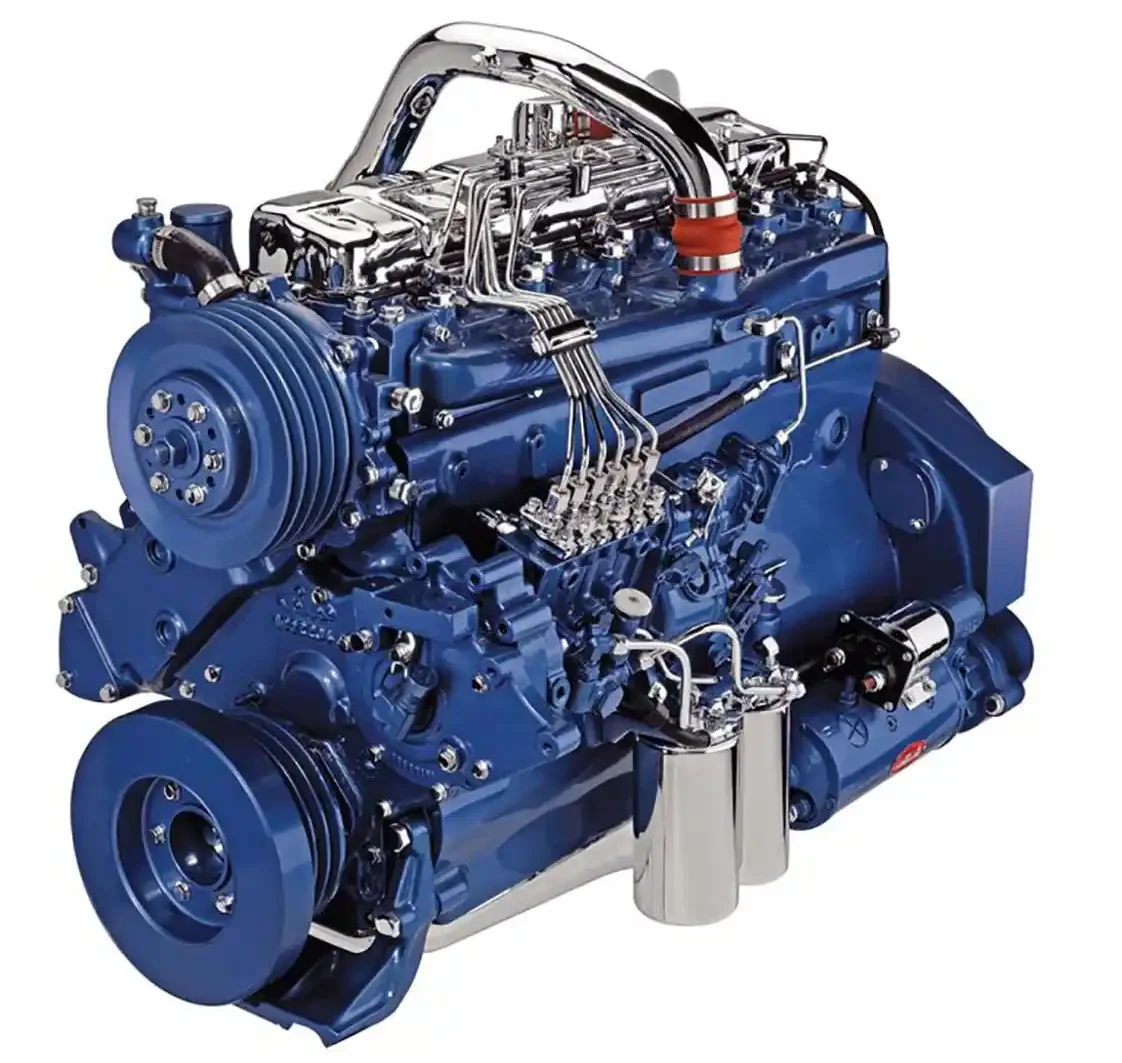

This gussied up DT466C is from the late 1980s. This would be either a 185 or 210 hp engine at 2600 rpm with a Bosch MW inline pump. A production engine wouldn’t have all the fancy blue Navistar paint and chrome.

The 300 and 400 lines are inexorably locked together, since they shared the same basic architecture, many parts and were built on the same tooling. The 300 line was more compact than the 400’s and shared a common bore of 3.875. It included the D312 (4.410-in stroke) and the D (Diesel, naturally aspirated) and DT (Diesel, Turbo) 360 (5.085-in stroke) diesels. The 400 line shared a 4.30-in bore and included the D and DT414 (4.75-in stroke), D and DT436 (5.00-in stroke) and the D and DT466 (5.35-in stroke). While the DT360 is a legend in its own right, we’ll save the details for another time.

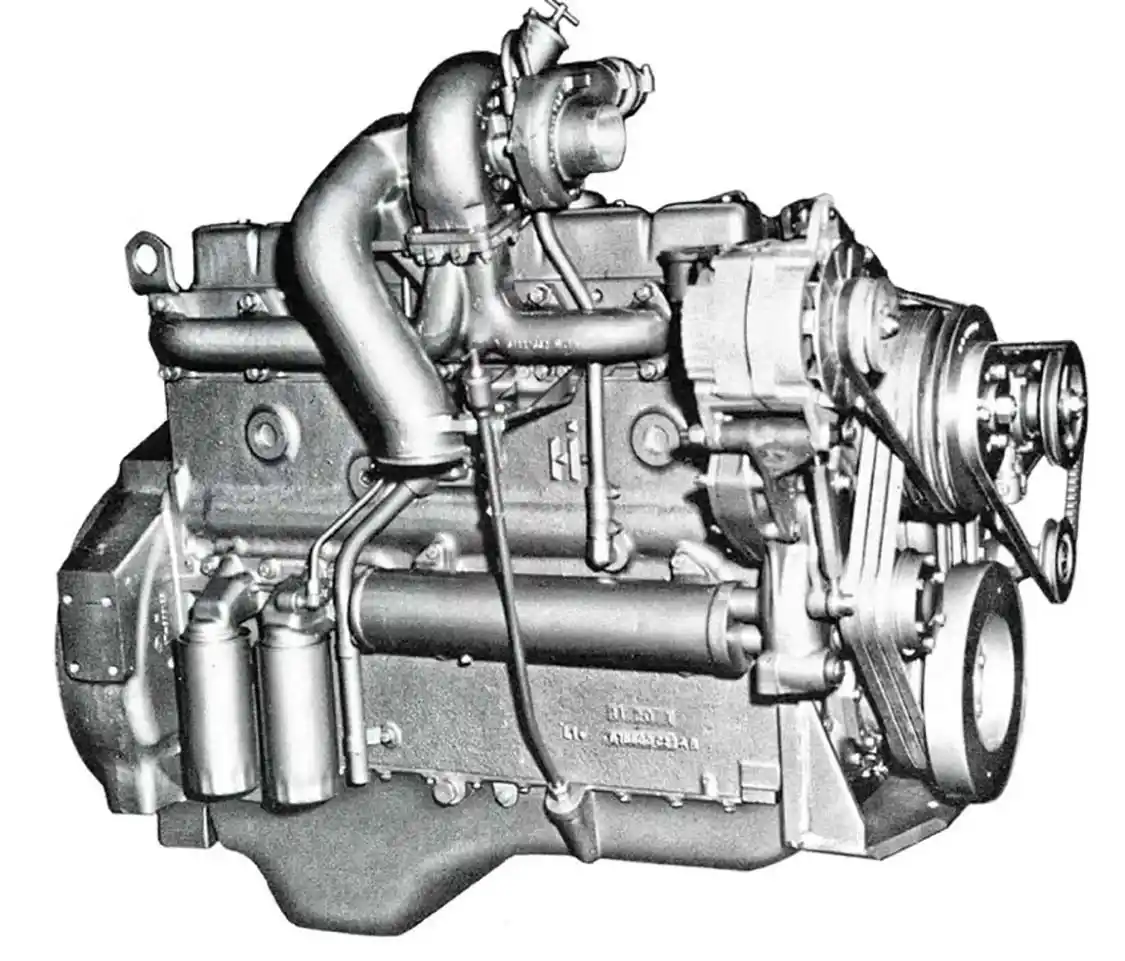

The ag and industrial engines were most often seen with high mounted turbos, while trucks most often had low mounted turbos. In this view, the water-to-oil oil cooler is visible along with the dual oil filters. This type of cooler was an important part of engine longevity because it not only cooled the oil but it warmed it as well. Getting the oil up to an optimal operating temperature quickly maintains good lube flow and avoids oil filter bypass. Given the date of this image, this engine is most likely related to the introduction of the DT466 into the IH 4366 four-wheel drive tractor. In early literature, these engines are often referred to as the “Turbotorque” engine.

Design features of the 300 and 400 series engines included grey iron blocks set up for plateau-honed wet sleeves of cast iron with a high chrome content. Plateau honing was relatively new for 1971 but added a lot to the durability and longevity, plus ensured a rapid break-in. The induction-hardened, forged steel crankshafts were supported by seven main bearings. They were direct-injected, looking ahead to the ever-increasing limits being placed on smoke and emissions. They were thoroughly modern and built on new tooling in the Melrose Park, Illinois, plant that was the home of the Construction Equipment Division. When they came on the market, it was an, “in your FACE” moment from International to the diesel engine manufacturing market.

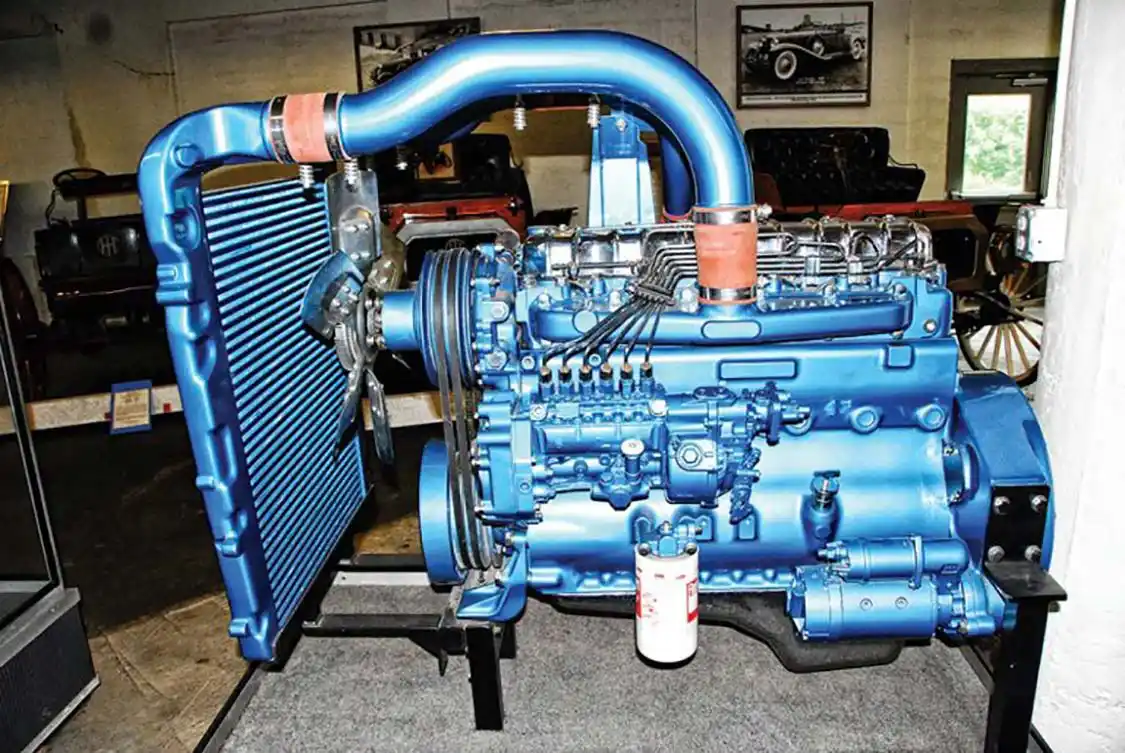

The exact build date of this DT466C display engine in the National Automotive and Truck Museum in Auburn, Indiana, isn’t known, nor it’s application. What’s interesting is that it mounts a P-pump. The typical DT466C of the early ‘80s was rated at 210 hp at 2600 rpm and ran up to 18.5 PSI boost at full power, but in truck applications, the Bosch MW pump was the usual fare. We aren’t clear on other applications, so this could well be a construction or ag application.

By the time the engines started production in 1971, the initial plan was for the 300 line and the 414 and 436 to be used mainly in the ag division, tractors and combines. The 466 was held back mostly for construction equipment, though that would soon change. Both naturally aspirated and turbo engines were offered, but Tom Lisak, who started as a Test Engineer on the 300/400 program and was later a Project Engineer, says the NA engines attracted little attention beyond the tractor market and very few were built.

Plans for the DT466 soon turned to the truck market and after a $500,000 tooling investment, it became an option for the Fleetstar, starting with January 1975 production. Later in the year, it became available in the Cargostar (COE) and Paystar. The DT466 was added to the Loadstar options list in the summer of 1976 as a premium upgrade over the naturally aspirated D150, D170 and D190 9.0L V8 diesels. The DT466 was more powerful, economical and reliable than the big V8 diesels and it could be overhauled in chassis.

Where is your art culture ration for the day. This artwork from International Harvester depicts two elements of their success and those two help the spun-off Navistar International company to survive and thrive. The DT466 and International medium-duty S-Series truck were an unbeatable combination.

The medium-duty market had been evolving towards diesels but the “just-right” engine had not yet been offered to make much of a stir. International had been offering a range of in house diesels over the years, like the D301, D358, DV462 and DV550 (later known as the 9.0L after some updates). Others came from outside, including Perkins, Cat, Cummins and Detroit Diesel engines. The idea of offering a premium wet-sleeved turbo-diesel in a medium duty line that could be overhauled in-chassis like a heavy-duty truck was a new one and IH hit paydirt with it. The DT466 soon became the engine to beat in the medium-duty arena.

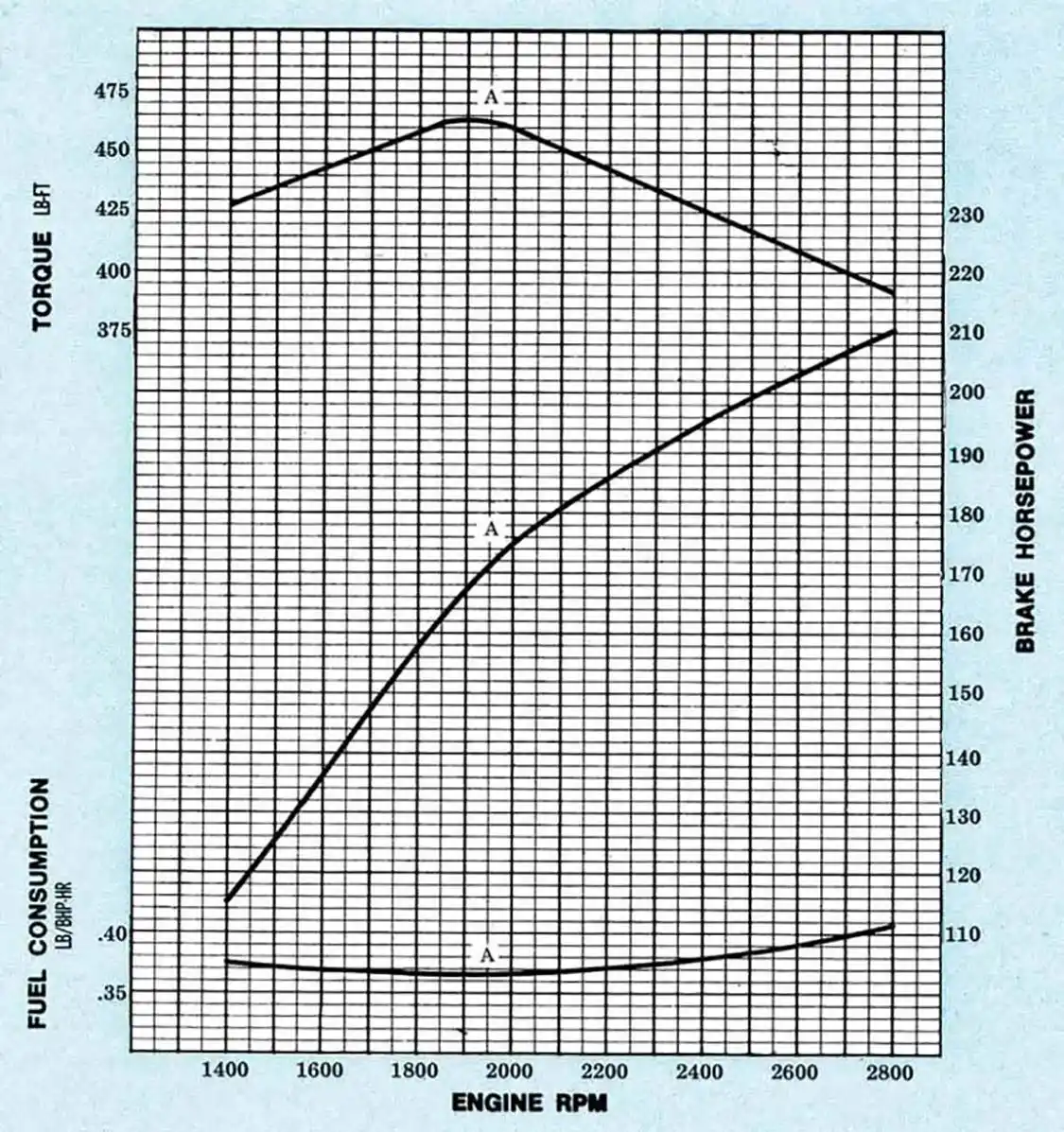

This is what the power and torque graph looked like for a 1974 era DT466 engine used in construction equipment. This engine was rated for 210 hp at 2800 rpm and 468 lbs-ft at 1900 rpm up to 10,000 feet. Compression ratio was 15.5:1 and the engine weighed in at 1,477 lbs. An AMBAC 100 pump was used with a TO4 turbo.

Going back to tractors, the 414 and 436 found immediate homes in the International tractor lines. The D414 debuted in the 1971 966 tractor. The DT414 debuted in the 1066, while the DT436 appeared in the 1466 and the 4166 four-wheel drive. The DT466 first appeared in the 1973 4366 four-wheel drive tractor, a co-development of IH and Steiger. All three of these engines had a history of stellar service in the IH tractor lines, even a little past when the ag side of IH was sold off and became Case IH. International Harvester was broken up into it’s component parts, with the truck and engine sections becoming Navistar International.

The DT466 had a large number of upgrades before it evolved completely away from mechanical injection in 1997. There were so many designations and power ratings that we’d need half the magazine to cover them all, so we’ll stick to the most common. The original DT466 iteration was built in 1977 and had a AMBAC Model 100 rotary pump. The two common ratings were 185 and 210 hp in trucks. When the DT466B appeared in 1977, the earlier engine became the DT466A by default.

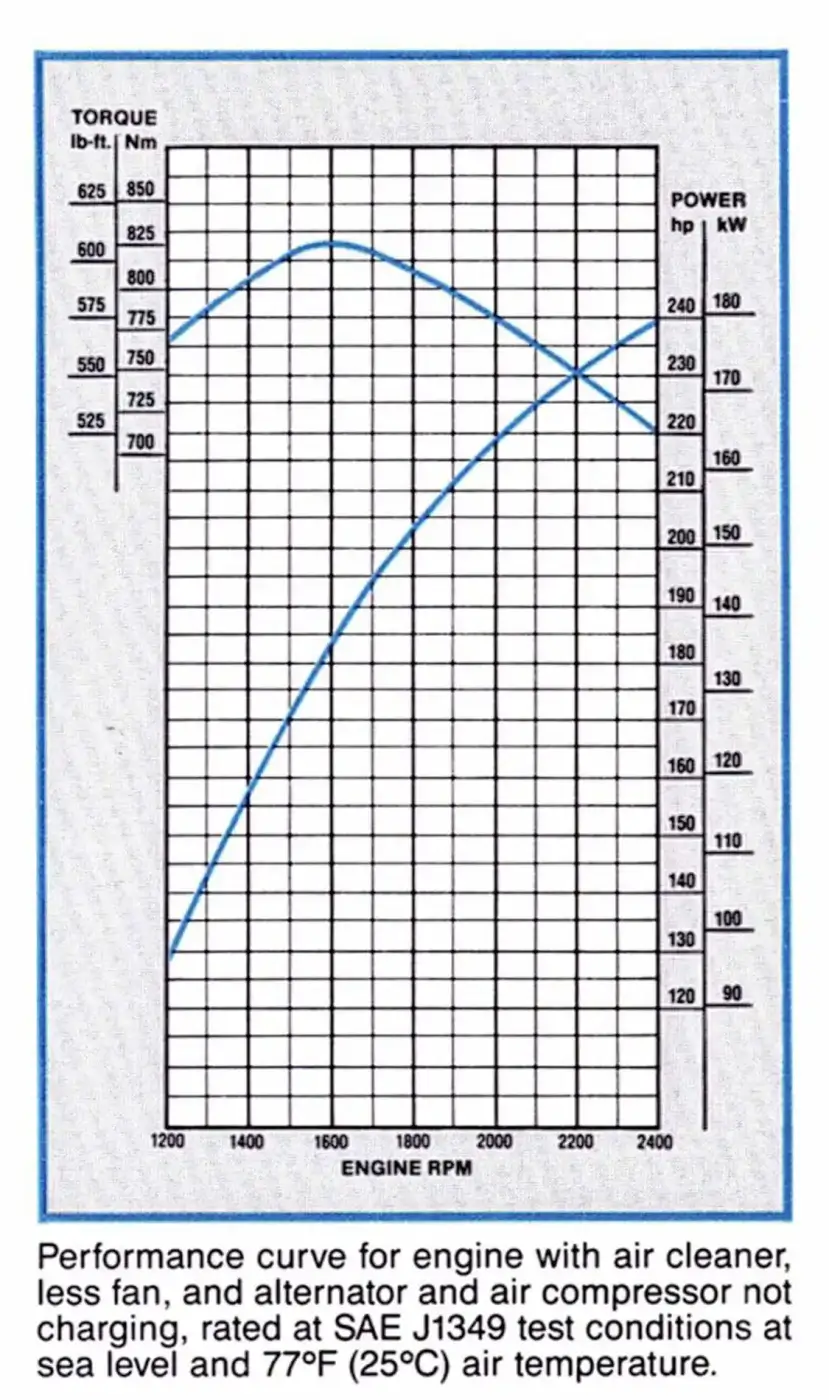

By 1987, a 40-stated DTA466C could be rated at 240 hp at 2400 and 609 lbs-ft at 1600. This engine used a Bosch MW pump and a TO4 turbo. Water pump flow was bumped up to 83 GPM vs 72 GPM on the earlier engines.

The DT466B emerged with some internal changes. One of them was a revised ring pack to reduce oil consumption using average quality oils. The compression ratio was bumped from 15.5:1 to 16.3:1 in the process, which was useful in cold starts for truck applications. Wider main and rod bearings were also added. Emissions controls entered the fray and the DTI466B (the “I” for intercooled) emissions-certified engines for California 466B used an air to water intercooler. The DT466B and DTI466B still used the AMBAC 100 pump and the number of ratings expanded to span 160-210 hp.

“The DT466 was the right engine at the right time”

In 1982, the DT466C was introduced. There were numerous small internal updates including larger diameter lifters and a higher-flow lubrication system. The injection pump changed to a Bosch MW inline and both turbo and turbo intercooled engines were offered. Two intercooled engines were offered in this line, the new air to air (DTA466C) and the precious DTI466C air to water system.

The original DT466 family underwent a major transformation for 1993 after several years of development. DT466PLN (NGD) was a major redo of the line. “NGD” stood for New Generation Diesel. The “PLN” in the designation stood for “Pump Line Nozzle,” which is a fancy, more technically correct name for a mechanically injected engine. Why the need to designate that? A new electro-hydraulic fuel injection system was about to debut.

Where is your art culture ration for the day. This artwork from International Harvester depicts two elements of their success and those two help the spun-off Navistar International company to survive and thrive. The DT466 and International medium-duty S-Series truck were an unbeatable combination.

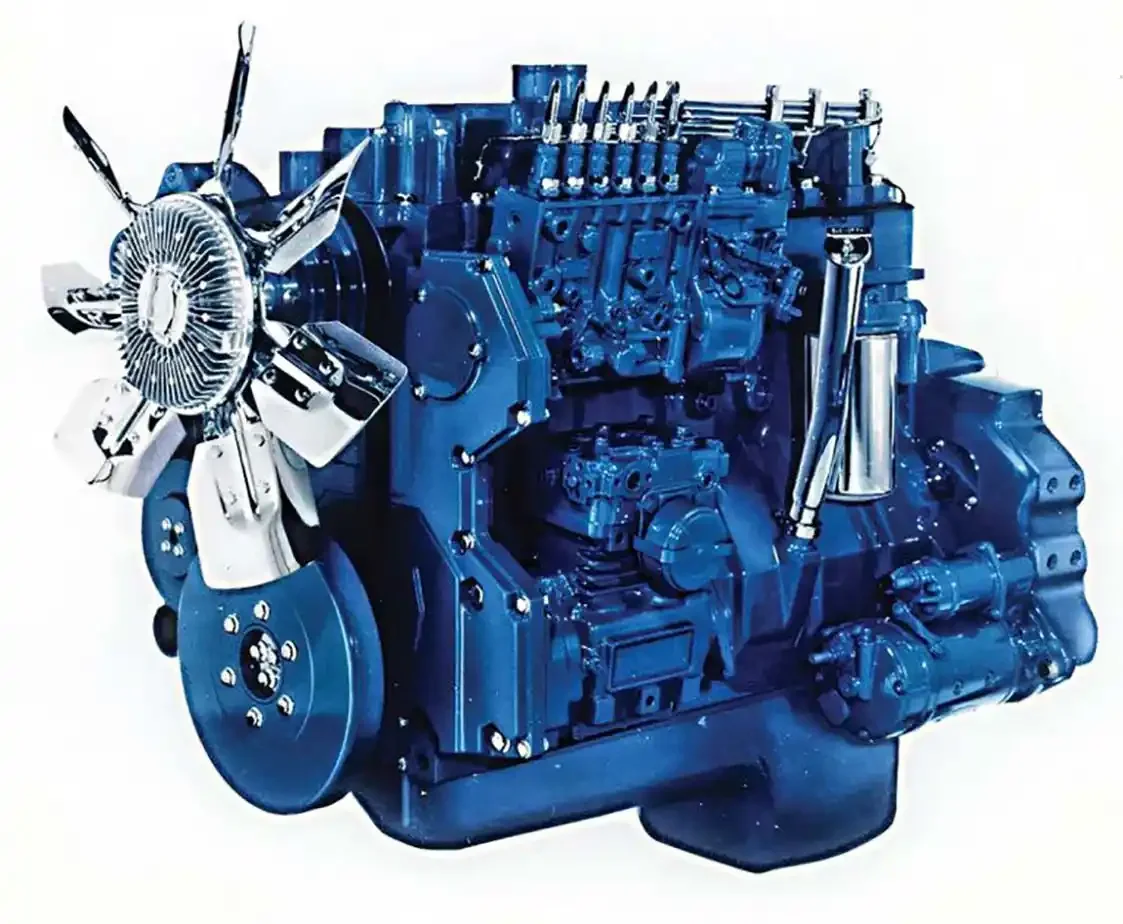

The NGD PLN engines had a high mounted pump and a cast, squared off valve cover with notches for the injectors. They used either a Bosch P3000 or P7100 inline injection pump. In this era, 1994 specifically, the DT466 mechanically injected family would see the highest rated output of 275 hp and 800 lbs-ft. The NGD update was accompanied by a smaller DT408 variant (4.301×4.680-inch bore and stroke) that replaced the DT360 and a larger I530 version (530ci, 4.59×5.35-inch bore and stroke) was added. All three engines were almost indistinguishable visually from each other. The new engines were mechanical initially but were mostly phased out by 1995. There were small numbers of PLN engines as late as 1997. What replaced them?

Emissions standards hit the diesel industry very hard in the late ‘90s. Navistar International had earlier joined forces with Cat to develop HEUI… Hydraulic Electric Unit Injectors- made most famous in the Navistar/Ford Power Strokes. As a result, in May of 1995, the DT466E was introduced, complete with a new head and HEUI, plus all the applicable NGD evolutions. In 2004, the G2 “Generation 2” injection system debuted, which was an improved and updated HEUI system. These morphed into the Maxx Force engines in 2006, but we aren’t going that far in this story.

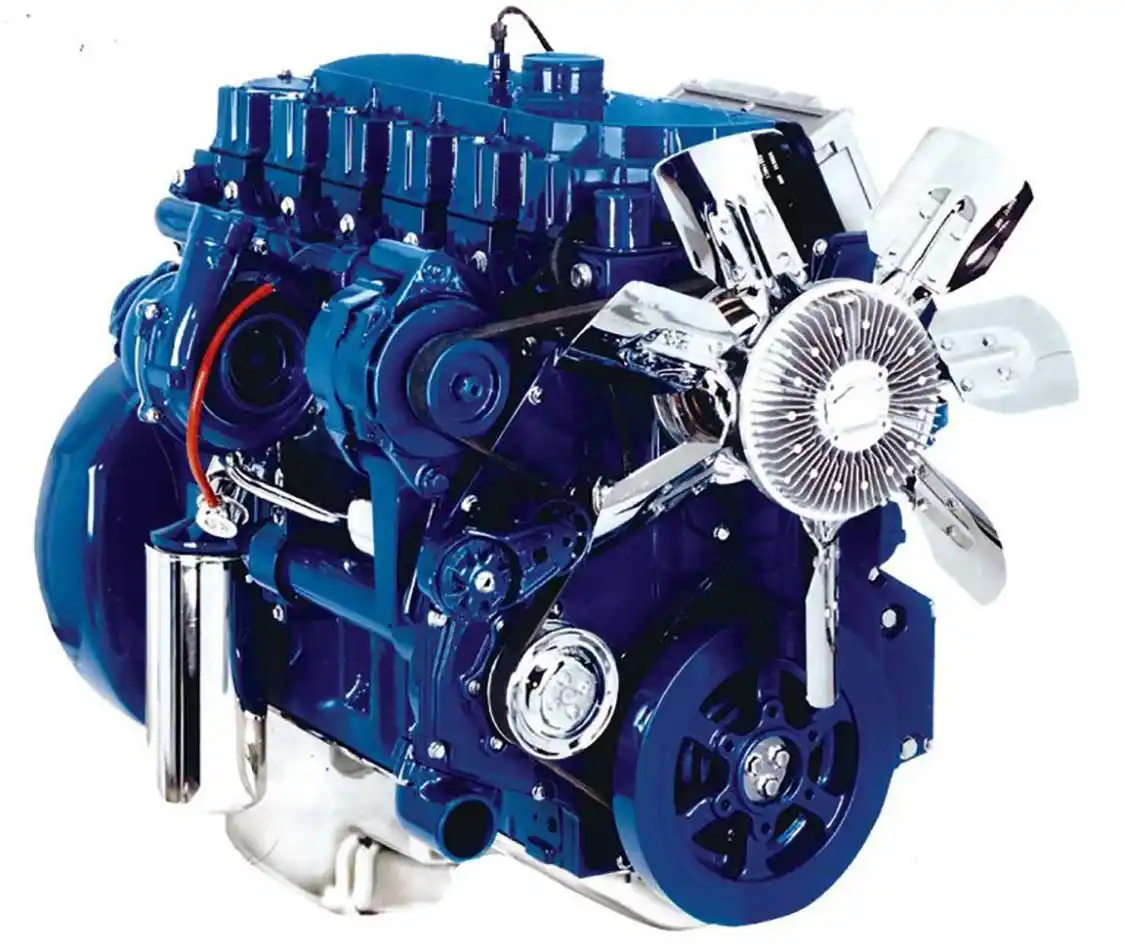

The DT466E had a HEUI injection system similar to that used on the Ford Power Stroke engine. The lower end featured all the upgrades introduced for the DT466P mechanically injected engines, but the front cover and head were new. Common output ranged from about 195 hp up to 250 hp. Later Maxx Forces engines would reach 300 hp.

The 300 and 400 Series, the DT466 in particular were solid engines. When introduced, they weren’t so far ahead of the technology curve to be glitchy but they were leaps ahead of the many legacy, old-school diesels still on the market. As a result, they started earning street cred immediately. More than anything, it was timing. The DT466 was the right engine at the right time. That it was so long lived, adaptable and upgradable gave it serious legs in the market and that’s why it’s descendants are still in production and so many DT466s are still earning their keep today.

SOURCES

NATIONAL AUTOMOTIVE AND TRUCK MUSEUM
NATMUS.ORG

NAVISTAR
NAVISTAR.COM

SOUTHLAND INTERNATIONAL TRUCKS LTD.
SOUTHLANDIT.COM




FREQUENTLY ASKED QUESTIONS

What are the specifications of the DT466 engine, including configuration, horsepower, and torque?

The DT466 engine is an impressive power unit with a variety of standout features. It boasts an inline-6, wet-sleeved configuration, which offers durability and ease of maintenance.

Key Specifications:
  • Horsepower:This engine delivers up to 300 horsepower at 2,200 RPM, providing substantial power for various applications.
  • Torque:It generates up to 860 lb-ft of torque at 1,300 RPM, ensuring strong performance and excellent pulling power.
  • Displacement & Dimensions:
    • With a displacement of 7.6 liters (or 466 cubic inches), the engine strikes a balance between size and performance.
    • Its design includes a cylinder bore measuring 4.59 inches and a piston stroke of 4.68 inches.
  • Fuel System:Equipped with direct injection, it optimizes fuel delivery for enhanced efficiency.
  • Valvetrain:The engine features an OHV (Overhead Valve) configuration with four valves per cylinder, contributing to its robust performance.
Production Details:

This model was actively produced from 1994 to 2006, reflecting a solid tenure in the market due to its reliable performance and engineering excellence.



What is the significance of the DT466 engine in the Navistar engine series?

The Significance of the DT466 Engine in the Navistar Series

The DT466 engine holds a legendary status within the Navistar engine line-up due to its remarkable endurance and performance. Known for its durability, this engine has been a reliable workhorse across various applications. Here’s a breakdown of what makes the DT466 stand out:

Endurance and Reliability
  • Built to Last: The DT466 is renowned for its long-lasting design and robust construction, making it a favorite in demanding industries like trucking and agriculture.
  • Ease of Maintenance: Its straightforward engineering allows for easy maintenance and repairs, reducing downtime and keeping operations running smoothly.
Performance Excellence
  • Consistent Power Delivery: The engine is celebrated for delivering consistent power and torque, essential for heavy-duty tasks and long-haul journeys.
  • Fuel Efficiency: Its efficient fuel usage adds to its appeal, helping businesses save on operational costs over time.
Versatile Applications
  • Multi-Industry Use: From buses to dump trucks, the DT466’s versatility makes it suitable for a wide range of vehicles and machinery.
  • Adaptability: Its design allows for upgrades and modifications, enhancing its utility in various environments.

The DT466’s combination of endurance, reliability, and superior performance has cemented its reputation within the Navistar series as a powerhouse engine, trusted by professionals across several sectors.



What is the reputation of the DT466 engine in terms of performance and reliability?

The DT466 was the right engine at the right time. That it was so long-lived, adaptable, and upgradable gave it serious legs in the market, and that’s why its descendants are still in production and so many DT466s are still earning their keep today.

A Legacy of Reliability and Performance

For over 25 years, this engine has built a reputation for excellence in key areas:

  • Longevity: The DT466’s enduring presence in the market speaks to its robust design and engineering.
  • Performance: Known for delivering consistent power, it has become a benchmark for what a diesel engine can achieve.
  • Reliability: It’s not just about power; the engine’s dependability has been proven over decades of continuous use across various applications.

This combination of factors has cemented the DT466’s status as a powerhouse in the diesel engine world, making it a trusted choice for countless users who demand efficiency and durability.



What is the historical background of the DT466 engine?

Development of the International Harvester 300 and 400 series engines started in 1967. The prime mover for the project was the VP of the Construction Equipment Division of International Harvester, Bill Wallace, who saw a need for a new line of in-house designed and built engines. The Construction Equipment Division had its own engine section, putting them somewhat at odds with International’s main engine plant in Indianapolis. Reportedly, Wallacehad an uphill struggle to get money allocated for the program but lobbied hard and eventually succeeded by expanding the idea to cover the other IH divisions, many of which very much needed a diesel upgrade.

By the time the engines started production in 1971, the initial plan was for the 300 line and the 414 and 436 to be used mainly in the ag division, tractors, and combines. The 466 was held back mostly for construction equipment, though that would soon change. Both naturally aspirated and turbo engines were offered, but Tom Lisak, who started as a Test Engineer on the 300/400 program and was later a Project Engineer, says the NA engines attracted little attention beyond the tractor market and very few were built.

Plans for the DT466 soon turned to the truck market. After a $500,000 tooling investment, it became an option for the Fleetstar, starting with January 1975 production. Later in the year, it became available in the Cargostar (COE) and Paystar. The DT466 was added to the Loadstar options list in the summer of 1976 as a premium upgrade over the naturally aspirated D150, D170, and D190 9.0L V8 diesels. The DT466 was more powerful, economical, and reliable than the big V8 diesels, and it could be overhauled in chassis.

The roots of the original DT466 can also be traced back to the late 70s when this robust diesel engine found its place in International Harvester’s S-Series truck platform. By 1984, the engine evolved into the International Navistarvariation, gaining widespread respect and attention from fleets across the nation. Known simply as “The Legend,” this title was well-deserved, signifying its reputation for reliability and performance. This evolution marked a significant milestone in diesel engine history, cementing the DT466’s place as a cornerstone of the industry.



How does the DT466 engine fit into the broader Navistar DT engine series?

The Navistar DT engine series offers a robust lineup of six mid-range diesel engines, with horsepower ranging from 130 kW (170 hp) to 260 kW (350 hp). These engines power medium-range heavy-duty vehicles like trucks and buses, providing the necessary strength and durability for demanding applications. Among these, the DT466 stands out as legendary, celebrated for its endurance and performance that have cemented its place in the annals of diesel engine history.

The DT466 had a large number of upgrades before it evolved completely away from mechanical injection in 1997. There were so many designations and power ratings that we’d need half the magazine to cover them all, so we’ll stick to the most common. The original DT466 iteration was built in 1977 and had an AMBAC Model 100 rotary pump. The two common ratings were 185 and 210 hp in trucks. When the DT466B appeared in 1977, the earlier engine became the DT466A by default.

By 1987, a 40-stated DTA466C could be rated at 240 hp at 2400 and 609 lbs-ft at 1600. This engine used a Bosch MW pump and a TO4 turbo.

The DT466B emerged with some internal changes. One of them was a revised ring pack to reduce oil consumption using average quality oils. The compression ratio was bumped from 15.5:1 to 16.3:1 in the process, which was useful in cold starts for truck applications. Wider main and rod bearings were also added. Emissions controls entered the fray and the DTI466B (the “I” for intercooled) emissions-certified engines for California 466B used an air-to-water intercooler. The DT466B and DTI466B still used the AMBAC 100 pump, and the number of ratings expanded to span 160-210 hp.

In 1982, the DT466C was introduced. There were numerous small internal updates including larger diameter lifters and a higher-flow lubrication system. The injection pump changed to a Bosch MW inline, and both turbo and turbo intercooled engines were offered. Two intercooled engines were offered in this line, the new air-to-air (DTA466C) and the previous DTI466C air-to-water system.

The original DT466 family underwent a major transformation for 1993 after several years of development. DT466PLN (NGD) was a major redo of the line. “NGD” stood for New Generation Diesel. The “PLN” in the designation stood for “Pump Line Nozzle,” which is a fancy, more technically correct name for a mechanically injected engine. Why the need to designate that? A new electro-hydraulic fuel injection system was about to debut.

The NGD PLN engines had a high-mounted pump and a cast, squared-off valve cover with notches for the injectors. They used either a Bosch P3000 or P7100 inline injection pump. In this era, 1994 specifically, the DT466 mechanically injected family would see the highest rated output of 275 hp and 800 lbs-ft. The NGD update was accompanied by a smaller DT408 variant (4.301×4.680-inch bore and stroke) that replaced the DT360 and a larger I530 version (530ci, 4.59×5.35-inch bore and stroke) was added. All three engines were almost indistinguishable visually from each other. The new engines were mechanical initially but were mostly phased out by 1995. There were small numbers of PLN engines as late as 1997. What replaced them?

Emissions standards hit the diesel industry very hard in the late ‘90s. Navistar International had earlier joined forces with Cat to develop HEUI—Hydraulic Electric Unit Injectors—made most famous in the Navistar/Ford Power Strokes. As a result, in May of 1995, the DT466E was introduced, complete with a new head and HEUI, plus all the applicable NGD evolutions. In 2004, the G2 “Generation 2” injection system debuted, which was an improved and updated HEUI system. These morphed into the Maxx Force engines in 2006, but we aren’t going that far in this story.

The DT466E had a HEUI injection system similar to that used on the Ford Power Stroke engine. The lower end featured all the upgrades introduced for the DT466P mechanically injected engines, but the front cover and head were new. Common output ranged from about 195 hp up to 250 hp. Later Maxx Forces engines would reach 300 hp.

The 300 and 400 Series, the DT466 in particular, were solid engines. When introduced, they weren’t so far ahead of the technology curve to be glitchy, but they were leaps ahead of the many legacy, old-school diesels still on the market. As a result, they started earning street cred immediately. More than anything, it was timing. The DT466 was the right engine at the right time. That it was so long-lived, adaptable, and upgradable gave it serious legs in the market, and that’s why its descendants are still in production and so many DT466s are still earning their keep today.

In summary, the DT466’s legacy within the Navistar DT engine series is marked by its adaptability, technological advancements, and robust performance, securing its role as a pivotal member of this esteemed lineup.



What are the common applications of the Navistar DT466 engine?

Development of the International Harvester 300 and 400 series engines started in 1967. The prime mover for the project was the VP of the Construction Equipment Division of International Harvester, Bill Wallace, who saw a need for a new line of in-house designed and built engines. The Construction Equipment Division had its own engine section, putting them somewhat at odds with International’s main engine plant in Indianapolis. Reportedly, Wallacehad an uphill struggle to get money allocated for the program but lobbied hard and eventually succeeded by expanding the idea to cover the other IH divisions, many of which very much needed a diesel upgrade.

By the time the engines started production in 1971, the initial plan was for the 300 line and the 414 and 436 to be used mainly in the ag division, tractors, and combines. The 466 was held back mostly for construction equipment, though that would soon change. Both naturally aspirated and turbo engines were offered, but Tom Lisak, who started as a Test Engineer on the 300/400 program and was later a Project Engineer, says the NA engines attracted little attention beyond the tractor market and very few were built.

Plans for the DT466 soon turned to the truck market, and after a $500,000 tooling investment, it became an option for the Fleetstar, starting with January 1975 production. Later in the year, it became available in the Cargostar (COE) and Paystar. The DT466 was added to the Loadstar options list in the summer of 1976 as a premium upgrade over the naturally aspirated D150, D170, and D190 9.0L V8 diesels. The DT466 was more powerful, economical, and reliable than the big V8 diesels, and it could be overhauled in chassis.

Common Applications of the DT466 Engine

The DT466 engine found its versatility and reliability appreciated across a variety of medium-duty applications. It became a popular choice for:

  • Buses:Offering durability and efficiency for public and private transit systems.
  • Box Trucks:Especially prevalent in moving trucks, providing the necessary power and reliability for frequent stops and starts.
  • Heavy Duty Trucks:Some models of heavy-duty trucks also utilized the DT466 for its robust performance.

This adaptability across different vehicle types underscored the engine’s reputation in the industry, making it a staple in several transport sectors. Such versatility ensured the DT466’s place not just in agricultural and construction equipment but also in the bustling world of commercial transport.
