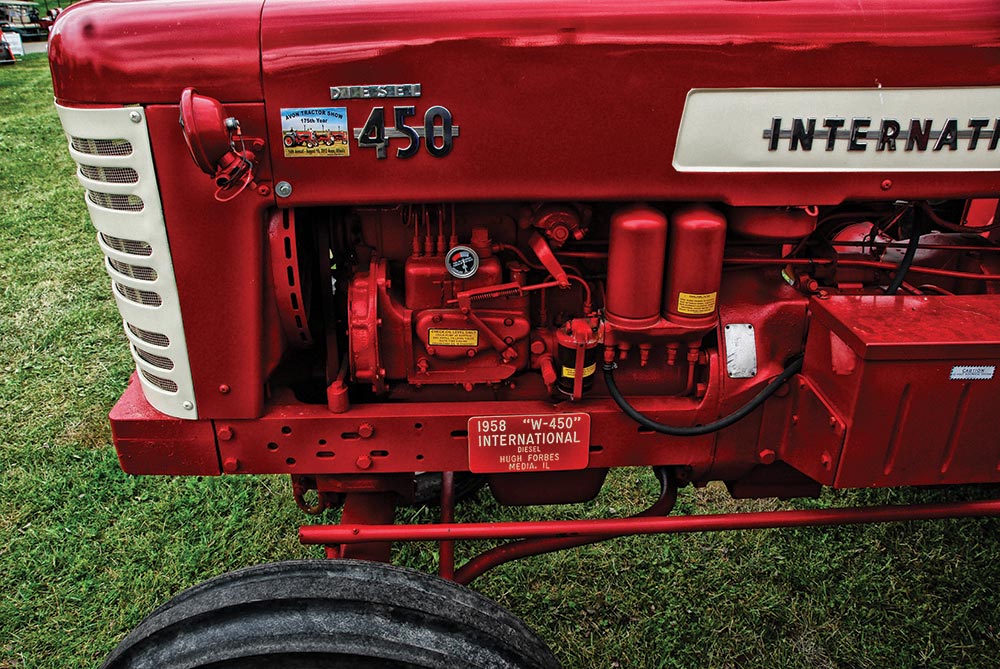

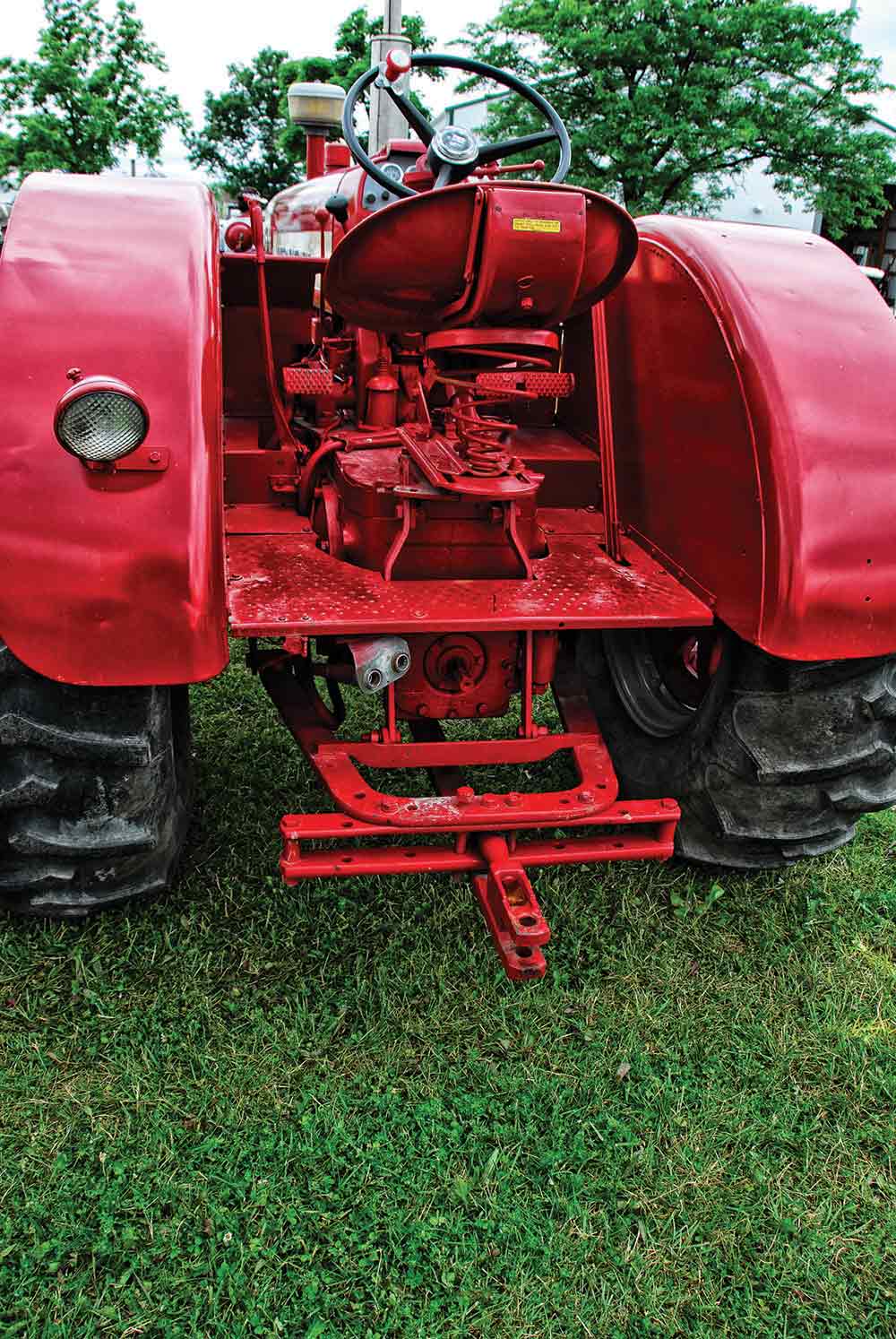

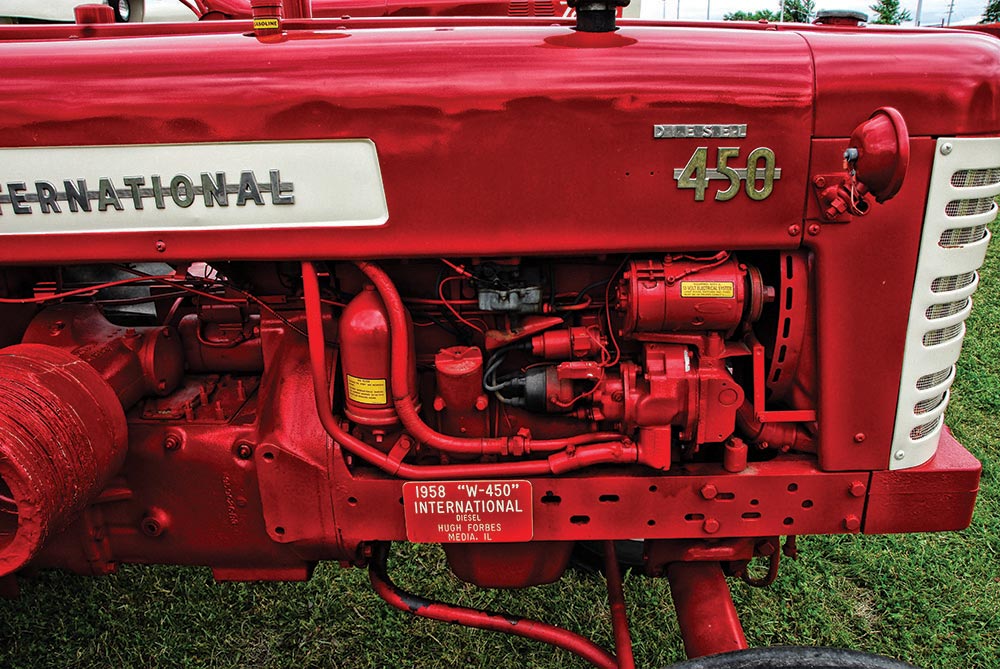

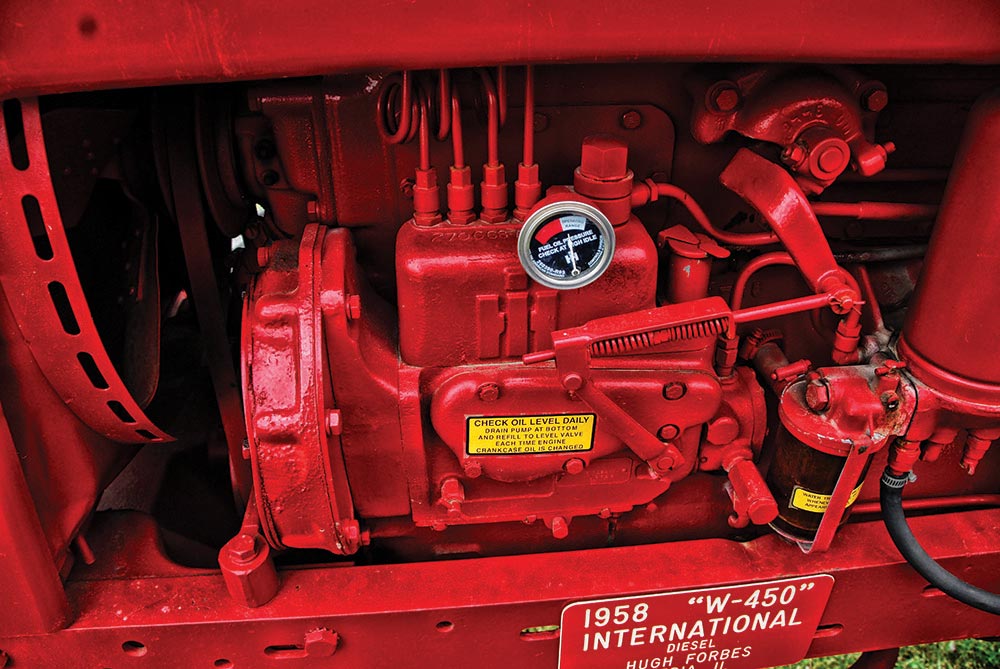

Up next Embracing the Diesel Lifestyle | Tucker Harris Published on November 07, 2023 Author Hemant Tiwari Share article Facebook 0 Twitter 0 Mail 0 TRACTOR TALK | The 1958 International W-450D Old Dubya! In 1958, International Harvester heralded a big update of the tractor line with the new, restyled hundred series. While there were major advancements in all areas, this evolution was one step forward and two steps back. Arch-nemesis John Deere was also poised for a makeover and when the new six cylinder IH tractors began having final drive failures in job lots, “Big Green” was able to knock IH off it’s top-dog sales pedestal. Among all the new gear that was introduced in ‘58, some of the old workhorses were still available. Among them was the International W-450. This was a legacy member of IH’s fixed-tread tractor lines of the early 1950s that had started as the W-6 in 1952, becoming the W-400 in 1955 and upgraded to the W-450 for 1957, with more power and a few other upgrades. It was heavy and built for tillage in a wheatland–style environment, even though it didn’t set the world on fire with its 49 PTO hp. That weight gave it a little extra grunt over its sibling, the Farmall 450 rowcrop, adjustable-tread tractor. The W-450 was built with gasoline, LPG or diesel powerplants. Typical of the fixed-tread units, it has a platform and rear entry for the operator. Also typical is a swinging drawbar and PTO. This tractor also has a Torque Amplifier, which spit the gears of the 5-speed transmission. Also ordered was a belt PTO on the right side of the tractor (not seen here). Production of the W-450D started in December of 1956 and continued into April of 1958, with a total of 1,108 units built. It wore the previous generation’s old style clothes and used the venerable D281 gas-start, four-cylinder diesel. This design had debuted in 1941 with the MD and had served International well. It started life as a 247 ci engine (3.87-in x 5.25-in. bore and stroke) then bumped to 263 ci by increasing the bore to 4 inches. A power upgrade came for ’57 by bumping the bore up another 1/8-inch and increasing the displacement to 281 ci. The result was a jump from 55 flywheel hp at 1800 rpm, to 60 hp at 1800 rpm, and a boost in torque from 188 lbs-ft. to 201, both at 1100 rpm. The tractor engines were run at lower rpms than 1,800; in the case of the W-450D, it was rated at 1,450 rpm and produced around 50 flywheel hp at that speed. Torque was about the same between the industrial/stationary engines and the ag units.Subscribe Our Weekly Newsletter This is the Diesel side of the UD-281 IH four, a design which was near the end of it’s run in tractors. When this tractor was built, the basic design had 17 years of service in the IH line, and the bugs were pretty well worked out. It started on gasoline with a tiny, fixed-venturi carburetor, a separate intake manifold and supplemental combustion chamber. The gas combustion chamber, with spark plugs and a distributor to fire them, was connected to the diesel combustion chamber by a manually opened 3rd valve (called the starting valve) that dropped the compression ratio from 17.45:1 to 6.6:1. The lever that controlled the starting valves also disabled the injection pump or the spark ignition distributor depending on position. When the engine was warmed enough on gas, you pulled the lever and, voila, instant diesel. The W-450 had a 5-speed transmission and many of them used IH’s new Torque Amplifier (TA). This device allowed clutchless shifting between a high and a low range that split the gears. Most W-450s were ordered with it, certainly the ones intended for farm use. The W-450 used for commercial or industrial use were most commonly seen without it. These tractors also had a standard hydraulic system. By this time, IH had dropped the McCormick-Deering or McCormick labels. The standard, fixed-tread, W-450 tractor wore an “International” nameplate, while the rowcrop, adjustable tread (or tricycle) Farmall 450 wore a “Farmall” Badge. The W- 450 had a big brother in the 650 model, with a 350 ci four cylinder diesel that made 75 hp at the flywheel and about 63 on the drawbar. The gas side of the engine shows the tiny carburetor and spark ignition system, driven through the hydraulic pump, run directly off the front of the engine. IH used their own inline injection pump, which they classified as single-plunger (four-cylinders) or twin-plunger (six cylinders). The “plunger” designation referred to the high pressure pump, which supplied pressure to each of the four delivery valves in the distributor block. It featured a fuel pressure gauge so the operator could monitor flow from the filters. It delivered a bit under 70cc and allowed a 1580 rpm high idle speed in tractors, The injectors popped at around 750 psi. There were at least three variations of this pump, this being on of the last used on the gas-start diesels. Bosch pumps were also seen, many of those going to export markets. Specifications 1958 International W-450 Engine: 4-cylinder diesel, IH UD-281 Displacement: 280.7 Bore & Stroke: 4.125 x 5.25 in. Manufacturer’s PTO Power: 47 hp Compression Ratio: 17.45:1 Transmission: 5-speed, with Torque Amplifier (5×2) Tires: Front- 6.50-18 Rear- 14-30 Weight: 6,500 lbs Fuel Capacity: 20 gal Top Speed: 11 mph SOURCE RED POWERROUNDUP 2017 www.ihccia.net Total 0 Shares Share 0 Tweet 0 Pin it 0 Share 0
