Cub Cadet 782D: Tractor Talk

The Cub Cadet line of garden tractors debuted in 1960 as “little brothers” to International Harvester’s compact Farmall Cub series. Originally to be called Cubette—a name that fell by the wayside in favor of Cadet—they were immediately popular and became a benchmark in the garden tractor segment. The Cub Cadet continued to be a high point all the way into the 1980s, a when a financially ailing IH had few high points to talk about.

By the summer of 1980, market issues, labor troubles, and serious errors in judgement management had put IH on the ropes. The light truck line had been killed five years previously in an effort to consolidate the company’s manufacturing efforts, and production of the legendary Scout was scheduled to end in late 1980 for the same reason. IH began the process of liquidating parts of the company in order to keep the core business alive. In the midst of all this, the Cub Cadet 82 Series made its debut.

The 82 line had been some years in the making, and was a substantial upgrade from previous models. There were five hydrostatic models, including the 482, 582, 682, 782 and 982, and some gear-drive units as well. These models are of little interest to us here because they were all powered by Brings & Stratton, Kohler, or Onan air-cooled gas engines. For diesel fans, things got interesting after IH sold the Cub Cadet line to MTD in 1981.

MTD was already a big player in the lawn and garden industry, but buying the well-known Cub Cadet line was an industry coup. For the first few years, MTD ran Cub Cadet as a wholly owned subsidiary, operated independently by the same people who had been running it for IH. Cub Cadet used most of the same production facilities and kept the model lines largely intact, though the 82 series, which had been introduced in IH red and black, reverted to Cub Cadet yellow and white with all IH badging removed. The biggest change was the company name, which became CCC, for Cub Cadet Corporation.

CCC immediately expanded their sales and marketing beyond IH dealers. However, but part of the sale agreement stated that they would supply IH with its own special line of Cub Cadet tractors that still wore red paint and IH red badging. As a result, some CCC model designations were changed to differentiate Cub Cadet tractors from those being produced for IH. This continued into 1985 and the time when IH ceased to be a corporate entity.

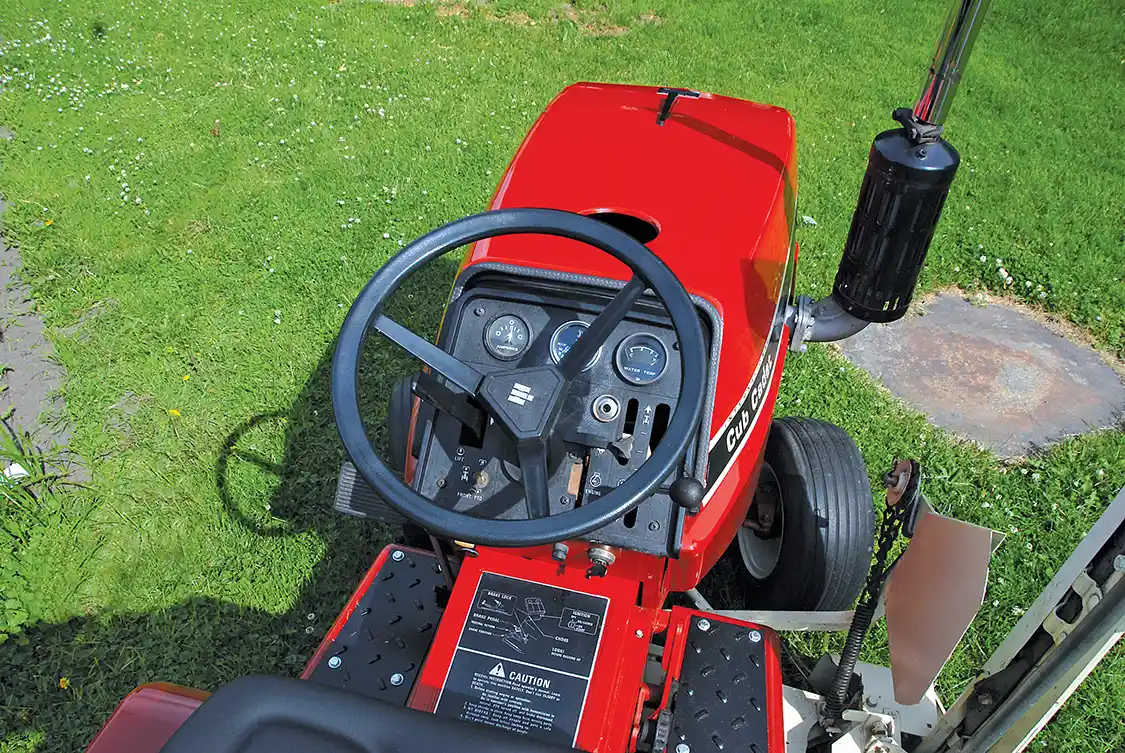

The 782D differs from most lawn tractors its size in having water temp and oil pressure gauges as well as a radiator and a fan. The Kubota diesel has a glow system, albeit an old school one, with a fourth glow plug mounted in the dash and observed through a sight hole just to the right of the steering column. The other controls are largely the same as the other 782s, and the fuel tank is located under the seat.
The 782D differs from most lawn tractors its size in having water temp and oil pressure gauges as well as a radiator and a fan. The Kubota diesel has a glow system, albeit an old school one, with a fourth glow plug mounted in the dash and observed through a sight hole just to the right of the steering column. The other controls are largely the same as the other 782s, and the fuel tank is located under the seat.

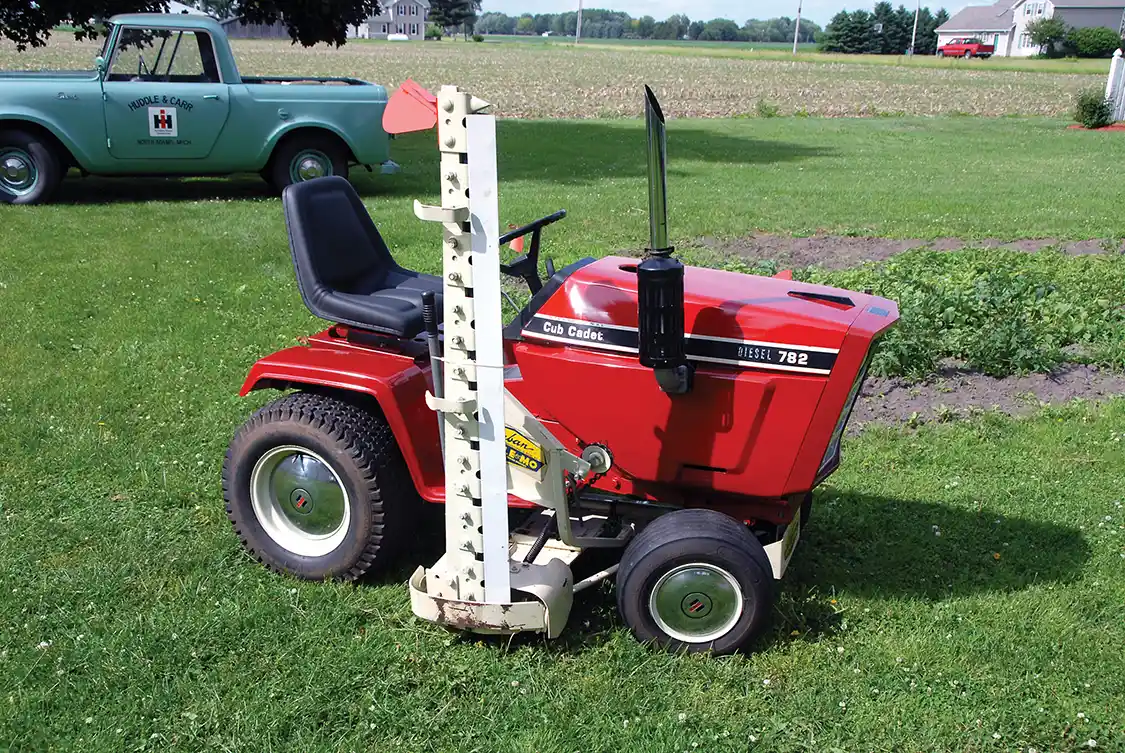

Herb Huddle’s 1984 782D Cub Cadet is a rare bird. It mounts a Model 402D Haban Sickle-Mo sickle mower, and yes, those snazzy hubcaps were part of the package. Some purists may note the incorrect hood from a gas machine, a fill-in until a proper diesel hood can be obtained. Also, the muffler is supposed to be pointing forward, not up, and with a short chrome extension. (This is the way Herb wanted it because it looks “tractory.”) Herb, former co-owner of an IH dealership, has a fantastic and esoteric IH collection, including the 1962 Scout in the background.
Herb Huddle’s 1984 782D Cub Cadet is a rare bird. It mounts a Model 402D Haban Sickle-Mo sickle mower, and yes, those snazzy hubcaps were part of the package. Some purists may note the incorrect hood from a gas machine, a fill-in until a proper diesel hood can be obtained. Also, the muffler is supposed to be pointing forward, not up, and with a short chrome extension. (This is the way Herb wanted it because it looks “tractory.”) Herb, former co-owner of an IH dealership, has a fantastic and esoteric IH collection, including the 1962 Scout in the background.

CCC ownership brought other changes to the 92 line, some subtle and others less so. The one that will be of the most interest to the black smoke crowd is the introduction of the 782D, the diesel-powered Cub Cadet. It wasn’t quite the first of its type, Deere having debuted the 318 diesel the year before, but it was certainly a pioneer in the field.

The 782D was introduced for 1984. It was built in both a Cub Cadet yellow version called the 882 and an IH red 782D for IH dealers. Both were largely the same as the standard gas versions, with power coming from a Kubota D-600B three-cylinder 36.61-cid (600cc) water-cooled diesel that produced a continuous 12.75 horsepower. The transmission was hydrostatic, IH being one of the pioneers in that technology back in the 1960s. The 782D could use a 38-, 44- or a 50-inch mower deck and there was a huge variety of available implements, including snowplows, snow blowers, sickle mowers, plows, tillers, sprayers, rotary brooms and generator attachments, to name just a few.

The IH red 782D is very likely one of the most collectible Cub Cadets out there. And that’s saying something, as Cub Cadets are one of the hottest lawn and garden collectibles out there and a big part of the IH scene. Generally speaking, the IH-built Cub Cadets are “more better” than similar CCC-built models, but the 782D transcends that. The 782D is the IH Cub Cadet that Cub Cadet fans always wanted but IH never built. DW

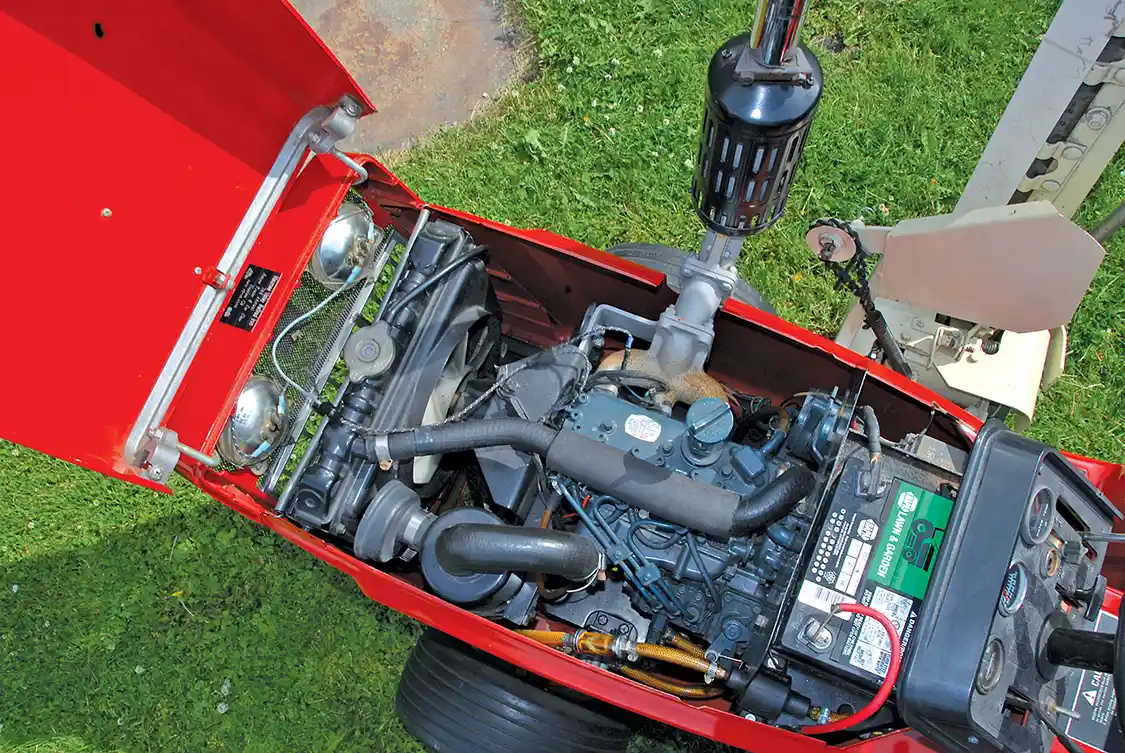

It’s small, but it's a real diesel! The water cooled Kubota D-600B is a tiny three-cylinder natural-aspirated indirect-injected engine that can make up to 15 intermittent horsepower at 3,600 rpm. It displaces almost 37 cubic inches and uses a Bosch MD mini-pump with Bosch throttle type injectors that open at 1,991 psi. The pump is fed at 7 psi from a 4-gallon tank via an electric pump. The crankshaft is supported by four main bearings and the cylinders are dry sleeved in the iron block. The engine assembly, including the radiator and fan, weighs 136 lbs. The only downside to the installation is that the lawn and garden-sized battery may not always be up to spinning the 23:1 CR diesel in cold weather; a block heater was optional and probably necessary when using the 782D for winter work.
It’s small, but it’s a real diesel! The water cooled Kubota D-600B is a tiny three-cylinder natural-aspirated indirect-injected engine that can make up to 15 intermittent horsepower at 3,600 rpm. It displaces almost 37 cubic inches and uses a Bosch MD mini-pump with Bosch throttle type injectors that open at 1,991 psi. The pump is fed at 7 psi from a 4-gallon tank via an electric pump. The crankshaft is supported by four main bearings and the cylinders are dry sleeved in the iron block. The engine assembly, including the radiator and fan, weighs 136 lbs. The only downside to the installation is that the lawn and garden-sized battery may not always be up to spinning the 23:1 CR diesel in cold weather; a block heater was optional and probably necessary when using the 782D for winter work.
