Upgrading Our LBZ Duramax With a PPE Engine Oil Pan

The PPE Oil Pan Upgrade Our LBZ Needed

Sometimes the best upgrades on a truck aren’t the ones that make more power; they’re the ones that help protect the parts you’re already asking a lot from. On the LBZ project, we’re already well past the point of leaving things alone, which means oiling, cooling, and serviceability matter just as much as the parts that make noise. That’s where PPE’s heavy-duty cast aluminum engine oil pan comes in.

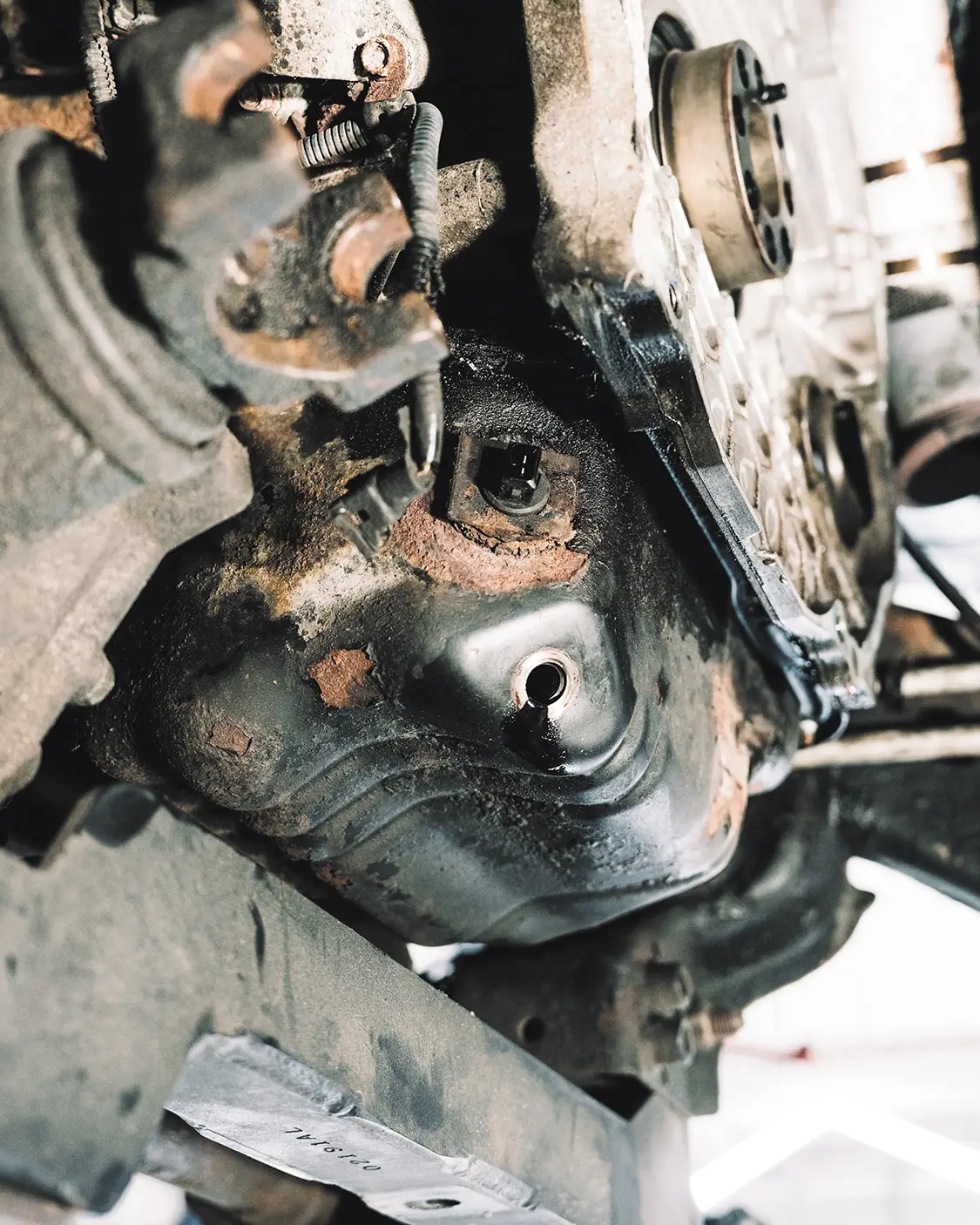

From the factory, the 2001–2010 Duramax uses a stamped steel lower oil pan. It works, but it’s not exactly exciting, and it has a couple of drawbacks. The factory pan doesn’t do much for heat dissipation, and the design can leave dirty oil behind during oil changes. That means fresh oil can immediately mix with some of the nastiest oil still sitting in the bottom of the pan, which isn’t exactly ideal when you’re trying to keep a hard-working Duramax happy. Also, a stamped steel pan is awesome in the southern states, but up north where I’m at, these get ugly really fast.

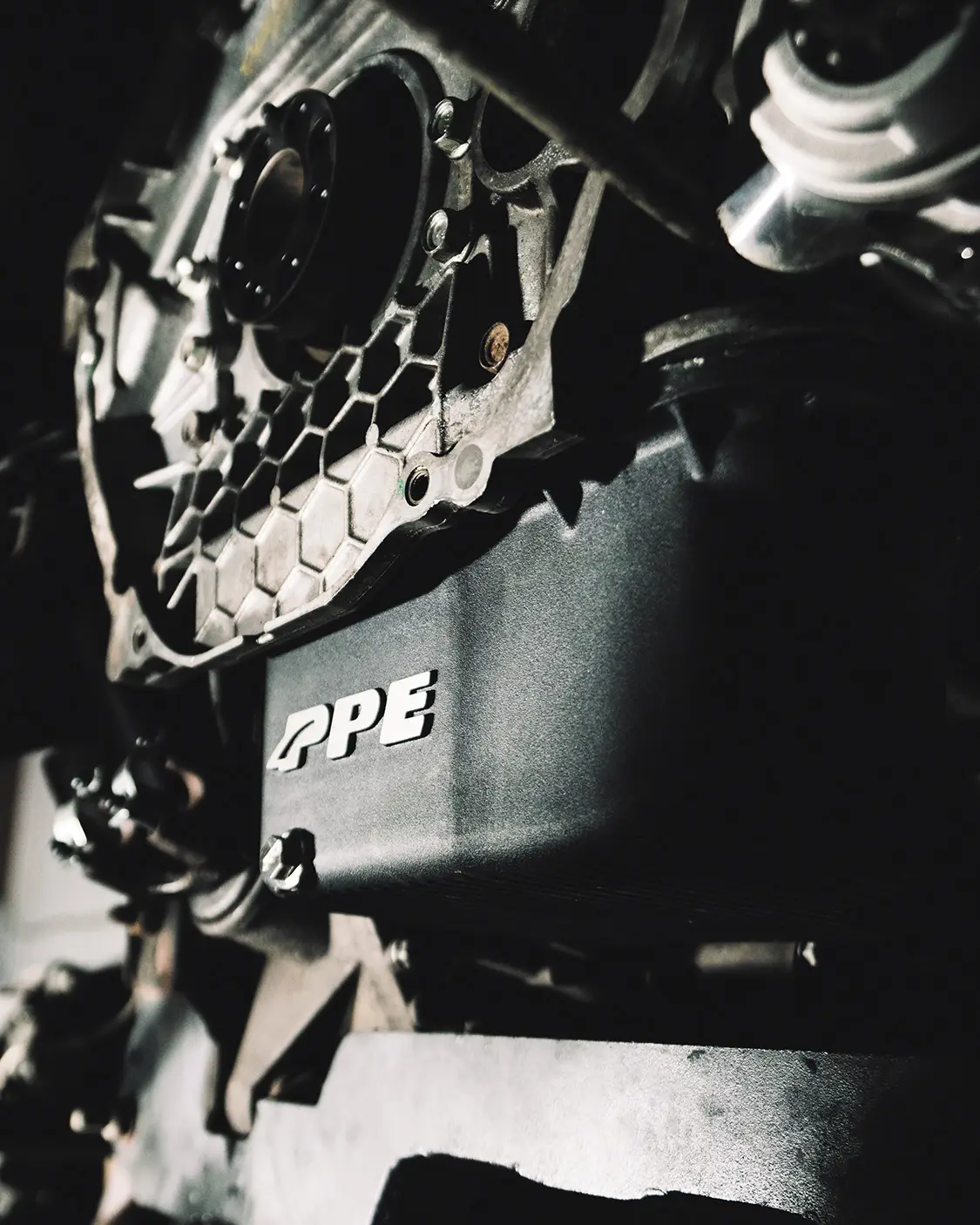

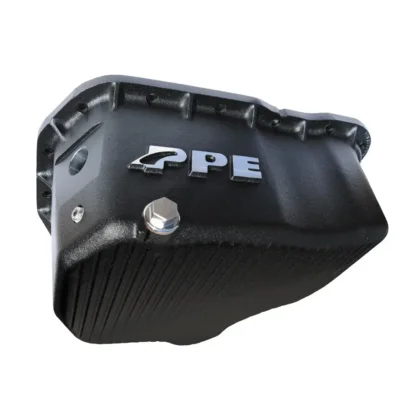

PPE’s replacement pan solves that with a cast A356.0-T6 aluminum design that’s stronger, more rigid, and better at shedding heat than the factory-stamped pan. The added cooling channels along the bottom increase surface area to help pull heat out of the oil, and the pan also adds an extra quart of capacity. More oil means more thermal capacity, which can help keep temperatures more stable when the truck is towing or otherwise generally being treated like a science experiment with license plates.

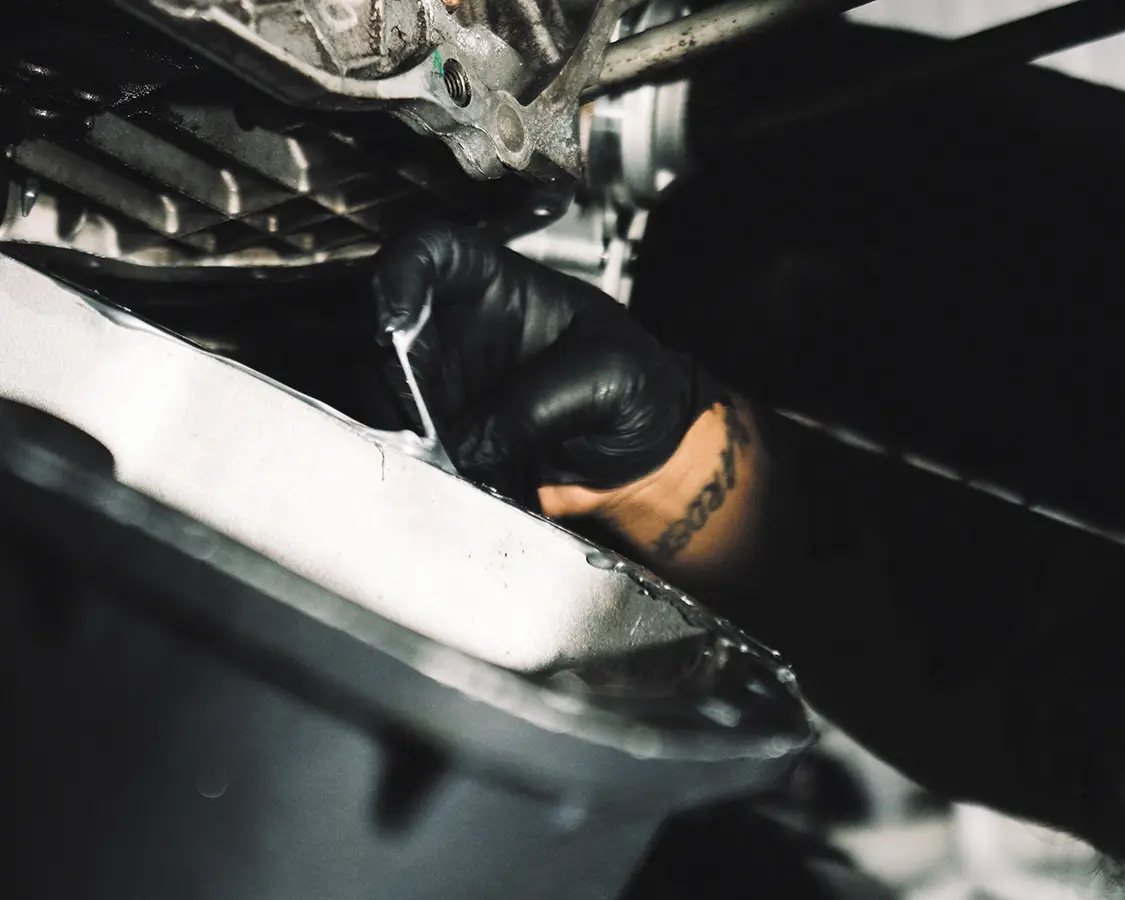

The design also uses a flat-bottom layout to help drain the old oil more completely during service, along with an unshrouded pickup area to reduce restriction around the oil pickup. PPE also built in machined sealant grooves to help guide the RTV bead for a cleaner, more consistent seal, which is a nice touch when you’d rather not decorate the driveway with engine oil.

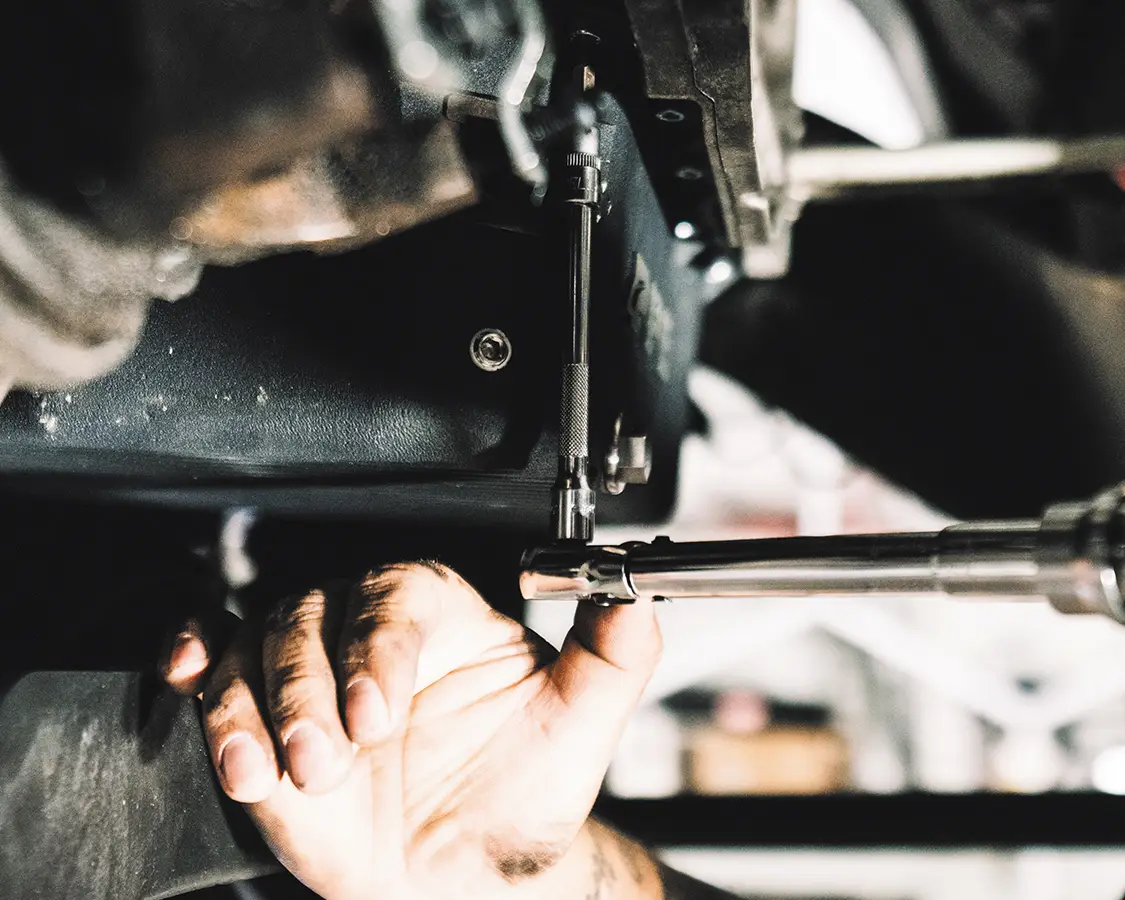

Other details include a stainless steel drain plug with a high-temp neodymium magnet, a 1/8-inch NPT port with a pre-installed plug, compatibility with the factory oil level sensor, and the hardware needed to install it.

It’s not the flashiest part of the LBZ project, but it’s exactly the kind of supporting upgrade that makes sense when you’re building something to last.
