Installing Carli Suspension’s Backcountry 2.0 System on a ’12 Mega Cab

From the factory, the fourth generation Ram is meant to do one thing extremely well: work. Thanks to the OEM suspension being designed to accommodate upward of 4,000 pounds in the bed or 15 tons in tow, Ram’s heavy duty models make hard work look easy. The flipside is that these trucks don’t play nice once you venture off the beaten path. Furthermore, they aren’t all that pleasurable to pilot down the highway when empty. So what is an owner to do when he or she wants their late model Ram to ride, handle, and perform well no matter the terrain or situation?

-Advertisement-
-Advertisement-

Since 2003, Carli Suspension has been offering complete, bolt-on suspension systems that improve the off-road performance, on-road ride quality, and overall versatility of late model Dodge Rams. Recently, we got our hands on one of the company’s Backcountry 2.0 kits for a ’12 Ram 2500 and set to work installing it. Spec’d with every available option, the 3-inch suspension system came with linear rate coil springs, Fox 2.0 remote reservoir shocks, high clearance extended control arms, torsion sway bar, adjustable track bar, and progressive rate, full replacement leaf spring packs. If you’re looking to maximize the ride comfort and off-road capability of your ’10-‘13 Ram without sacrificing its intended purpose, this is the lift for you.

DW-1804-CARL-02

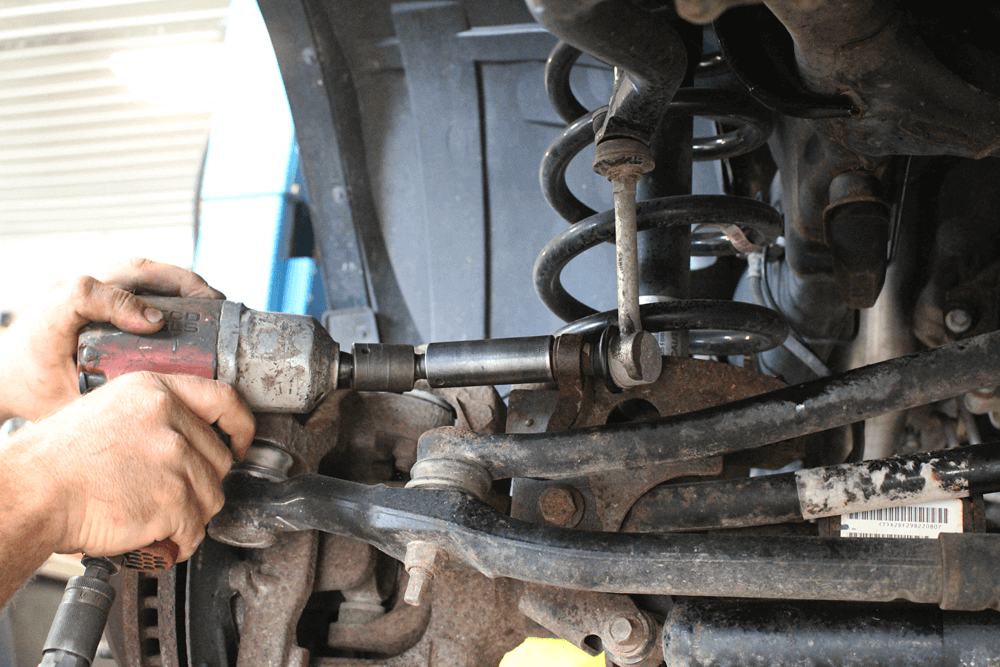

Knowing that minor welding would be in store during the installation of Carli Suspension’s Backcountry 2.0 lift, the folks at Flynn’s Shop made sure to disconnect the negative battery cables before getting the truck in the air. Then the factory sway bar was loosened and removed, as it would later be replaced by Carli’s top-of-the-line torsion sway bar.

DW-1804-CARL-03

The next item discarded was the factory steering stabilizer. It too would be replaced with an
upgraded Carli component, specifically Carli’s high-mount, dual (opposing) steering stabilizer system.
This system all but rules out the bump steer that fourth generation Rams are known for.

DW-1804-CARL-04

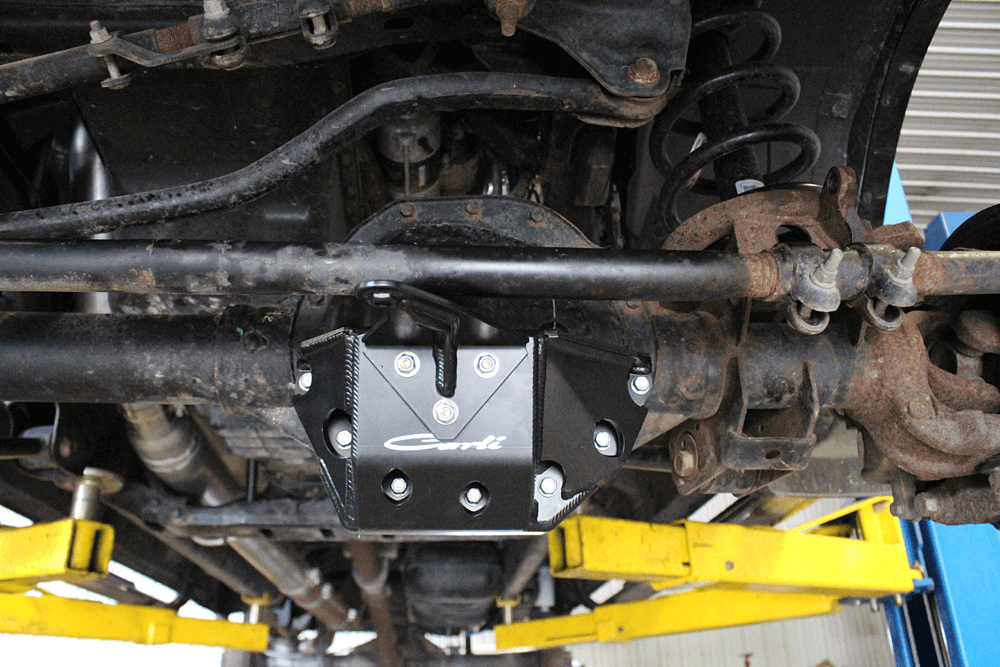

Serving two purposes, the Carli differential guard provides both added protection for the front differential and a mounting bracket for the aforementioned dual steering stabilizer setup. Installing the ¼-inch thick differential guard requires removal of seven factory diff cover bolts, which are replaced by brand new M10 bolts supplied by Carli. After coating the threads of the new fasteners with Loctite, we had the differential cover bolted into place in short order.

DW-1804-CARL-05

Next, the factory track bar was broken free and removed. It would later be ditched in favor of one of Carli’s adjustable (and beefier) units, which makes use of heim joints and uni-balls, which help to eliminate wander and improve steering response.

DW-1804-CARL-06

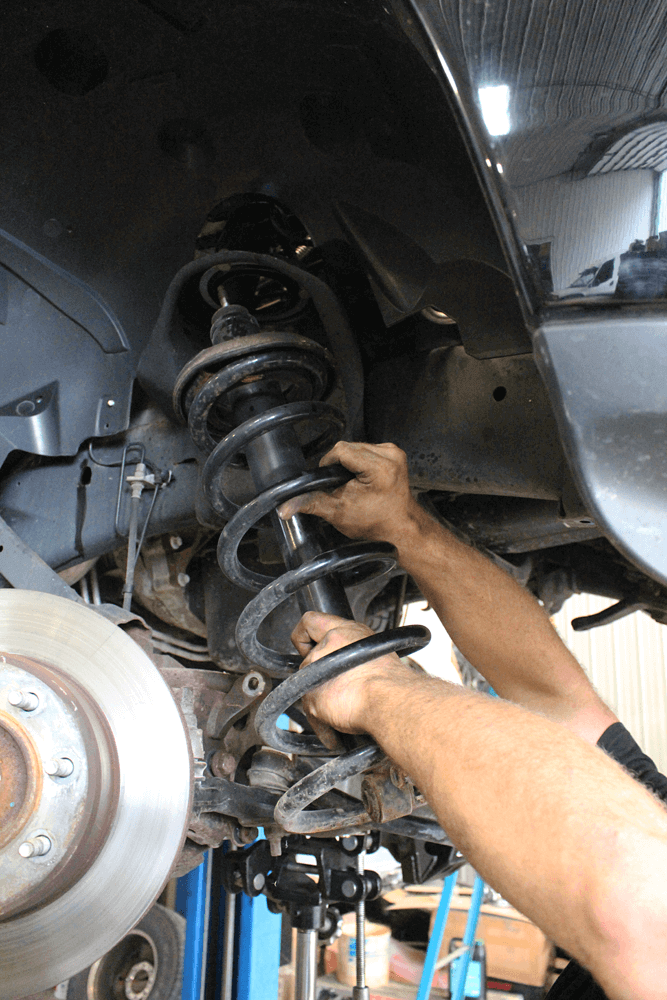

After that, the bottom shock mounting bolts were loosened, the front axle was brought to full droop, and the factory coil springs and shock absorbers were pulled. Then, a transmission jack was employed to raise the axle back up to begin the process of removing the factory control arms.

DW-1804-CARL-07

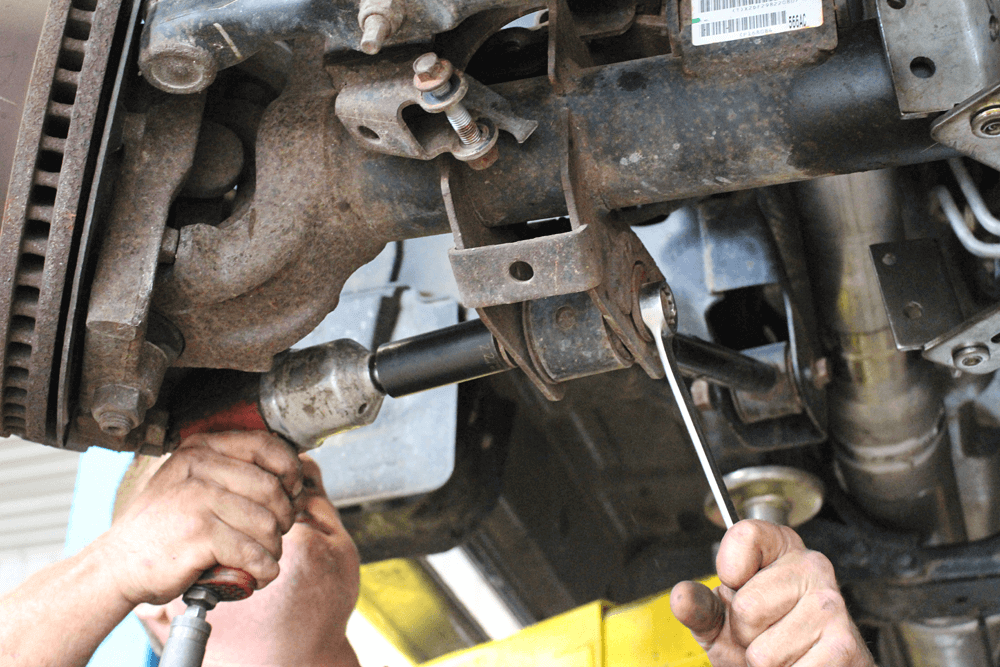

Once they’d been hit with a liberal amount of penetrating lubricant, all factory control arm nuts were broken loose with an impact wrench. Per Carli’s recommendation, the lower control arms were removed first, and the guys at Flynn’s took note of the direction each fastener had been installed from the factory.

DW-1804-CARL-08

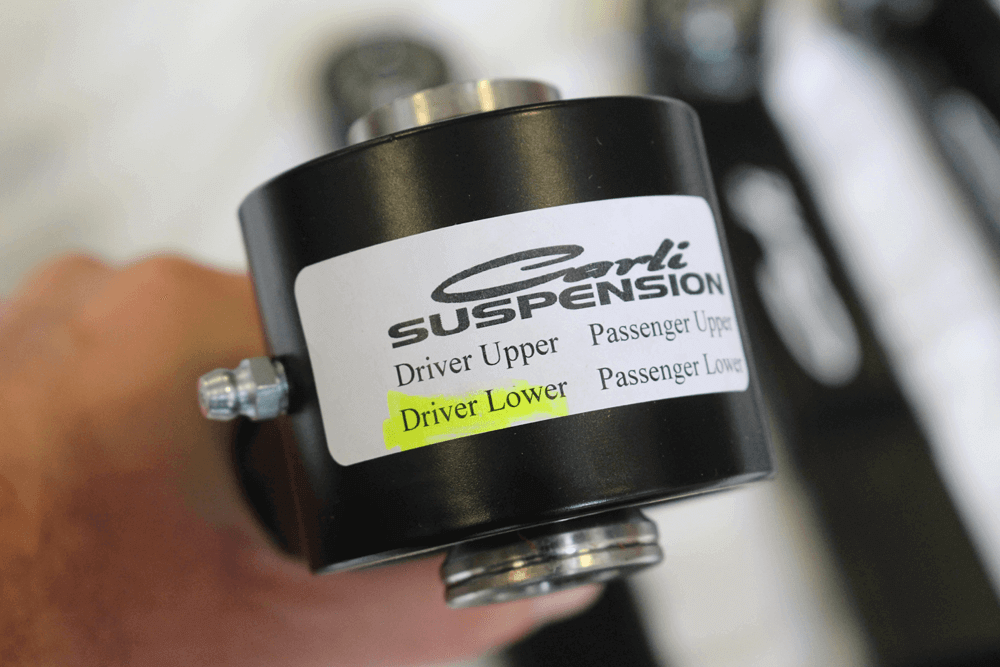

Unlike the rubber bushings used in the factory control arms, Carli Suspension’s high clearance extended versions accommodate fully rebuildable, sealed, and greasable spherical joints. This type of bearing takes all the play out of the front axle while eliminating the kinetic vibration that’s observed with the factory rubber bushings in place. Also notice the labeling method shown here, which makes for an idiot-proof install.

DW-1804-CARL-10

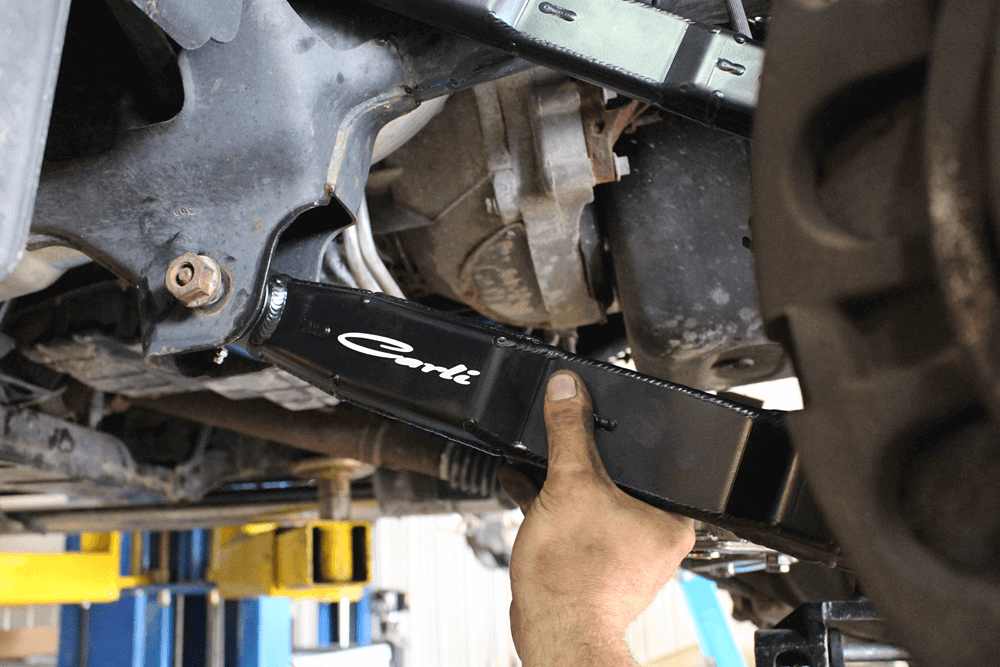

With the high clearance extended control arms in the mix, tires as large as 37 inches in diameter can be run, so long as the wheels are no wider than 9 inches with 5.75-inches of backspacing. If the above criteria are met, lock-to-lock turning won’t yield any tire rub.

DW-1804-CARL-09

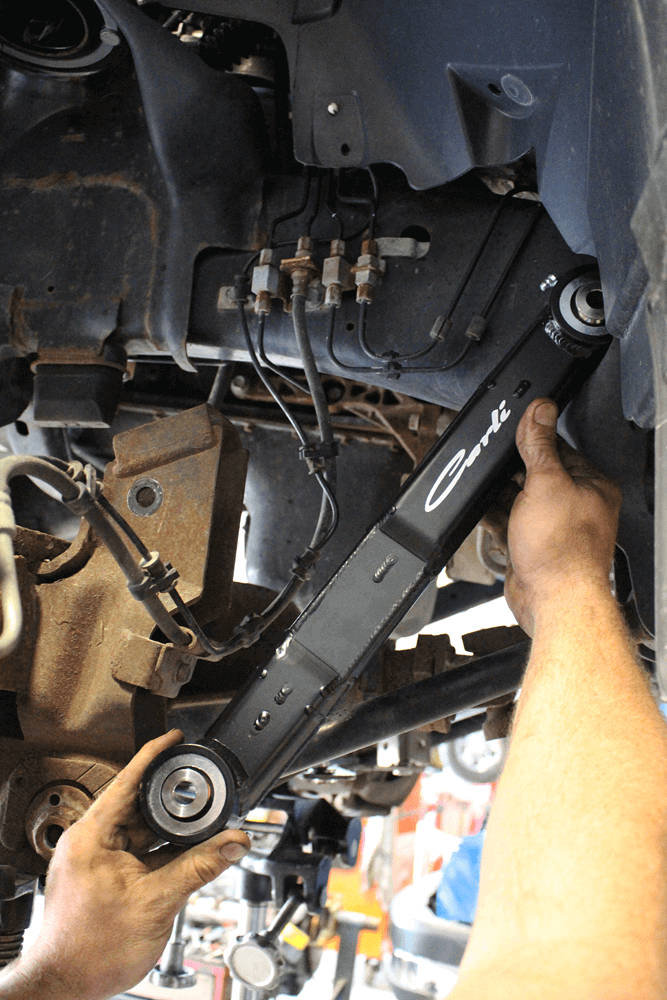

Installing the Carli high clearance extended control arms in the opposite manner of how the factory units were removed, the upper control arms were set in place first. Roughly an inch longer than the factory control arms, the Carli versions are designed to re-center the front axle. They’re fabricated from ¼-inch wall steel, internally gusseted for unmatched strength, and are considerably heavier than the thin-wall OEM pieces.

DW-1804-CARL-11

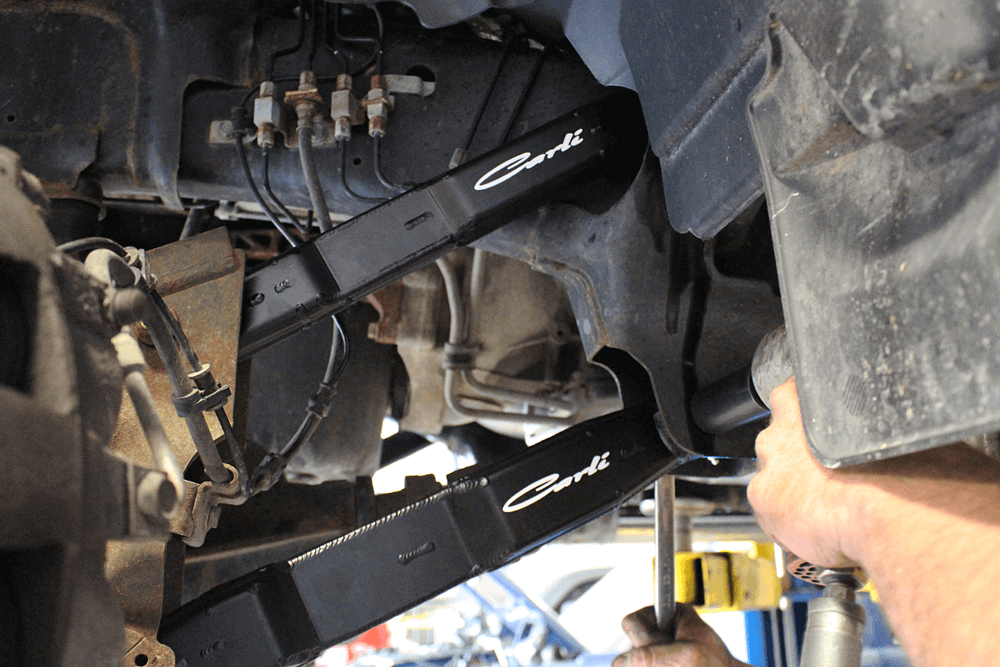

While the guys at Flynn’s were able to get the high clearance extended control arms into place without issue, they had to hold off on tightening the top bolts (at the axle) until after the coil springs were installed. This is because the axle had to be tilted downward in order to create enough clearance for the coil springs to be finagled into their respective buckets. However, once the coil springs were in, the upper control arm bolts were torqued to 120 ft-lbs, while the lowers were snugged to a stout 175 ft-lbs.

DW-1804-CARL-12

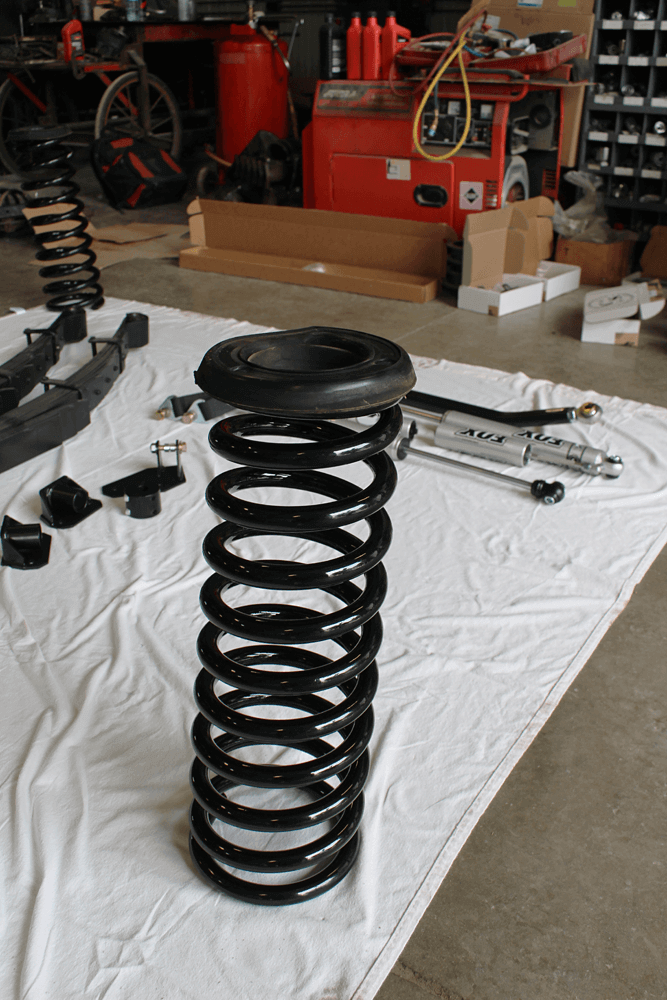

Shot-peened for long-term durability and pre-set for the Cummins application, the Carli coil springs add approximately 3 inches of front ride height once installed. Of a linear rate design (i.e. the spring rate increases with the compression of the spring), they offer a smooth ride on the street, but provide maximum control when you’re off-road, turning, or braking aggressively.

DW-1804-CARL-13

After swapping the factory rubber coil spring isolators over to the progressive rate Carli springs, it was time to set them in place. Installing the coil springs with the supplied Fox shock absorbers contained within them (the remote reservoir having to be fed up through the shock tower) was a process that called for a second set of hands.

DW-1804-CARL-14

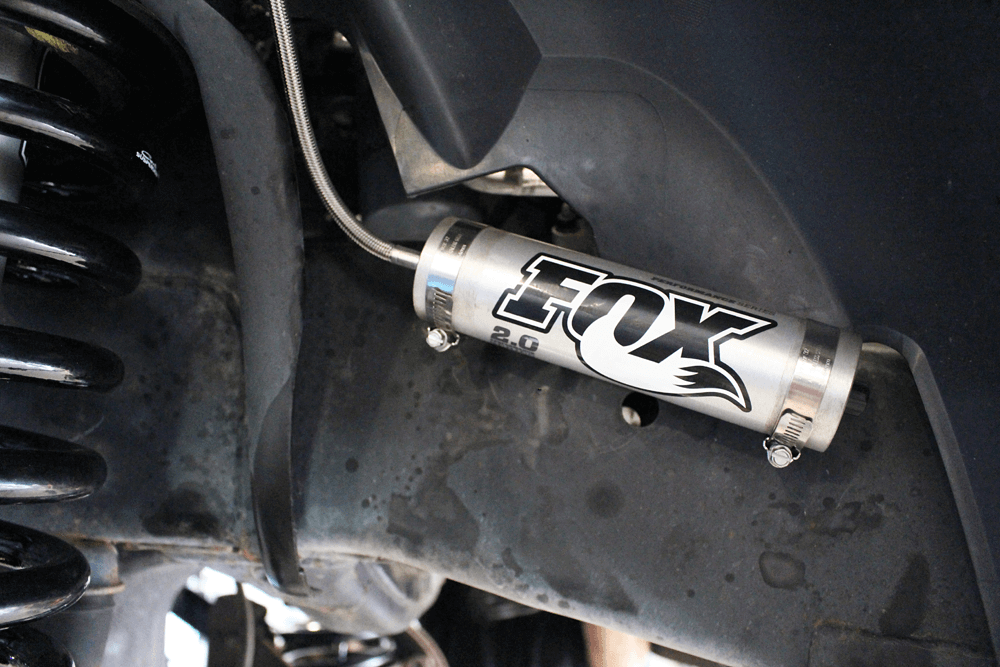

A pair of self-tapping screws and worm gear clamps are included in the Backcountry 2.0 kit for mounting the remote reservoirs for the Fox 2.0 shocks. Flynn’s opted to mount them horizontally along the outer, top portion of the frame rails.

DW-1804-CARL-15

In case the truck ever gets air born, Carli supplies a set of limit straps to ensure the front shocks never become over-extended. Here you can see the first piece of the puzzle: the weld-on chromoly tab that the bottom of the limit strap attaches to.

DW-1804-CARL-16

Made from 1.75-inch nylon webbing, Carli’s limit straps feature a 4130 chromoly buckle at each end and a 7,000-pound rating. Notice the top mounting point, which requires installers to center punch and then drill a ½-inch hole in the top edge of each coil bucket.

DW-1804-CARL-17

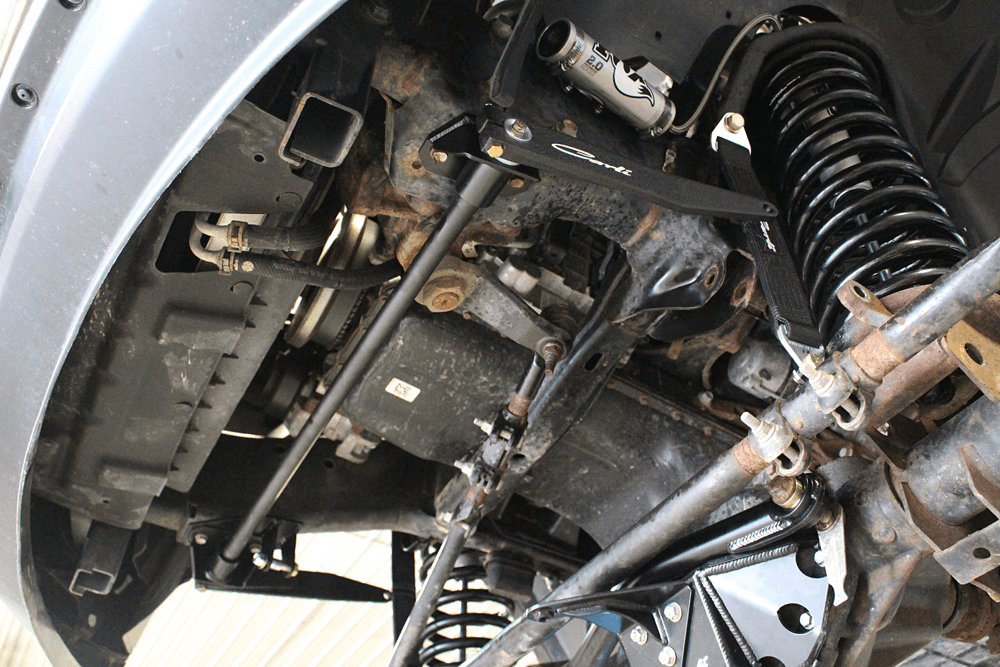

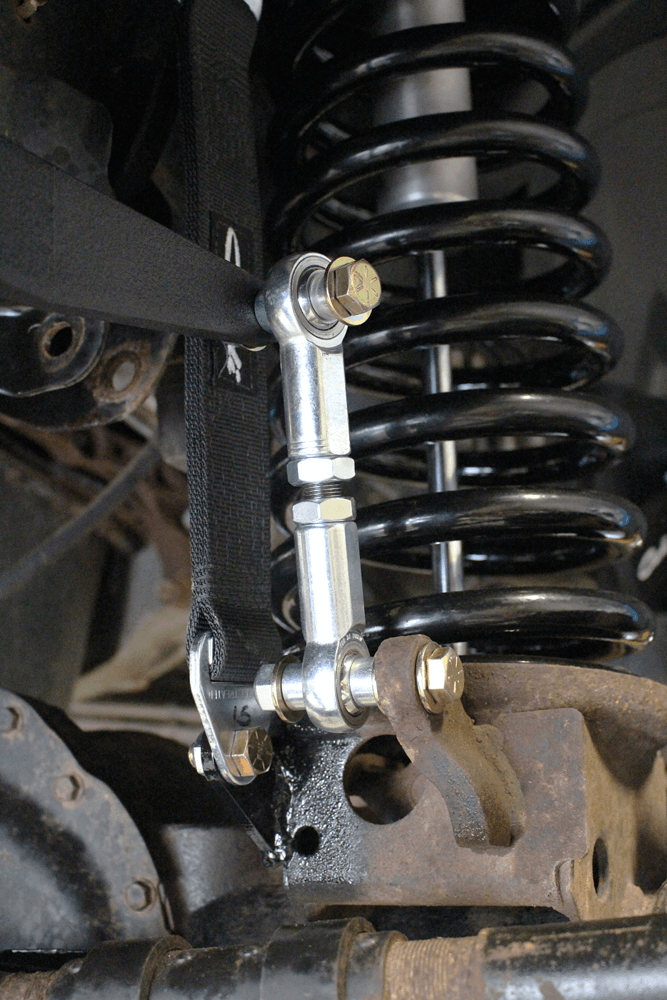

Thanks to the factory sway bar’s exceptionally high torsion rate, most fourth generation Rams feel
like the front axle is directly connected to the chassis. Carli’s torsion sway bar completely replaces the
factory assembly and allows the axle and chassis to move much more independently of one another
without sacrificing control. Its custom, dual purpose torsion rate makes this possible.

DW-1804-CARL-18

Made from 1.75-inch nylon webbing, Carli’s limit straps feature a 4130 chromoly buckle at each end and a 7,000-pound rating. Notice the top mounting point, which requires installers to center punch and then drill a ½-inch hole in the top edge of each coil bucket.

DW-1804-CARL-19

To combat the lift’s tendency to pull the axle off center (toward the driver side of the truck), Carli’s adjustable track bar centers the axle for proper suspension geometry. Constructed of 1.50-inch x 0.375-inch wall chromoly tubing, the track bar incorporates a heavy-duty F.K. uni-ball on the frame side and a Heim joint on the axle side for improved steering response.

DW-1804-CARL-20

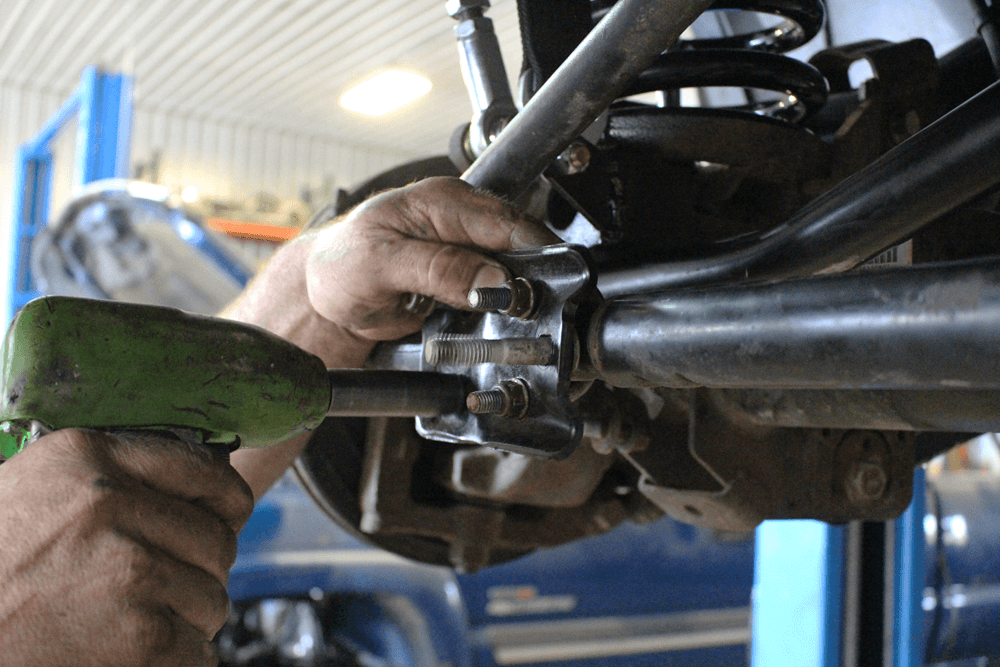

Carli’s T-style, high mount opposing dual steering stabilizer system rules out bump steer and can be adjusted to accommodate virtually any tire configuration. In order to accommodate the dual steering stabilizer setup, the factory (low mount) stabilizer clamp has to be relocated to the opposite end (passenger side) of the tie rod assembly, as shown.

DW-1804-CARL-21

Both of the Carli stabilizers feature stainless steel bodies and Nitride shafts for superior corrosion protection. The high mount stabilizer is secured to the drag link via a billet clamp. The driver side of the low mount stabilizer effectively bolts to the differential guard via the bracket that was installed earlier in this install.

DW-1804-CARL-22

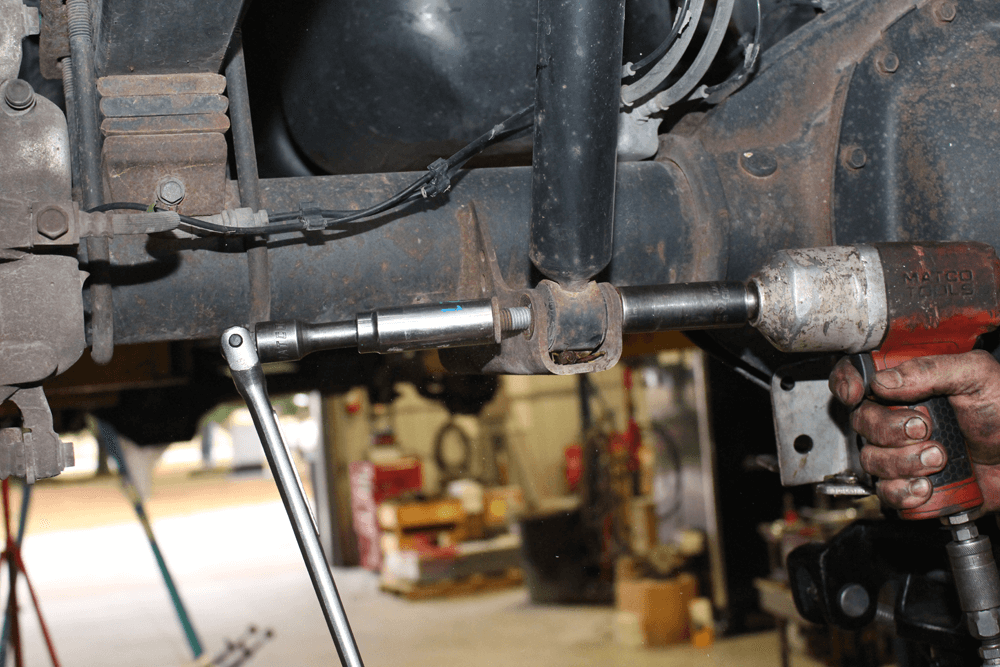

Getting started on the rear suspension changes, Flynn’s techs removed all shock mounting bolts, followed by the factory shocks themselves. To accommodate the additional 1-inch of lift that the progressive rate leaf spring packs provide, a pair of longer, diesel-specific Fox shocks would be used.

DW-1804-CARL-23

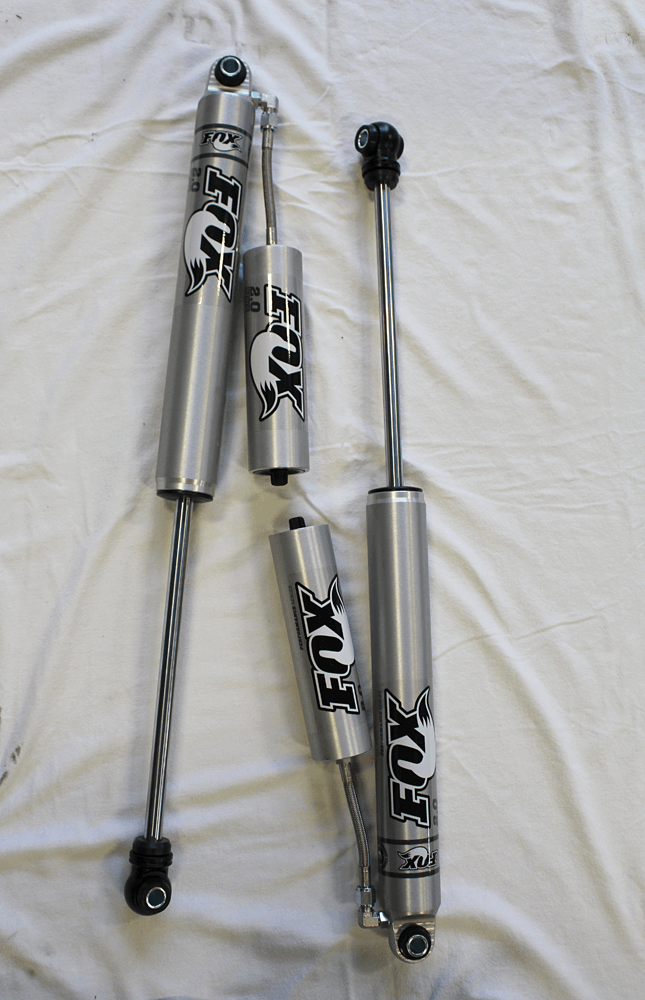

Just like the front suspension, Fox 2.0 remote reservoir shocks are employed out back. The Carli-tuned units allow up to 12 inches of rear wheel travel (10 inches up front), are fully rebuildable, and feature an extruded aluminum construction with hard anodizing (for superior corrosion resistance), and hour-glass style bushings in the rod ends.

DW-1804-CARL-24

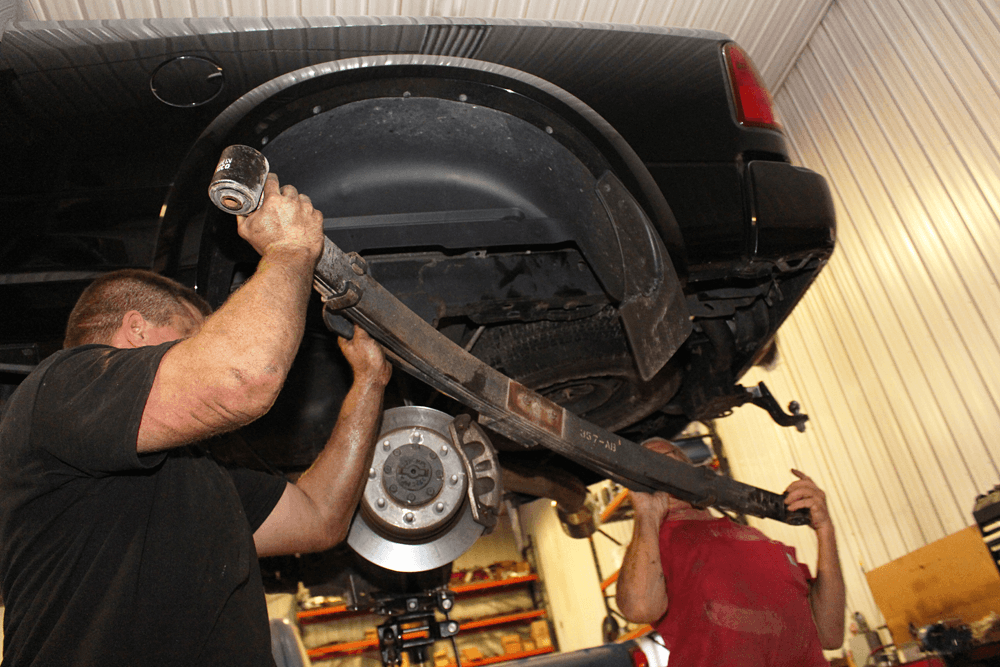

With the stock shocks removed, the factory U-bolts were scrapped (Carli sends longer, replacement units) and the rear axle was lowered. Then the leaf spring hanger bolts were removed and the factory leaf packs were free.

DW-1804-CARL-25

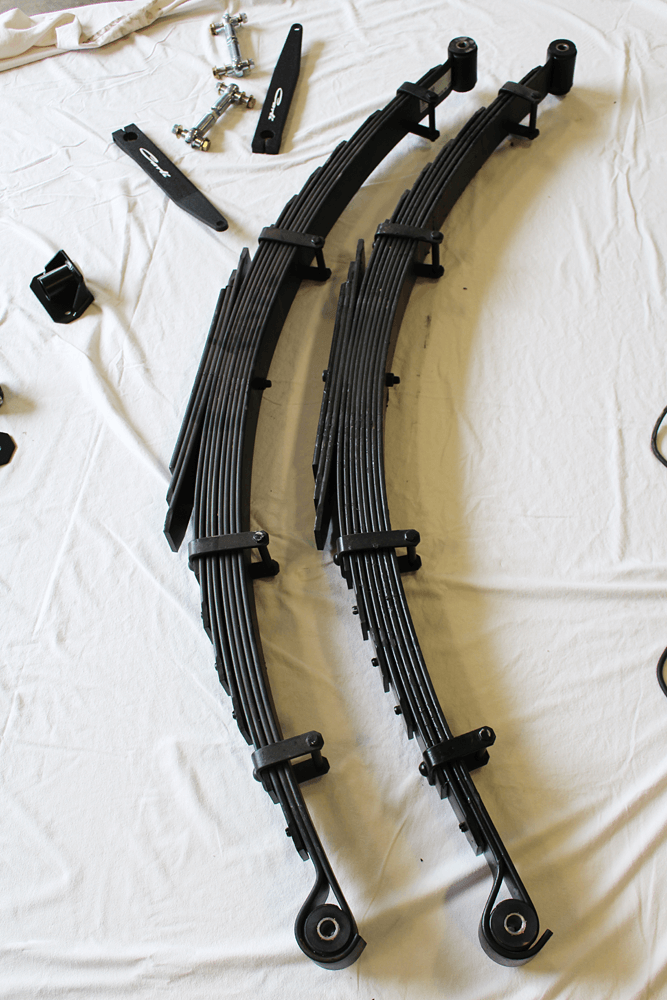

Carli’s full progressive leaf spring packs provide the best ride quality possible by softening the initial spring rate at the truck’s ride height, and also complement the custom-tuned Fox 2.0 remote reservoir shocks nicely. Built by Deaver Spring, they feature a double military wrap construction, urethane bushings, steel crush sleeves, and drastically minimize axle wrap and wheel hop.

DW-1804-CARL-26

The one trade-off of running Carli’s full progressive leaf packs is a slight decrease in payload capacity (15 percent). However, Carli is up front about the drop in payload capacity and often reminds customers that the payload reduction can be supplemented by adding a set of its long travel air bags to the equation.

DW-1804-CARL-27

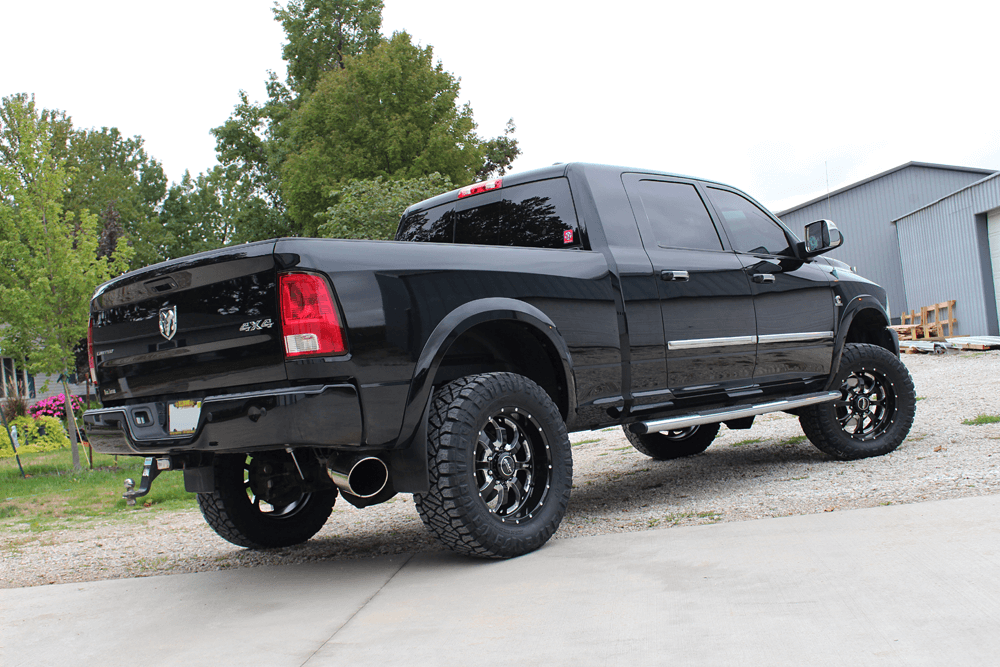

While the finished product may look rather subtle (3 inches of lift, 35-inch mud terrains, 20×9- inch wheels), this is one of the most comfortable lifted trucks we’ve ever ridden in. The Ram’s ride quality—both on and off-road—has been improved tenfold, its steering is nice and tight, and the components installed are designed to last.

What We Installed

  • Linear rate coil springs (+3-inch front ride height)
  • Progressive rate, Cummins-specific leaf spring packs (+1-inch rear ride height)
  • High clearance extended length control arms
  • Fox 2.0 Remote Reservoir shocks
  • Torsion sway bar with heavy-duty chromoly arms and end links
  • Adjustable track bar
  • T-style opposing (dual) steering stabilizer kit
  • Nylon front limit straps

Sources:

Carli Suspension
CarliSuspension.com
888.992.2754

Flynn’s Shop
217.478.3811

Fox Shox
RideFox.com
800.369.7469
