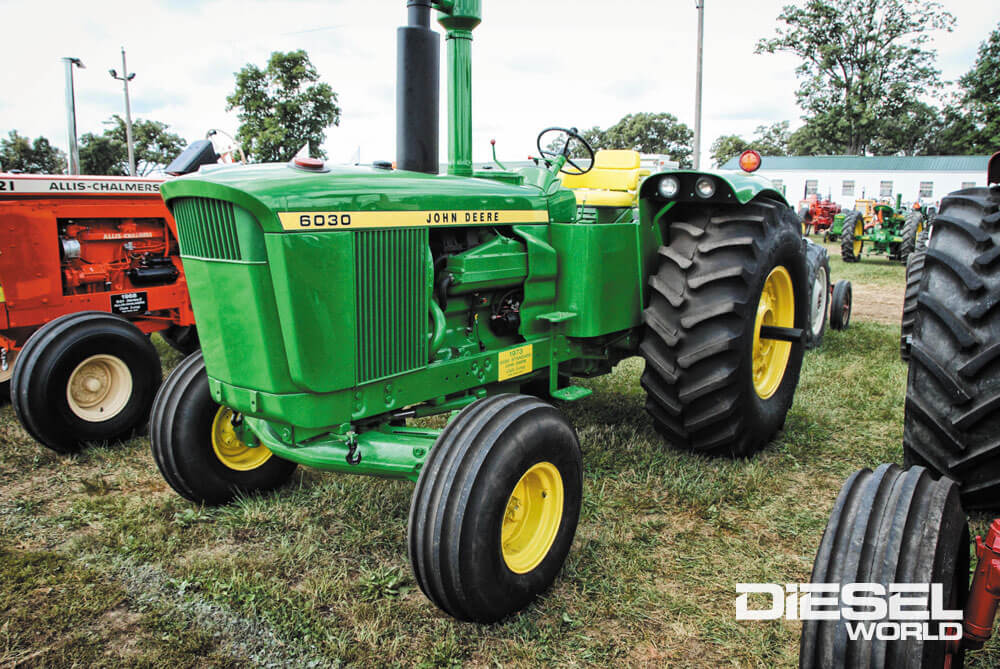

Up next Diesel News – Tennessee Diesel Event; Revolutionary Piston Design; And More… Published on July 19, 2021 Author Jim Allen Share article Facebook 0 Twitter 0 Mail 0 Last Of the Old School Muscle Tractors 1972 and 1974 John Deere 6030- Standard vs Rowcrop The 1960s had been very kind to John Deere but it was not dropped into their laps. They earned it. With good equipment, good business decisions… and yeah, maybe just a little luck… they were riding high and aimed to stay there. Costs were increasing and farming was changing. Fewer people were farming more acres and moving the industry towards bigger equipment that needed more power to pull it. Those needs soon eclipsed the conventional rear drive tractor because no matter how big an engine you put into it, tires driving at one end can only generate so much traction. Enter the four-wheel drive tractor, which had begun it’s dominance in the market. Still, John Deere had a long history of burly, powerful rear drive diesel tractors and certain segments of the tractor market weren’t ready to give them up. Deere was happy to oblige. Hot Rod Tractors First came the mighty 1949-55 John Deere Model R, which was replaced by the ‘55-56 Model 80 and later the updated 820 and 830. When Deere gave up on the 2-cylinder concept, the first “Green Monster” in the line of New Generation tractors was the 121 horse 5010 that came in ‘62, a couple of years after the initial debut of the all-new line. The 5010 featured a very potent 531 ci six-cylinder engine and created more than a little stir. It was replaced in ‘66 with the very similar, but up-powered, 133 horsepower 5020 that carried on into 1972.Subscribe Our Weekly Newsletter Gale Long’s 1972 6030 standard was fresh out of the restoration shop when it was shot at the 2020 Tri-State Show at Portland, Indiana. It’s unusual in having an adjustable front axle rather than the solid one, which was a choice. There were actually two adjustable fronts, the regular width unit as shown, and an extra wide one for special applications. It’s wearing standard-sized rubber, 11.00-16s up front and 24.5-32s in back. It has the full height dust shields and rounded, full-width fenders and the operator’s station is mounted from the rear. Don’t mind the “1973” tag on it. It has a serial number lower than 33550 and according to the published serial number ranges, that falls into the 1972 production range. All these tractors were at or near the top of the tractor industry’s “pyramid of power” in their era. By the time the 5020 debuted, the tractive limit of a rear drive tractor had pretty much been reached with the tires of the era. In good conditions, with a lot of weight, these units could put all their rated power into pulling the implement and delivering the prescribed amount of work for the fuel used. Throw some curve balls in the form of tough ground, one shank too many on the implement, etc., and efficiency began a downhill plunge. Of course the ultimate result would be an inability to pull the implement but most times it was increased tire slippage that reduced the amount of work done for the amount of fuel used. Throw in an extra driving axle and fuel economy swings back into the green. Generation II The New Generation tractors had debuted in 1960 and carried John Deere to a renaissance of technical, sales and reputational heights. By the end of 1972, the New Generation was long in the tooth and the carefully considered replacements were at the end of a six year development pipeline and ready to debut as the Generation II tractors, A.K.A. the 30 Series, which debuted for 1973 and what older tractors weren’t immediately replaced, got replaced in a couple of years with updated models. These were mostly all new units that inherited a fair bit of the best older technology, enhanced with a bevy of new tech. Many of the updates came in the form of safety, ergonomics and operator comfort. The whiz-bang new Sound-Gard cab was extremely popular and became one of the highlights of what is now often called the Sound-Gard era. It’s also the era when John Deere began a rapid expansion in their four-wheel drive offerings at all levels. Many historians say the Sound-Gard era was as much a renaissance for John Deere as the New Generation had been in 1960. Typical of a standard, the working end shows a burly swinging drawbar, a PTO and no 3-point, as well as built in steps for the operator. As farming moved more into no-till practices, 3-point mounted implements were needed less often the large tractor market evolved past the standard vs rowcrop division. Smaller utility tractors still often have 3-point hitches. The High Power Rear Drive Tractor Hangs On The 5020 replacement in the Generation II line was the 6030. Even though it had many improvements, was still more New Generation than Generation II and it certainly wasn’t much like the 30 series. Many have wondered why and older design was continued so long into a renaissance of new tractors. The 6030 was at the pinnacle of rear-drive tractor performance. There were still some farmers whose circumstances fit the capabilities of the 6030 and the cost-per-horsepower was still lower than an articulated four-wheel drive so the market was still there. Perhaps you could call it “business sense to keep the 6030 in the lineup. In many respects, the 6030 was a warmed up 5020, but saying that is like comparing a Scoville Grade 6 Jalapeño pepper with a Grade 12 Carolina Reaper. They are both hot peppers. One will make you sweat. The other will make you pray for death. Yeah, we’re being overly dramatic but going from 133 PTO horsepower to 175 is the tractor equivalent. In it’s day, the 6030 was a Carolina Reaper on wheels. It still is! The most obvious improvement in the 6030 over the 5020 was the addition of a turbocharged and intercooled 531 cubic inch diesel, bumping the power from 133 to 175 horsepower. It’s not quite the highest horsepower rear drive tractor ever built, but it’s close and it came earlier than those it shares the stage with. Lore and legend has it that, back in the day, if you took a new 6030 and slapped it on a PTO dyno, you were more likely to see 200-plus horses than 175. In researching the 6030, so many people have told us turning up a 6030 to 200-plus horsepower is so ridiculously simple and easy that we tend to believe the stories. The 531A engine wasn’t developed just for the 6030, it also appeared in the 7520 four-wheel drive articulated tractor that debuted the same year as the 6030. The reliability record of the 5020 tractor had been great but jumping the power by more than 30 percent had to be addressed in the powertrain. The 8-speed Synchro-Range final drive was beefed up to compensate but those improvements were largely shared with the 7520 (which had a variation of the same powertrain). One thing the 7520 got and the 6030 did was the option of the 16-speed Synchro-Shift, which was essentially a standard 8-speed with a hydraulic powershift added to split the gears. The 6030 had two main configurations which could be described as “standard” (or “wheatland”) and “rowcrop.” A standard was the lower cost option. A variation of the standard was often called a wheatland by farmers (and some manufacturers) and it had equipment that made the standard more suitable for the wheat belt. Brad Walk, owner of My6030 and a 20 year specialist in the 6030, says John Deere had stopped differentiating between a standard and a rowcrop not long after the 5020 was replaced by the 6030. The first 6030 brochure in 1972 listed standard and rowcrop separately but in succeeding years, those differences faded away to just the selection of options to suit the farming task. Until the 6030 debuted, a standard and a rowcrop 5020 had different serial number prefixes, 323 for the standard and 313 for the rowcrop, but the 6030 used only a 313 prefix. A mighty tractor needs a mighty engine. The Deere 531A in the 6030 was an evolution of the 531ci engine that had debuted for ‘62 in the 5010. The 500 series engines debuted in 1962, first with a 531cubic inch, naturally aspirated six. A larger 612 cubic inch version (5.12-inch bore) debuted for ‘75 and appeared in the 8630, making 275 horsepower. The 500 series came naturally aspirated, turbocharged (“T” suffix) and turbo/aftercooled (“A” suffix). John Deere fielded three generally similar diesel engines during this time period, the 500 line being the top dog. The smallest were the 300 series that came in 303, 329 and 359 cubic inches, sharing a 4.33-inch stroke. These engines are often seen in European Deeres and initially, there were gas and LPG variants as well. The 400 Series was the first to appear, debuting in 1960 and all the engines in this class shared a 4.75-inch stroke, again some of them being gas or LPG fueled. The first 400 iteration displaced 380 cubic inches and appeared in the 4010. The 404 followed in the 4020 and was in use into the ‘80s. The 466 was the largest of the 400 series. The 531A had a lower compression ratio than the NA 531 engine (15.4:1 vs 16.5:1). The 531A used an air-to-water aftercooler and a Bosch P-Pump. The 500 series engines ended with the last 612 in the early ‘80s. As was typical in the industry, a standard tractor often had a heavy, non-adjustable front axle, usually didn’t have a 3-point hitch, often had rounded fenders that mostly covered the tires and driver dust shields. A standard tractor often had different tire/wheel sizes than the rowcrops, tending to be much wider. The tractors ordered with rowcrop features usually had the Class III 3-point, an adjustable-width front axle and matching adjusting rear wheels. They also often have the cut down dust shields and flat top fenders that offer more visibility for use in the rowcrop environment. Some of the surviving tractors are more rowcrop oriented and some more standard but you also see a definite mix of the features. One of the tractors we highlight here is an example, being more or less a standard but with an adjustable front axle. In the first year of production, 6030 buyers had a choice of the turbo/intercooled engine or a naturally aspirated 531. Though it dropped the PTO power to 141 horses, the NA 531 cut a good chunk off the price. Not many buyers partook of the option and only 45 were built and the option was quietly dropped. Why buy a .38 Special when you can have a .357 Magnum in the same package? 6030 vs 7520 The 6030 coexisted with the 7520 from until 1976, when the 7520 was replaced by the thoroughly updated, 225 PTO horsepower 8630. Interestingly, the University of Nebraska tested both tractors at the same time. Both were tested unballasted. The 7520 had four-wheel drive, of course, and dual tires at each corner as well, but the 6030 had four 20.8-38s in back so we can see the difference four-wheel drive makes. The 7520 had Deere’s 16-speed, Synchro-Shift while the 6030 had the standard 8-speed Synchro-Range and the results were taken at different overall gear ratios. Randall’s rowcrop shows the Class III 3-point with a fast hitch attached. It also has a PTO and, from what we have learned, almost all 6030s had PTOs. Lee Randall pointed out that the hooks to with side of the top link bracket (also there on the standard) were designed to hold a hydraulic cylinder. Often, the cylinder was swapped among several implements, to you left the hoses attached to the tractor, hung the cylinder and swapped it over to the implement you were using. This was a feature on many older tractors but didn’t appear on many in the 6030 era. They both had the same engine and the same 175 PTO horsepower rating. Maximum drawbar power for the 6030 with the dual rear 20.8-38s was 148.7 horsepower, using 11 gallons per hour and delivering a maximum pull of 15,303 pounds with 15% slip of the driving wheels. The 7520 with dual 23.1-30 tires on all corners delivered 160.5 drawbar horsepower using 11.7 gallons per hour and delivering 22,517 pounds of pull at 15 percent wheel slip. At maximum drawbar power, the 6030 had 7.2 percent slip of the drivers while the 7520 had only 3.2 percent. 6030: Muscle Tractor The 6030 was discontinued in 1977, making way for more modern tractors. It’s long been held in high regard and that regard has done nothing but grow over the years. The 6030 is in a category of iconic tractors that have created the same sort of mystique and cachet as ‘60s and ‘70s muscle cars and the collector interest reflects a similar market value. In some circles they are actually called muscle tractors. As with the old muscle cars, the more modern equipment can run circles around the 6030 but the old guy still does well enough to get a tip of the hat. For styling points, the 6030 wins hands down but don’t forget… the 6030 isn’t a feeble old man. It can still work as needed, and many do. The standard is a little more closed in than the rowcrop, with the high dust shields. With no 3-point, access from the rear was easy. A factory cab was optional for the 6030 and a fair number of survivors are seen with them, as well as many period selections from the aftermarket. Many open station tractors had ROPS bars (Roll-Over-Protection-System), a goodly number with an optional canopy as well. John Deere was really pushing the comfort and safety aspects of the 30 Series but ROPS didn’t become mandatory on new tractors until late in 1976 so it was an available option that not all farmer chose. The rowcrop is a little more open and must be accessed from the front. The controls are the same, except there is an extra lever on the right quadrant for the 3-point. A total of 4,020 6030s were built from September ‘71 to June of ‘77, 45 of them being the lower cost naturally aspirated version. The breakdown between rowcrop and standard would take careful research in the archives at Waterloo, Iowa, to figure out and as far as well know, that hasn’t been done. In looking at the used 6030s on the market when we prepared this story, they seem evenly divided, plus those tractor with mix and match features. The unobtainium version is the NA diesel powered 6030 and all collectors covet them. Specifications 1972 John Deere 6030 Engine: Inline Six, JD 6-531A Displacement: 531 ci Bore & Stroke: 4.75 x 5.00 in. Rated Flywheel Power: 176 hp @ 2100 rpm Rated Drawbar Power: 149 hp @ 2100 rpm Compression Ratio: 15.4:1 Transmission: 8-speed Synchro-Shift (4×2) Weight: 18,180 lbs Wheelbase: 104 in. (standard, rowcrop shorter) Fuel Capacity: 73 gal. Tires(Rowcrop): Front: 9.50-20 Rear: 20.8-38 Tires(Standard): Front: 11.00-16 Rear- 24.5-32 Fuel Consumption: 7.1 GPH @ max power Drawbar Pull: 10,744 @ max ballast Top Speed: 19.5 mph As Rated by Nebraska Tractor Test 910 SOURCES Green Oak Farms www.greenoakfarms.com/ My6030 www.my6030.com Randall Brothers www.randallbros.biz/ Total 0 Shares Share 0 Tweet 0 Pin it 0 Share 0
