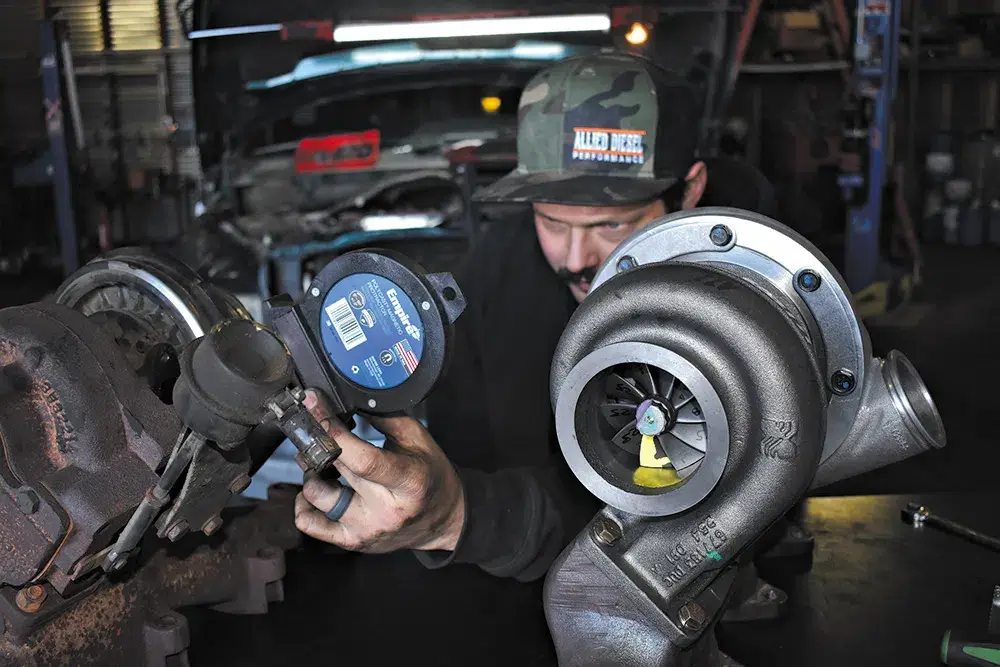

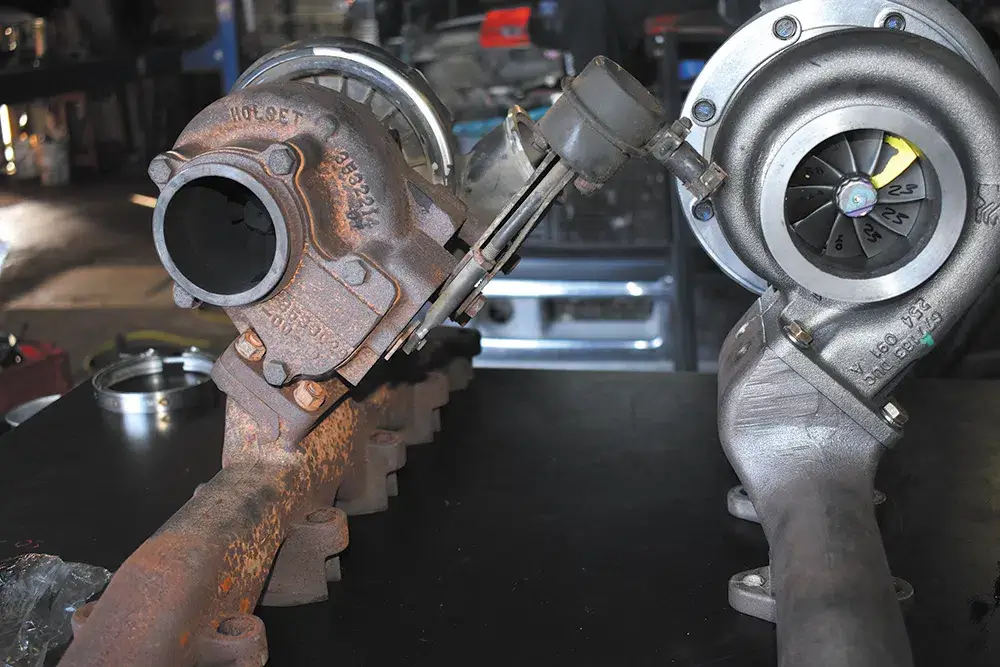

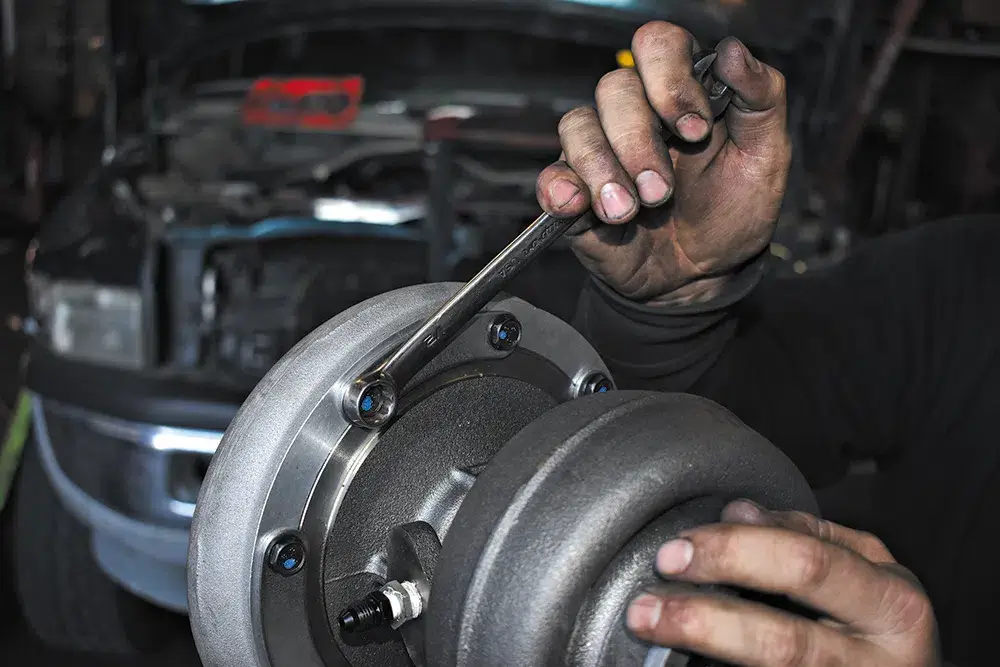

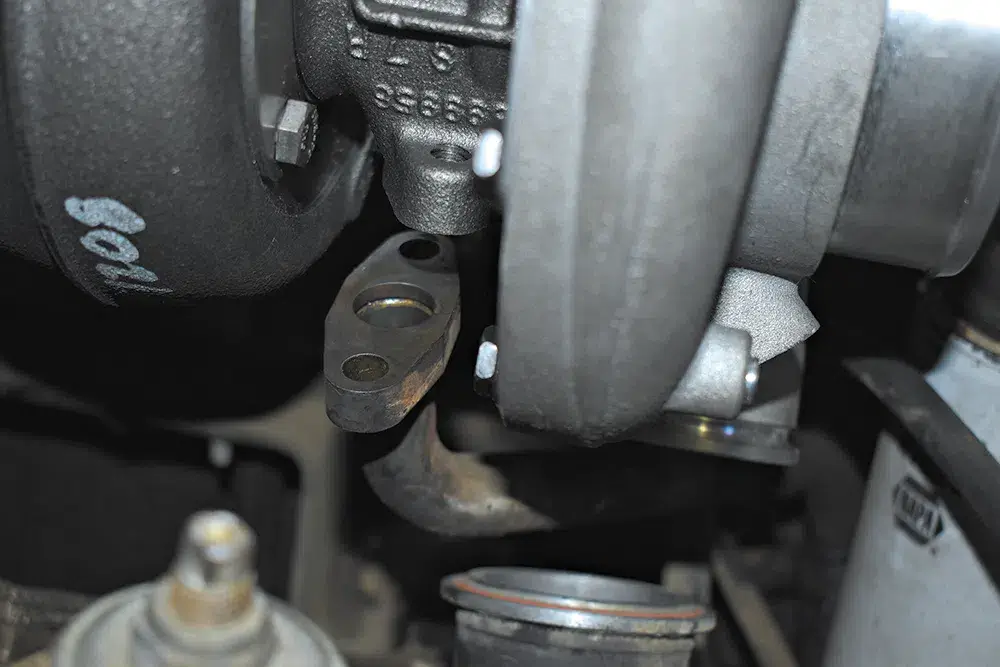

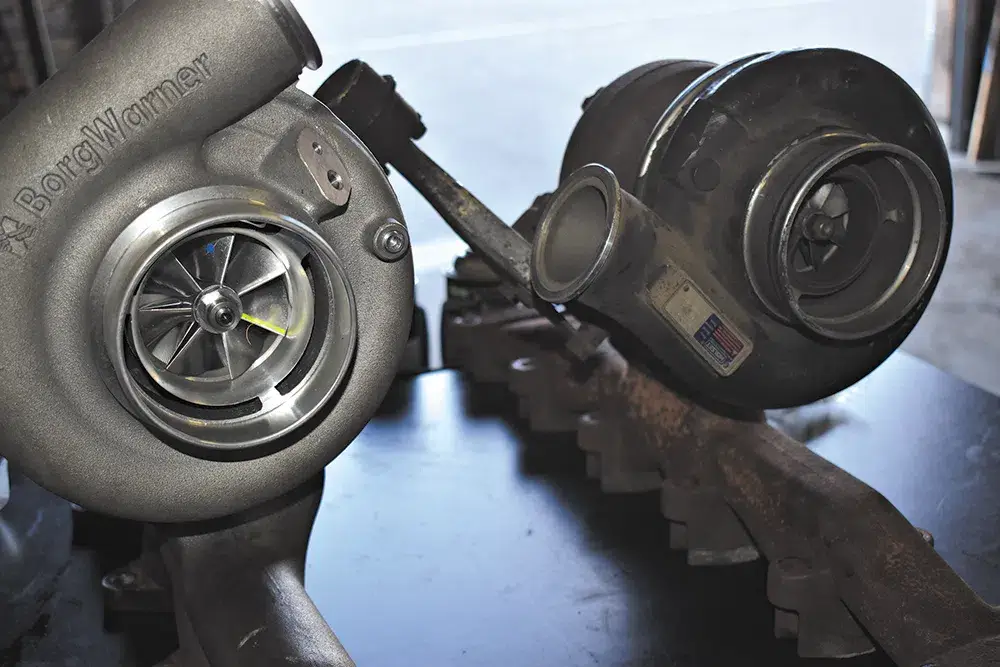

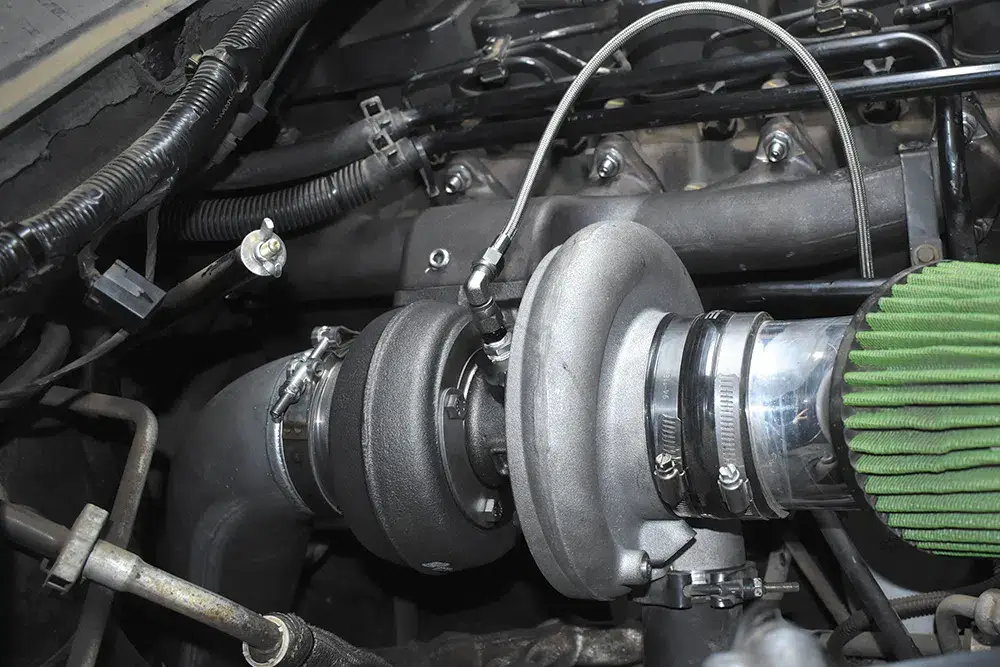

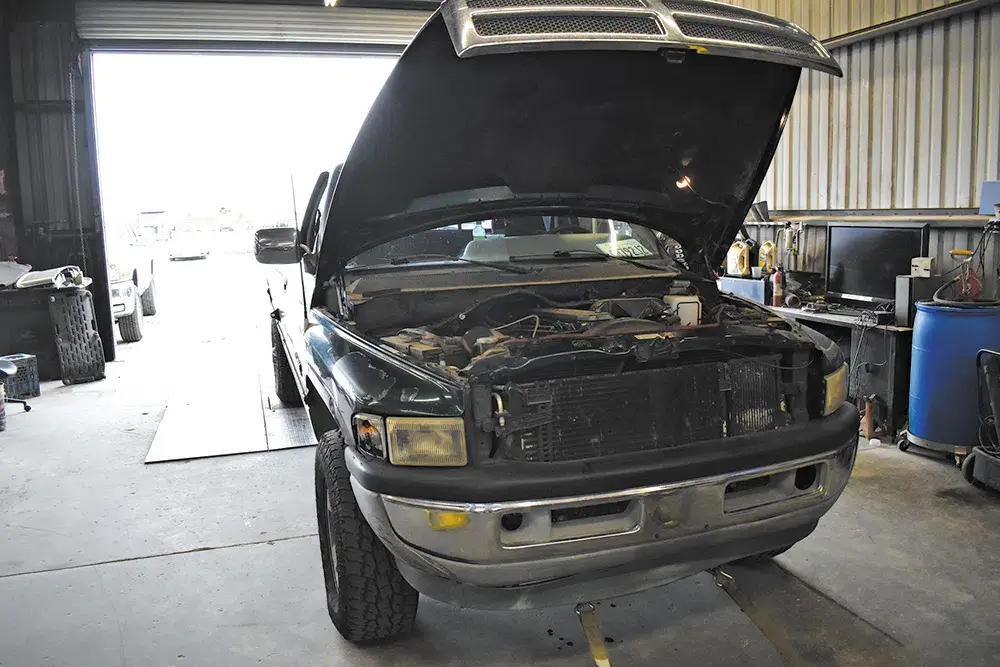

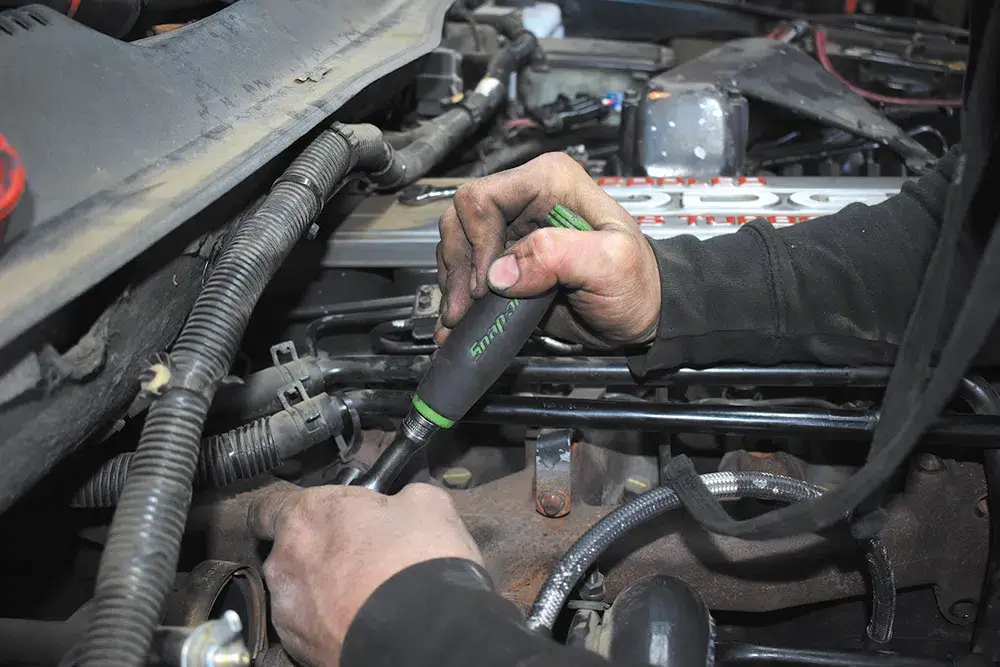

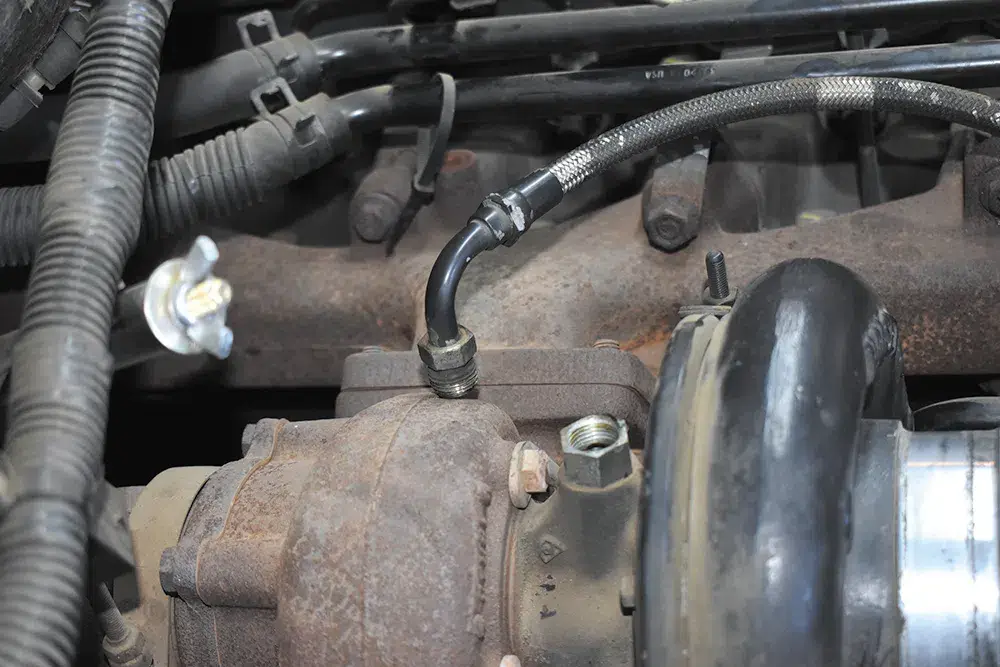

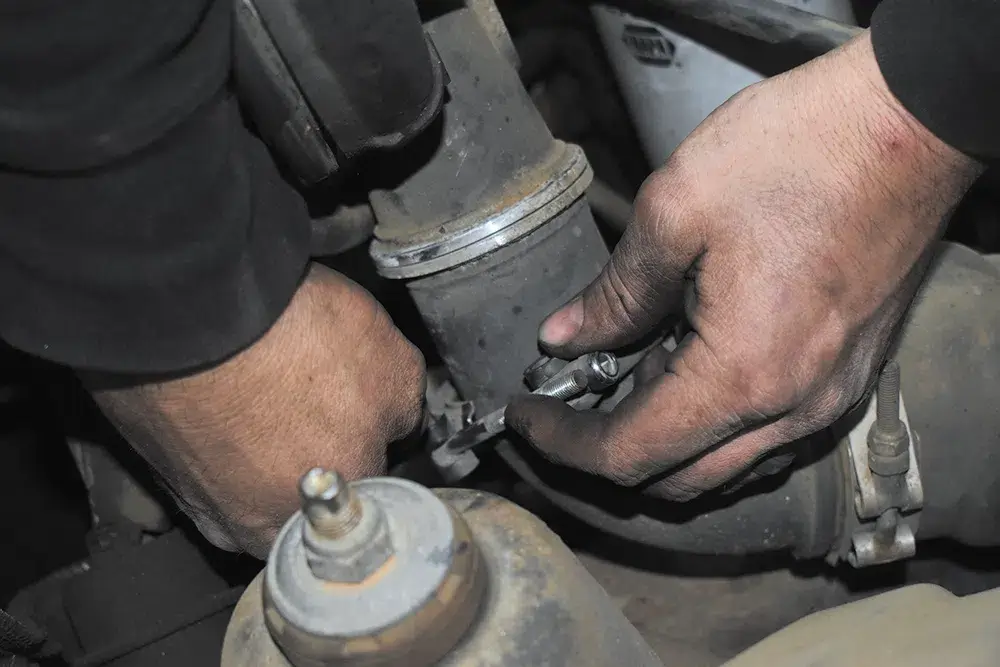

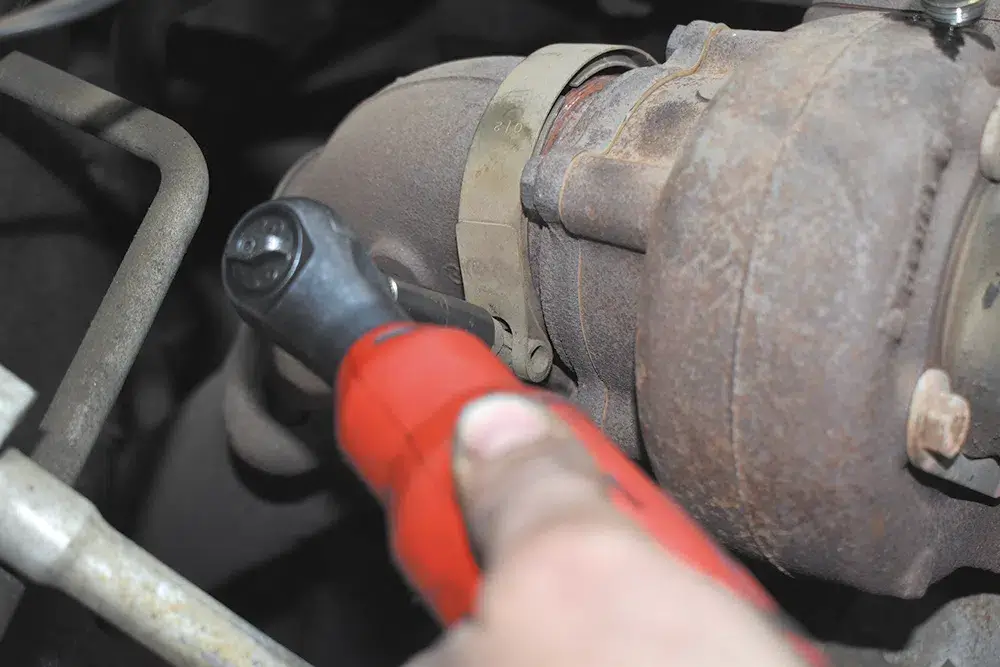

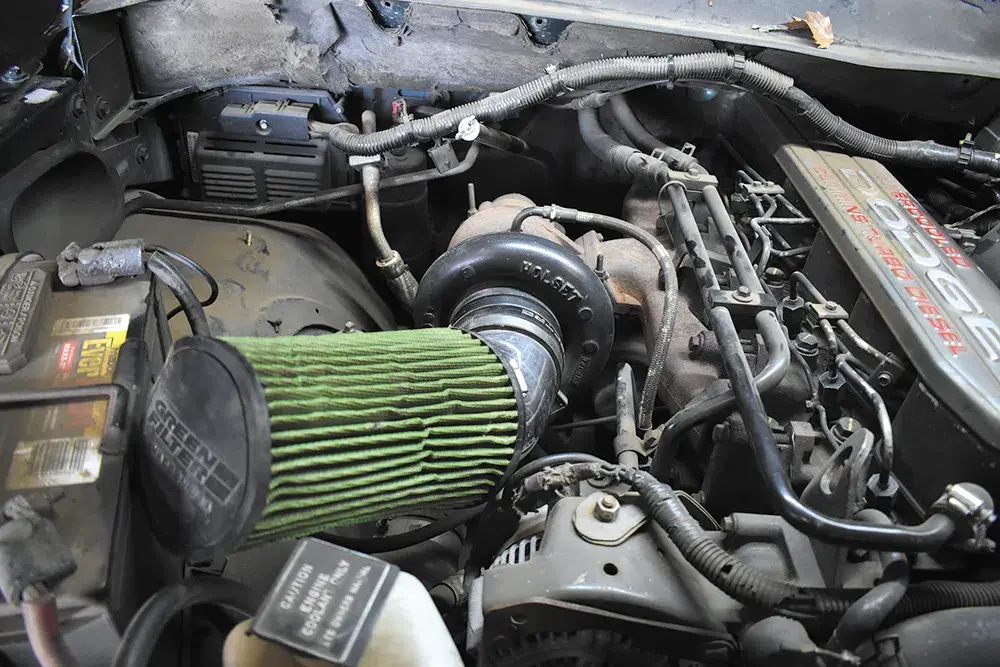

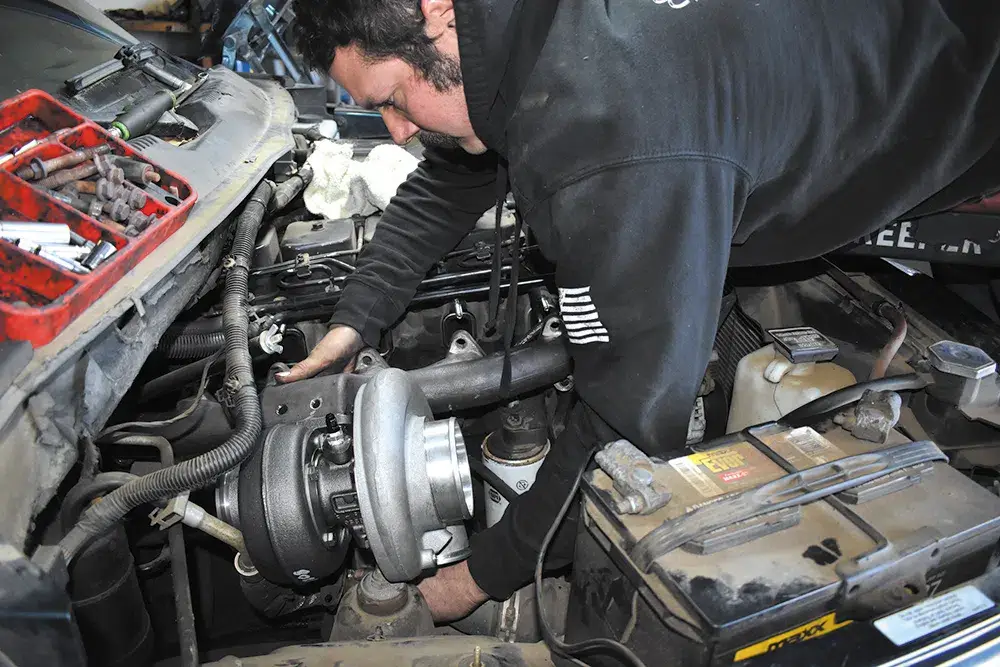

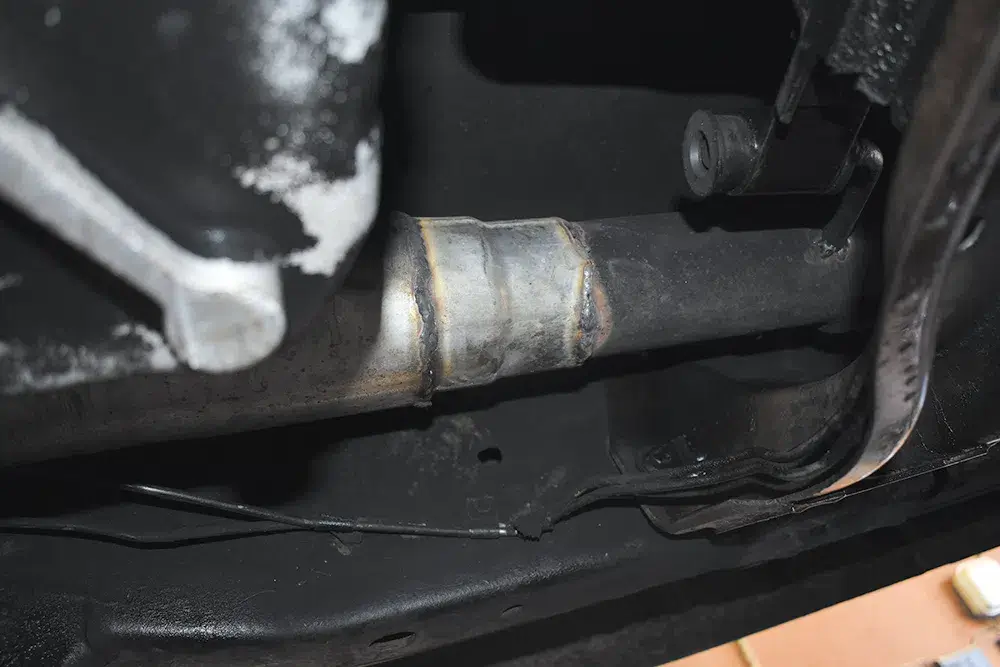

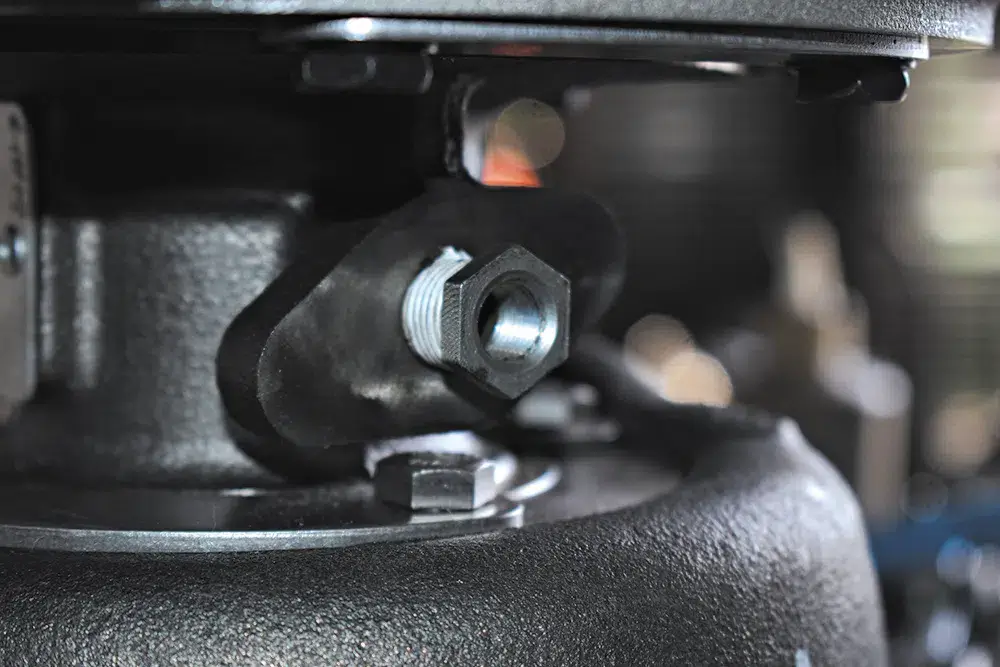

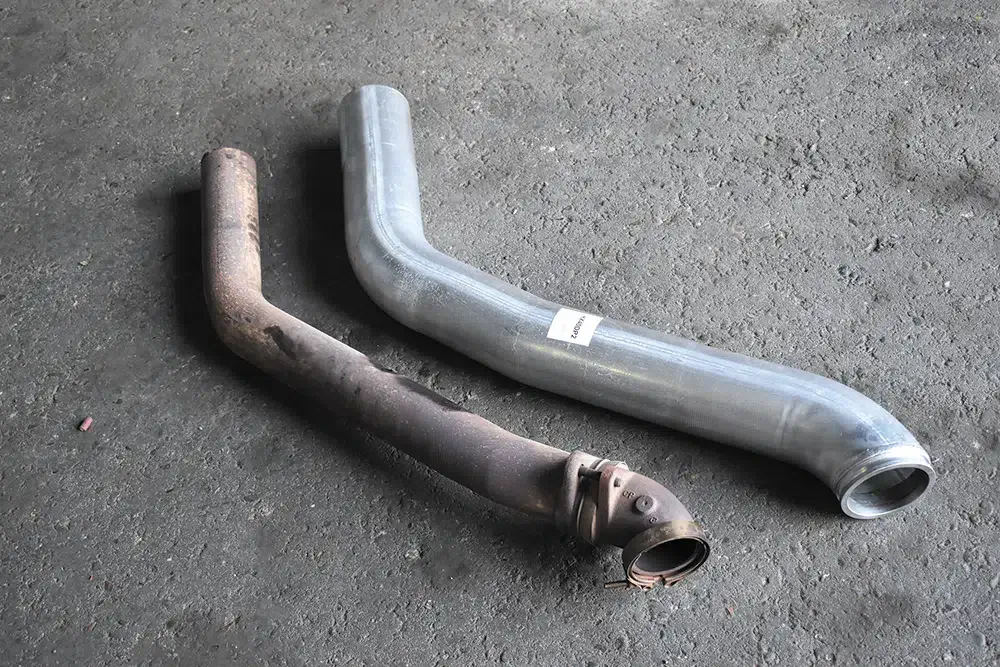

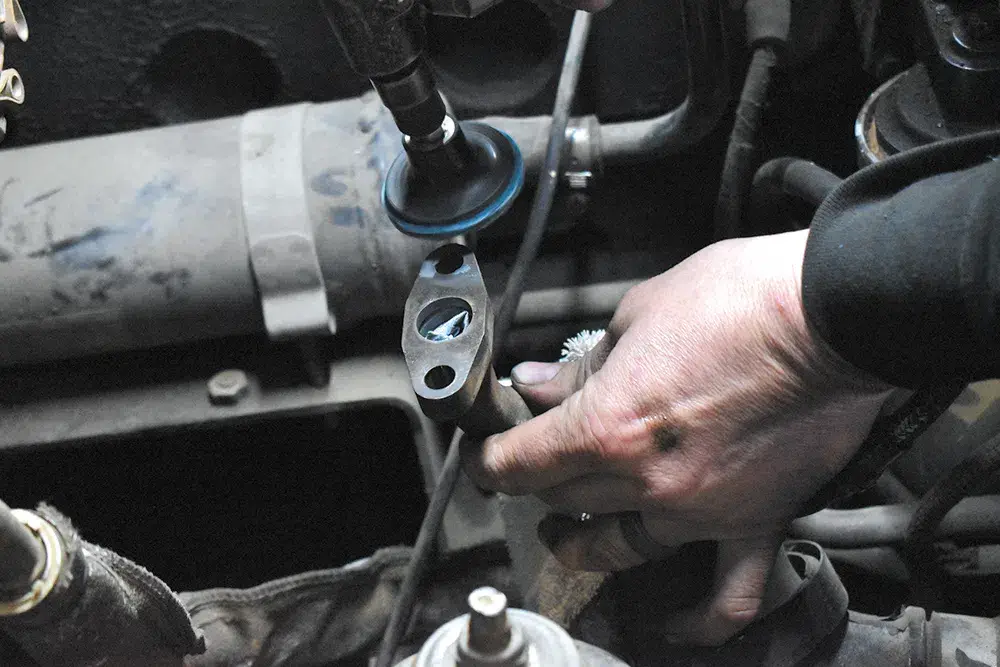

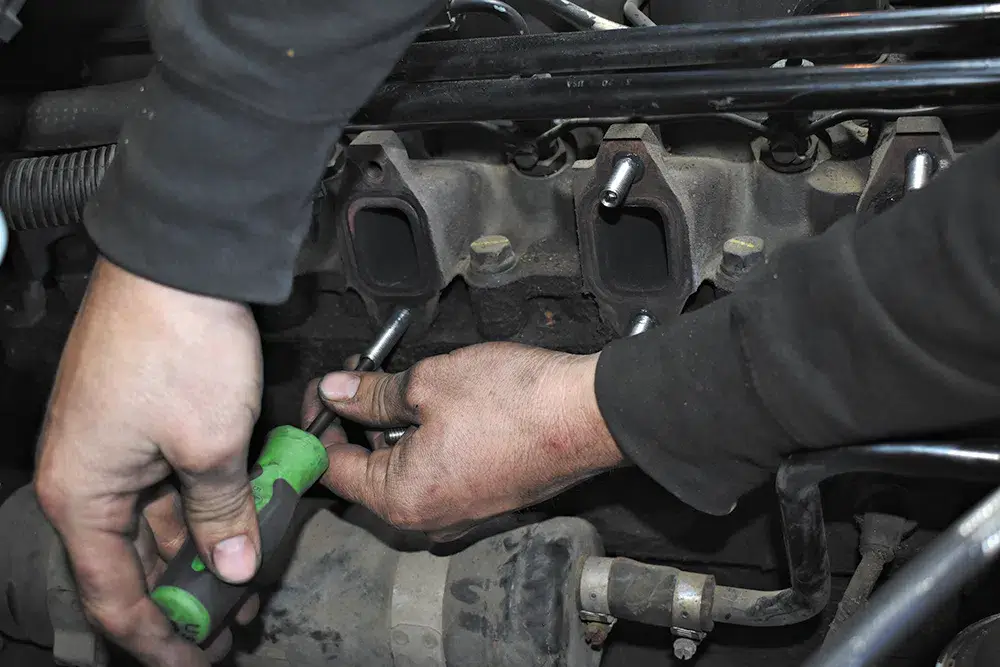

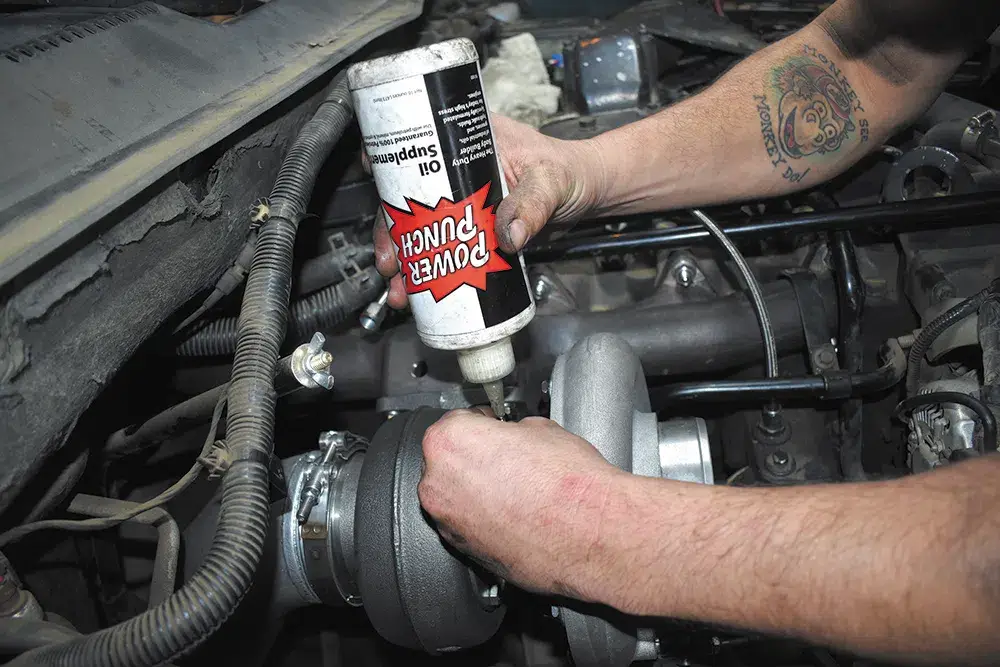

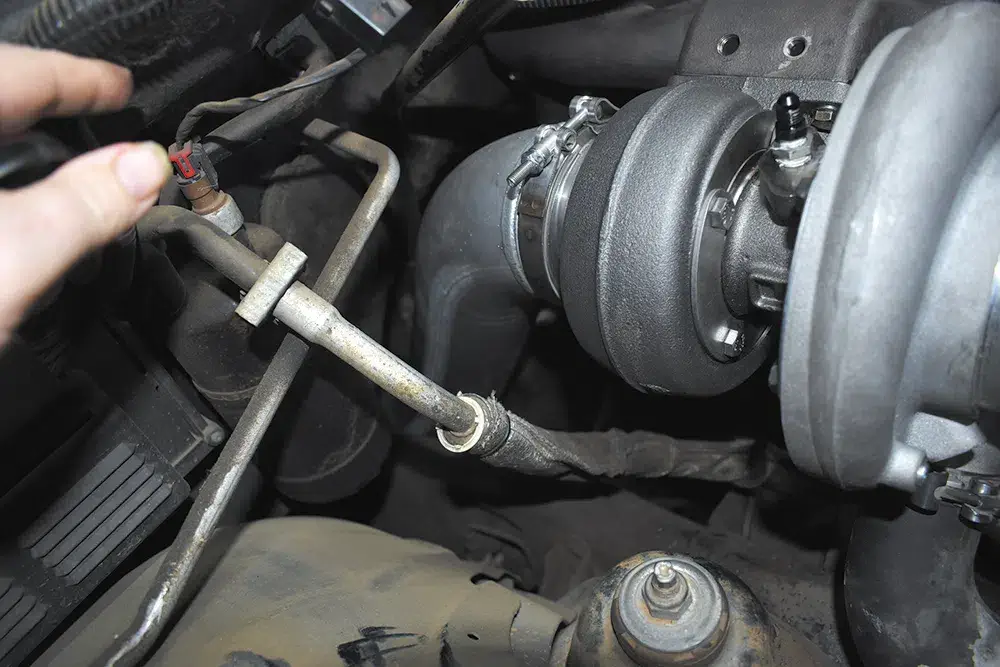

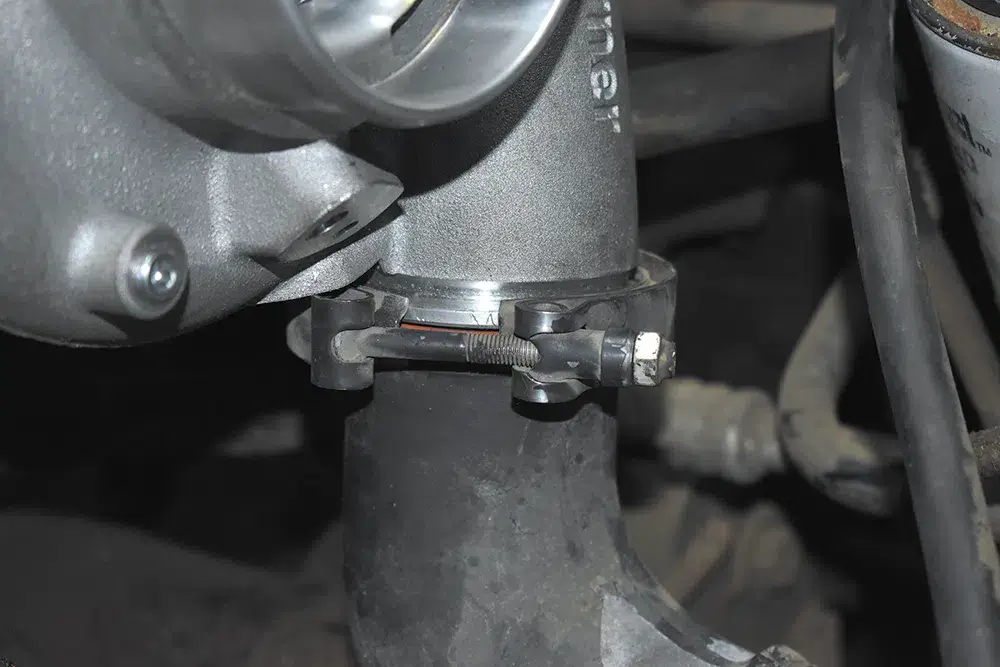

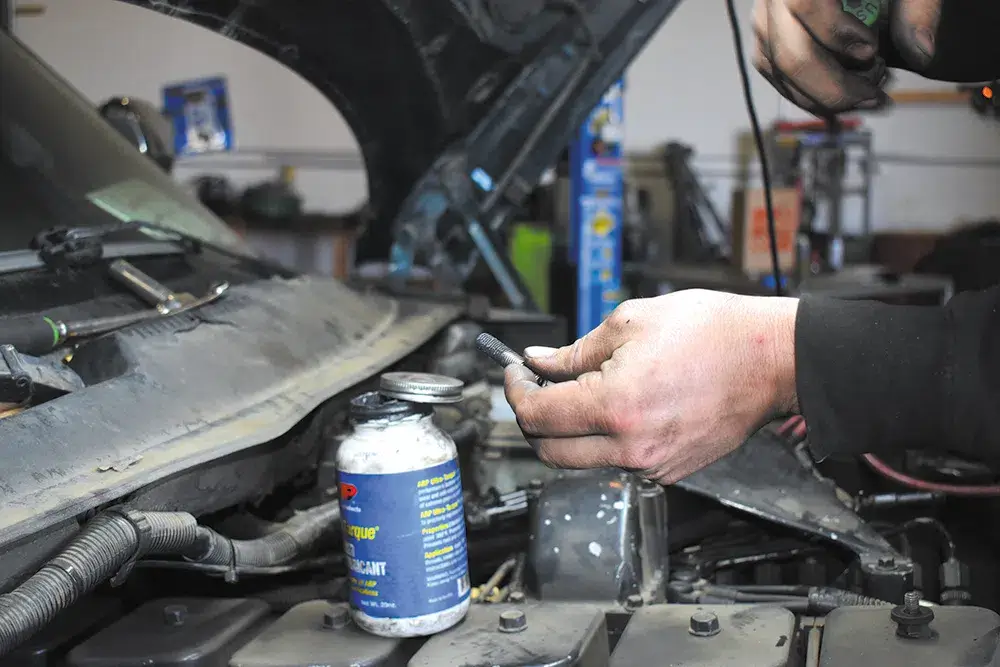

Up next MORE VINTAGE DIESEL ENGINES YOU MAY NOT KNOW Published on November 09, 2023 Author Jason Sands Share article Facebook 0 Twitter 0 Mail 0 Installing Industrial Injection’s 69mm Turbo For a Whopping 85 Horsepower Gain on our 12 Valve We had made some great initial gains on our 12-valve project dubbed “The Green Monster,” but we had a ways to go before it was anywhere near the “fast” category. Our homemade intake, Power Driven Diesel lift pump, and Scheid Diesel injectors (along with a timing bump to 18 degrees) had us topped out at 390rwhp, a far cry from the 134rwhp we had started from. Our funky remote control nitrous system busted through the 500rwhp mark with a 506 reading, so we knew more air needed to be our next step to making more power. Factory Turbocharger Limitations The stock turbos on Cummins engines are wonderful pieces of engineering from Holset. More often than not, they can handle twice their original boost settings without breaking a sweat, and our wastegated HC1 turbocharger (HX35’s came on later 2nd Generation trucks) was able to crank out 38psi on the dyno. We had heard (and seen) that 35-40psi was pushing things though, and with our wastegate wide open we didn’t have any more room for advancement, boost-wise. The only way to go up, was to replace our factory turbo. DIY’ing Our Own Turbo Kit There are literally dozens of options out there for turbochargers for 12-valve trucks, but unfortunately there isn’t really a “kit” like there is for later Dodges. So we made our own. It started with the exhaust manifold. Most popular turbochargers from BorgWarner and Garrett have a T4 exhaust flange, while the factory Cummins is a T3, so we either had to use an adapter (which might mess up the downpipe) or find a T4 exhaust manifold. Fortunately, Stainless Diesel and Steed Speed still make them, and we were able to get a deal on one off of the Competitiondiesel.com web forums for about 2/3 the price of new. This would give us a wide variety of “out-of-the-box” turbo choices in case we wanted to go up or down in the spooling or power department.Subscribe Our Weekly Newsletter Turbo Selection A few years ago when they were first released, a BorgWarner engineer told us that its new 69mm S300-frame SX-E turbo spooled like a 66mm, but made power like a 75mm, and that stuck with us. We were eventually shooting for 10s, but 11s in the quarter mile would be a good start, and also get us around those newer Mustangs, Camaros, and Chargers, most of which are rooted in the low 12-second zone. This meant we would need somewhere around 650 to 700rwhp to meet our goal, which meant the 69mm would be just about perfect. The S369 flows 95 lb/min of air, and at roughly 8hp per lb/min, that meant we’d have a ceiling of around 760 hp…..give or take. This definitely looked like the turbo for us. Installation Part of the reason we went with this turbo and manifold selection was that (in theory) the setup would be a direct bolt-on. We got our S369 from Industrial Injection, which had several advantages. Since Industrial is a huge distributor they almost always have turbos in stock, and they also were able to machine the outlet of the turbo for an HX40 flange, which meant that a standard 4-inch downpipe could be used. It came in one big box all shipped to our door, and would complement our manifold perfectly. The installation would be handled by Rex Gully of Allied Diesel Performance, who is familiar with hot-rodded 12-valves. Performance On the dyno, we finally got a chance to see what kind of numbers our shmedium-sized 69mm could put out. For the sake of consistency we dynoed at Brown’s Diesel in Riverdale, California–the same place we had made 390rwhp with our stock HX35. The difference would now be way more air, and a lot higher boost, at least that’s what we hoped. As soon as we took our first test drive, we knew there was a big difference. The truck now would light up the tires on a second-gear roll, and while boost was a little slower to roll in, the turbo still built boost at 1,900rpm, and was at peak boost by 2,500rpm. We rigged up a boost gauge, and our tests confirmed a huge increase, with 52psi up from 38psi. With that boost came a huge power increase, as the truck put down a whopping 475rwhp. Remember, this is still with a stock 160hp pump, and only 18 degrees timing. Our real-world performance also improved accordingly, as our quarter mile time went from 14.40 at 94 mph to 13.90 at 98 mph. Wrapping it up Honestly, a power gain of 85hp is more than we could have expected, and we’re luckier in more ways than one. Our head gasket still hasn’t made an early exit (a definite possibility at 50psi) and our factory intercooler boots (another weak link) are still holding strong. The fact that we have basically two major modifications (a 69mm turbo and Schied 5×18 injectors) and made the power we did is a testament to the fact that the old Cummins-powered Dodges may have a chip in the performance game after all. Stay tuned for more! We had already ditched the stock airbox for a homemade setup from Jeg’s and parts store pieces and parts. A simple 45-degree bend into a 9-inch filter barely fit (we closed the hood on it a few times) but we had enough airflow for 700hp. Even on the stock turbo it picked up 17hp over the factory airbox, coming in at an even 390rwhp. Before we put on our new turbocharger, we first had to remove the factory WHC1 turbo. Our tech Rex Gully from Allied Diesel started by removing the oil drain and feed line from the stock turbo. The downpipe was another simple task: with one V-band it was off the turbo and out of the way. On the intake side, we’d be keeping this 45 degree cast connector, so we disconnected in straight from the turbocharger. Up next was the manifold. Since we were going to a T4 manifold setup (stock is a T3 flange) our exhaust manifold also had to be removed. Often these bolts are practically welded on, but in our case it wasn’t too bad. With everything disconnected the turbocharger and manifold were removed in one giant piece from the truck. You can tell how much visibly larger our new 4-inch downpipe is compared to the factory 3-inch piece. This would allow our new much larger 69mm turbo to both inhale and exhale without much restriction. The factory oil drain would work with our new turbo, but first it was cleaned with a Scotchbrite pad while making sure to keep any debris out of the oil drain. Our new 69mm SX-E turbocharger from Industrial Injection has a much larger compressor wheel than the stock (56mm) WHC1 turbo, and is also reliable to a much higher boost pressure, leading it to be capable of nearly twice the power as the original. The exhaust side of our SX-E is similarly large, and was machined by Industrial for an HX40 flange downpipe so that the turbo would be a true drop-in. We had to fit this adapter into the feed line for the turbocharger, and used Teflon tape so there was no possibility of leakage. Instead of bolts, our new T4 Stainless Diesel manifold was affixed to the engine block with studs, which are easier to get to and remove. When installing the studs into the block Gully used a liberal amount of anti-seize, so they would come out if we ever needed them to do so. Rather than eyeballing or guessing, Gully used an angle meter than would tell us exactly how the compressor housing on the new turbo needed to be clocked in order to line up correctly with the intake piping. Clocking the turbocharger is as easy as loosening all the bolts to the compressor housing. It then can be rotated in whatever direction you need for everything to work. Our new setup was installed by Gully in one piece, just like the old manifold and turbo. The studs made it easy for everything to line up, and everything fit just as it should. The factory oil drain lined up perfectly with our new setup, and is more than large enough to support the S300 turbo. Our factory intake piping lined up just like the Holset we removed, and was as easy as re-attaching a clamp. The 4-inch downpipe clamped right to the back of our turbo, with more than enough room to clear the firewall and frame. Gully made sure to pre-lube the turbocharger, as it starts spinning the second the enginea fires up. Our Dodge is kind of a sleeper, so we actually ran it for a while reduced down to the factory 3-inch exhaust! It didn’t seem to affect power much. Our homemade intake clamped right on to the S300, which looked darn good compared to our stock setup. But would it make more power? We hoped so! When we dynoed the truck we were pleasantly surprised at both the boost and horsepower increases. The truck was up in boost (38psi vs 52psi) and in power (390rwhp to 475rwhp) compared to our stock turbo. While it came on about 500rpm later, we could still shift early and drag the engine down to 2000rpm without the truck falling off boost or surging. Overall we were very happy with our new setup! SOURCES Allied Diesel Performance 707.836.4433 Allieddieselperformance.com Brown’s Diesel 559.867.1111 brownsdiesel.com Industrial Injection 800.955.0476 Industrialinjection.com Total 0 Shares Share 0 Tweet 0 Pin it 0 Share 0
